SFBD square with a Cummins and custom chassis
leedogg avatar
leedogg
+1y
nice score for 1300 bucks! Looking forward to the build.
bagged dually avatar
bagged dually
+1y
Well I haven't had much time to do anything ,but try to gather parts with all of the holiday festivities. I was wondering while digging through some junk yards if you guys had any recommendations on what type of vehicle I should look for some bucket seats in?? I've decided to run 4 buckets and a huge 1 piece custom console that goes the length of the cab. The seats just need to abundant in most junkyard, and not cost me 500 bucks a seat. Any ideas??
racedaddy avatar
racedaddy
+1y
I have 97 Silverado seats in my truck but the 2000 model buckets have the integrated seat belts. There's usally trucks of those years in most junk yards.
bagged dually avatar
bagged dually
+1y
Damn I want to work on my truck, but my girls a teacher and since her and our son are home for over 2 weeks I just can't seem to slide away for very long. I did manage to get most of my steel bought. I got out for a while today and got all of the AC and emissions junk stripped. Hopefully tomorrow I can get to the junkyard and look for a York 210. I've decided to go that route and just use my electric compressor I already have for an on board back up. Hopefully i can get the truck to my brother garage in the next few days and really tear into it.
bagged dually avatar
bagged dually
+1y

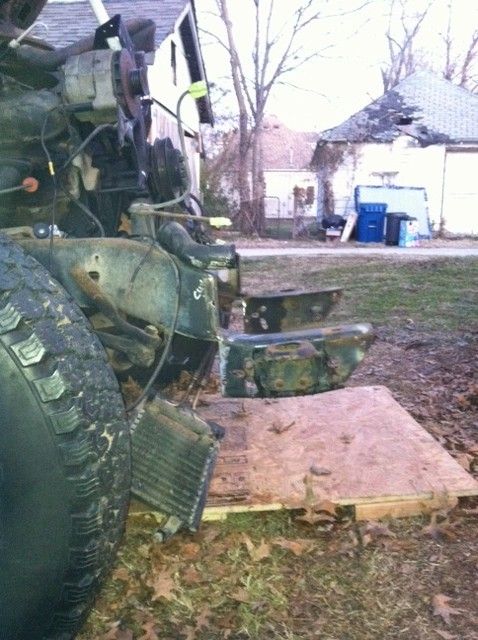

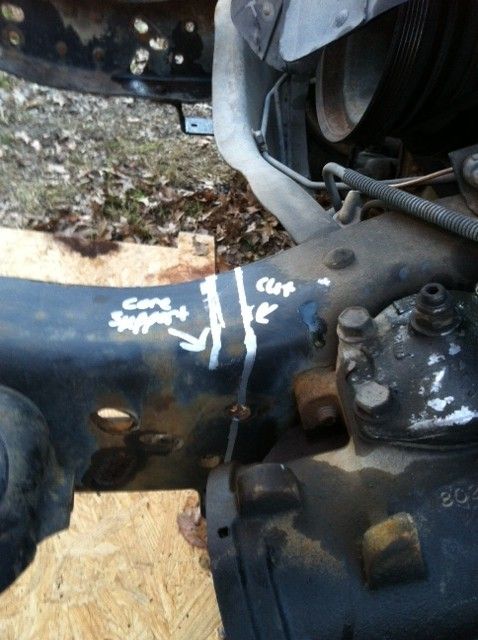

I managed to get at least a couple of hours to work on the truck today. I don't have many tools where I'm living now, but I had enough to get the frame horns dropped and into to place well enough till it gets to my brothers shop to finish them up. I wasn't about to start trying to finish weld them with a Gas less MIG welder. It's good enough to get things tacked up for now though. I'll be so glad when I get moved and can get my tools back in my own garage, and stop having to work outside...
post photo post photo post photo
bagged dually avatar
bagged dually
+1y
Anyone have an old York 209 or 210?? I don't care if it need rebuilt or how rough it is. As long as it's complete with a V drive pulley and Air gap. Let me know if you have one or know of one in a junk yard in your area that I could buy over the phone and have shipped. I can't find one in any junk yard around here, and I'm way to poor for a new one.
bagged dually avatar
bagged dually
+1y

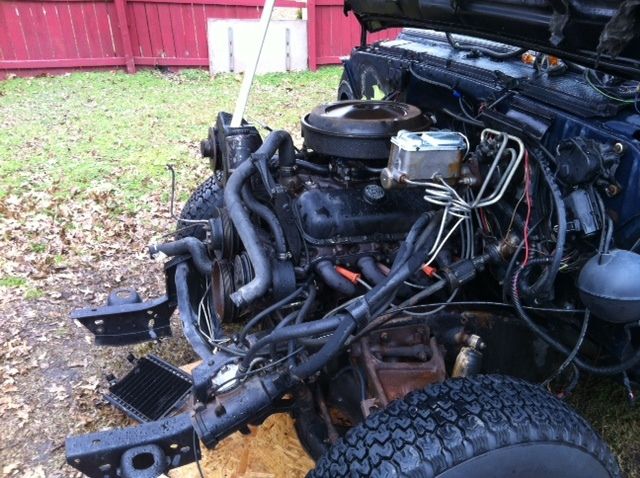

I got all of my AC/Heater box off today and finally got ALL of the electric and vacuum stuff for the HVAC stuff taken out. I picked up the sheet metal to start shaving the holes left in the firewall tomorrow. I also went crazy with the pressure washer today. Turns out the front section is pretty clean once all of the grease is blown off.
After a lot of thought and discussion I ordered 2"x4"x1/4" wall steel to weld in the frame with the body drop. i had thought about doing 3x3 but I think 2x4 is the way to go.
Tomorrow I have a guy I work with that's supposed to bring me by an old behind dash AC unit out of one of his old hot rods. I'll post more pictures as soon as I get my firewall shaved tomorrow and get the new AC unit.
post photo
leedogg avatar
leedogg
+1y
Awesome Start! Looking forward to seeing more!
bagged dually avatar
bagged dually
+1y

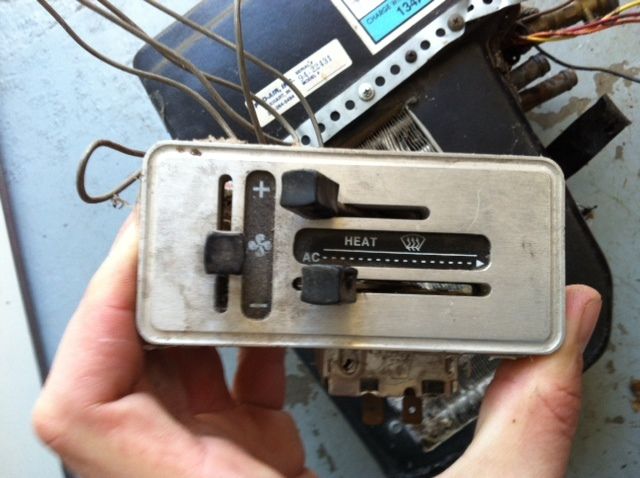

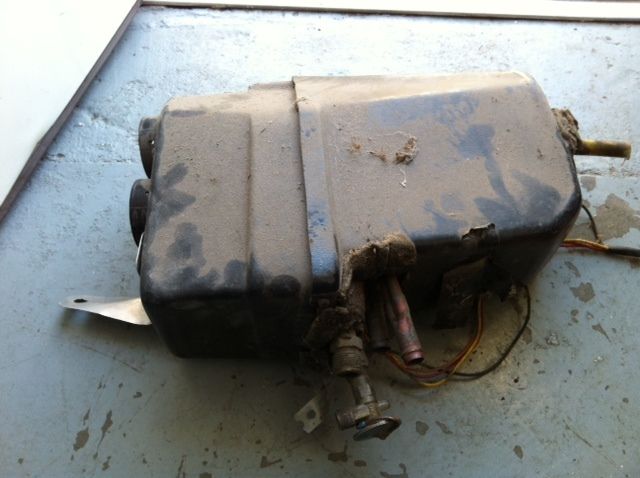

Well my buddy from work brought me my new AC/Heater setup today. it's been sitting in his garage for a few years so it's covered in dust and dirt, but should work well non the less. He also brought me a Billet controller to run it. His estimation was that it was about 5-10 years old but it still works great he said. Fits behind my dash perfectly, and the best part is I only have 50 bucks in all of it.
post photo post photo
snookums avatar
snookums
+1y
Trucks looking good. I have an 82' the exact same color. Keep up the good work and try to keep ahead of me so I can use all of your good ideas
