Suicide Door Project

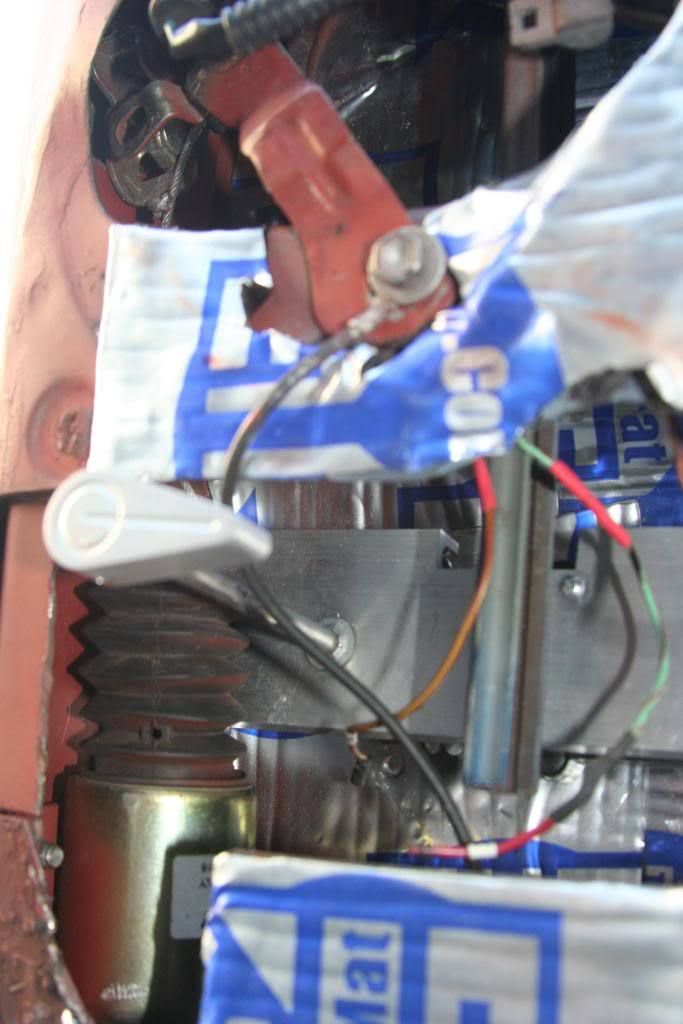

Here you see the safety latch & soleniod position,below the stock latch & to the out side of the door. The soleniod pulls straight down.
Because of the position I had to make a pocket @ the door front to the outside edge for the safety latch pin to enter

Will get finished photo's of this when done today

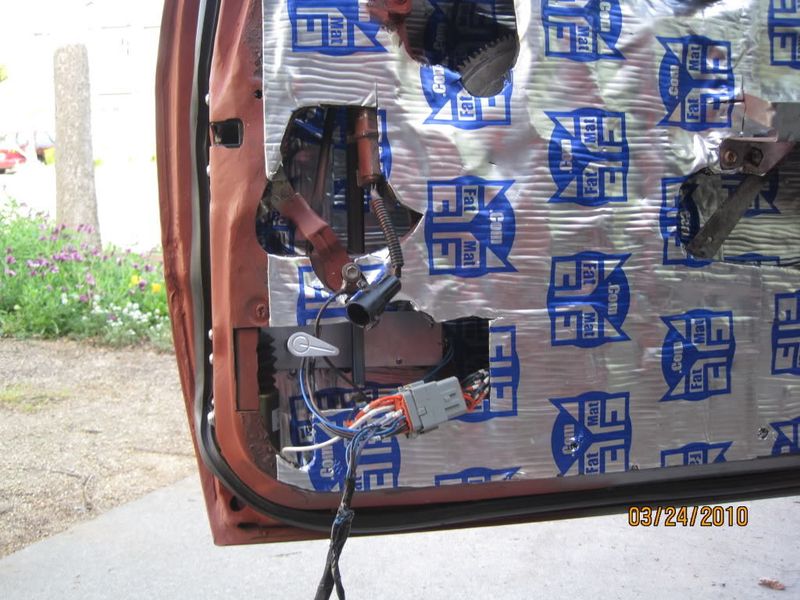

These are the electrical connectors I'm using

I cant really see your cable picture and the other one didnt load. Where did you get the second pulley from as I was planning on using the Lokar kit as well

E-mail me & I'll send photo's to you! The sizing thing WAS NOT WORKING!
Well send Monday as a busy finishing this project & leaving tomorrow afternoon for Danger Zone !

Right on bro I appreciate it, Whats your email addy, Shit just shoot me a pm, and lemme know where you got the other pulley from? Direct from Lokar? looks like I'll need some extras too the way Im looking at setting mine up

its not a good idea to ground your solenoid (or anything) inside the door. I have fixed many intermittent door poppers by running a ground wire inside the door.
