Well I finally got my ACCUAIR E-level touch pad controller and VU4 manifold valve. All i can say is Wow this stuff is very nice. Thanks to Nate at Porterbuilt.

Heres the pictures

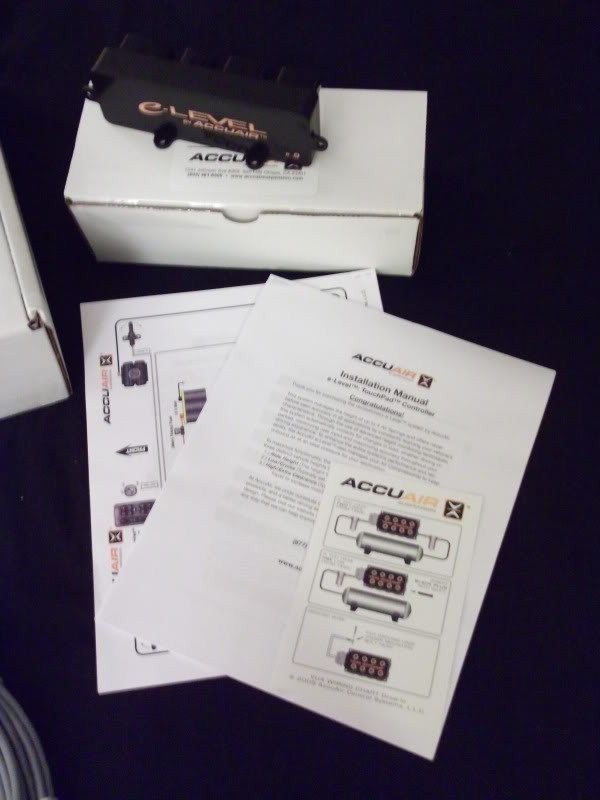

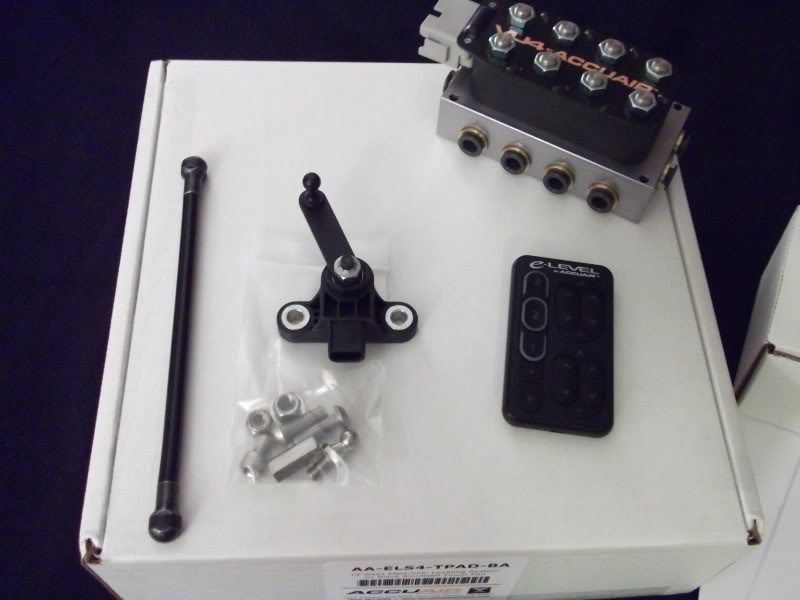

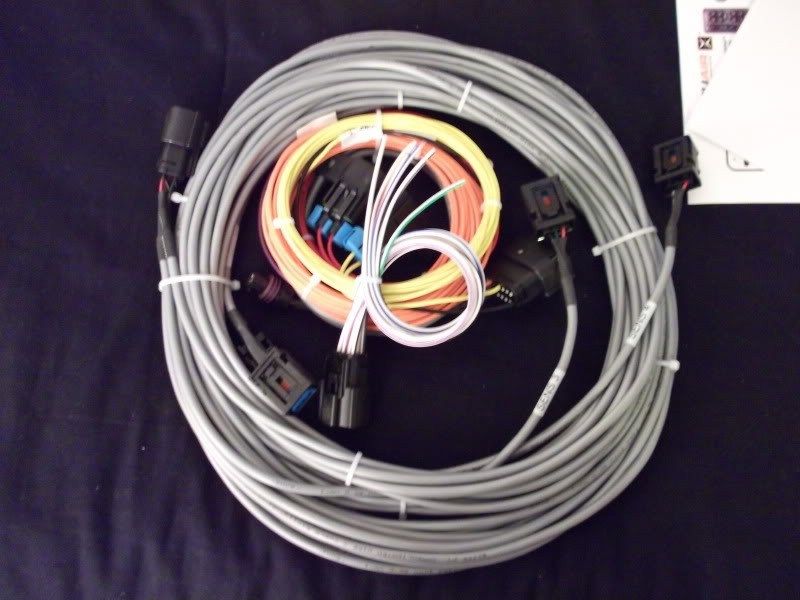

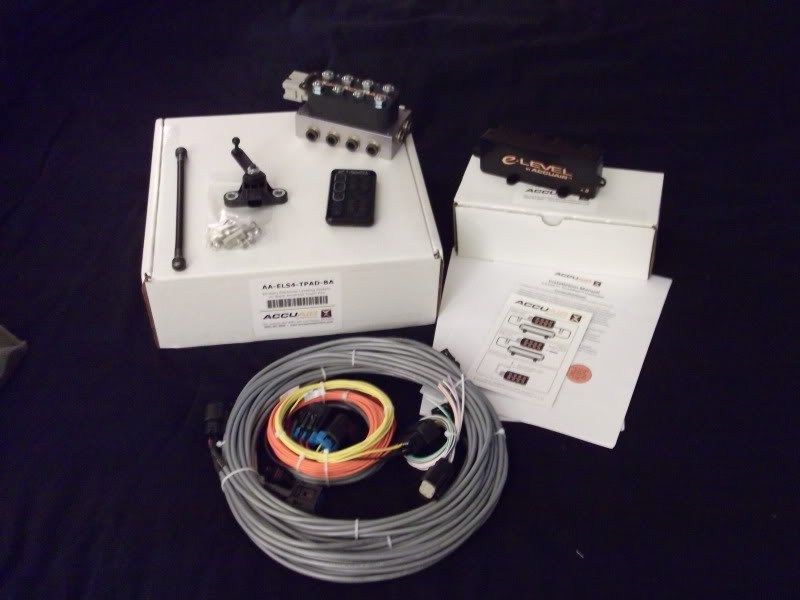

Full color manuals

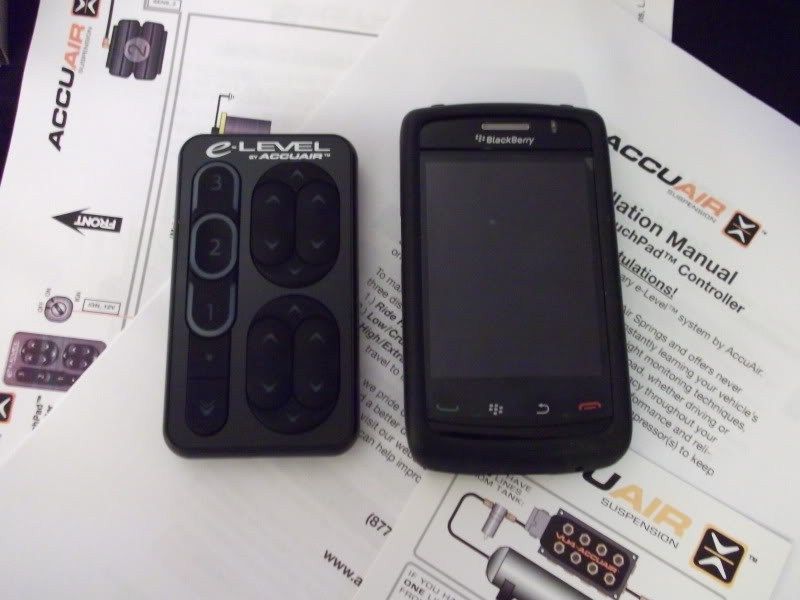

Touch pad comparison with my Blackberry storm



Cant wait to get it installed and ride with the system

Justin
post photo post photo post photo post photo post photo
unusualfabrication's avatar
unusualfabrication
+1y
Keep it up, I look forward to seeing your progress!
Fnlow69's avatar
Fnlow69
+1y
Thanks Chris.

Heres an update...

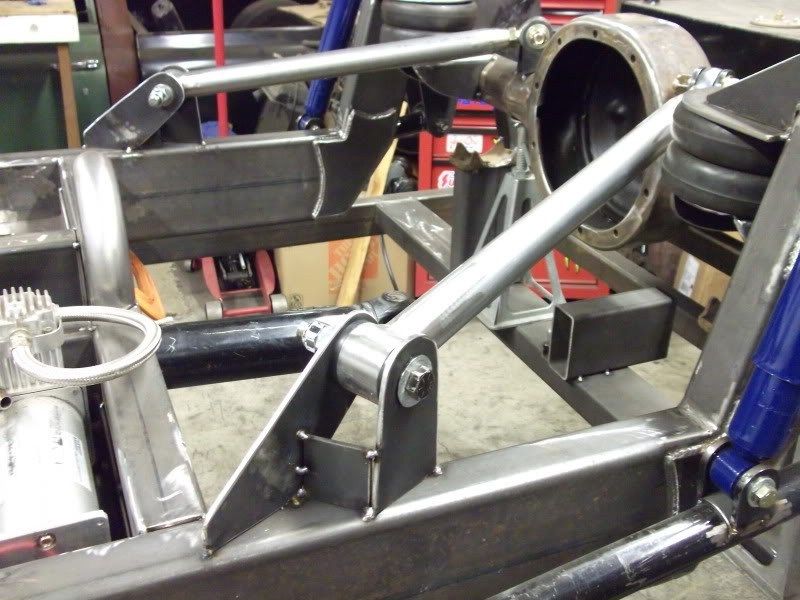

Well I decide to change the upper wishbone to a triangulated four link, didnt like the long front mounting tabs. Also Got the rear shocks mounted to the lower bars. As well as made the mount for the accuair vavle and i've started the computer mount.

Here are the pictures...

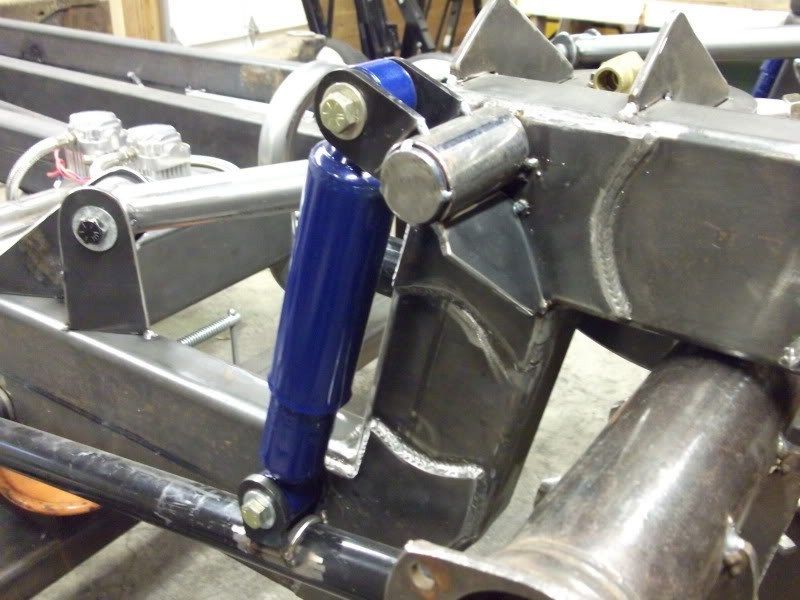

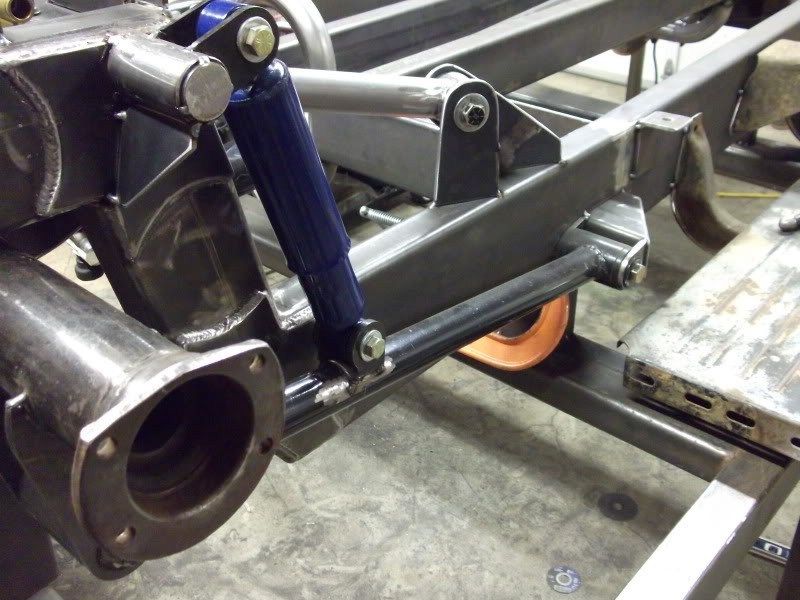

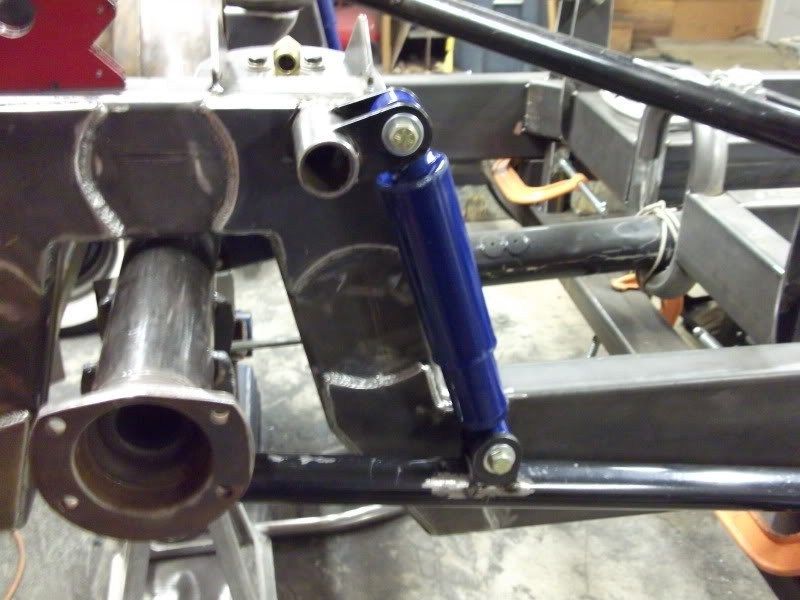

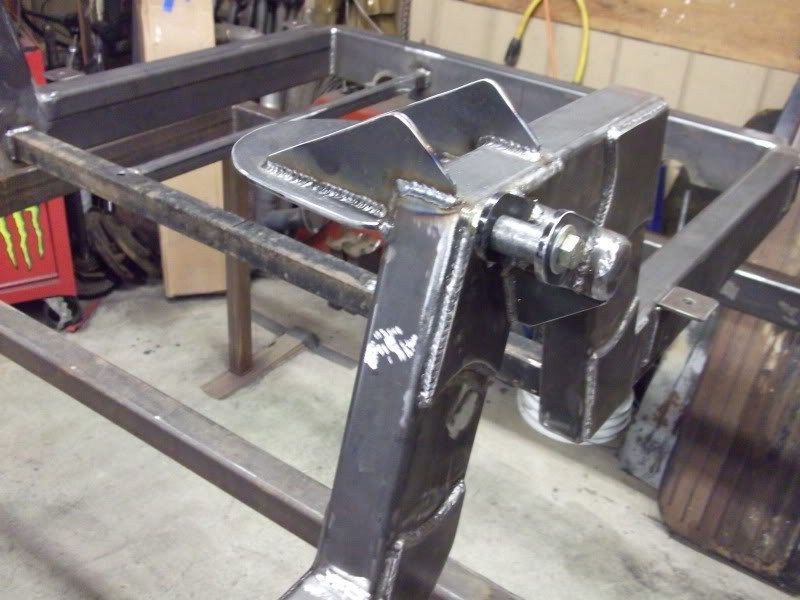

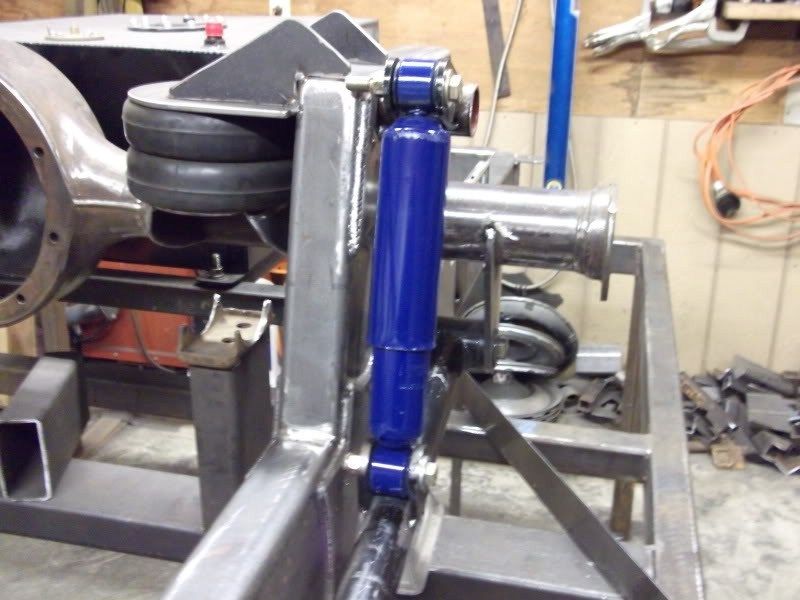

Rear Shocks



Accuair valve mount



Whatcha all think?

Justin
post photo post photo post photo post photo post photo post photo post photo post photo
unusualfabrication's avatar
unusualfabrication
+1y
I'm not really feeling those new front upper bar mounts, they just look outta place with the rest of the fab work.
Fnlow69's avatar
Fnlow69
+1y

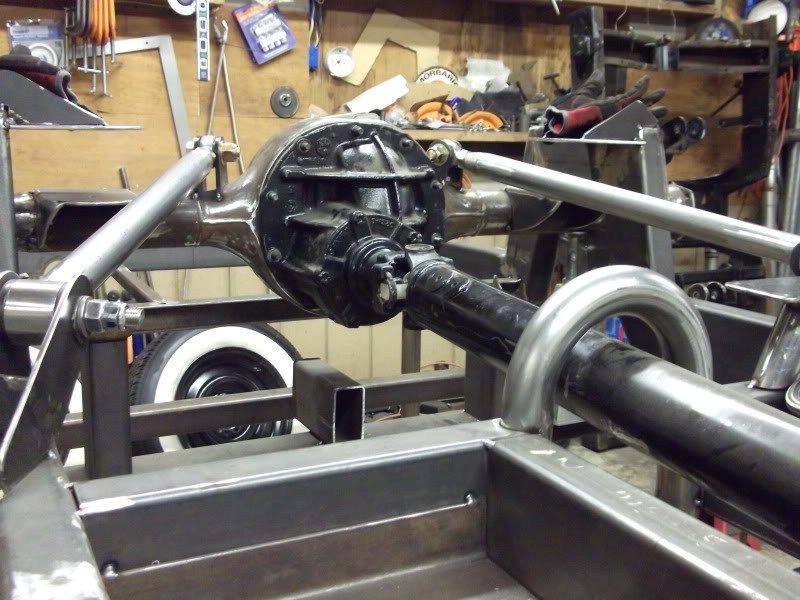

I redid the accuair valve mount cause i didnt care for it resting on the driveline hoop. I also got the lower link end changed out to rod ends, and got the third member in to check driveline clearance.

Heres the pictures.

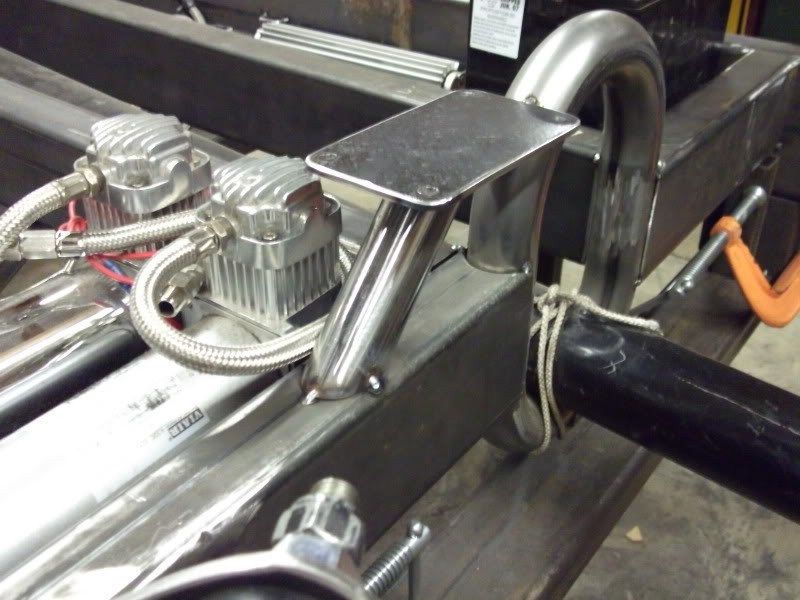

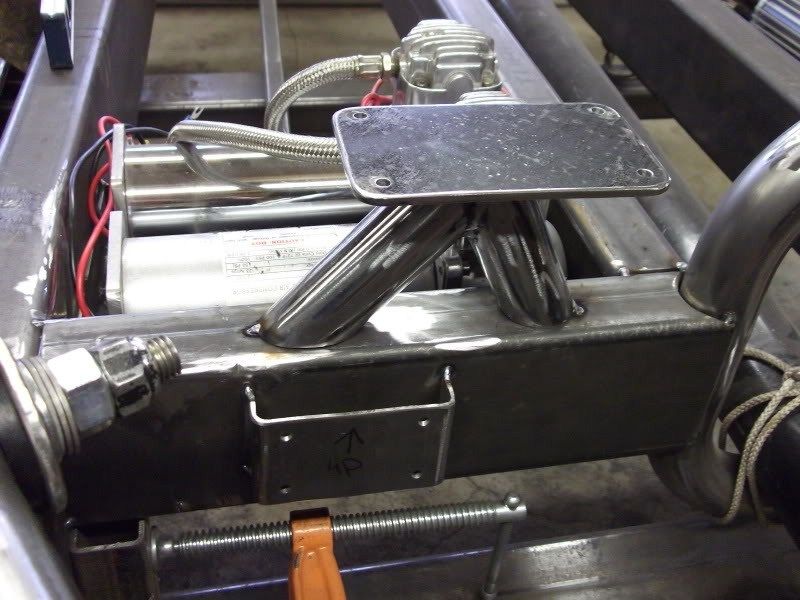

valve mount and computer mount...

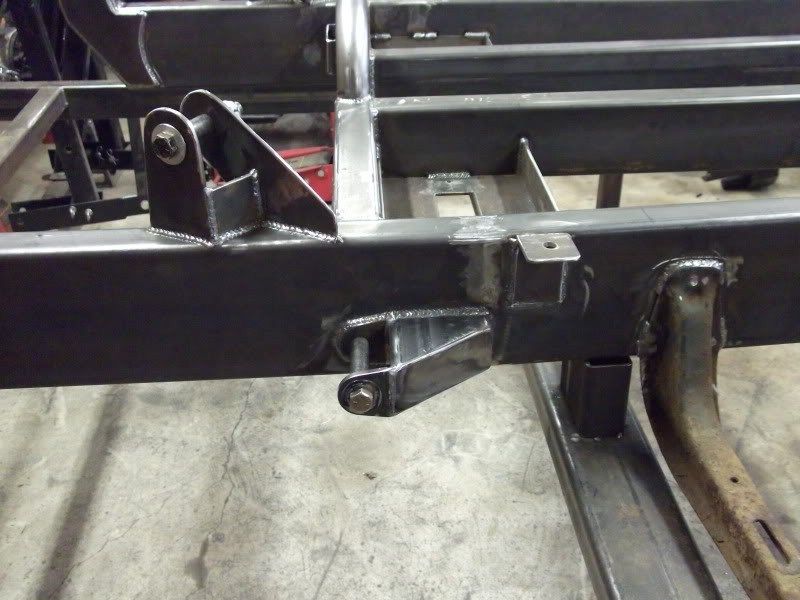

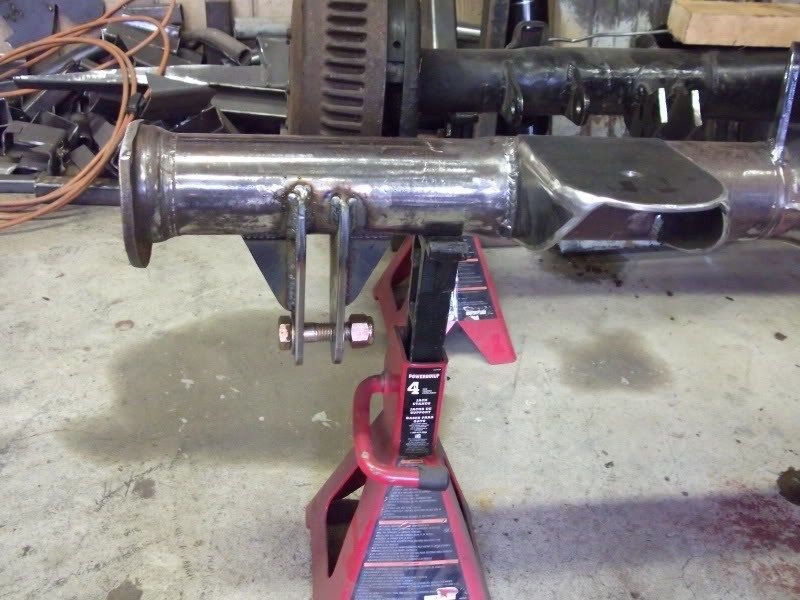

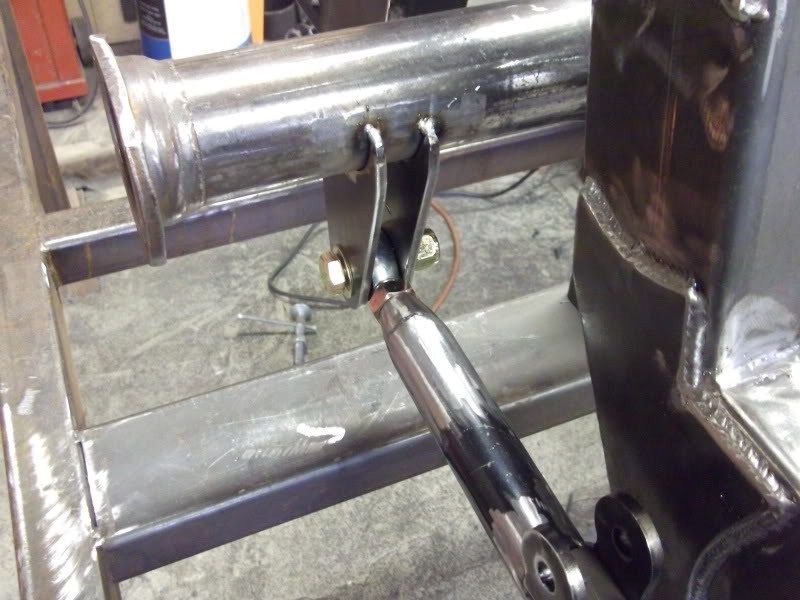

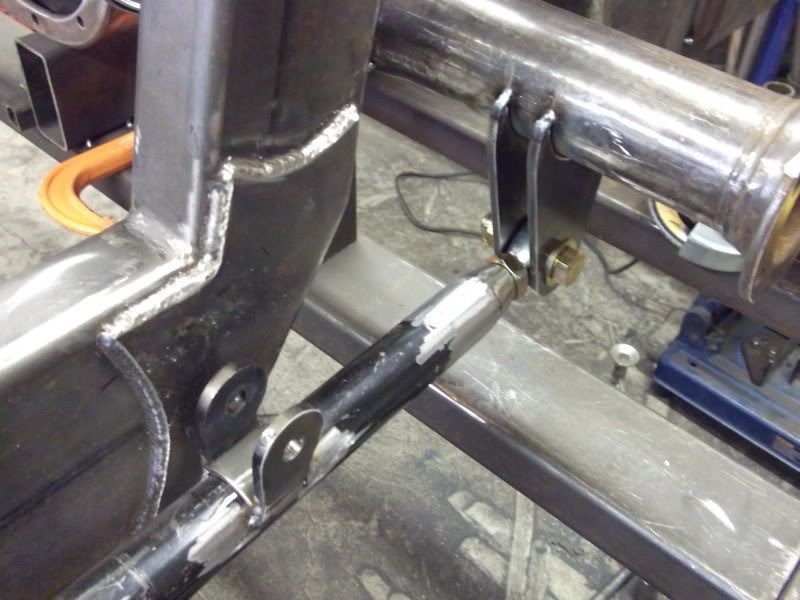

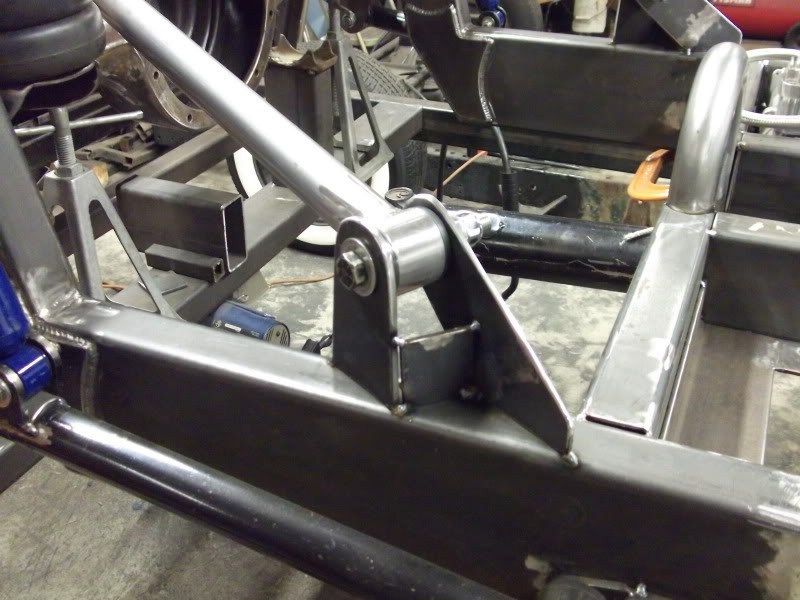

Link ends...

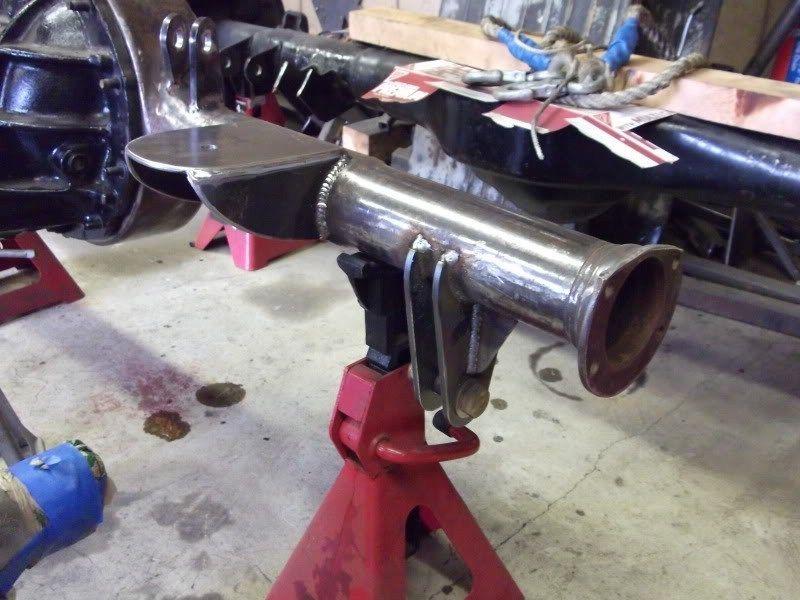

third member in...

post photo post photo post photo post photo
tre5's avatar
tre5
+1y
I would put some spacers on those heims so that it can have some movement. Frame looks good though.
solowkustomz06's avatar
solowkustomz06
+1y
fame looks badass!!!!
Fnlow69's avatar
Fnlow69
+1y

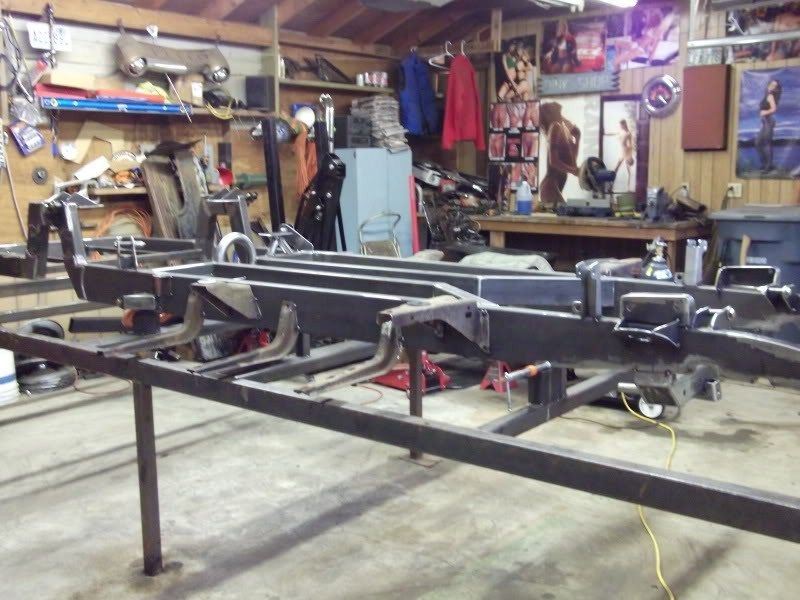

Well heres a good update! I got the chassis mocked up and fully welded. Also got the front frame horns finished. Got the chassis off the table and almost nocked back up. Need to get rear drums and put the rack in upfront and then it will be a roller.

Anyways heres the pictures....

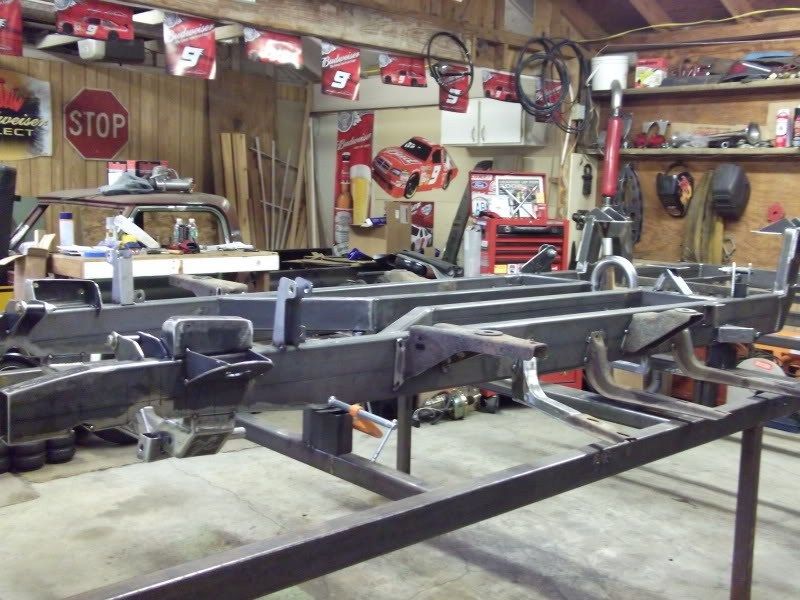

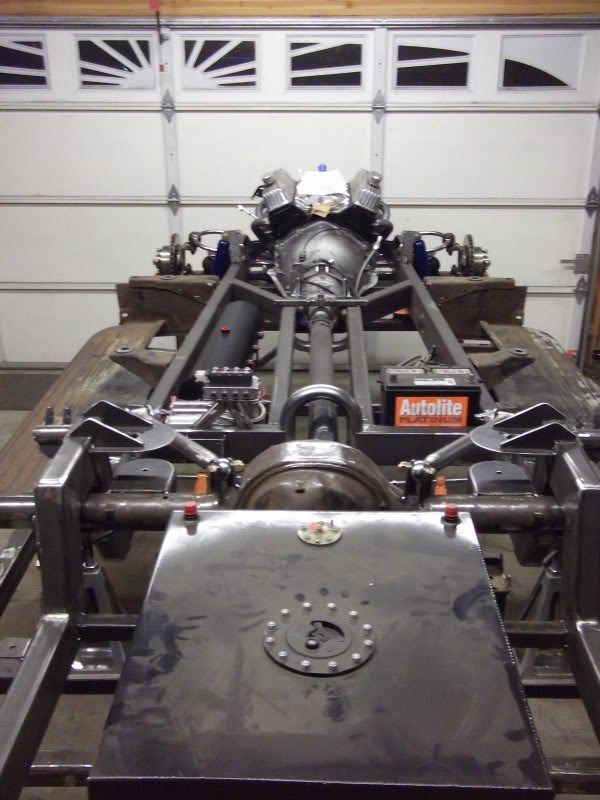

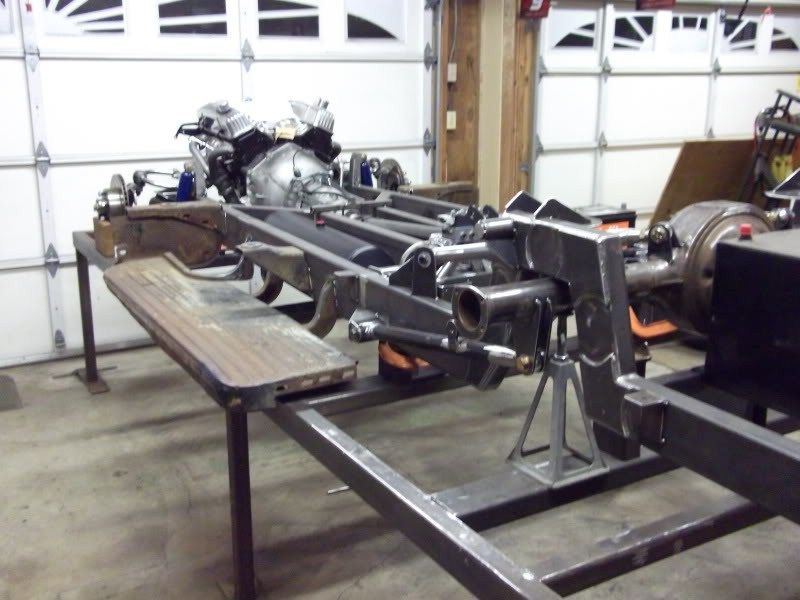

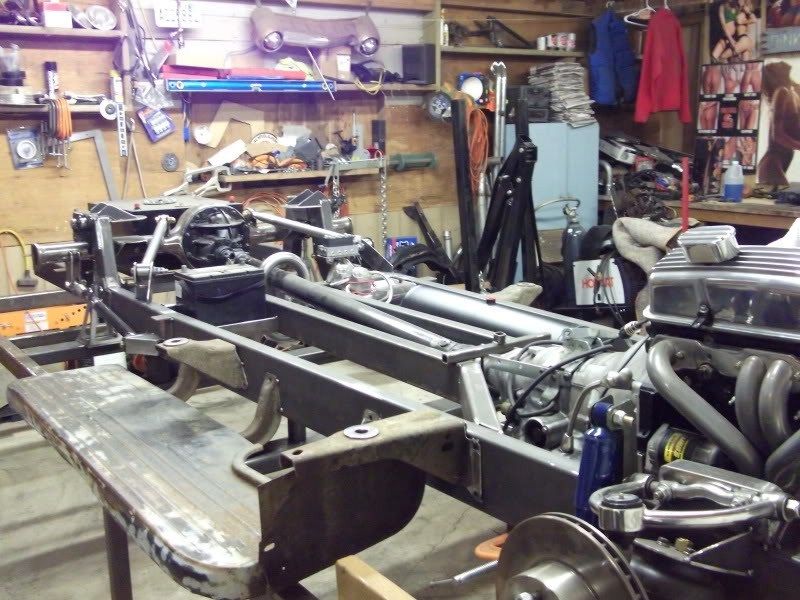

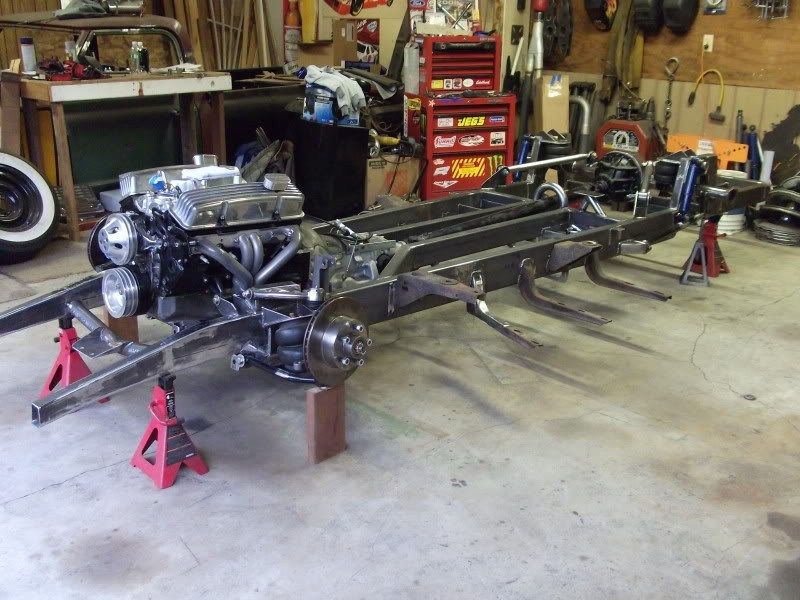

Full mockup

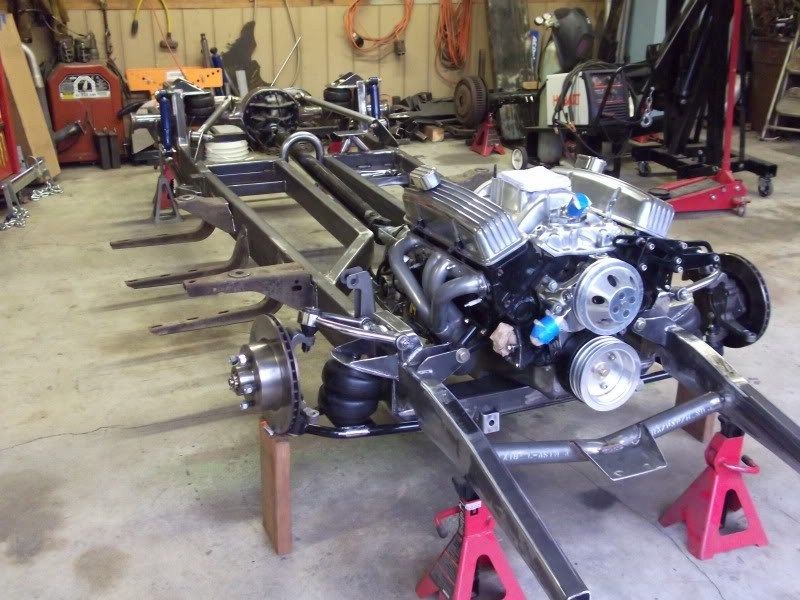

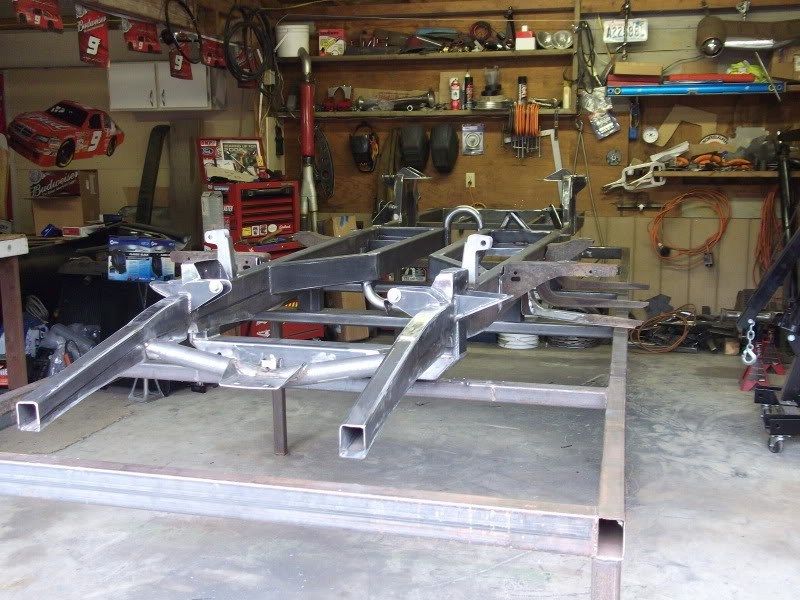

Torn down....

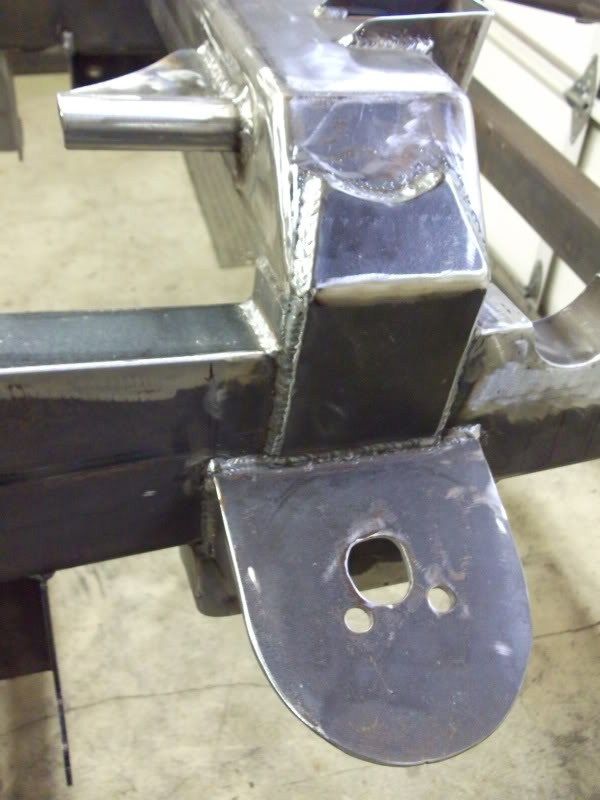

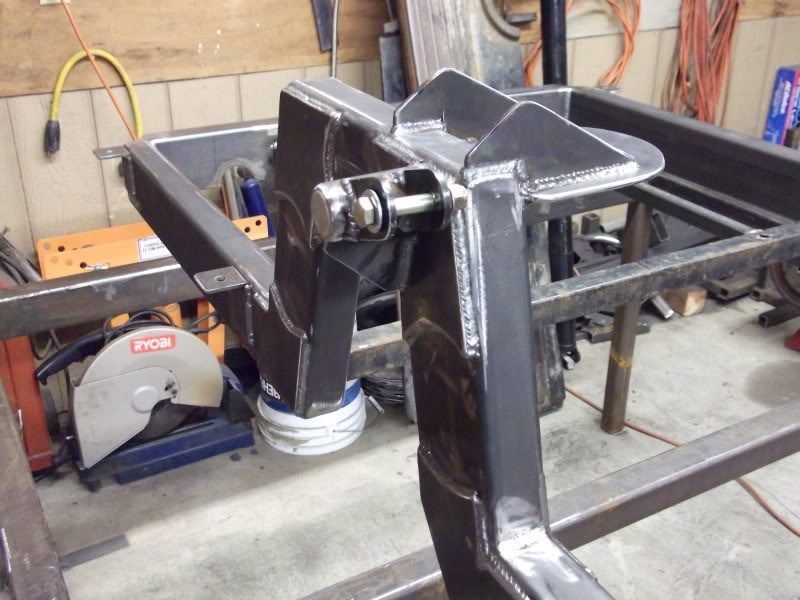

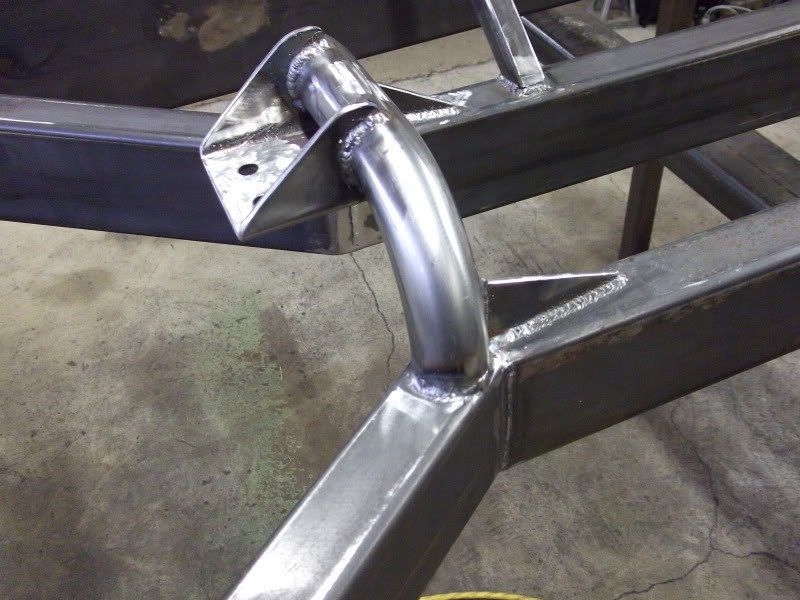

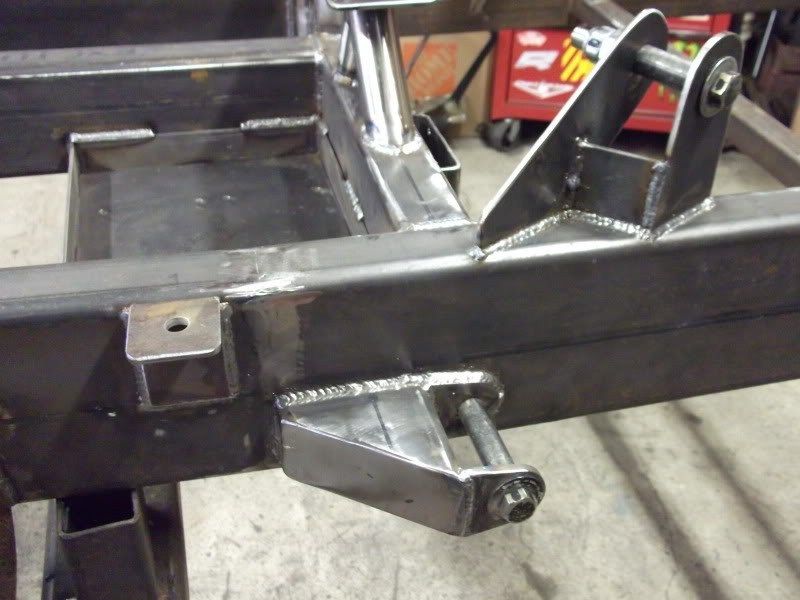

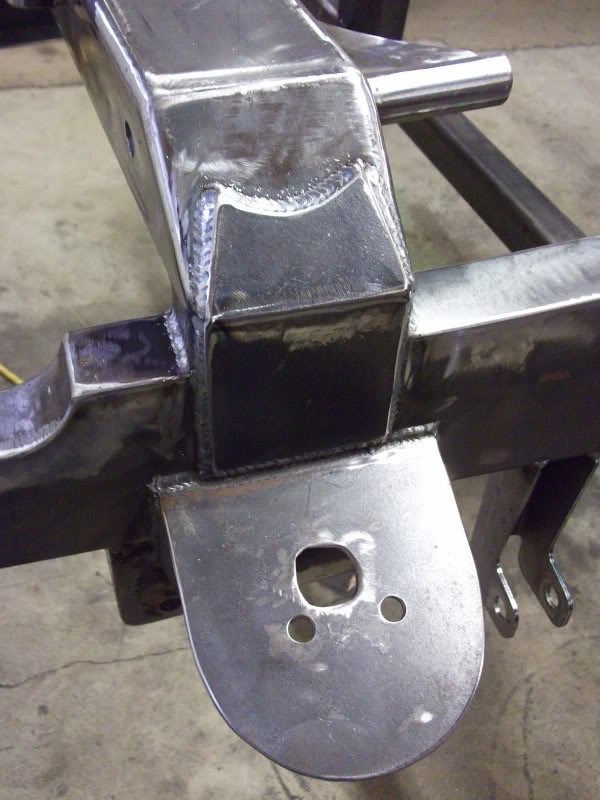

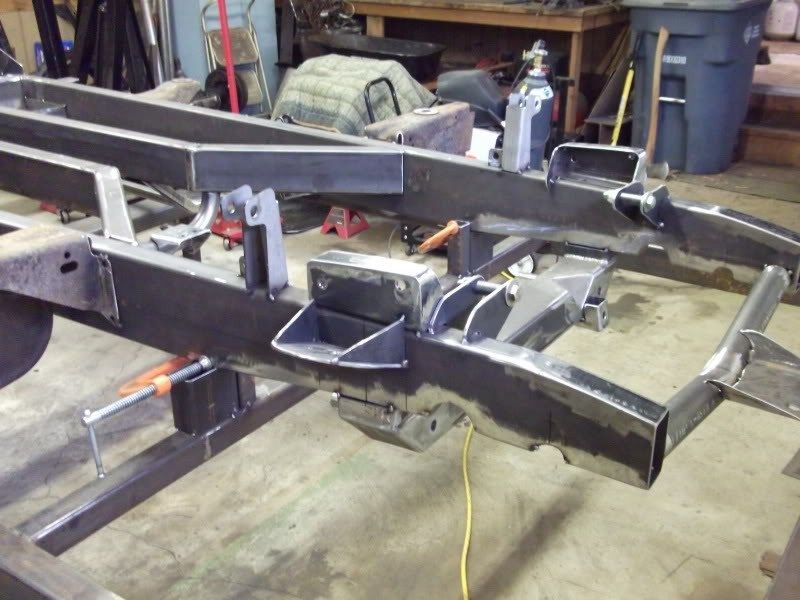

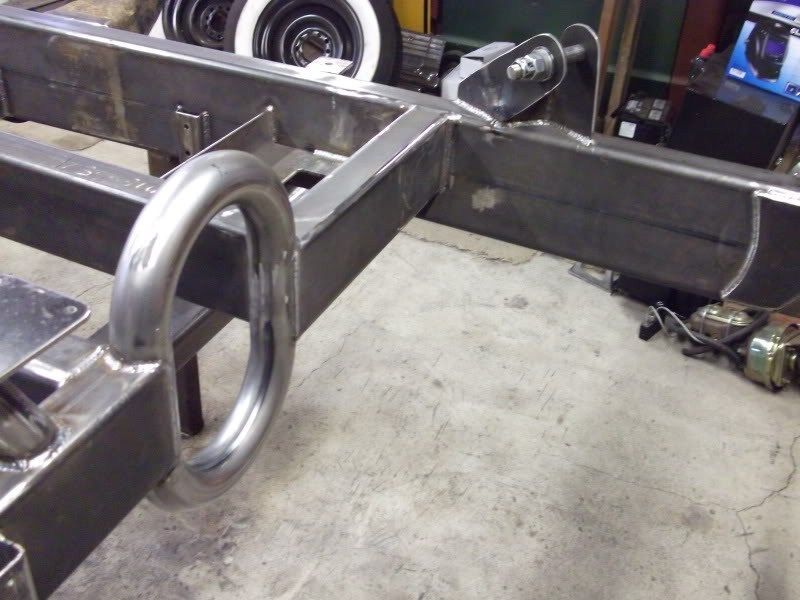

Heres some close up of the gussets and it all welded...(hole have been rounded)

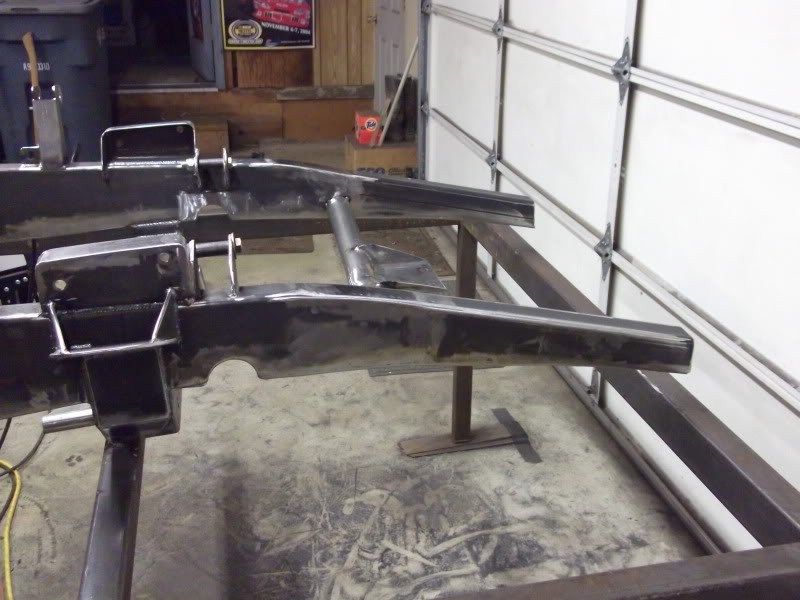

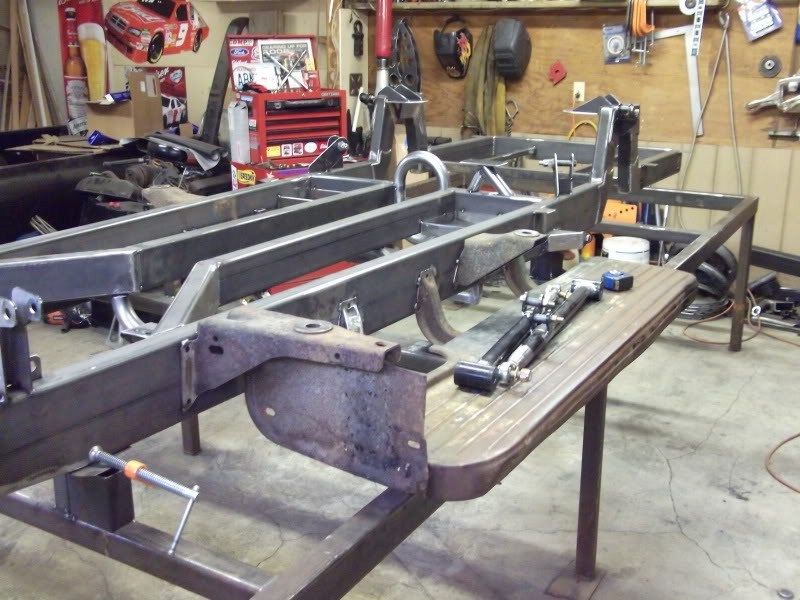

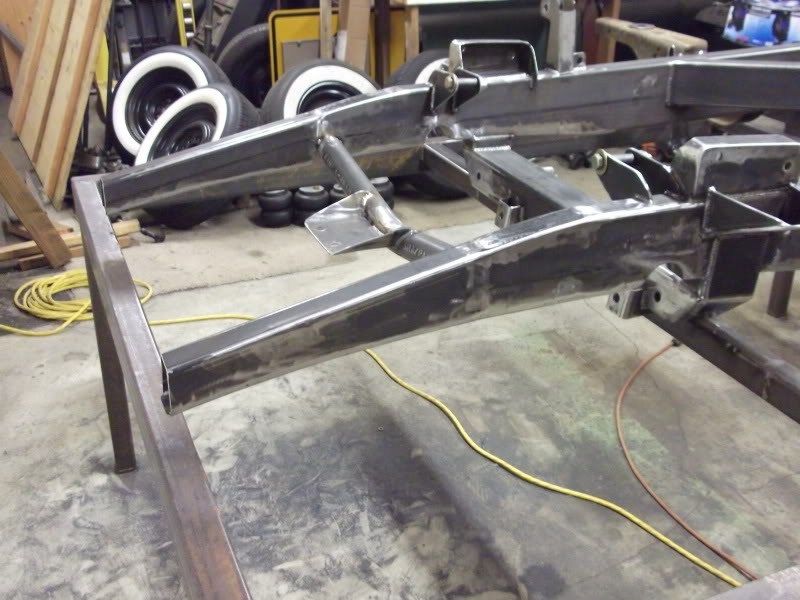

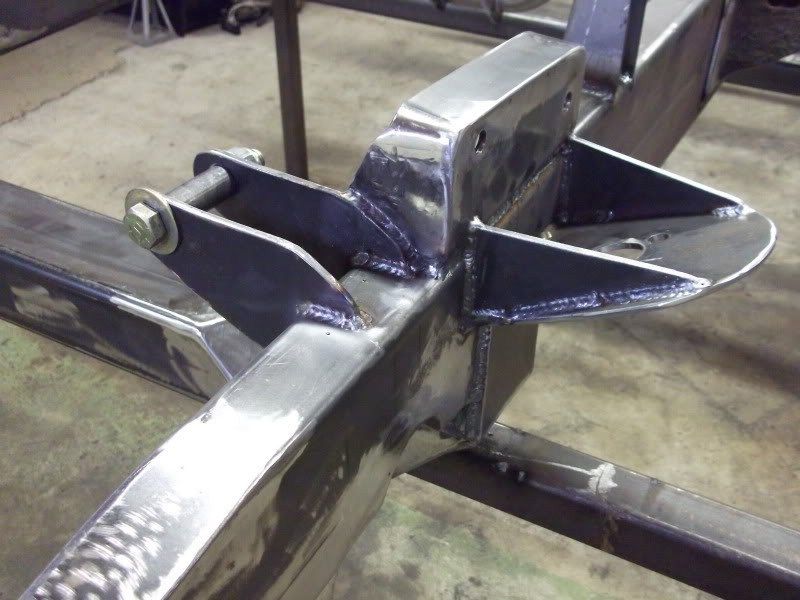

Front frame horns...



What you guys think?

post photo post photo post photo post photo post photo post photo post photo post photo post photo post photo post photo post photo post photo post photo post photo post photo post photo post photo post photo post photo post photo post photo post photo post photo
MF
Master Fabber
+1y
Looks really good bud, keep it up, cant wait to see the body mounted. JR
