[PROJECT] Laidout53 Part II

No, i mean "stock feel" as in the look of it. Sorry for the confusion thirtytwo...

...oh. ha ... carry on then :)

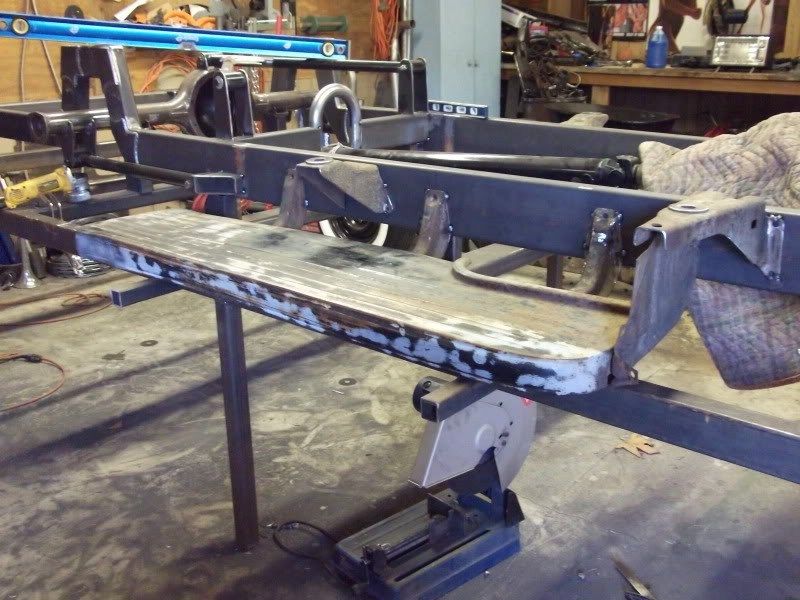

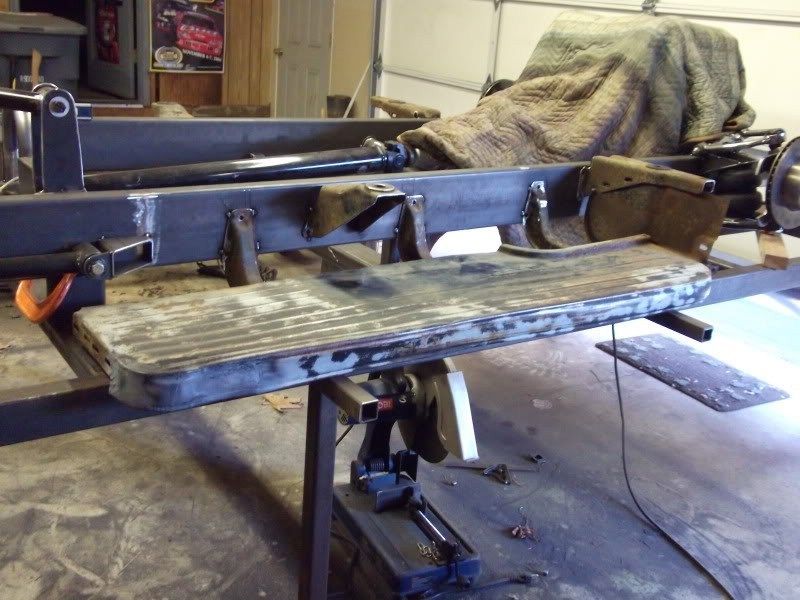

Well Got the running Board mounted, hade to modify the drivers front mount so it wouldnt hit the ground. Also started on the center section of the frame, so i will have to make a trans mount. need to get some more 2"x4" to do the otherside of the center section.

Heres the Pictures....

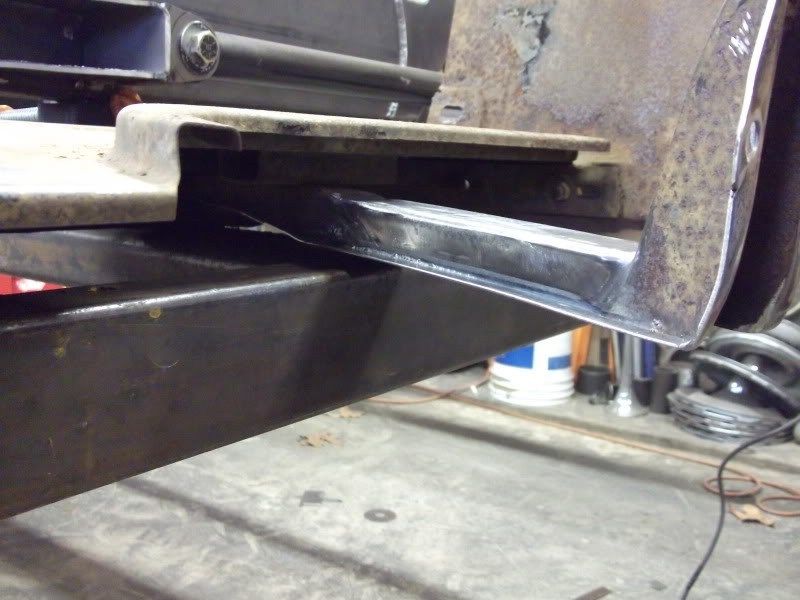

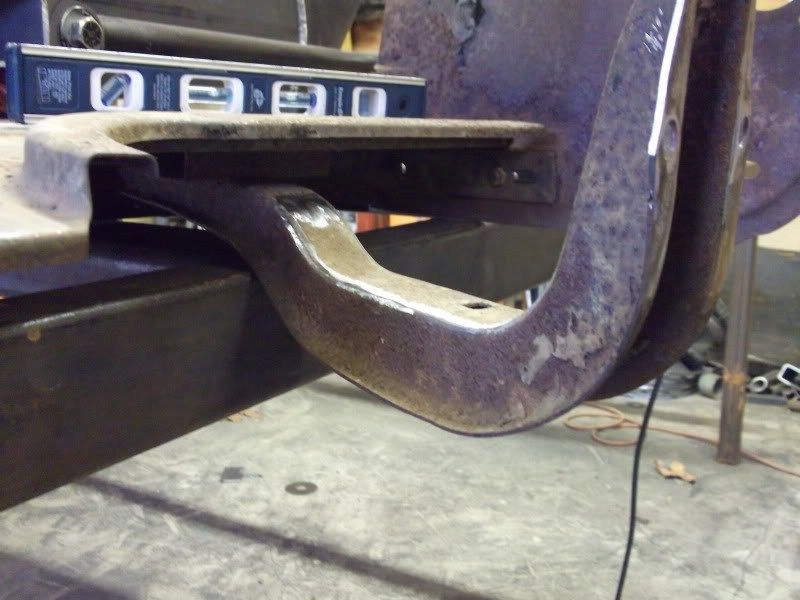

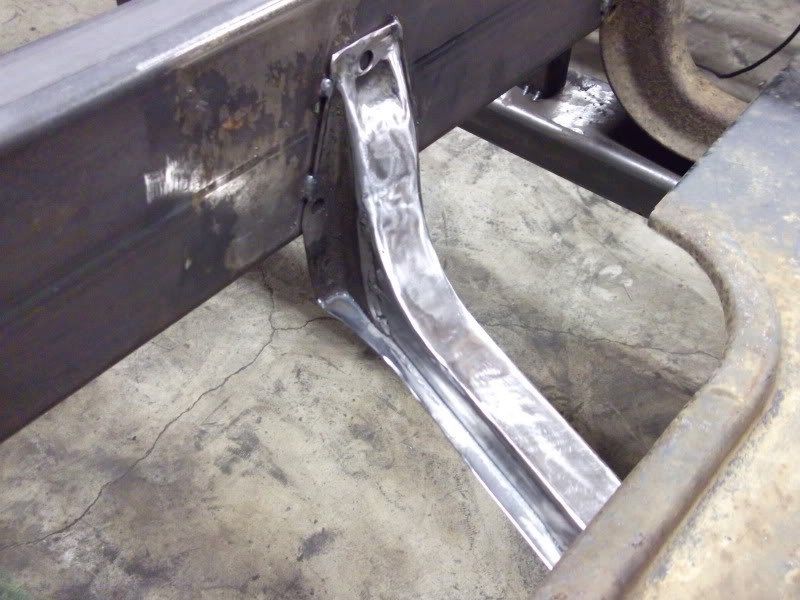

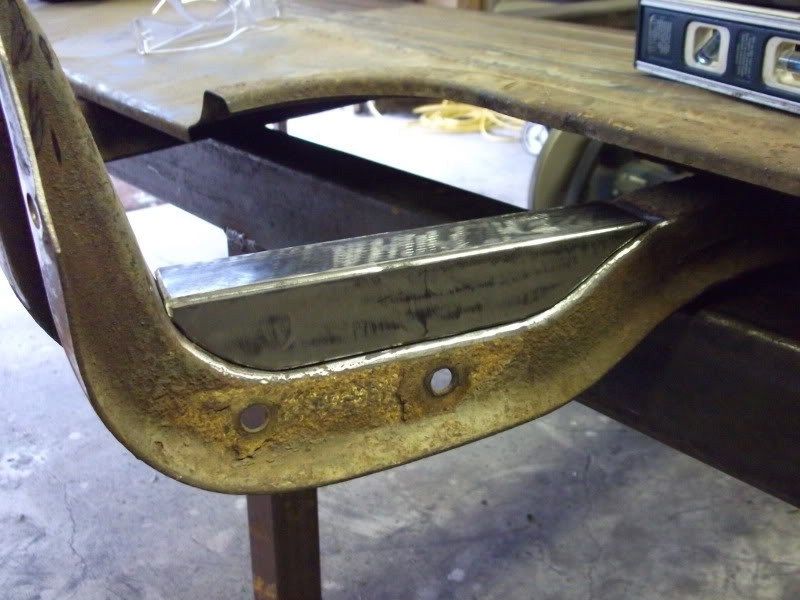

Modifing the mount...



done....

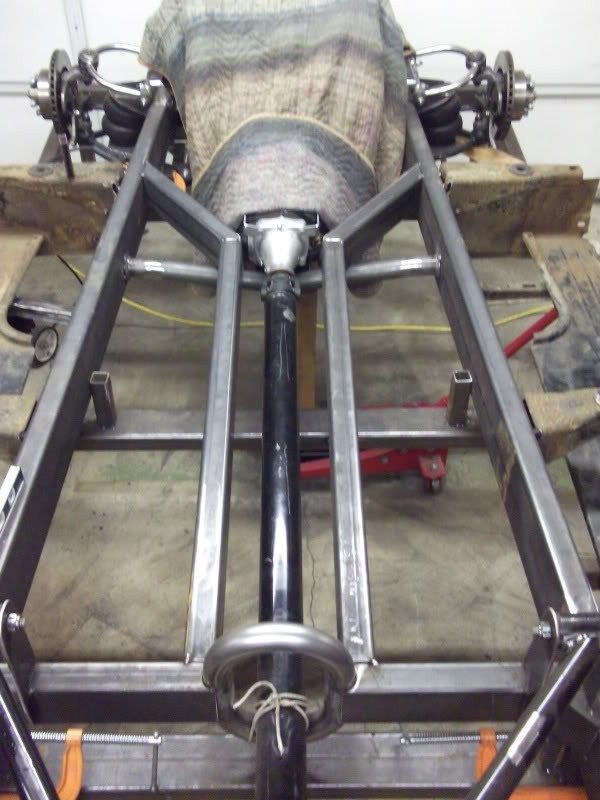

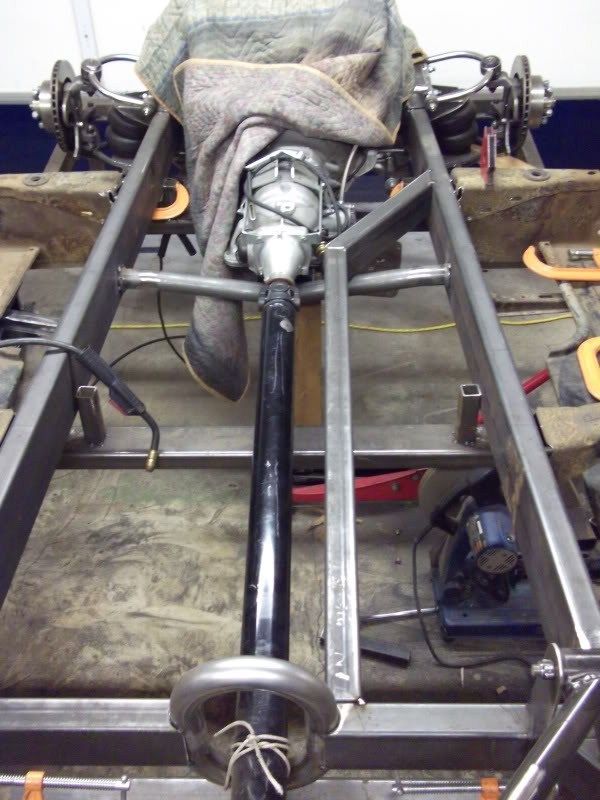

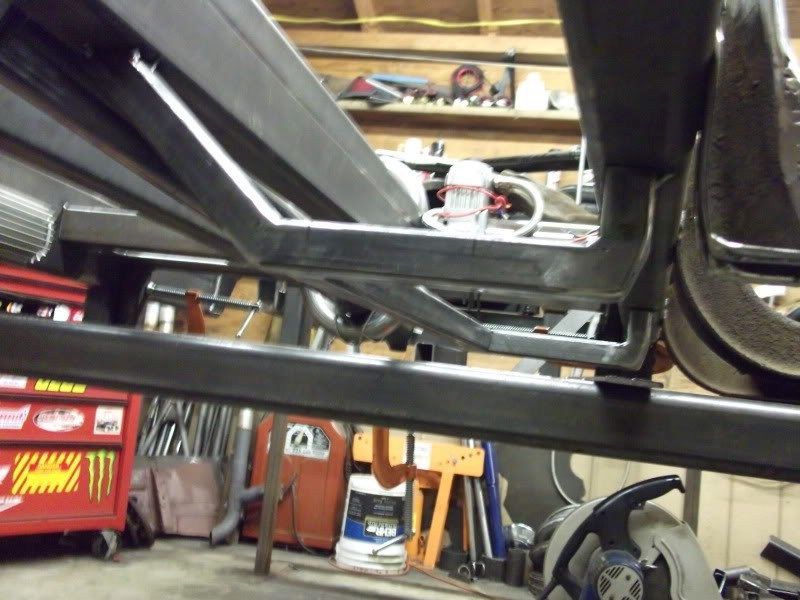

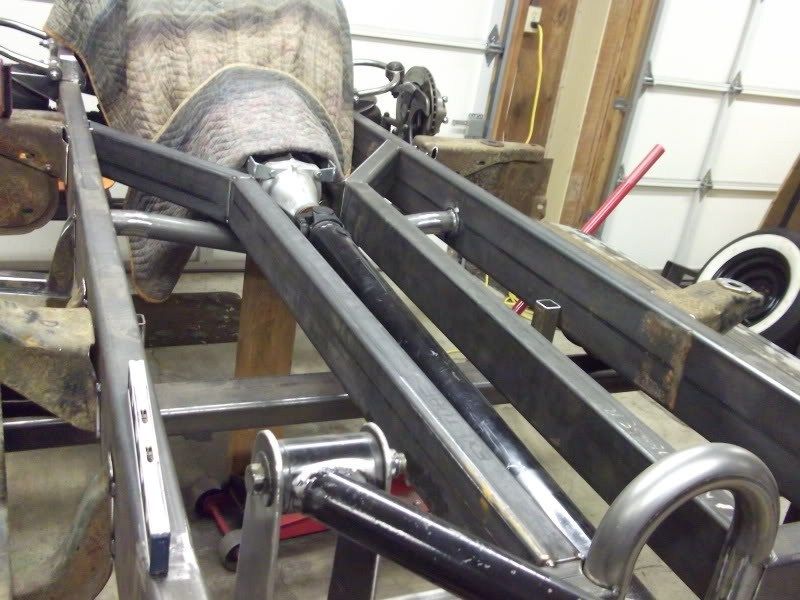

Center section....



What do you guys think?

I think its bad ass, and I need to see more! How much $ do you think you have into this frame's steel?


:XL:

Thanks man, i probably have about $400 in the frame so far....

Looks good Justin!

Thanks Chris.



Well I got the other side of the center section fab tonight. Need to get one more driveline hoop like the rear for the tranny mount and then it will be done and on to mounting the fuel cell...

Well got the the tranny mount made. Got the fuel cell and tranny cooler mounted. Capped the rear of the frame and finnished th front running board mount. Got the rear airbag placement and templates made, got the tank and compressor mounting figured out also. I also pulled the trigger and ordered the Accuair E-level controller :metal: cant wait tell that comes in.

Anyways heres the pictures....

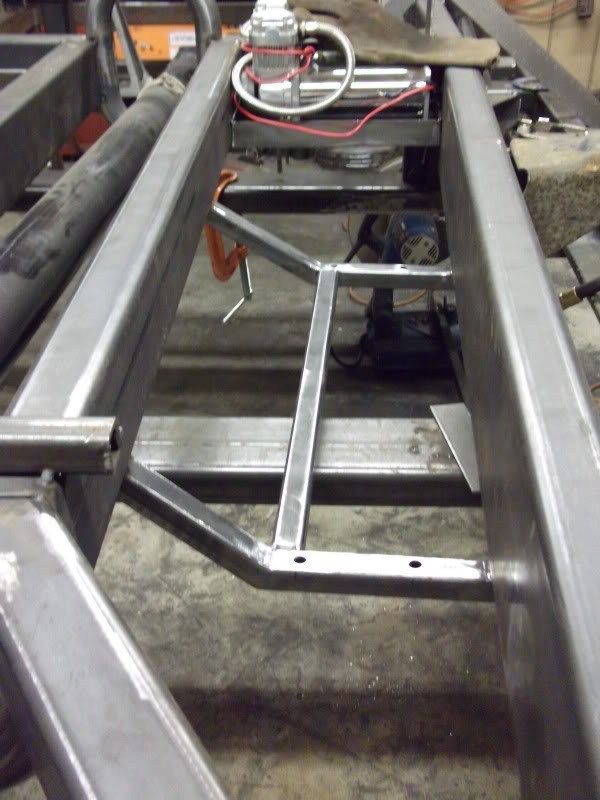

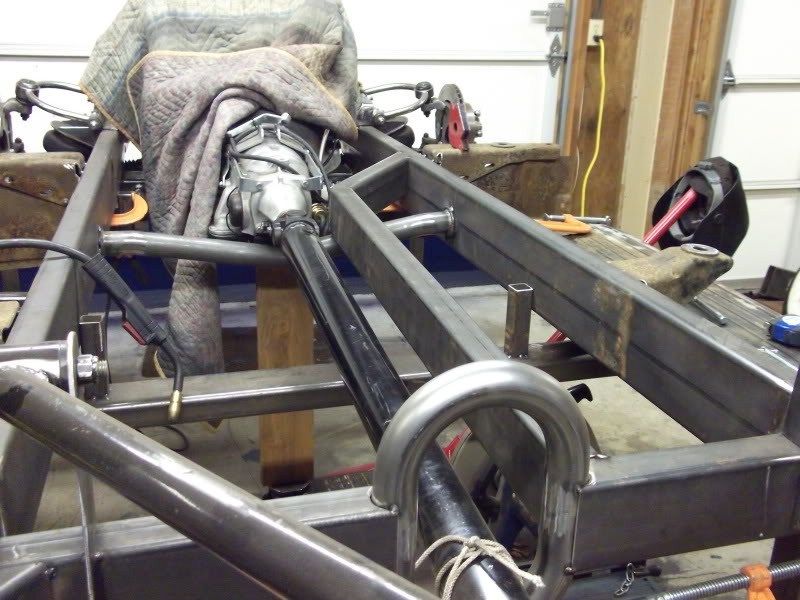

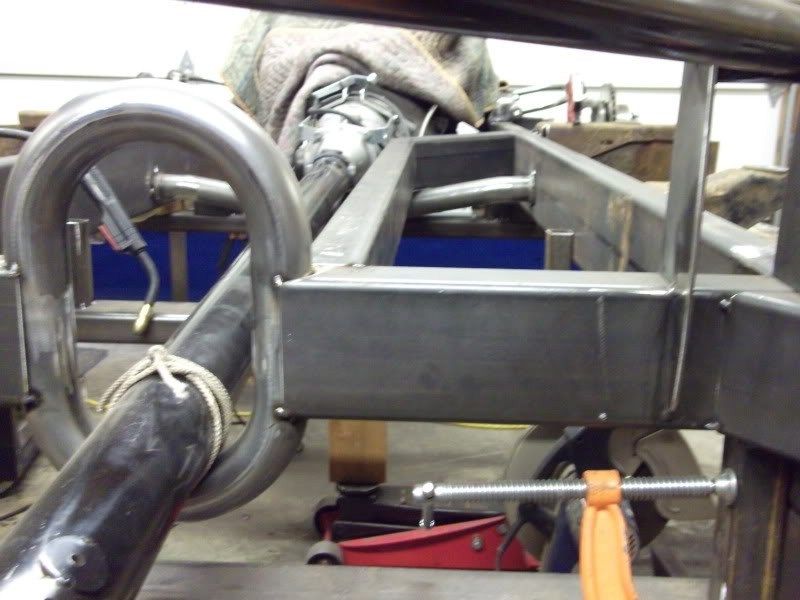

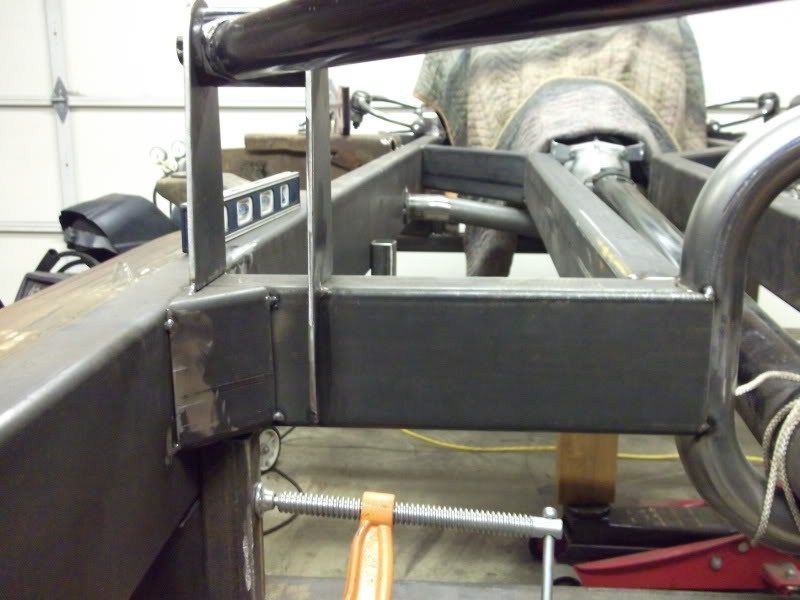

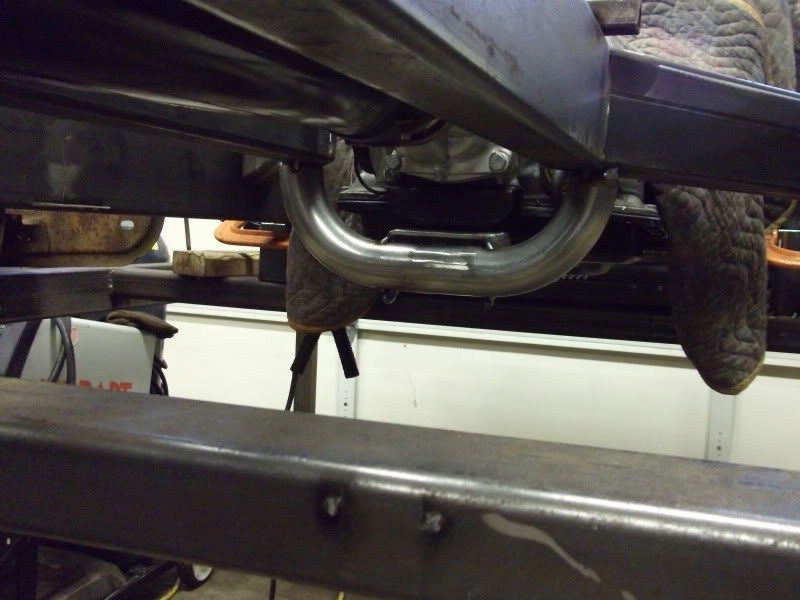

Tranny mount...

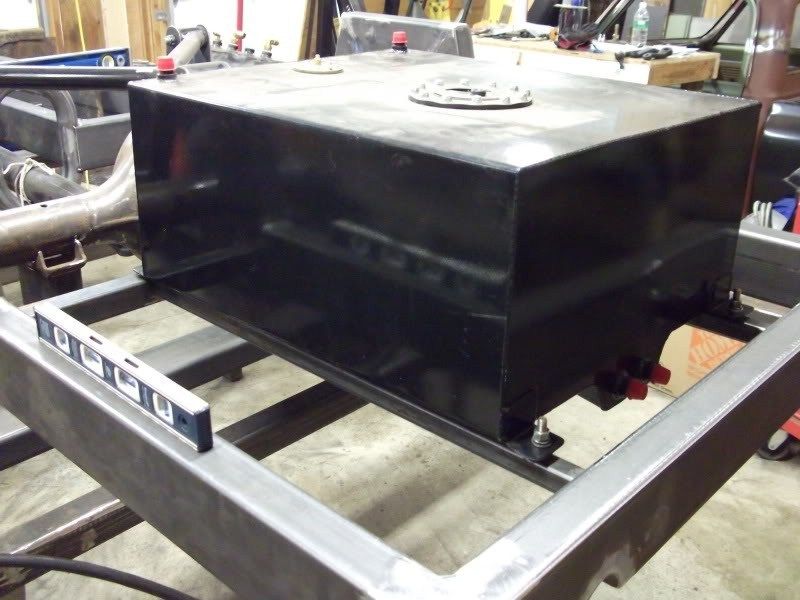

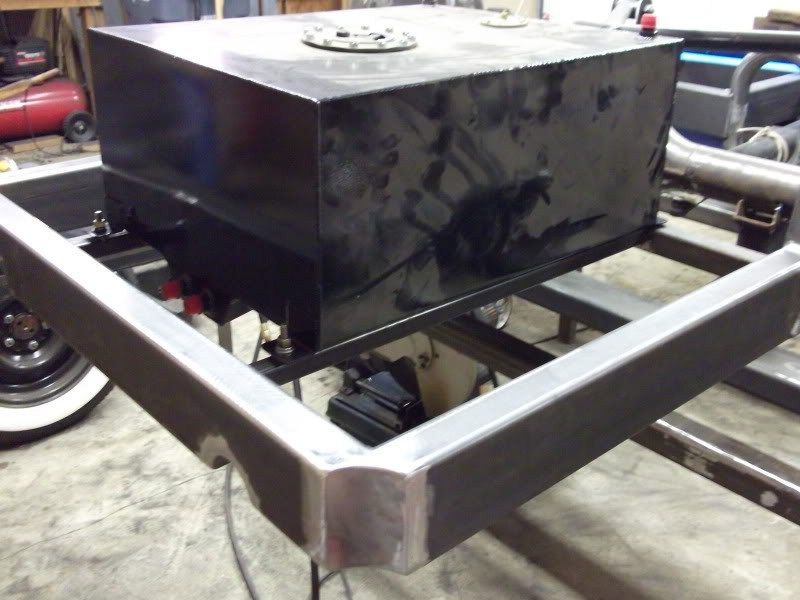

Fuel cell...

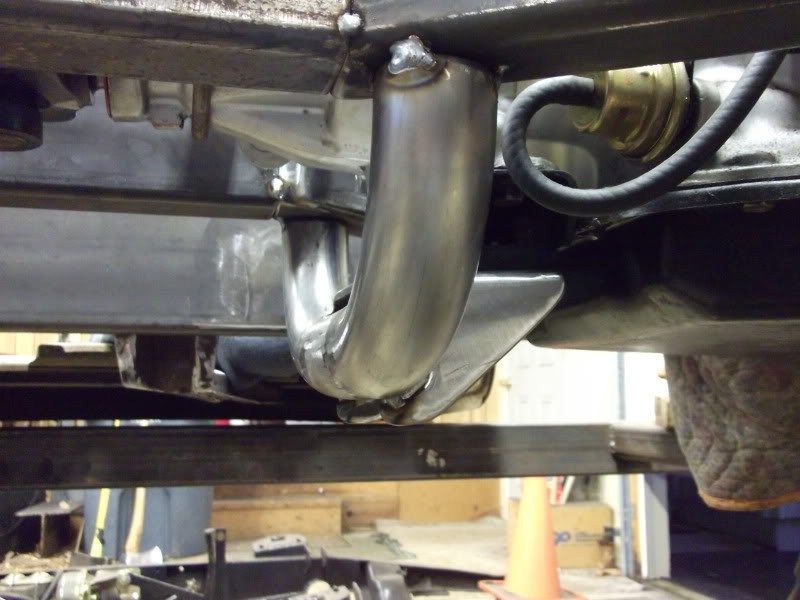

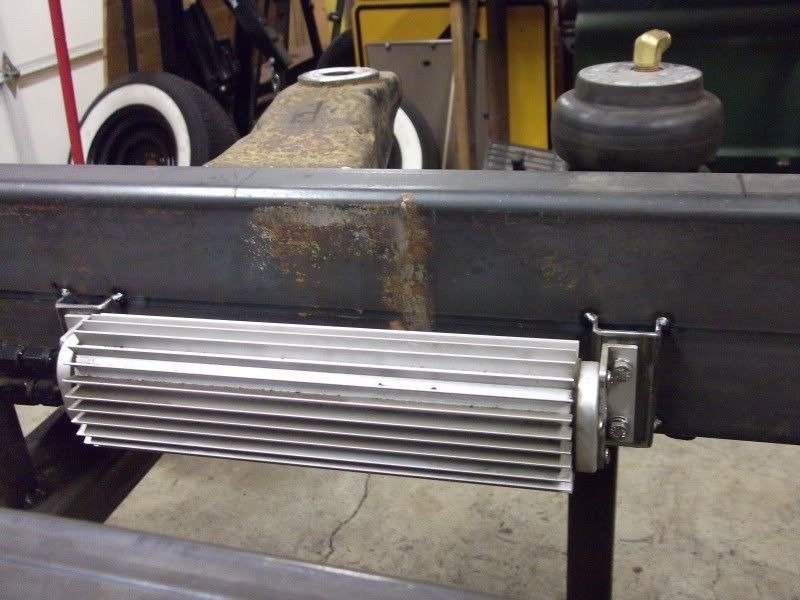

Tranny cooler...

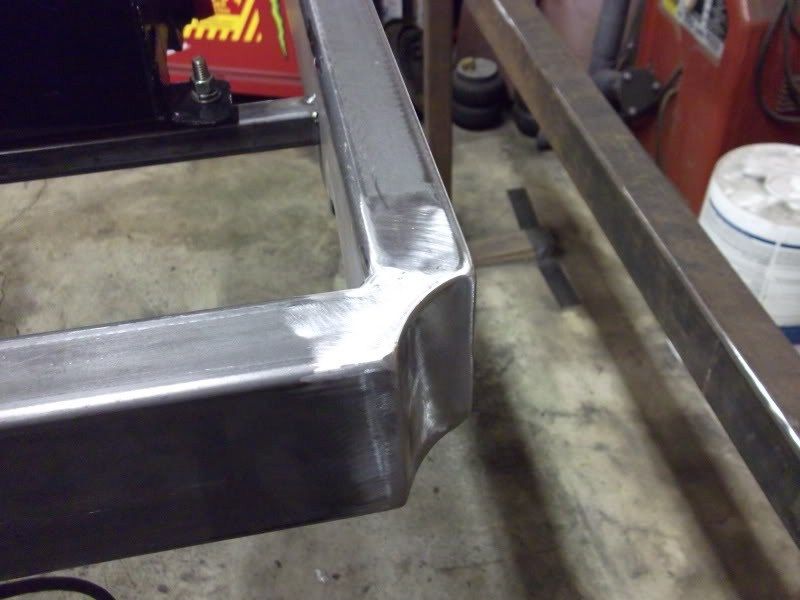

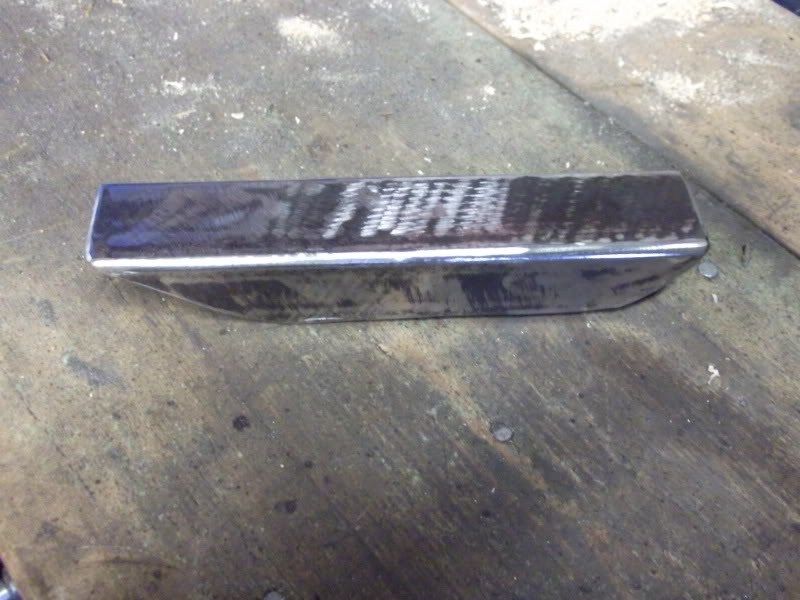

Rear frame capped...

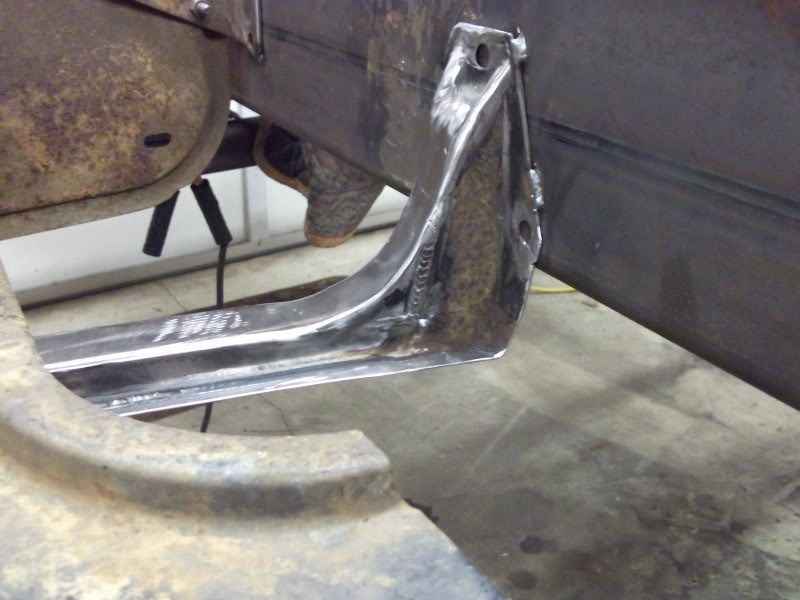

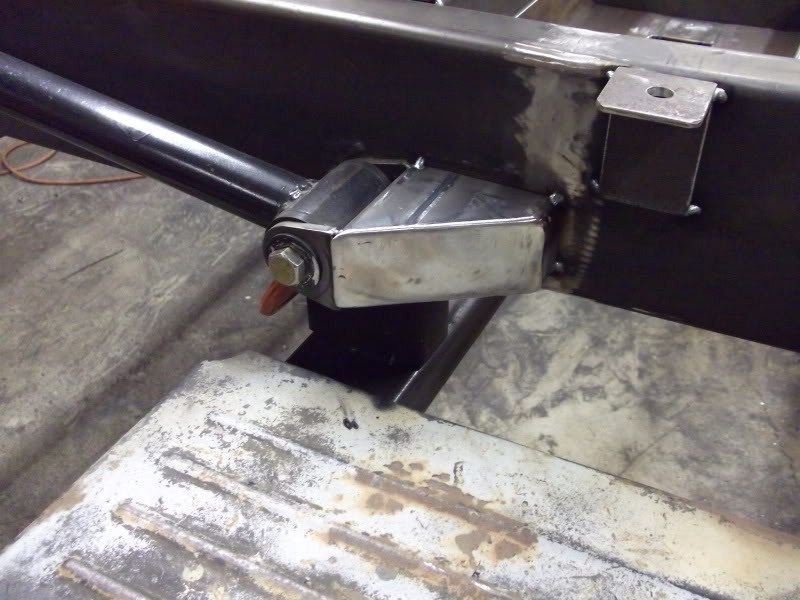

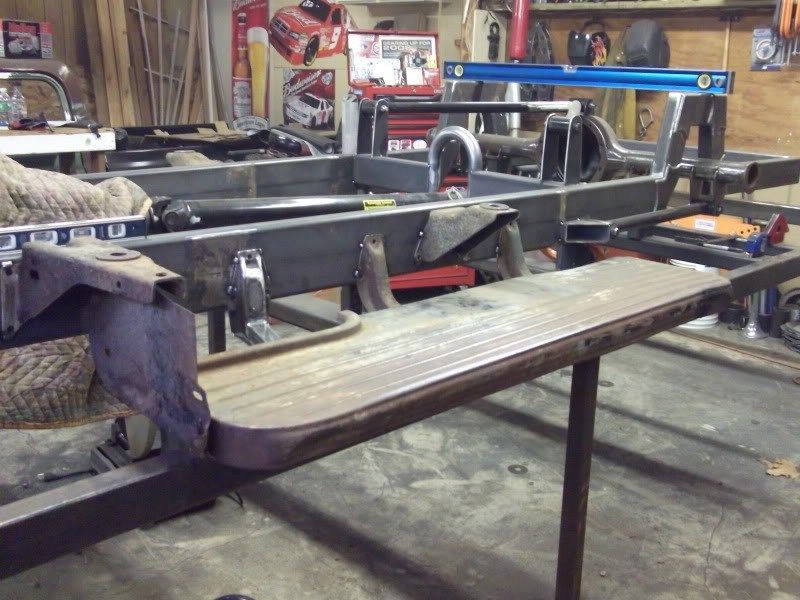

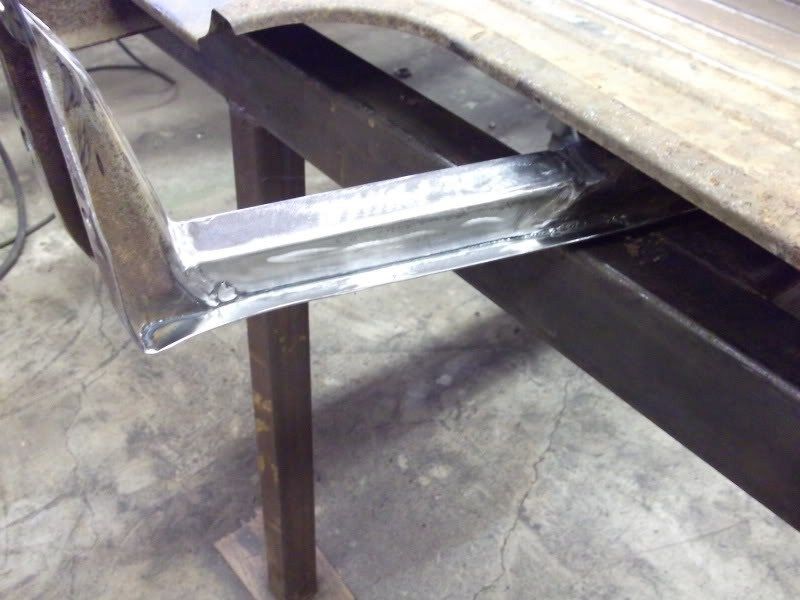

Running board mount...

Well i made some progress so far this weekend. I got the upper and lower bag mounts cut and installed, along with the compressor mount. Got the half of the batterie mount made (still need to make the tie down) and got the bed mounts made and tacked in place.

Heres the pictures...

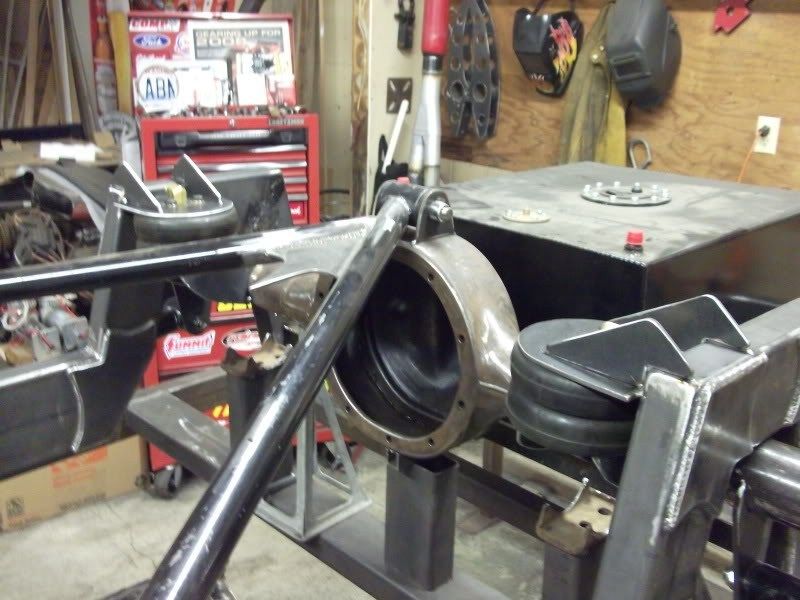

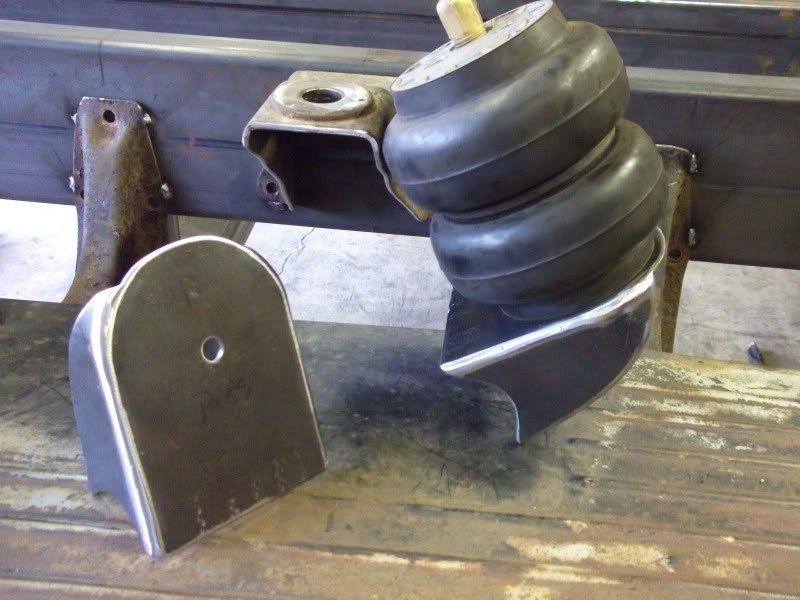

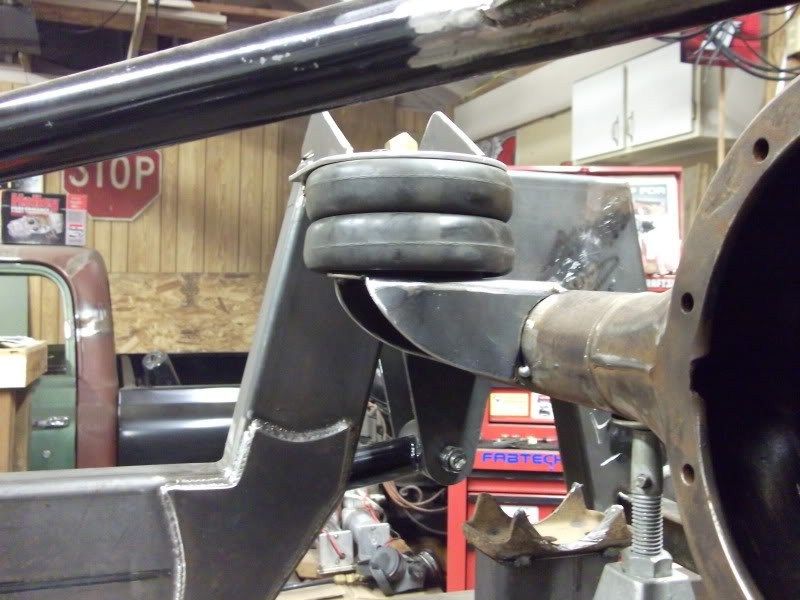

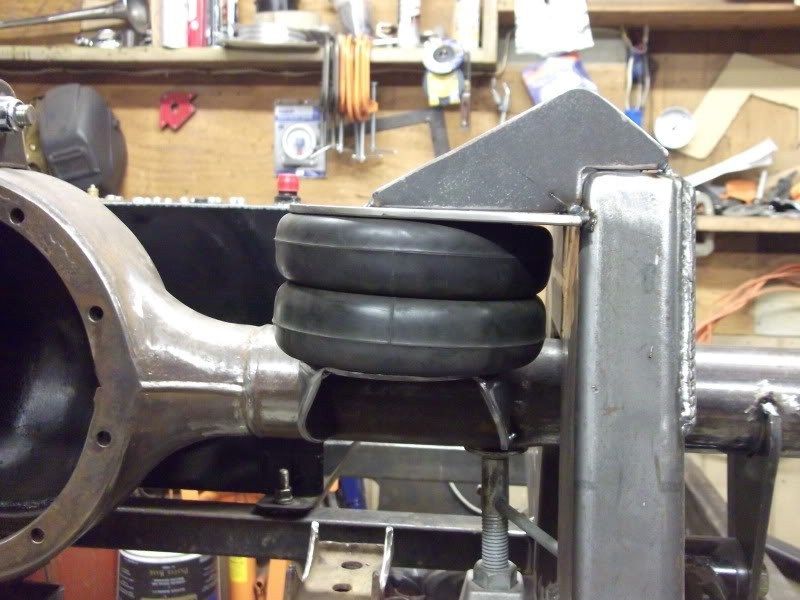

Axle bag mounts...



Mounted...

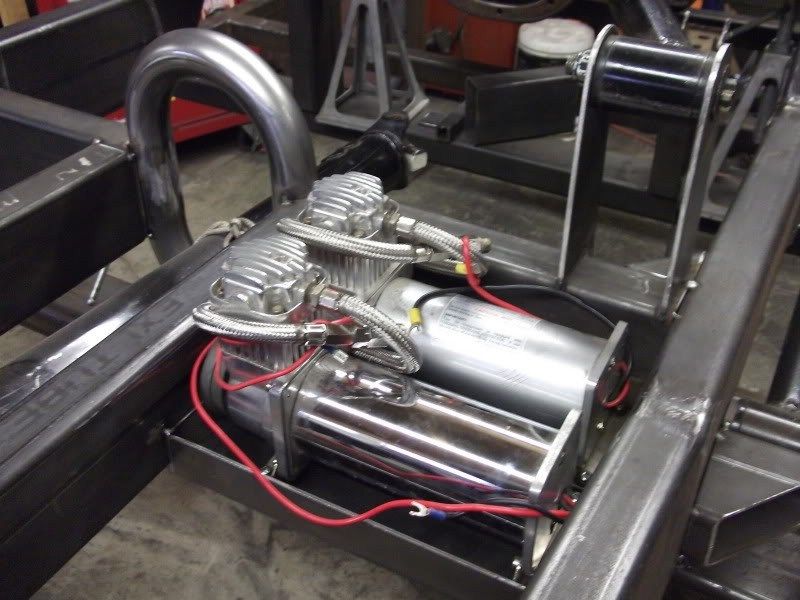

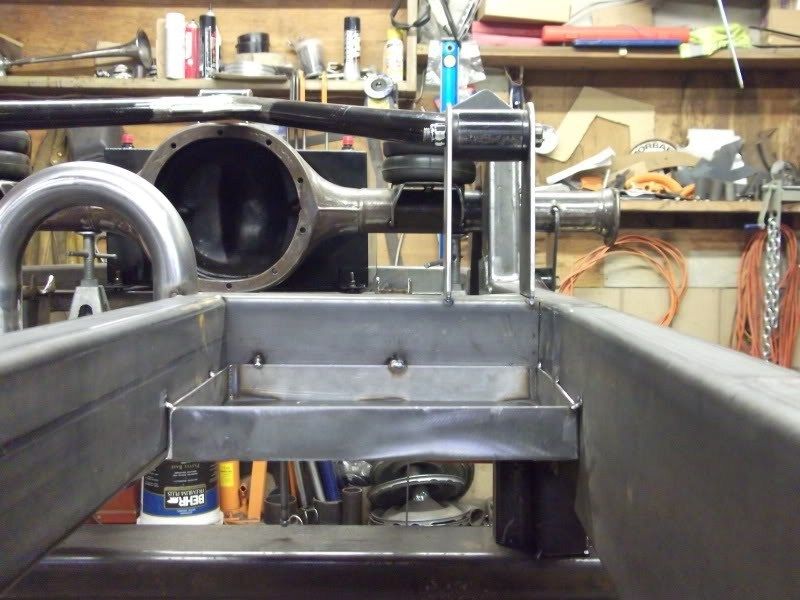

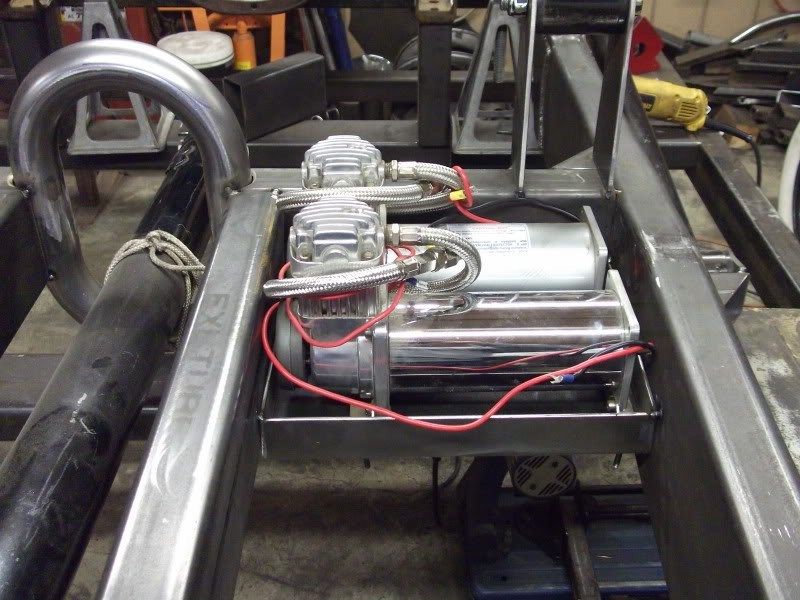

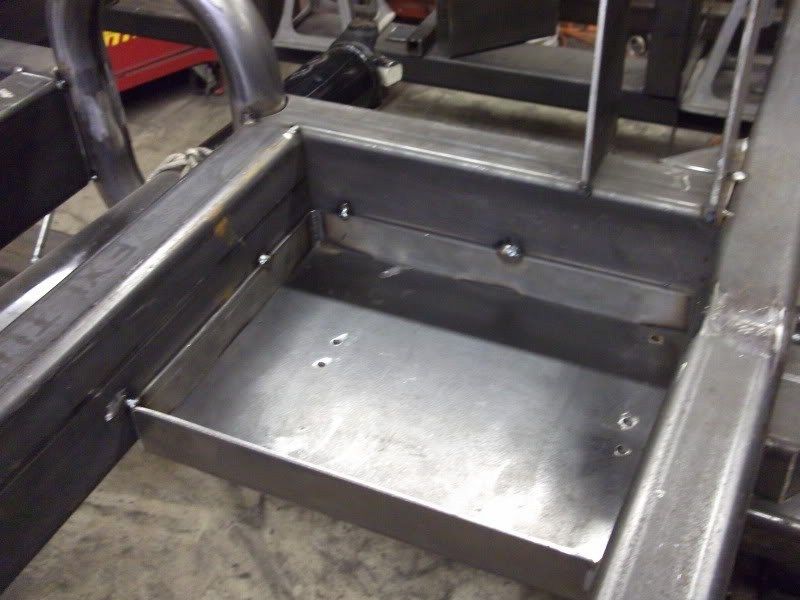

Compressor mount/tray...

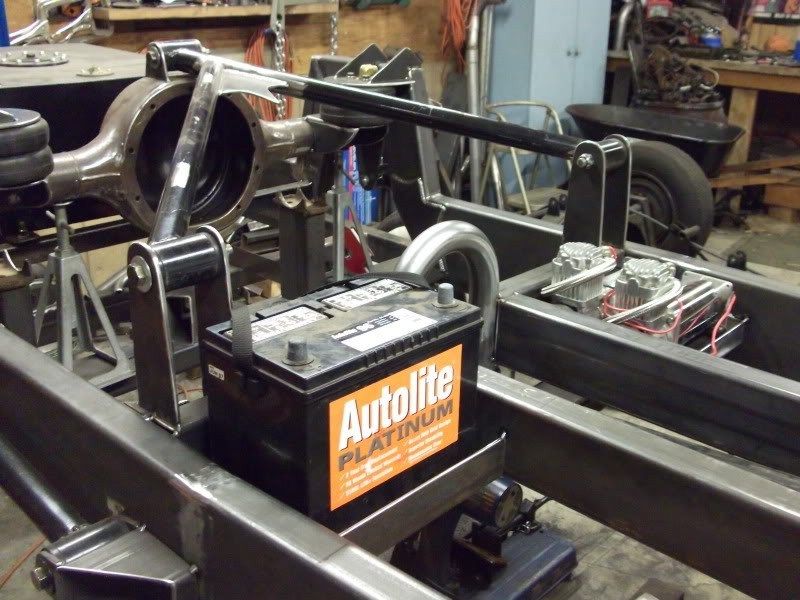

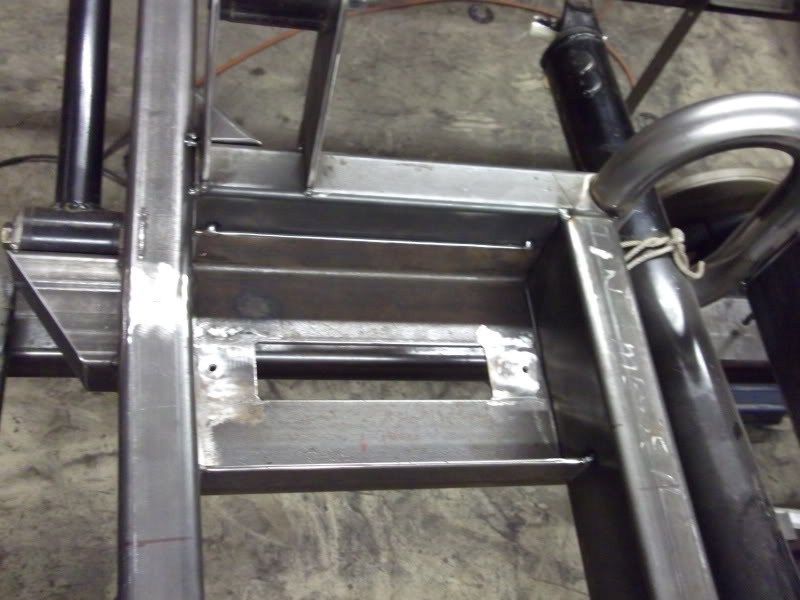

Batterie mount...

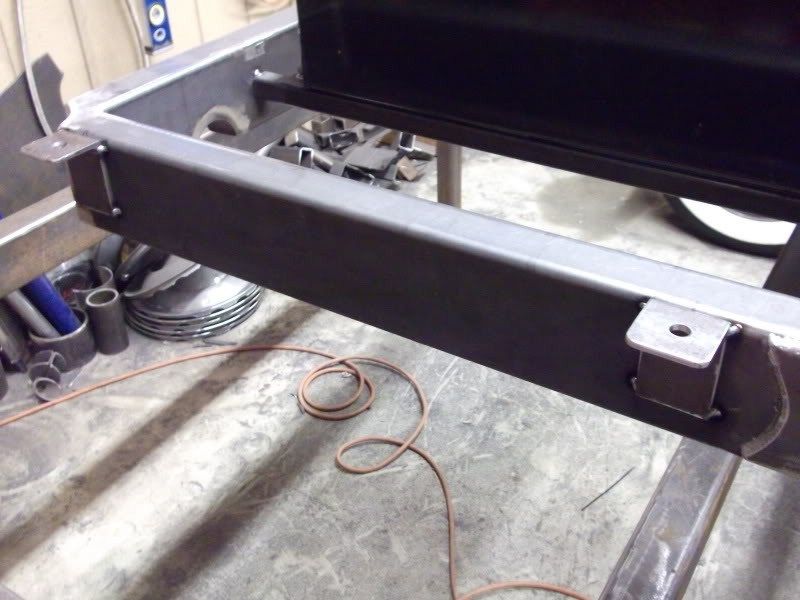

Bed mounts...





Whatcha think?

Justin

Well i made some progress on the frame this weekend. Got my air tank mounted. I capped the lower link frame mount and mounted both front shocks. Still have to mount the rear shocks but i got there placement figured out.

Here are the pictures.

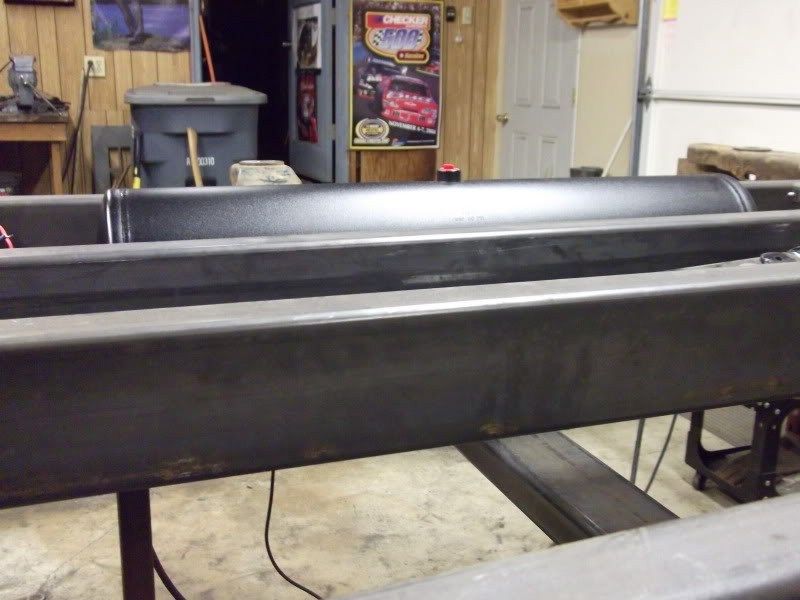

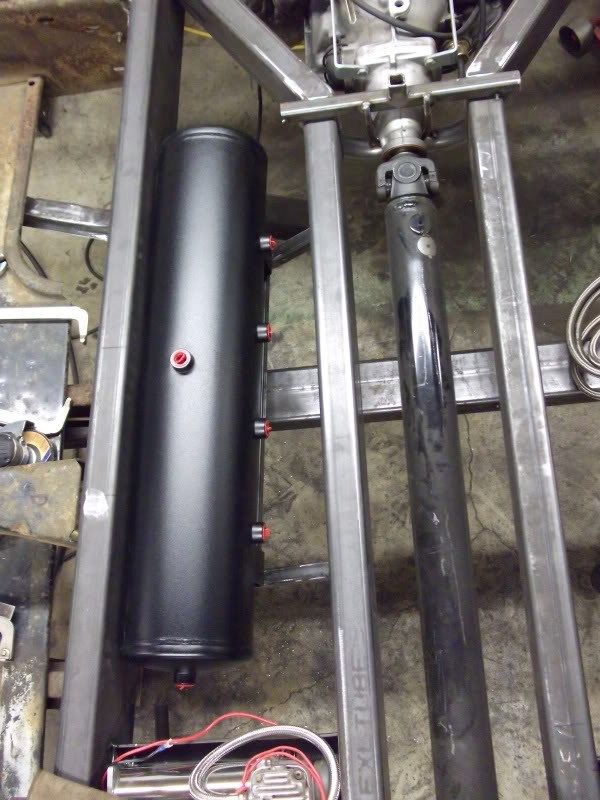

Air tank mount

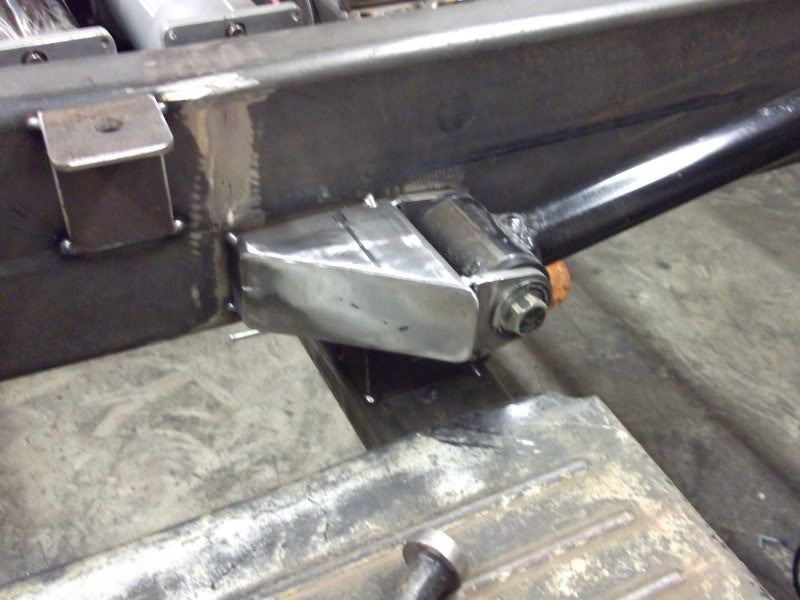

Lower frame mount capped

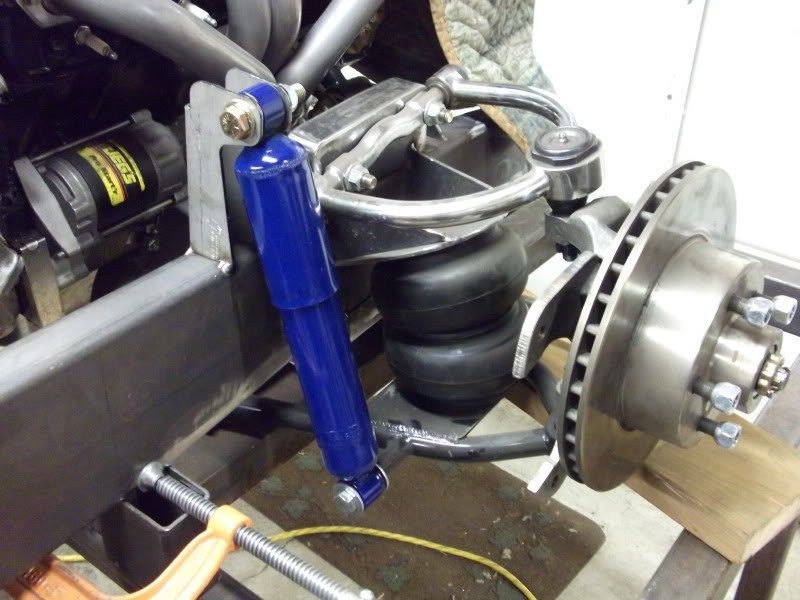

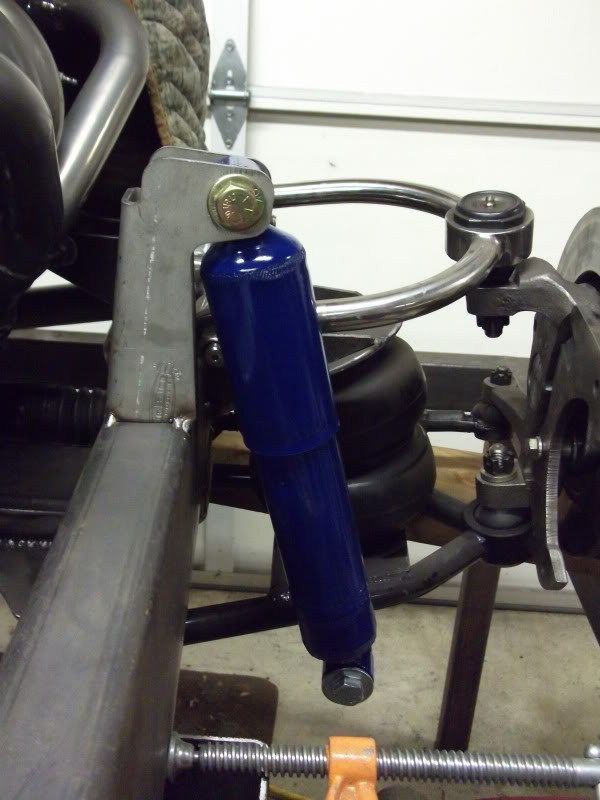

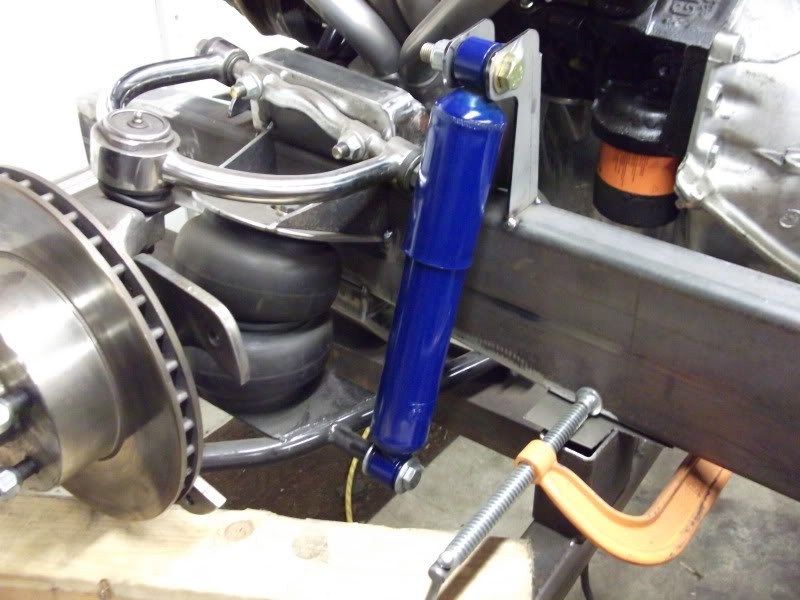

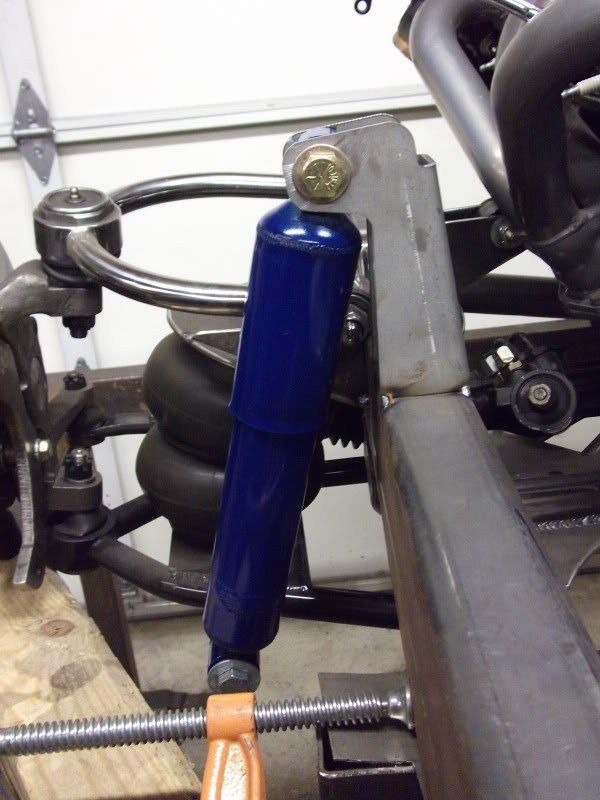

Front shocks mounted



More later................

Justin
