metalbender1
+1y

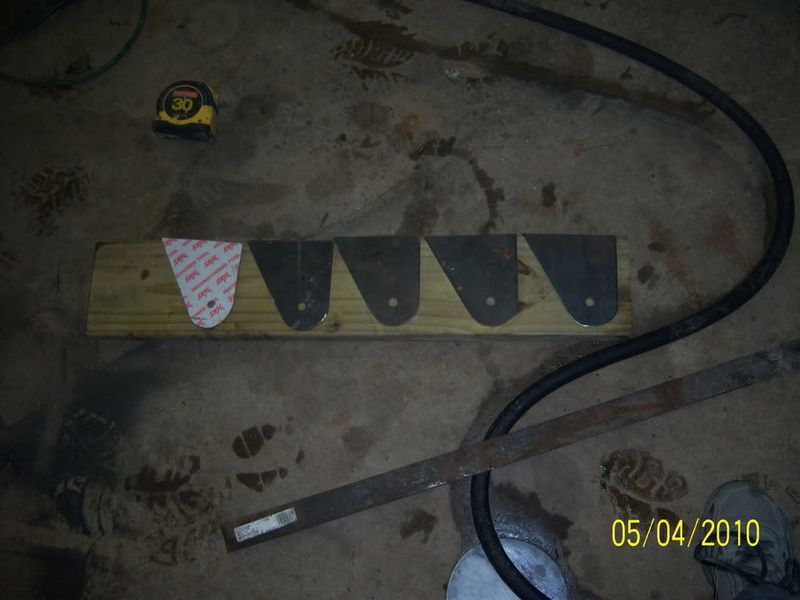

template for the front spring perches
the four outer sides cut out

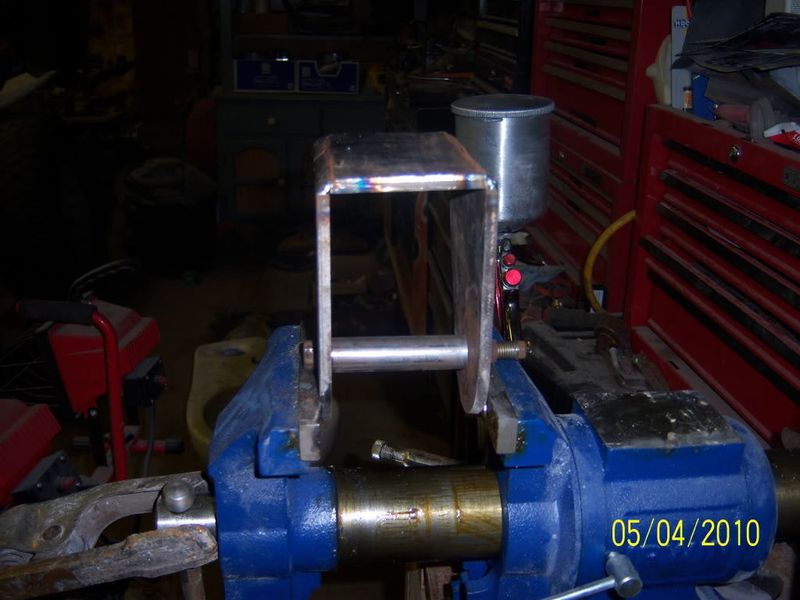

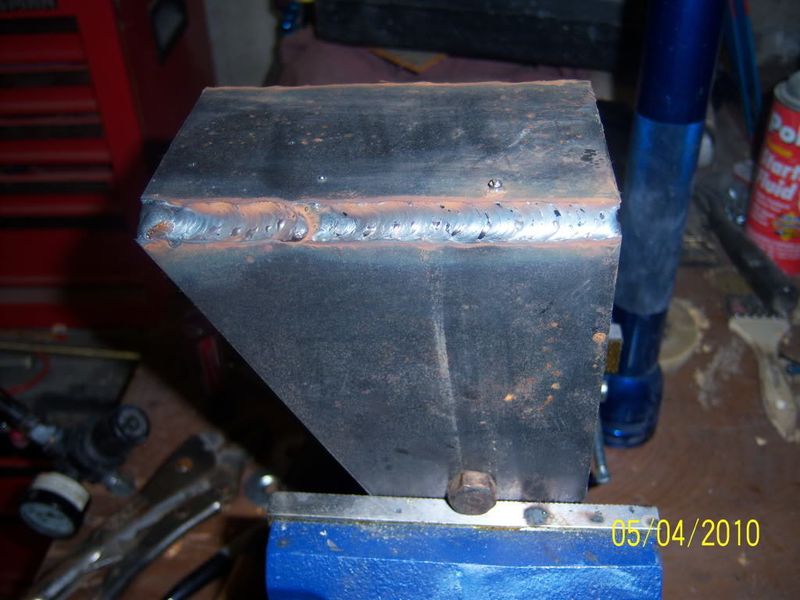

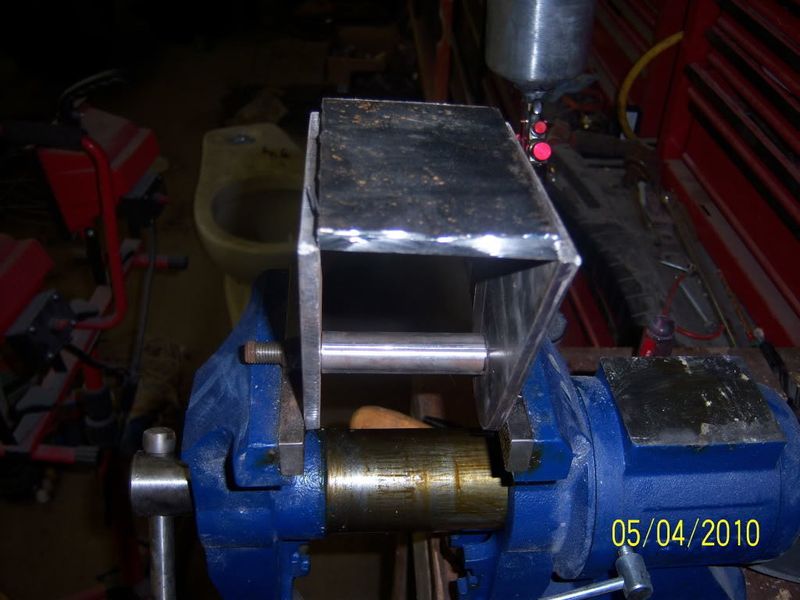

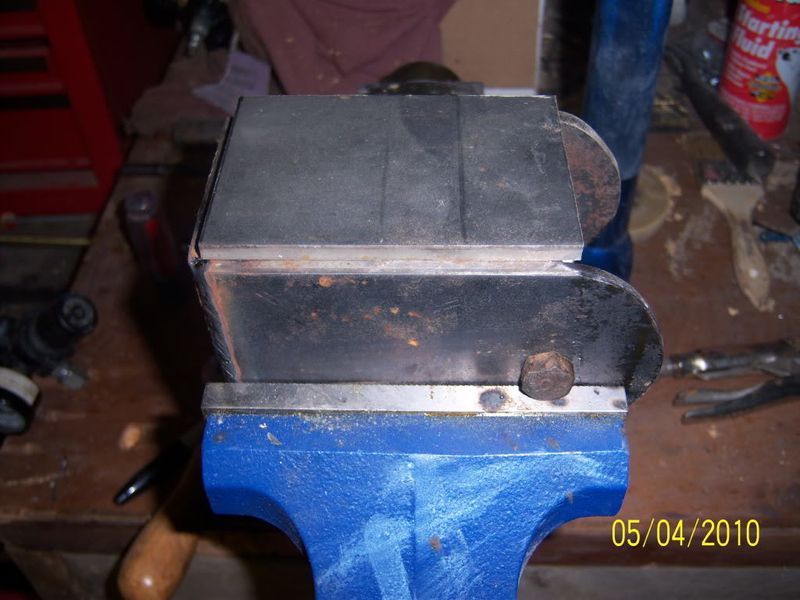

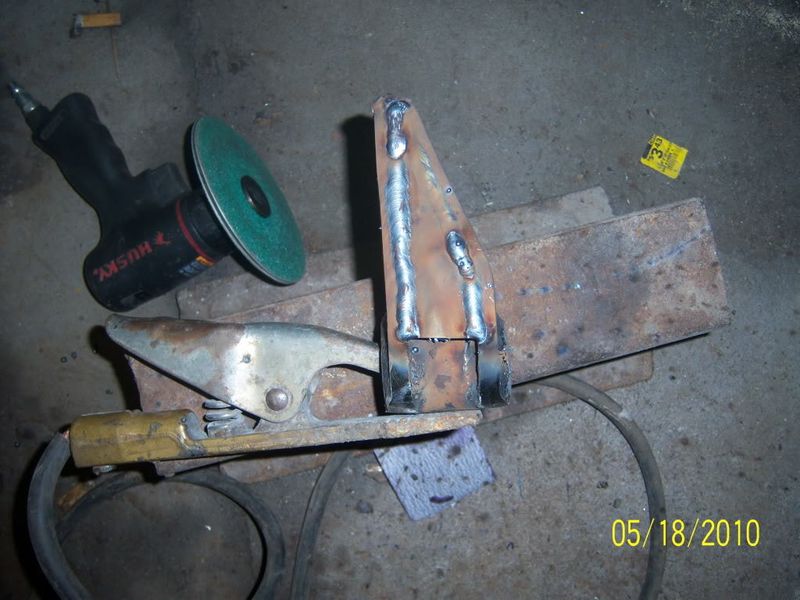

locked in the vise to be welded
template for the front spring perches
the four outer sides cut out
locked in the vise to be welded
Post was last edited on May 23, 2010 04:05. This post has been edited 1
times.
Post was last edited on May 23, 2010 04:05. This post has been edited 1
times.
metalbender1
+1y

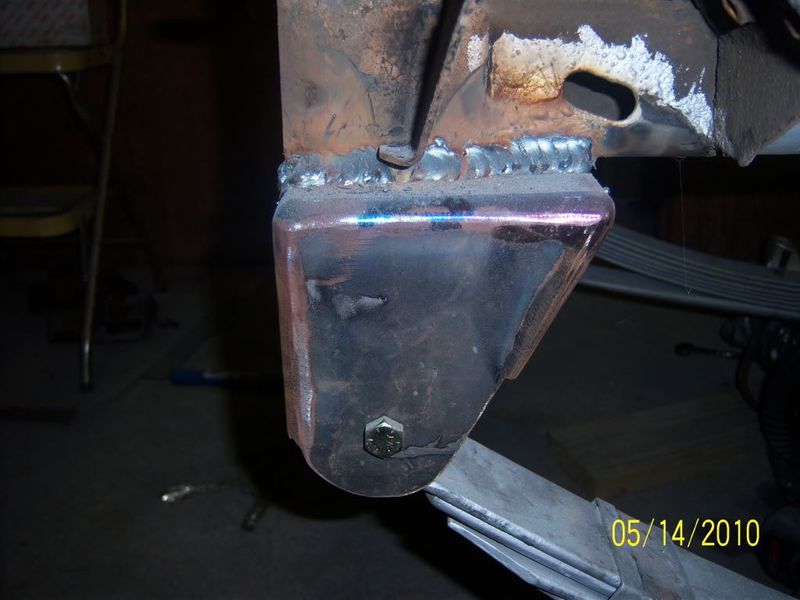

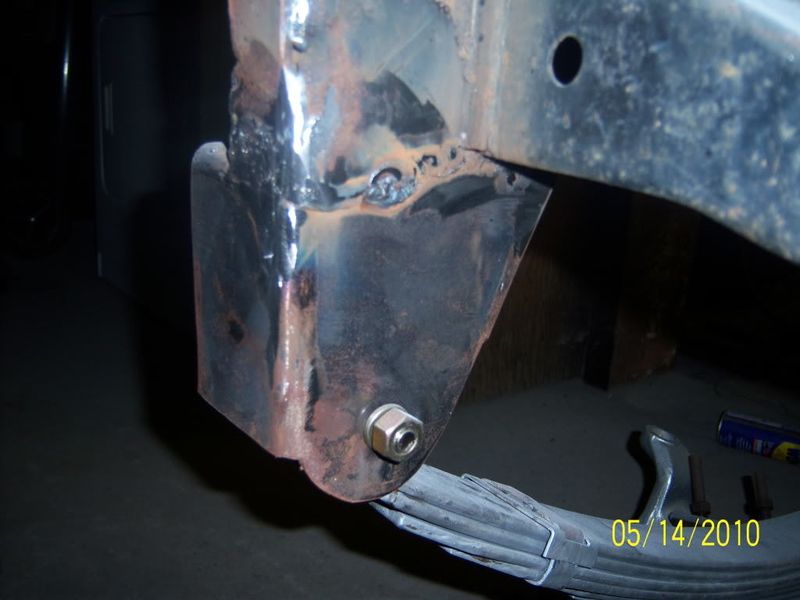

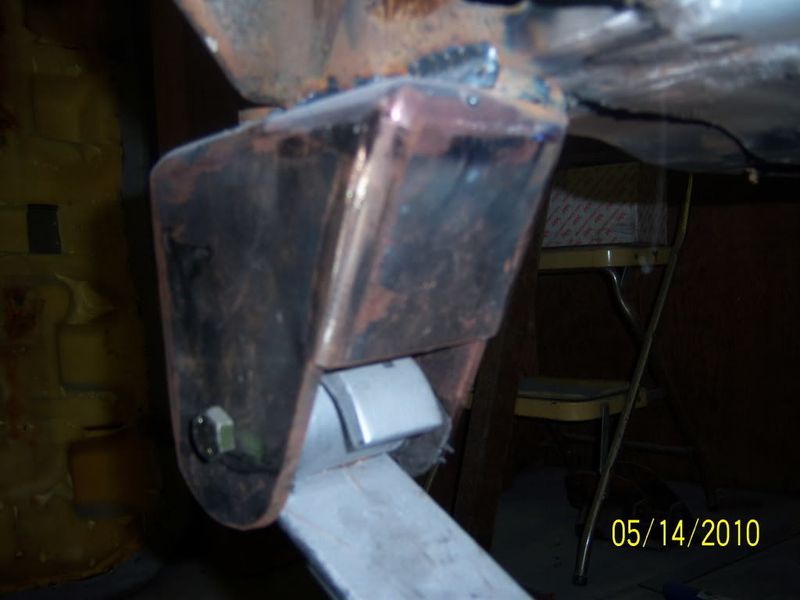

wleded, ground ,and welded to the frame springs bolted in
from the back

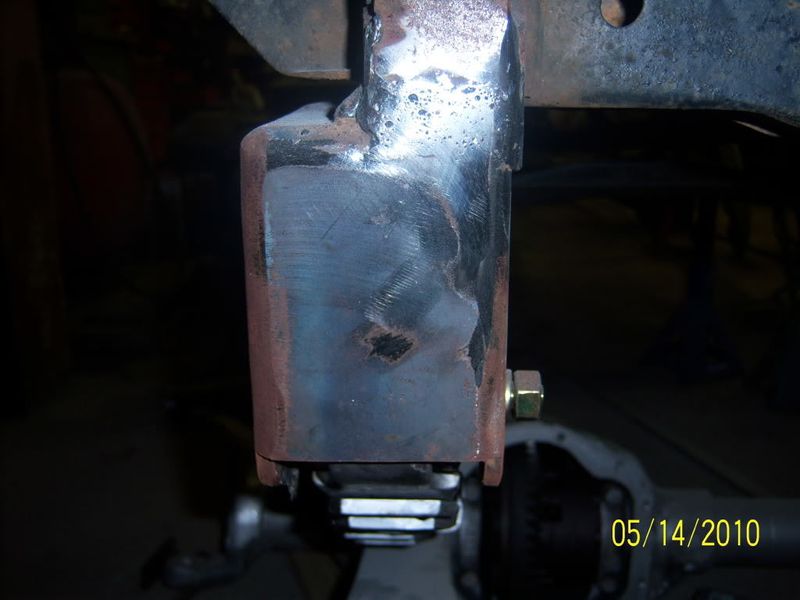

from the front

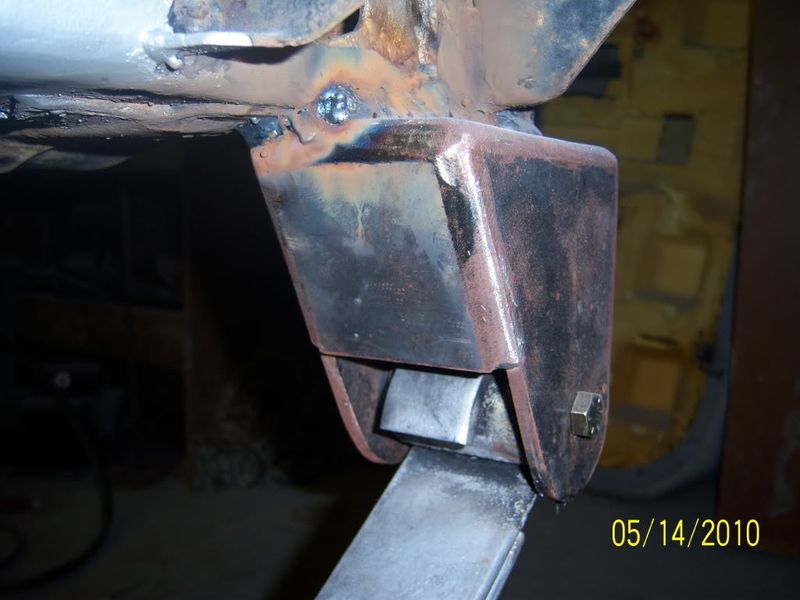

other side
other side back
wleded, ground ,and welded to the frame springs bolted in
from the back
from the front
other side
other side back
Post was last edited on May 23, 2010 04:05. This post has been edited 1
times.
metalbender1
+1y

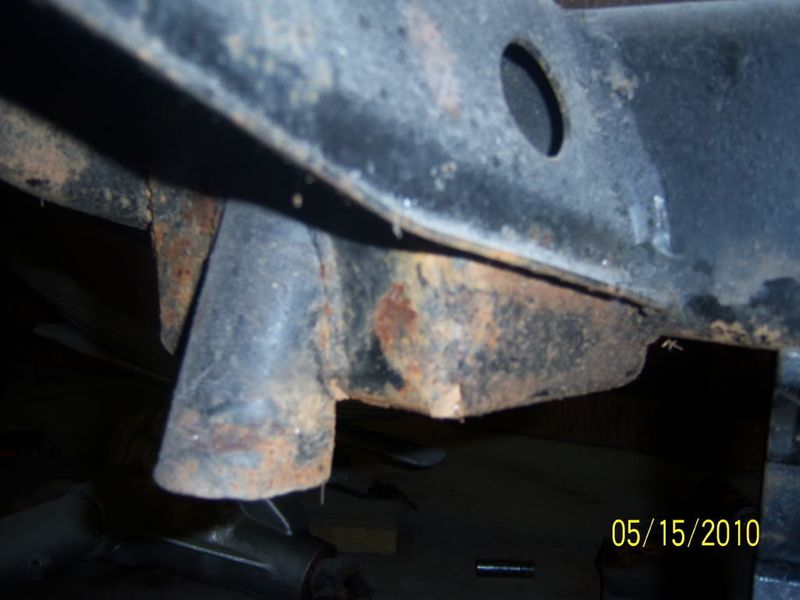

front cab mount which WAS in my way for the swing shackle mount
like i said WAS

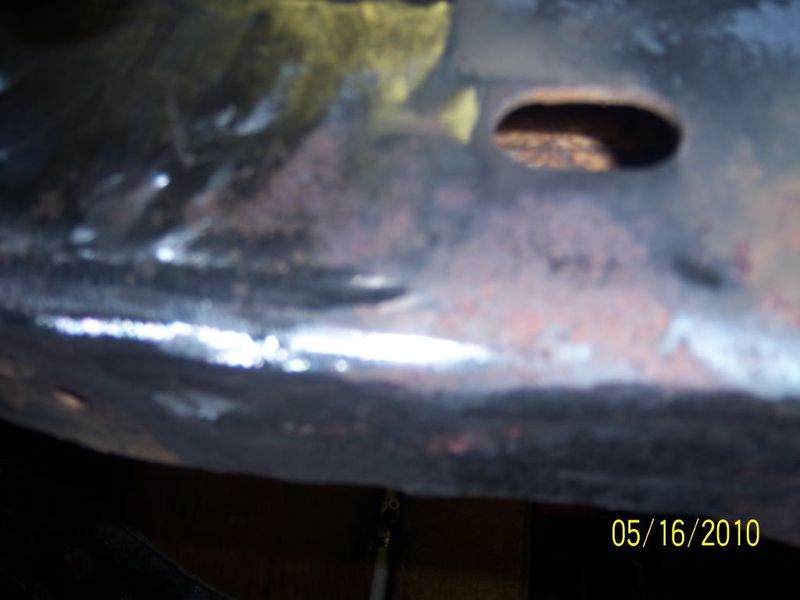

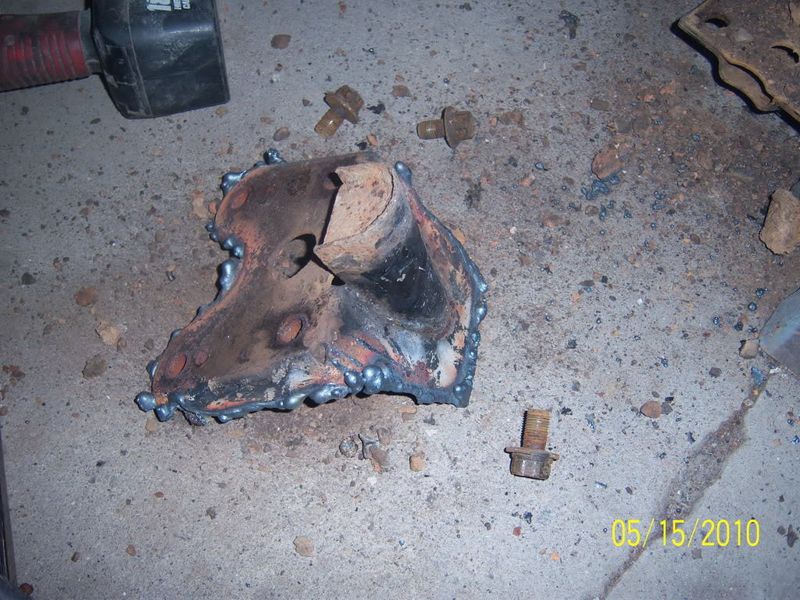

bottom of the front cab mount after the carnage
more love

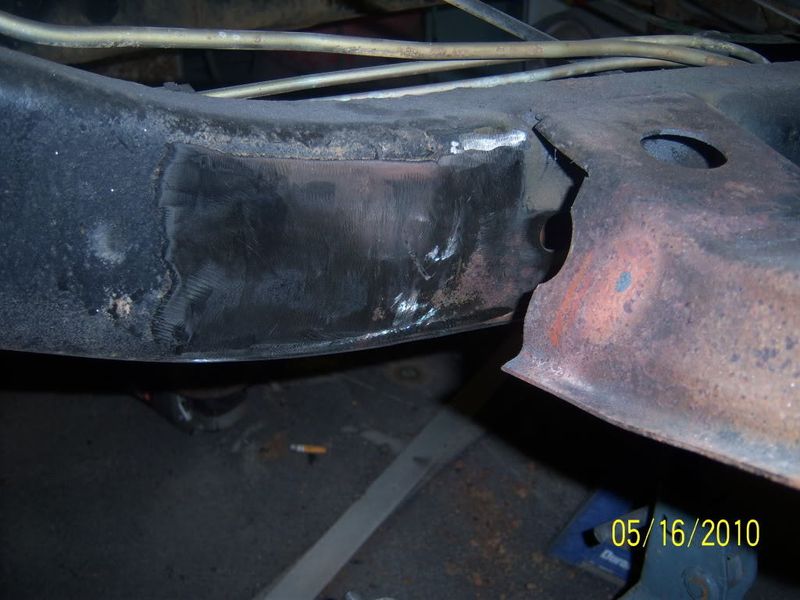

i shouldnt have cut that cab mount that deep, oh well i know i guy that can weld

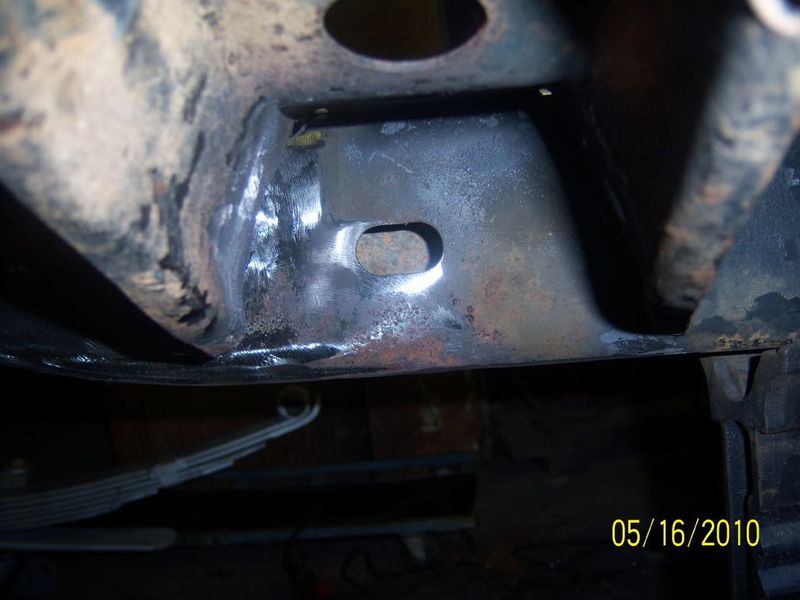

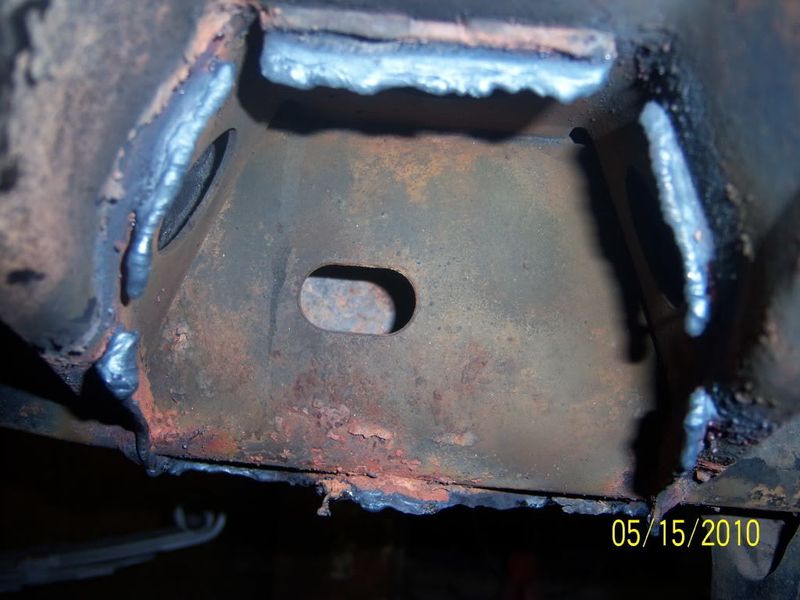

the under side of the cab mounts
front cab mount which WAS in my way for the swing shackle mount
like i said WAS
bottom of the front cab mount after the carnage
more love
i shouldnt have cut that cab mount that deep, oh well i know i guy that can weld
the under side of the cab mounts
Post was last edited on May 23, 2010 05:05. This post has been edited 1
times.
metalbender1
+1y

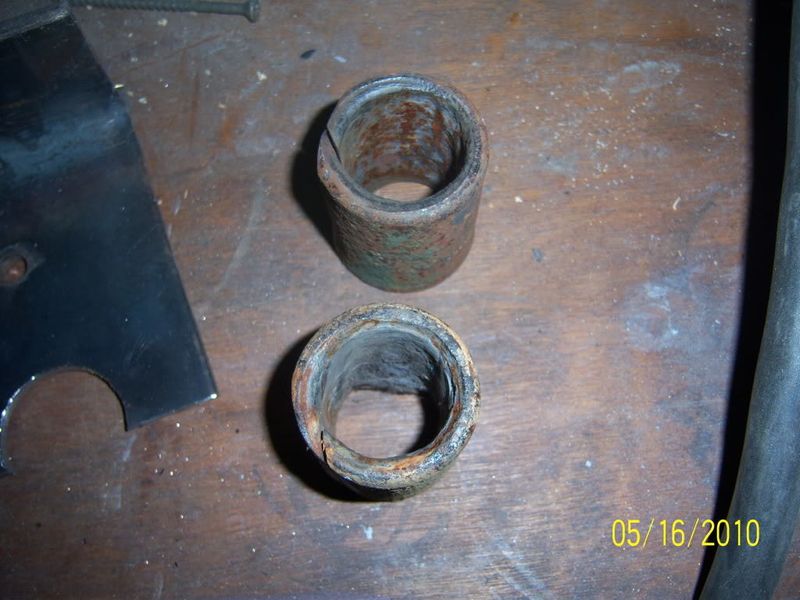

for the swing shackles i cut the ends off a toy main leaf so my bushings would fit right

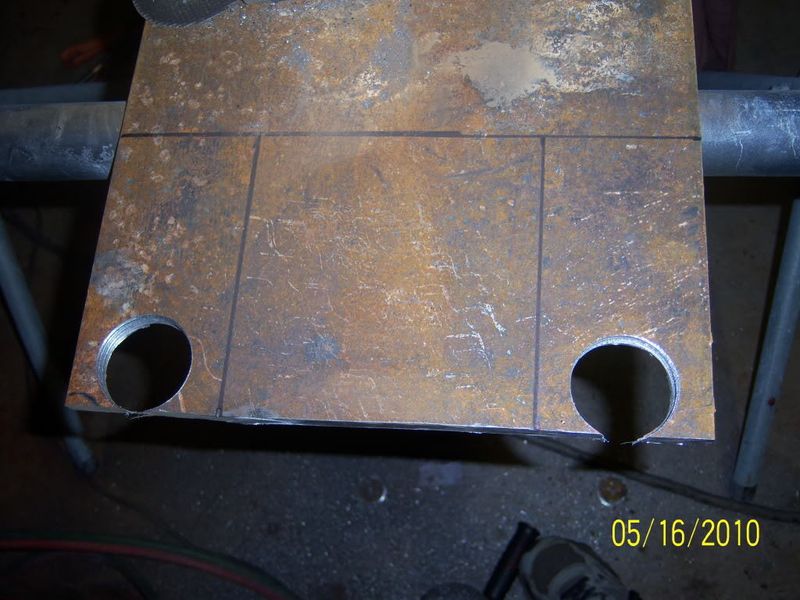

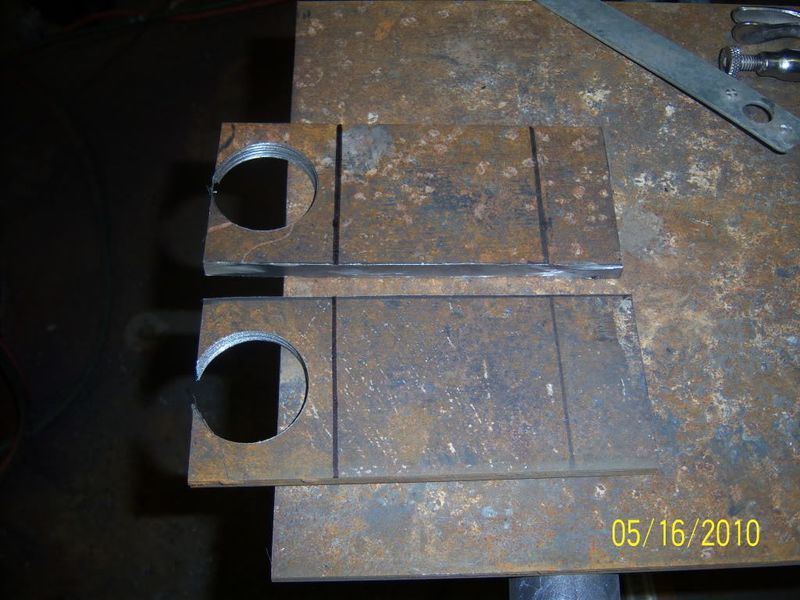

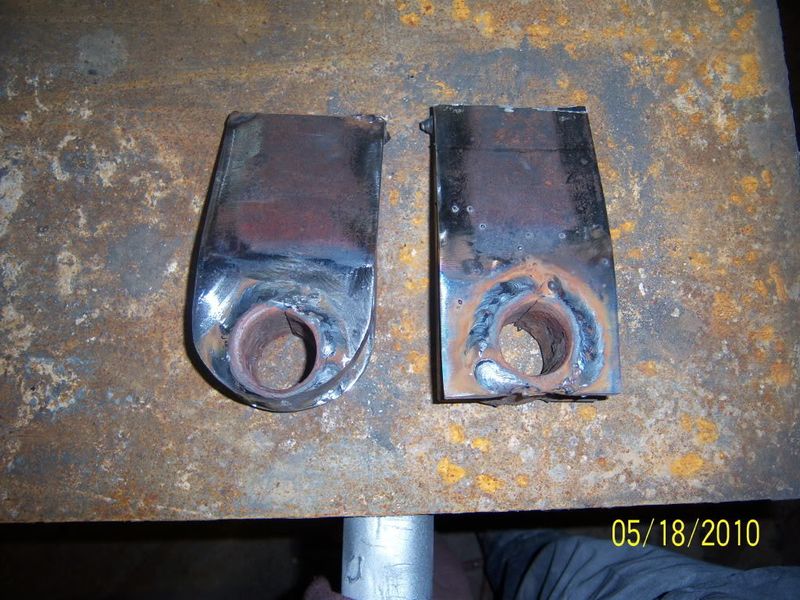

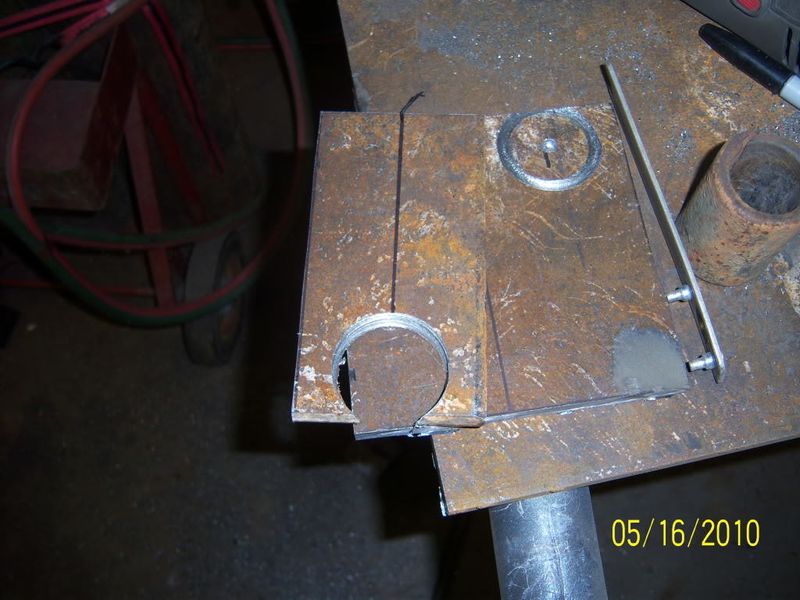

a little 3/8" plate and a hole saw

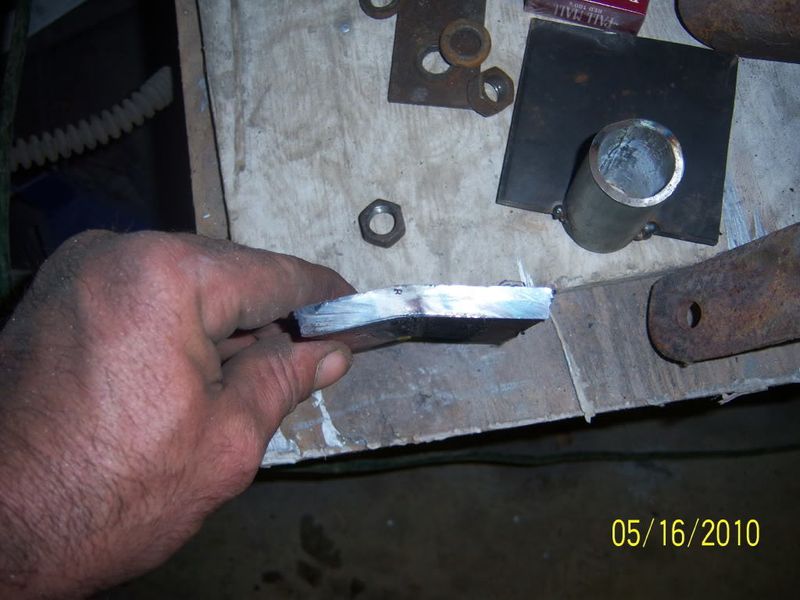

heated it in the middle and bent it accordingly to fit the step in the frame
the outers
cut and marked up to bend

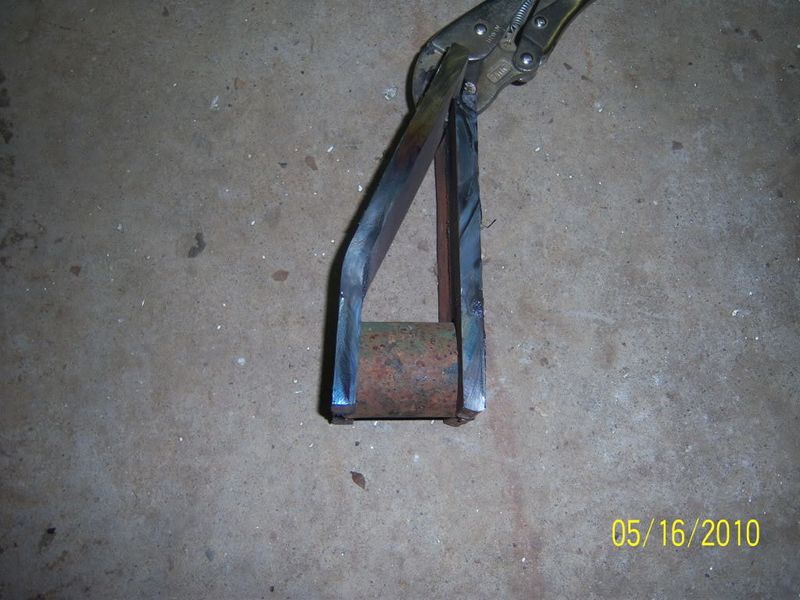

so you get the picture of what it is supposed to look like, boxing yet to come
so you see tex i have been tryin to get it done but my shops been boomin lately i had to run business off for the weekend just to get some work done to it. ill put up more pics as the progress allows. stay tuned....
for the swing shackles i cut the ends off a toy main leaf so my bushings would fit right
a little 3/8" plate and a hole saw
heated it in the middle and bent it accordingly to fit the step in the frame
the outers
cut and marked up to bend
so you get the picture of what it is supposed to look like, boxing yet to come
so you see tex i have been tryin to get it done but my shops been boomin lately i had to run business off for the weekend just to get some work done to it. ill put up more pics as the progress allows. stay tuned....
Post was last edited on May 23, 2010 05:05. This post has been edited 1
times.
metalbender1
+1y

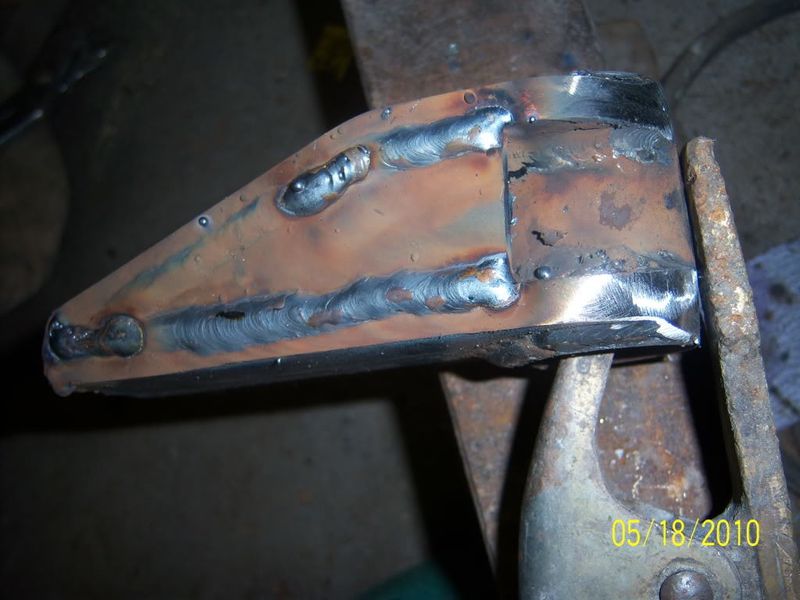

look ma no corners
the boxing of the swing shackle mount
the other side of the mount
ok guys it kinda bothers me that 600 people have looked at my build thread but the only one to chime in is texas fifty. so either im doing something that doesnt interest anybody, or im doing it in a way everybody agrees with. post it up let me know what you think or ask some questions, im positive me and tex aint the only wheelers on this site.
look ma no corners
the boxing of the swing shackle mount
the other side of the mount
ok guys it kinda bothers me that 600 people have looked at my build thread but the only one to chime in is texas fifty. so either im doing something that doesnt interest anybody, or im doing it in a way everybody agrees with. post it up let me know what you think or ask some questions, im positive me and tex aint the only wheelers on this site.
metalbender1
+1y
ok gang i moved some pics around in my albums. i didnt realize it would cause the blanks on my thread, sorry bout that. ive made it right now. ive got a small problem with the front spring perches that i built, i forgot to account for the notch in the front of the frame. in doing so i made the perches 2 3/16" shorter than i was supposed to, i guess it'll just put it that much farther in the air. ill put 31's on it for my inspection then put my 35's on it after it passes. cheating i know but what do you do when you've put this much work into something its hard to back up, and im not willing to compromise on what i want this truck to become. nor am i willing to compromise on the quality of the finished product. stay tuned....
