bagging & body droping a 81 crew cab Dually & cummins swap

62859 views
325 replies
39 following
nuckingfut252@aol.com's avatar
bagging & body droping a 81 crew cab Dually & cummins swap
down2earth's avatar
down2earth
+1y

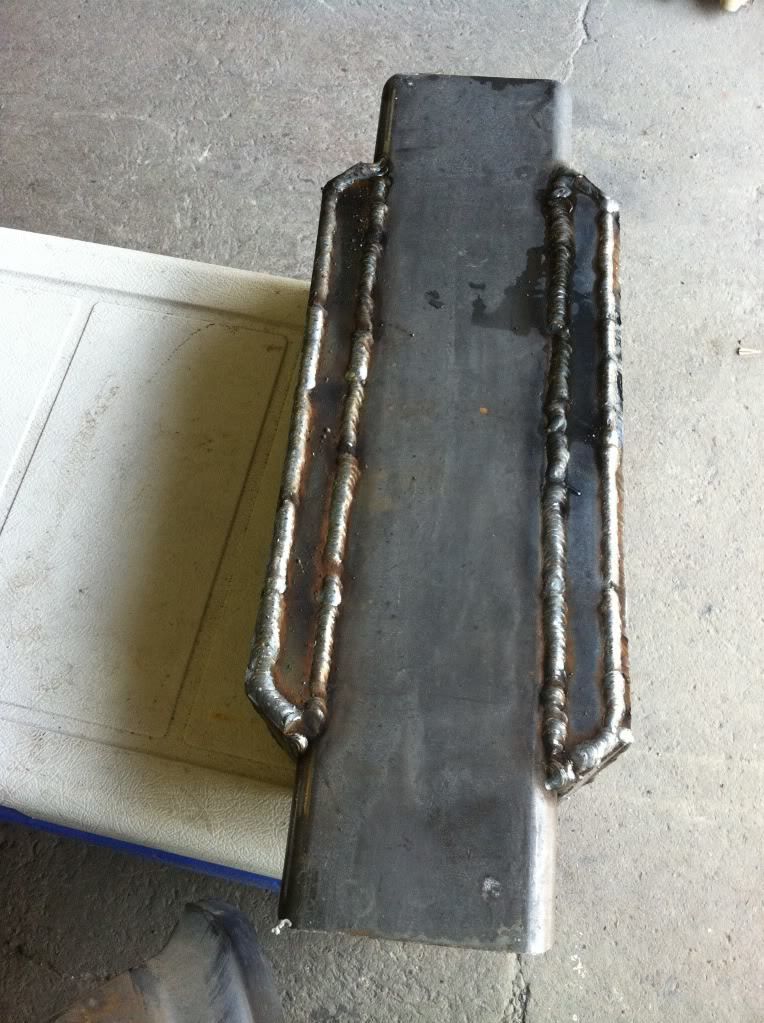

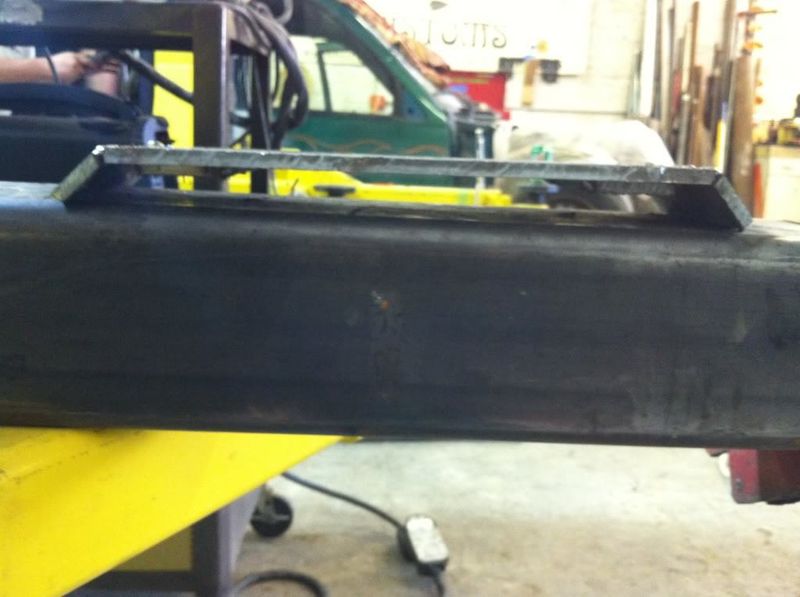

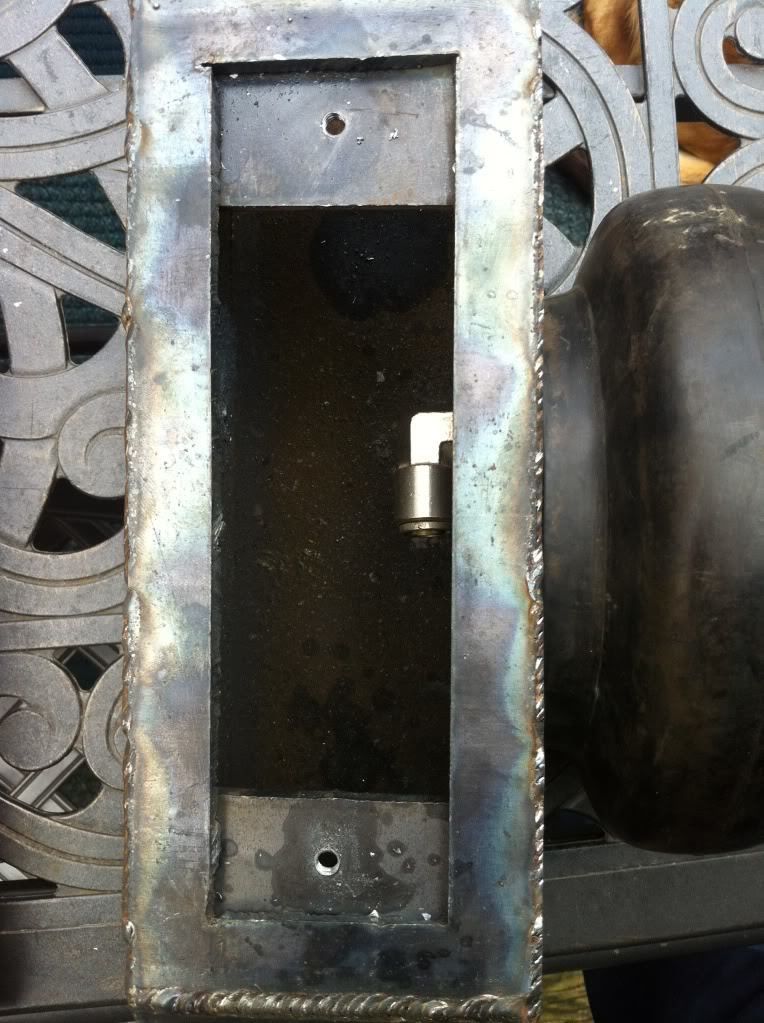

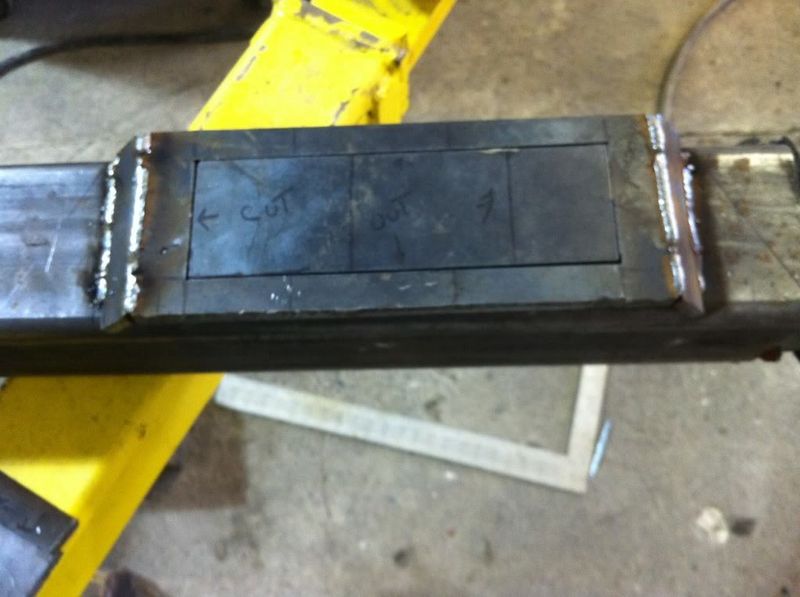

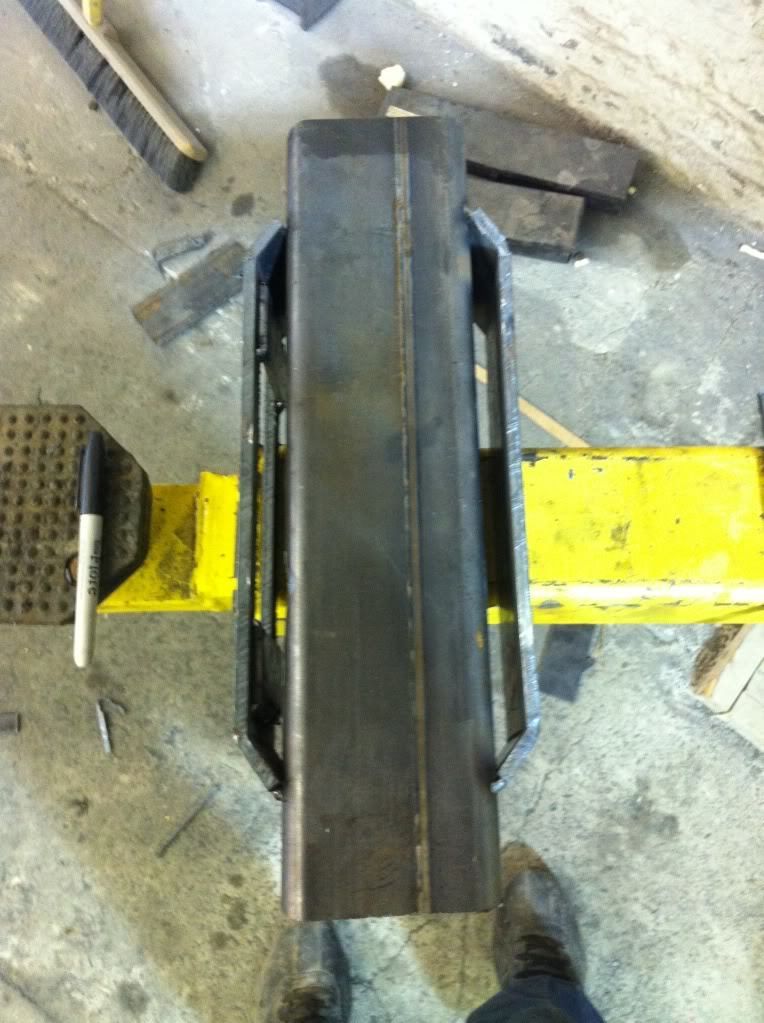

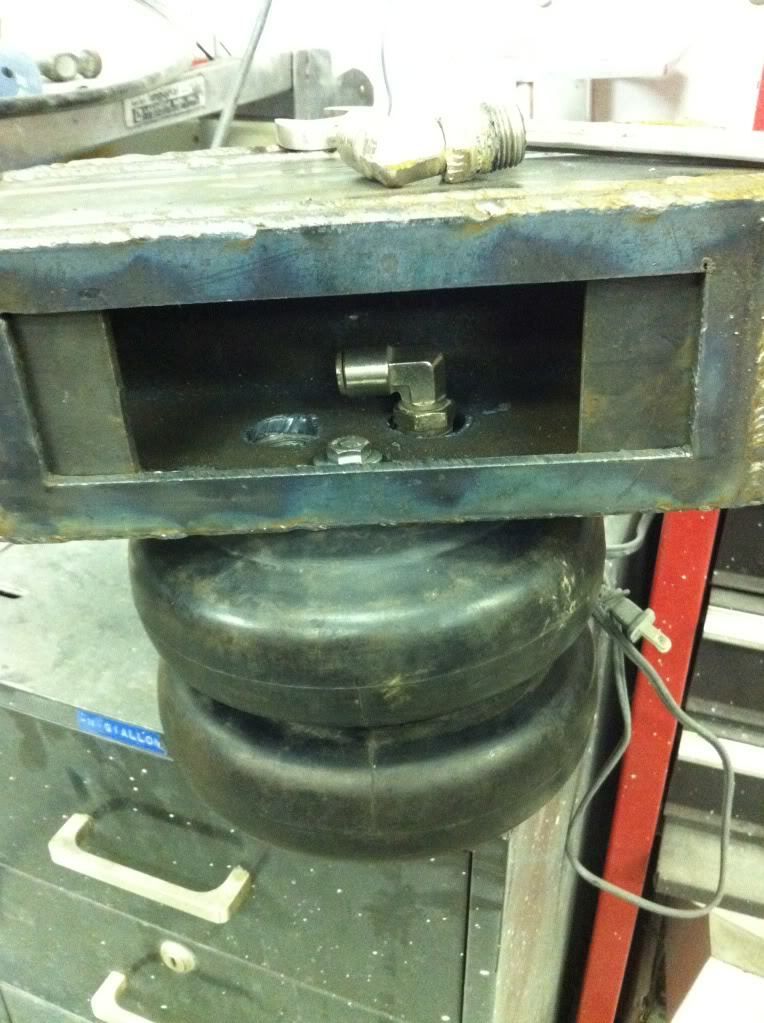

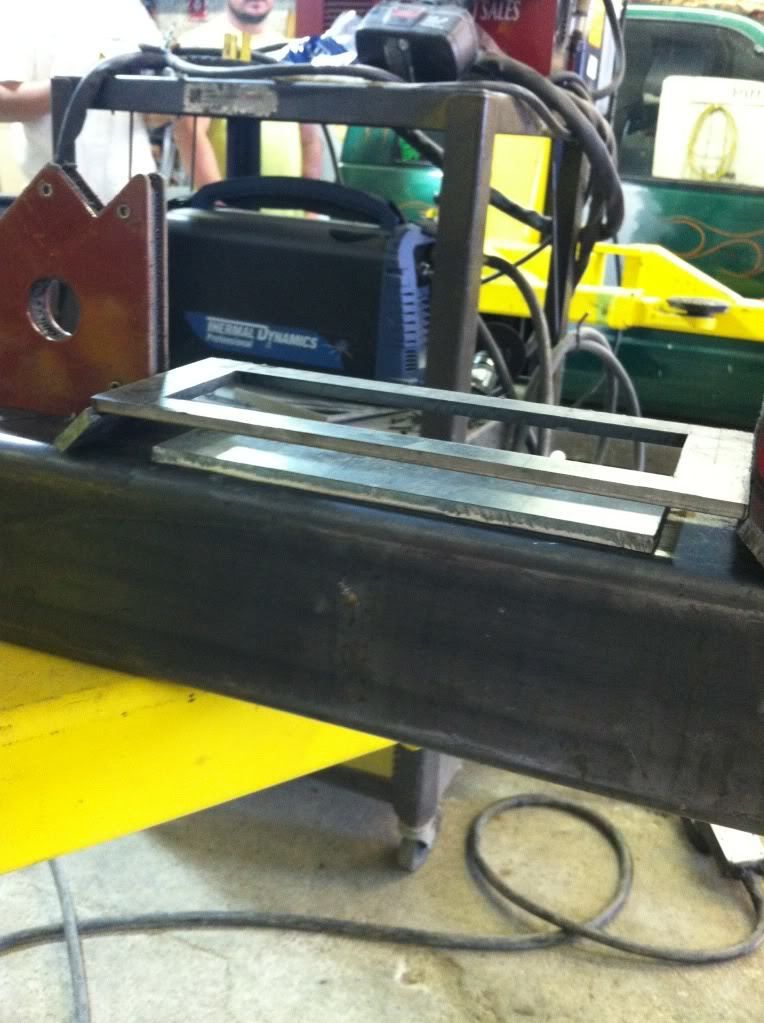

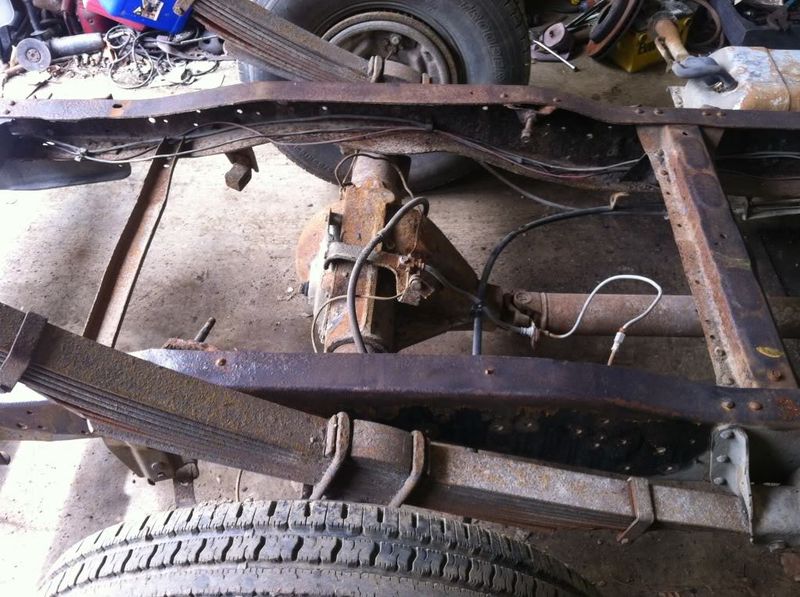

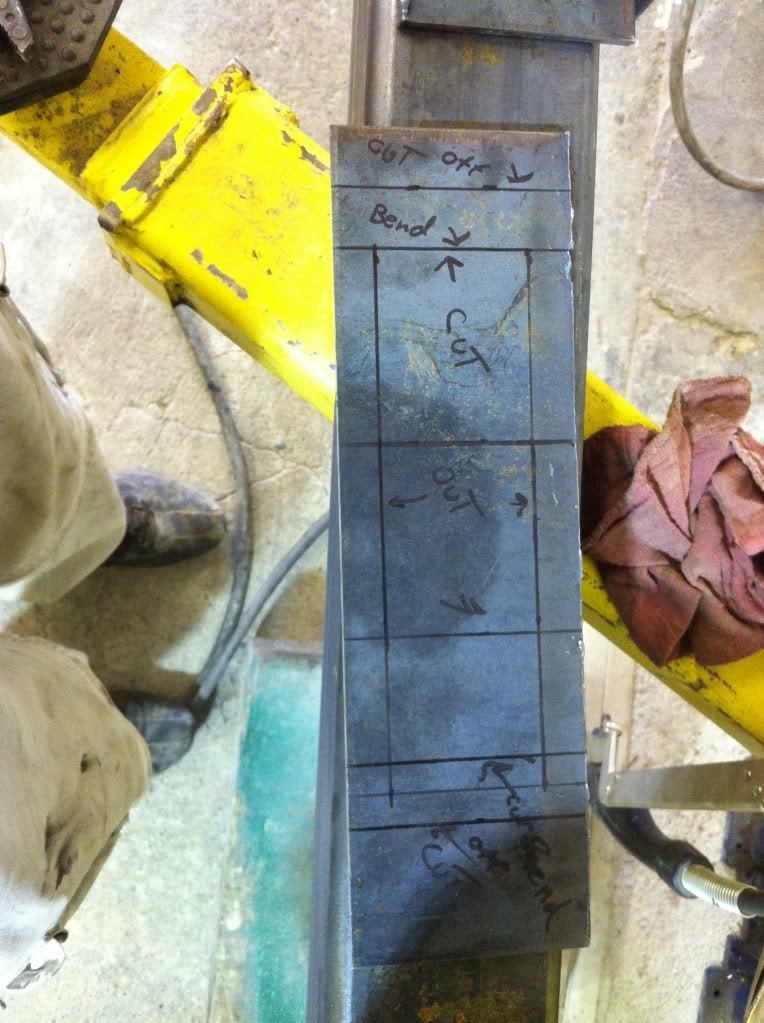

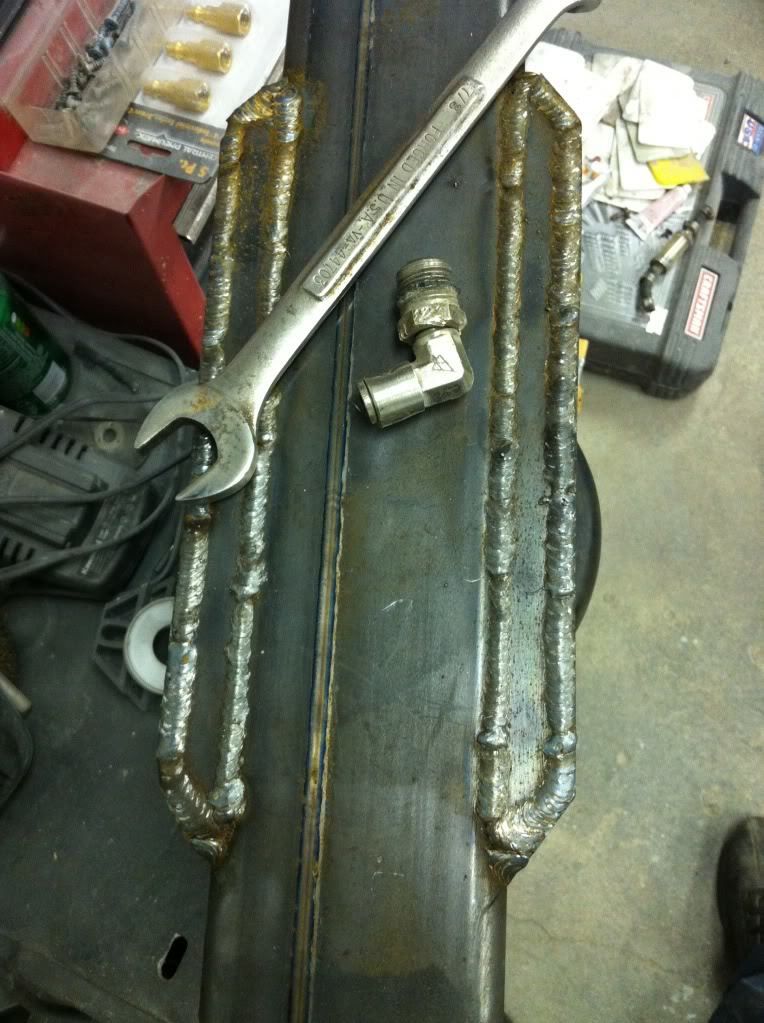

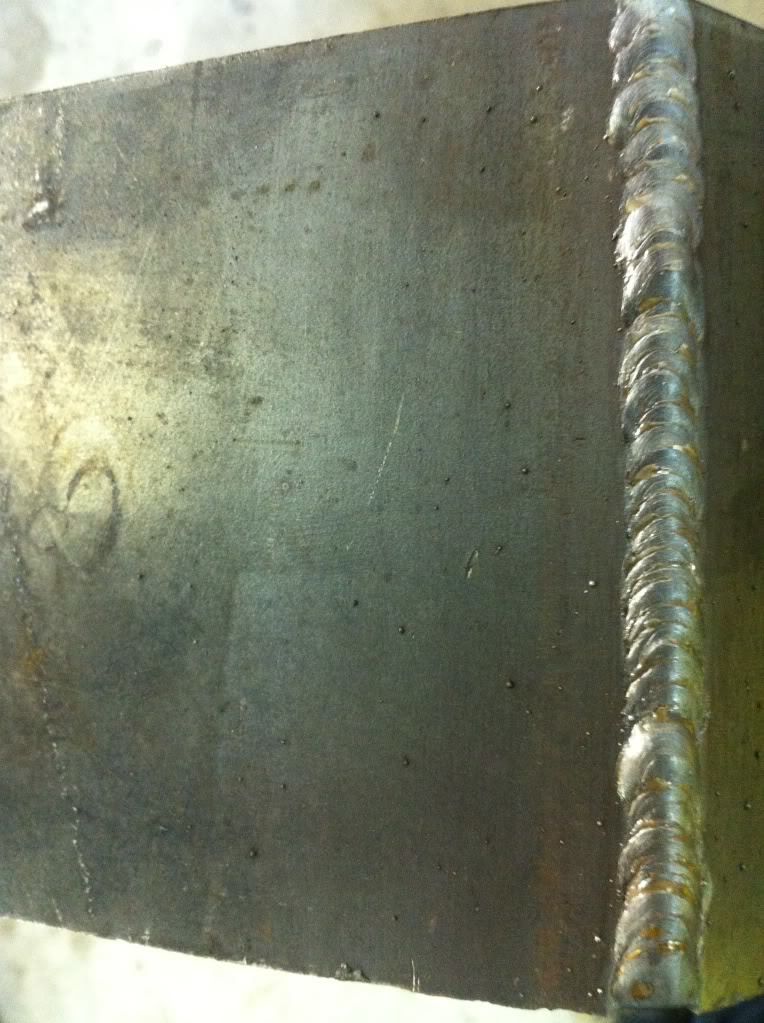

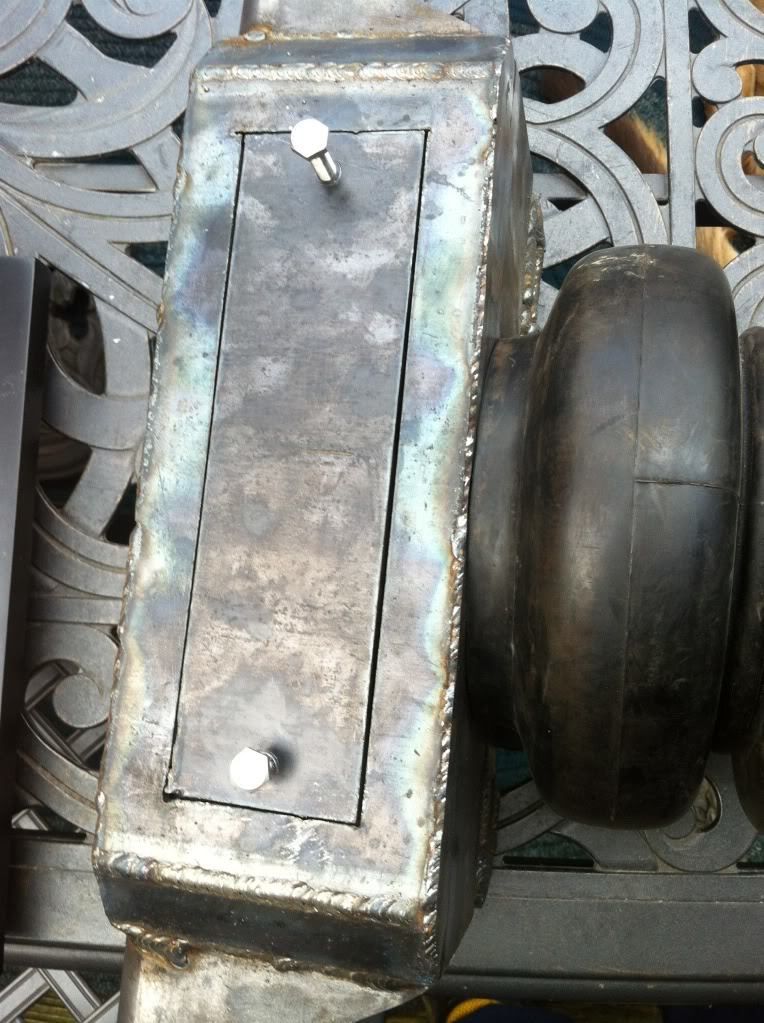

well i started to weld up my top notch so i can put the bag under the notch because there is not a lot of room to put the bag on the rear end so i think im come up with a good way to do it i like it keeps my air line out of the way and u dont see it but i started with 4x4 by 1/4in box tubing for my c-notch and added a 1 in with 1/4 in plate on each side and cut a window in the one side so i can get in to get to my fitting but here are some pic hope u guys like it so far

thread post photo

thread post photo

thread post photo

thread post photo

thread post photo

thread post photo

thread post photo

thread post photo

thread post photo

thread post photo
down2earth's avatar
down2earth
+1y

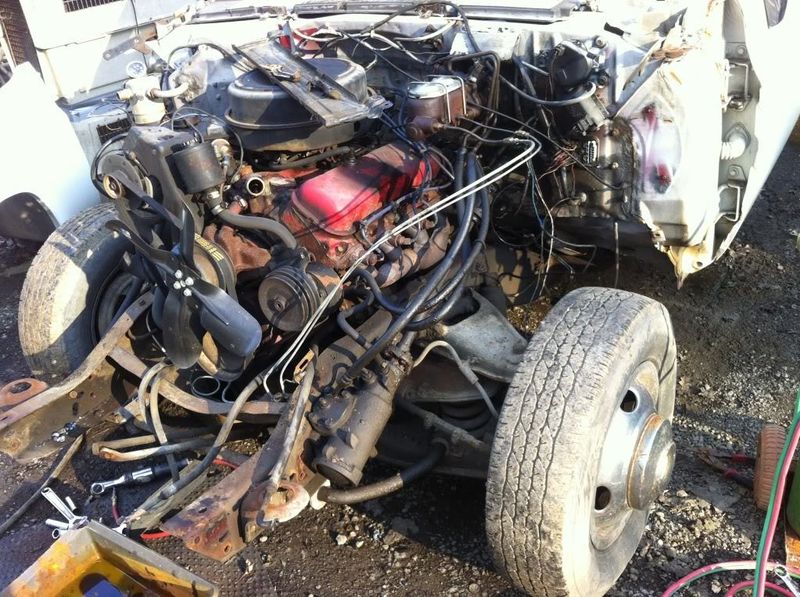

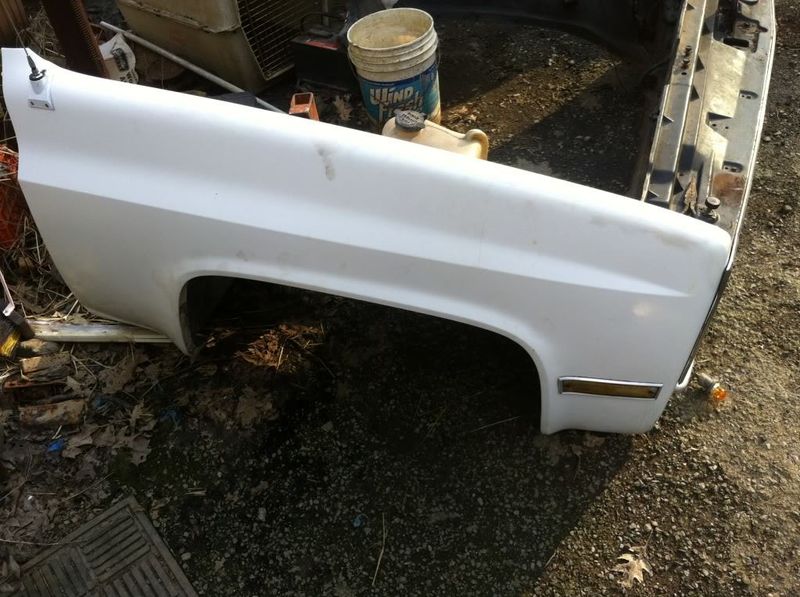

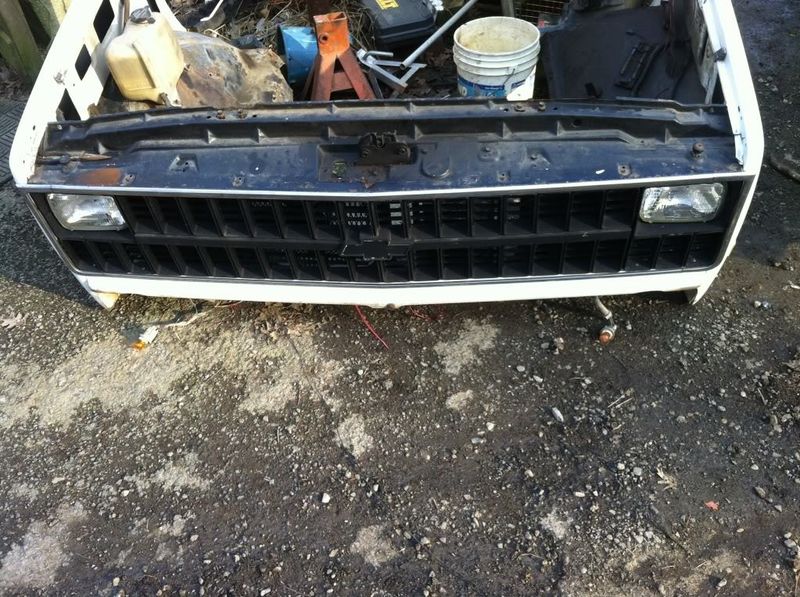

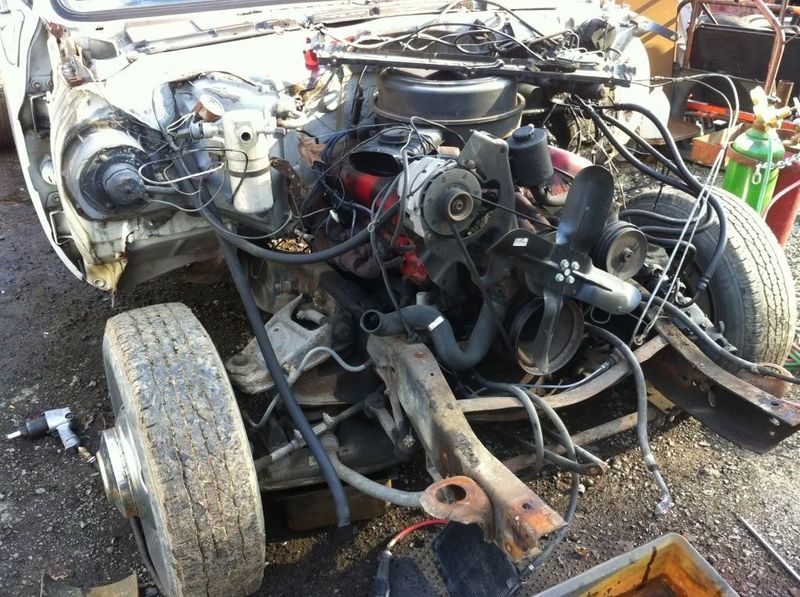

well i got the front clip off today and the holes drilled and tapped for the c notch going to start ordering all the stuff to bagged it tomorrow and presser wash it all down clean it up

thread post photo


thread post photo


thread post photo


thread post photo


thread post photo


thread post photo
L
leedogg
+1y
Cool. Looking forward to seeing the notches done. What bags are those? RE8's?
down2earth's avatar
down2earth
+1y

they are HE-8, 8
down2earth's avatar
down2earth
+1y

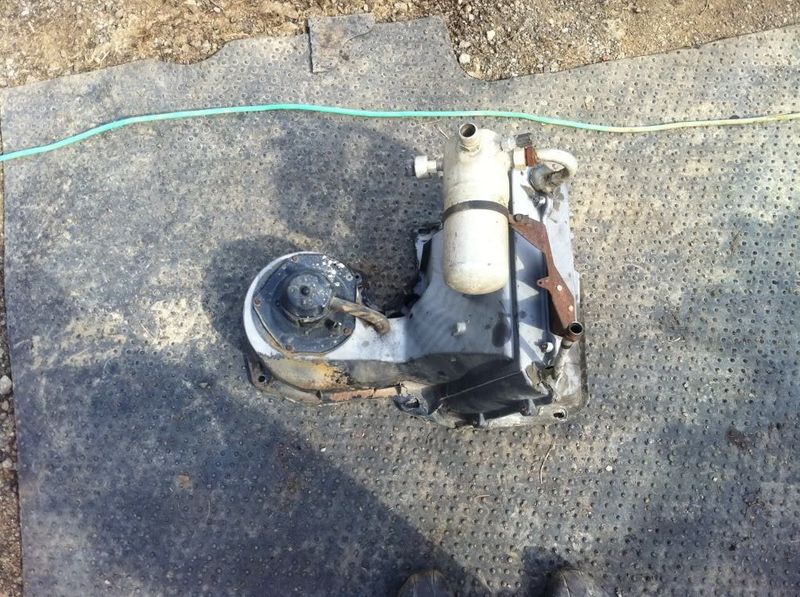

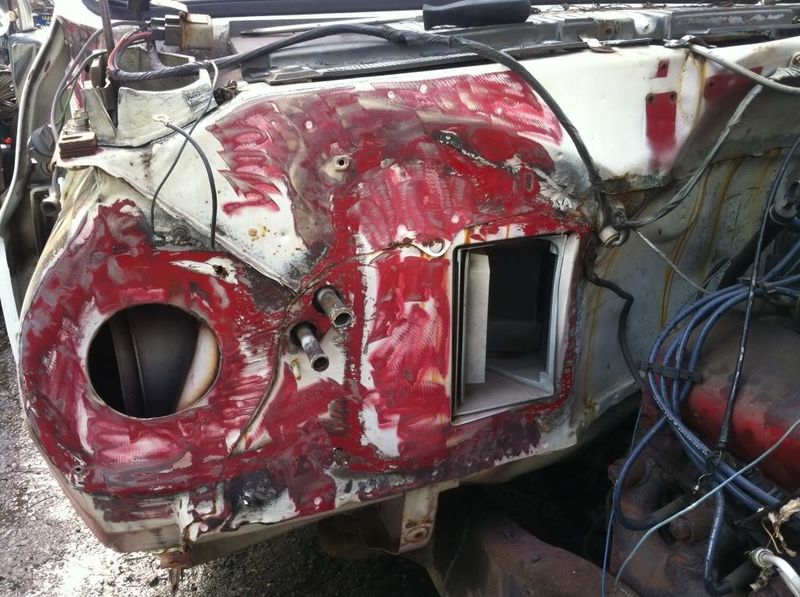

doing some more work shaving my fire wall getting rid of my ac and blower motor and getting one that goes under the dash

thread post photo


thread post photo
down2earth's avatar
down2earth
+1y

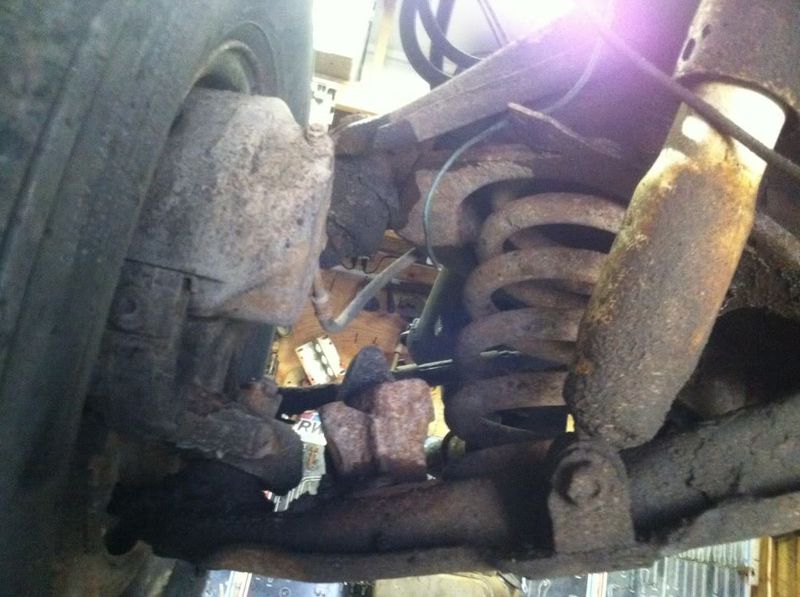

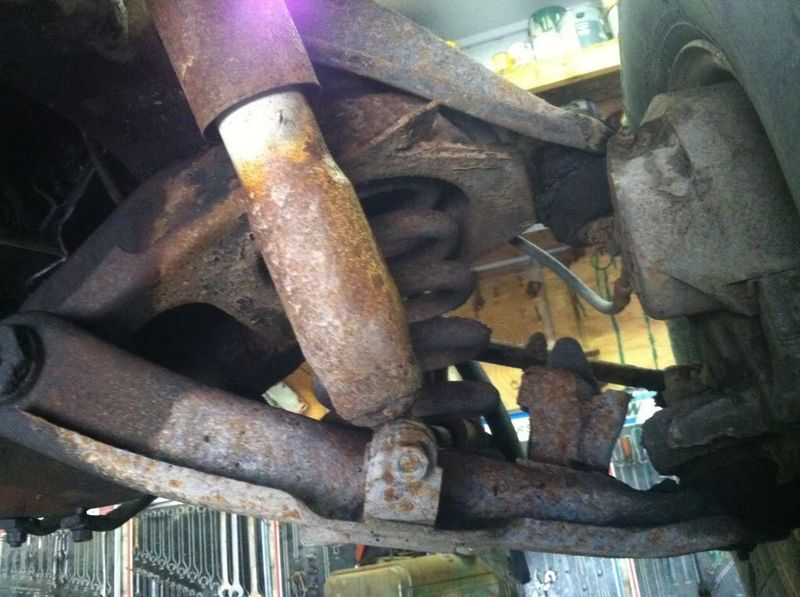

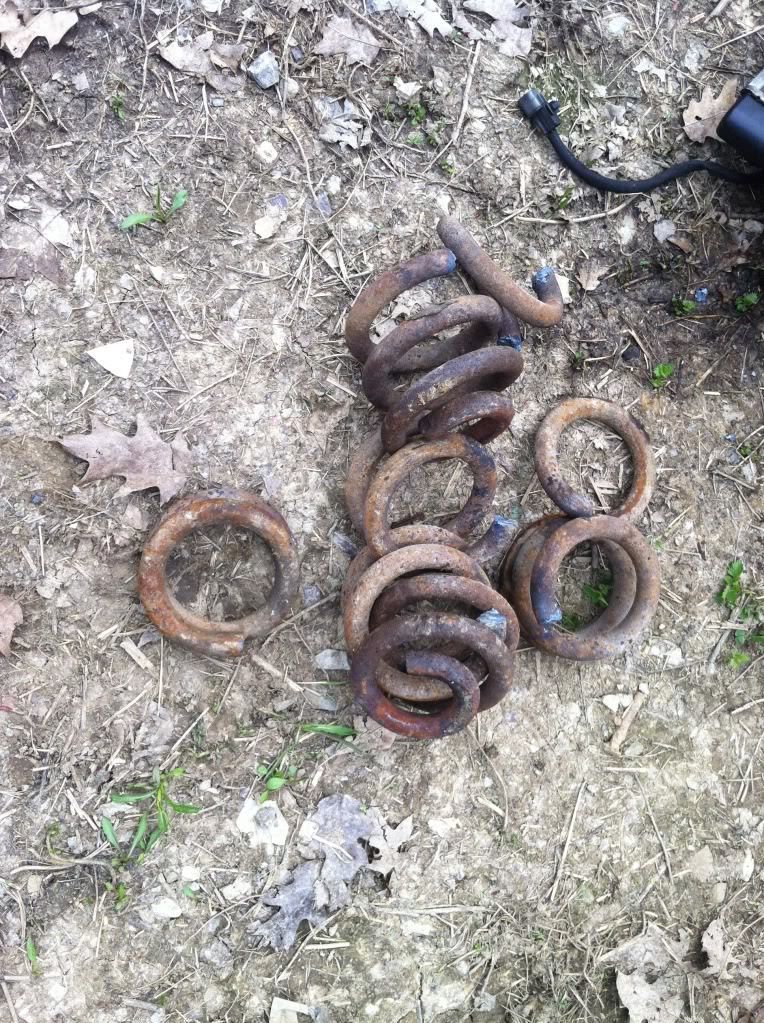

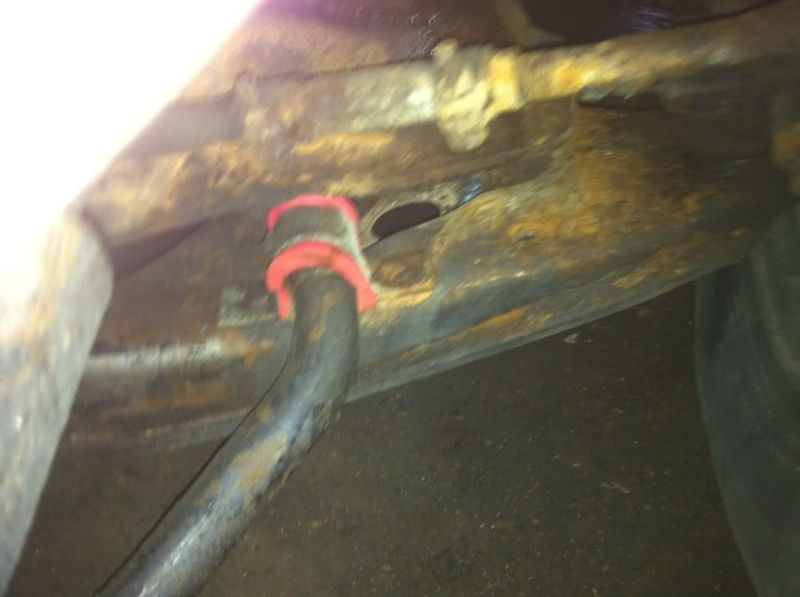

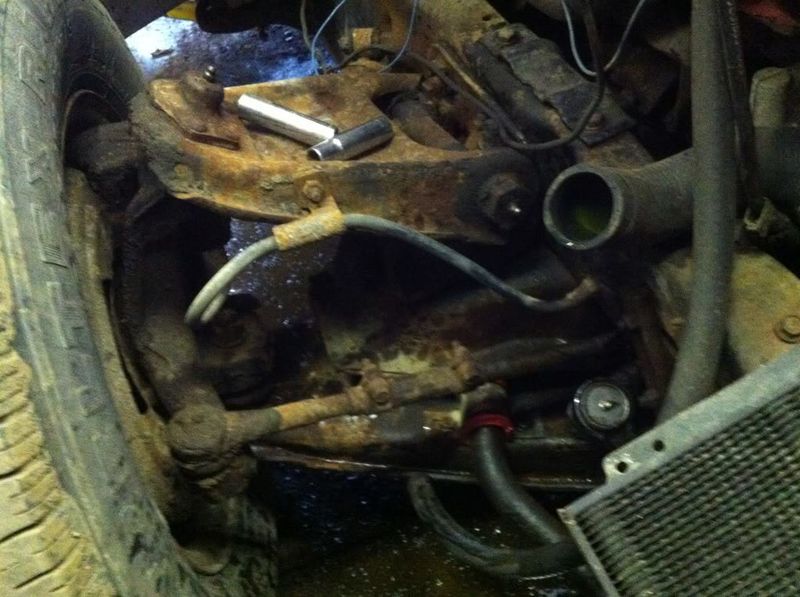

little bit more done cut the front springs out getting it rdy

thread post photo


thread post photo


thread post photo


thread post photo


thread post photo


thread post photo


thread post photo


thread post photo


thread post photo


thread post photo


thread post photo
natoinc's avatar
natoinc
+1y
Looking good man. You mind posting a few really good pics when you do your c-notches. I'm about to do mine and wanna see how you do it.
down2earth's avatar
down2earth
+1y


sure man but i dont kno when im going to do it i just got the cab off and need to get some 3x4 box tubing so i can chop off the bottom of my frame and see how tall my notch needs to be
down2earth's avatar
down2earth
+1y

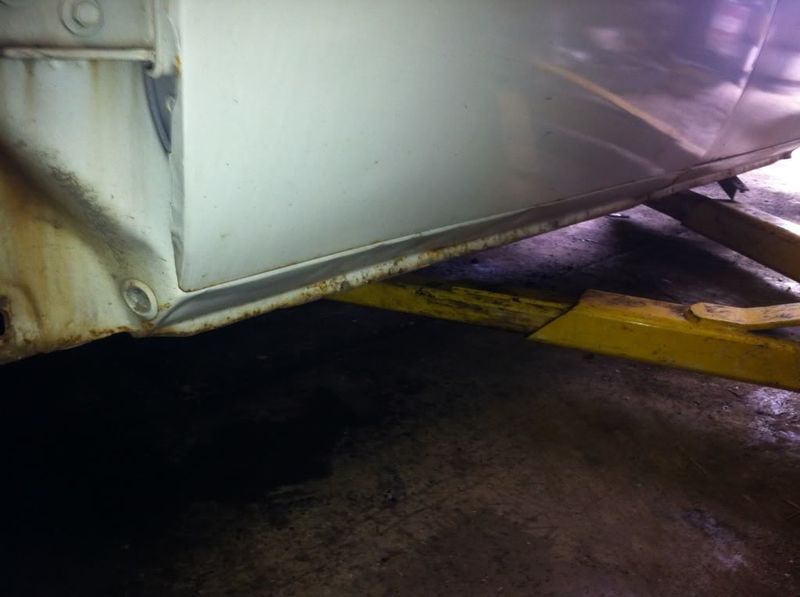

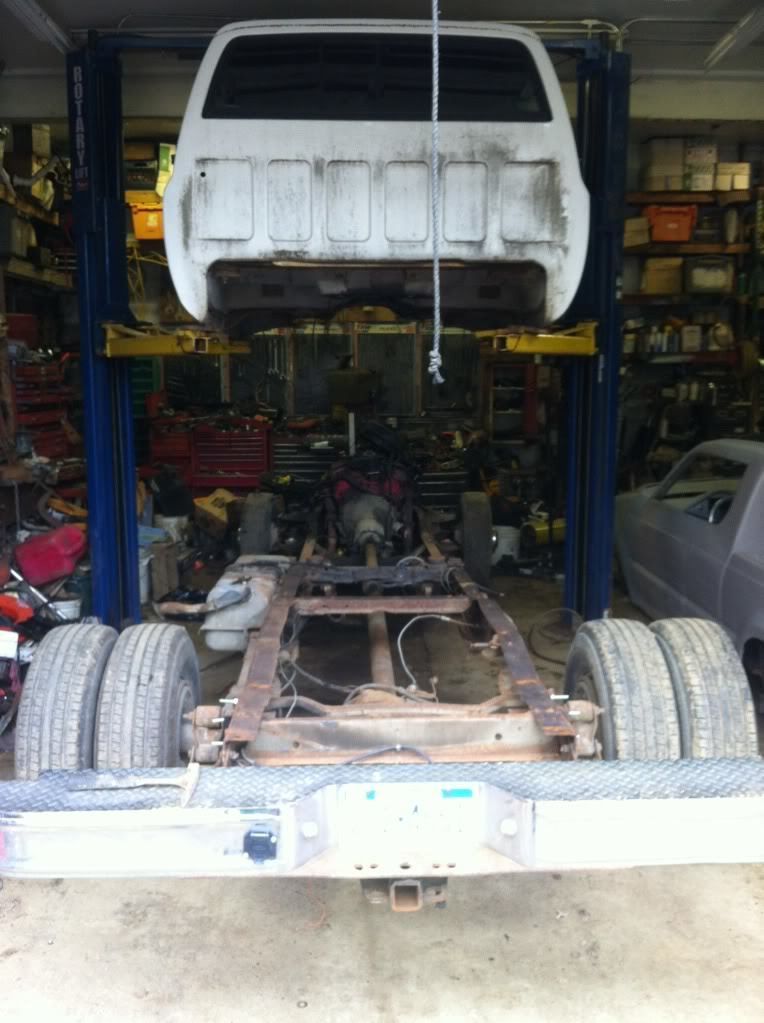

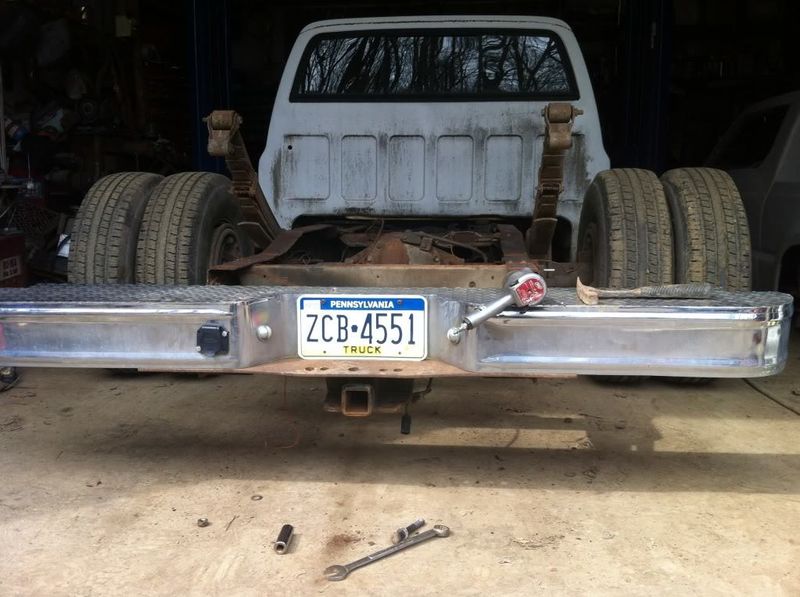

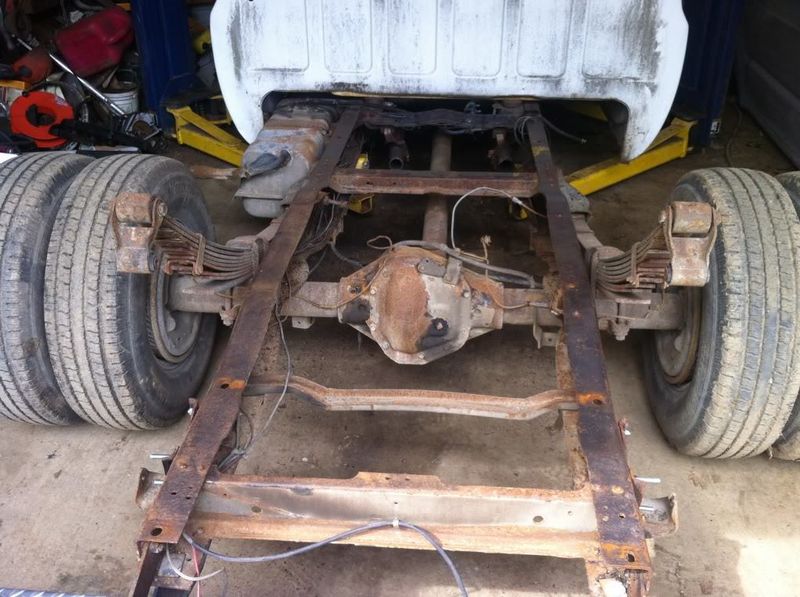

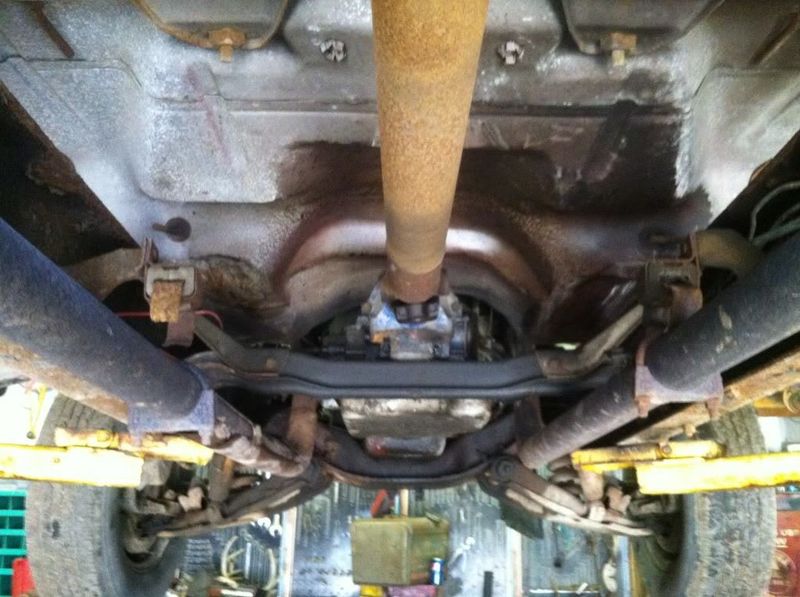

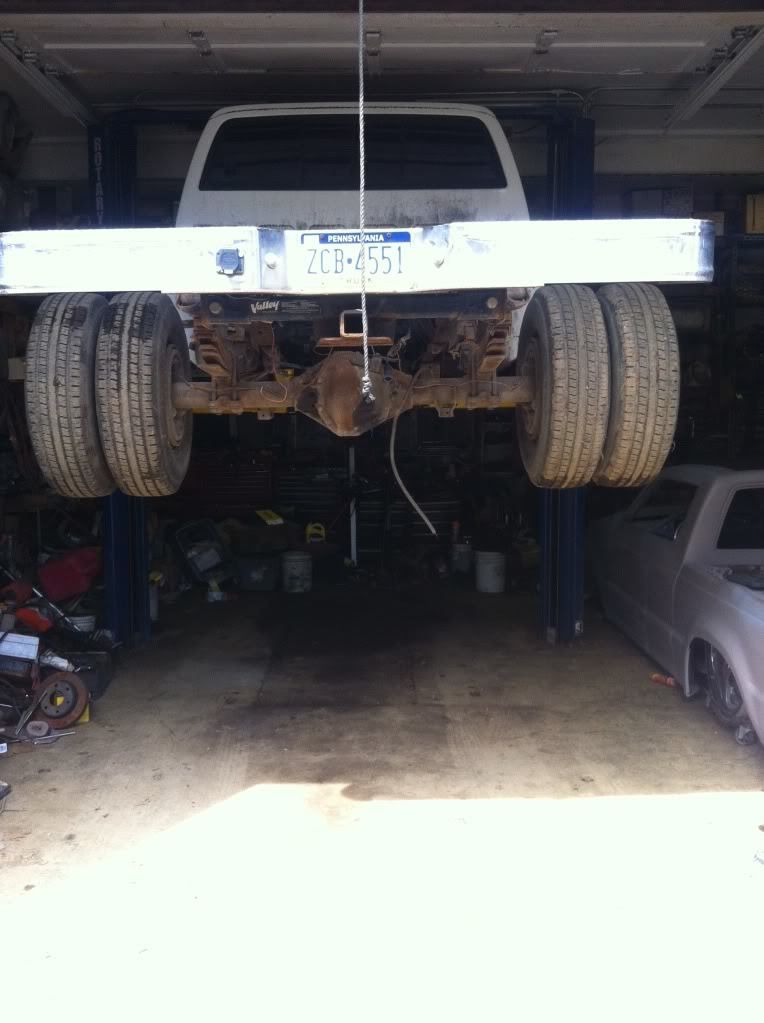

well i got the cab off i love having a lift haha now i need to get 3x4 box tubing so i can cut off the bottom of my frame and z my front 4 and 3/4 to lay rocker

thread post photo
M
mdub4life29
+1y
lets see pics of the truck thats sitting next to the lift
