K
project nightmare build-up
low4life1
+1y
Lookin Good! I love seeing custom frame buildups like this. How do you feel about the wood table? I was up in the air when I started to build my frame about building a wood table or spending the money to build a steel one. It's nice to be able to tack to a steel top, but with the price of steel these days, a wooden one is tempting. Hmmmm.
bdydrp18
+1y
Originally posted by riddinlow99
what thickness and size is all the tube your using there
2x3 x 3/16 wall rails
1.25" x 3/16" wall tubing
what thickness and size is all the tube your using there
2x3 x 3/16 wall rails
1.25" x 3/16" wall tubing
bdydrp18
+1y
Originally posted by low4life1
Lookin Good! I love seeing custom frame buildups like this. How do you feel about the wood table? I was up in the air when I started to build my frame about building a wood table or spending the money to build a steel one. It's nice to be able to tack to a steel top, but with the price of steel these days, a wooden one is tempting. Hmmmm.
well i wish i would have made it a little taller other that i think the wood one works just fine. i thought building a steel one but like you said the price of steel it was just not worth it to me. plus i'm need really going to be building a lot of frame so there was just no long term reason to build a steel one
Lookin Good! I love seeing custom frame buildups like this. How do you feel about the wood table? I was up in the air when I started to build my frame about building a wood table or spending the money to build a steel one. It's nice to be able to tack to a steel top, but with the price of steel these days, a wooden one is tempting. Hmmmm.
well i wish i would have made it a little taller other that i think the wood one works just fine. i thought building a steel one but like you said the price of steel it was just not worth it to me. plus i'm need really going to be building a lot of frame so there was just no long term reason to build a steel one
bdydrp18
+1y
here is a little more:

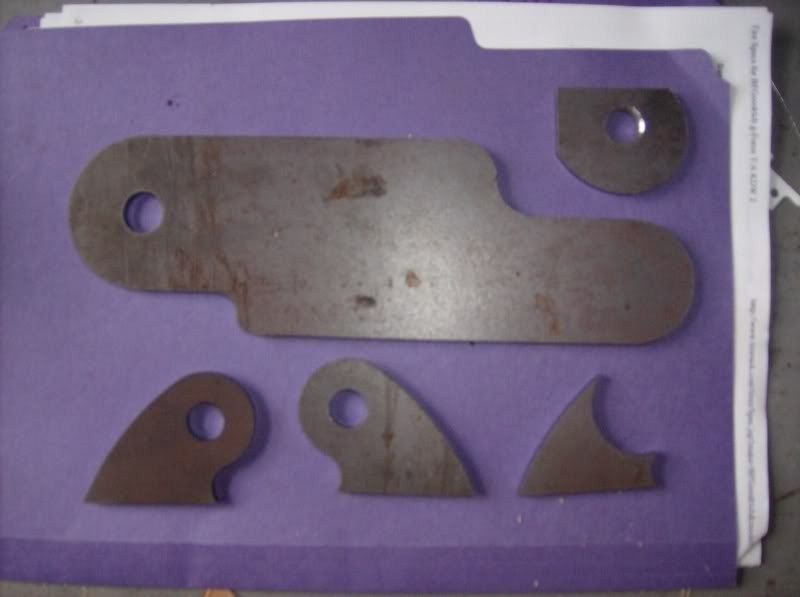

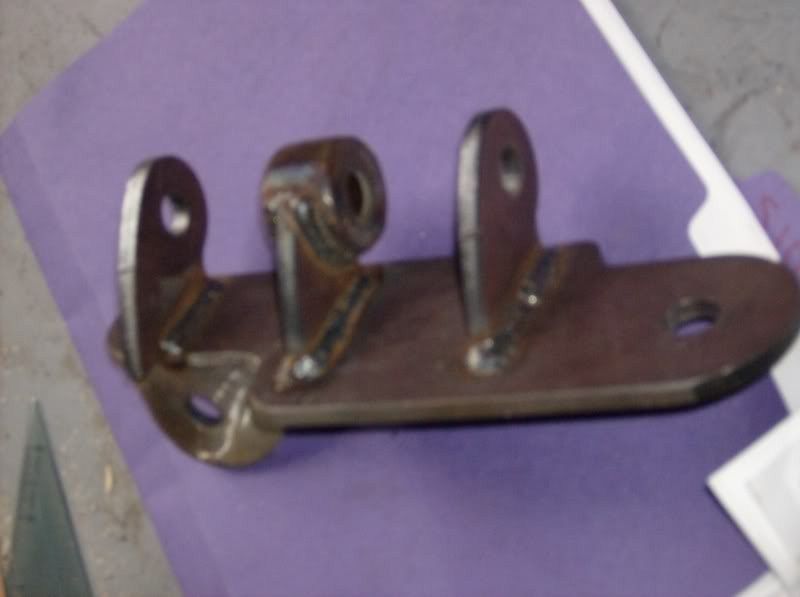

brackets i made for the top of the corvette knuckles:

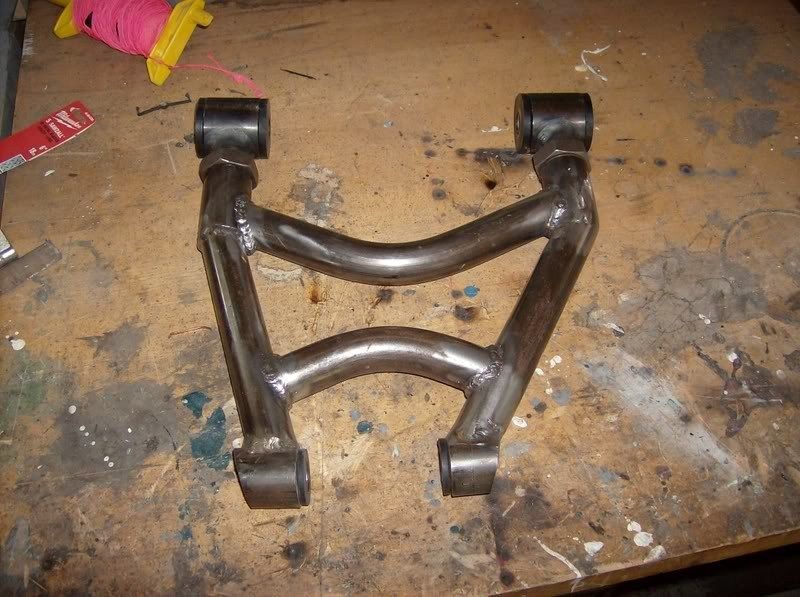

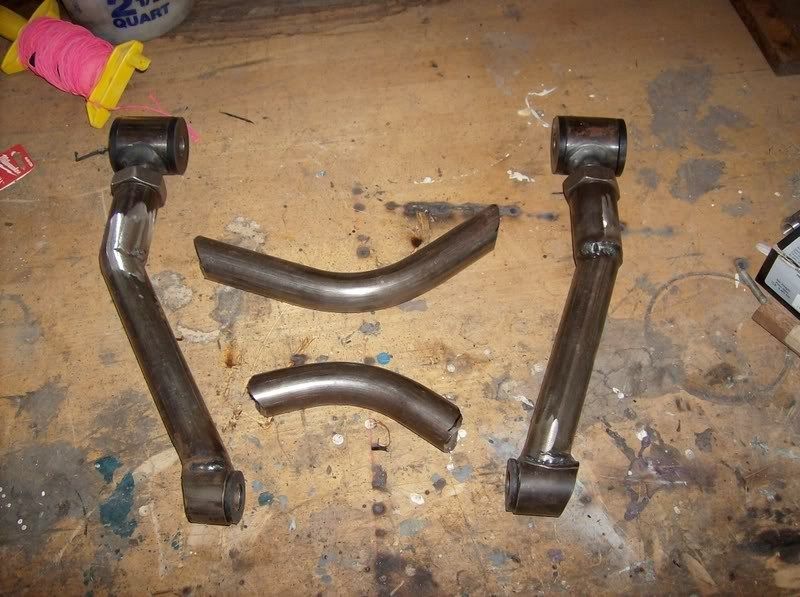

upper arms built

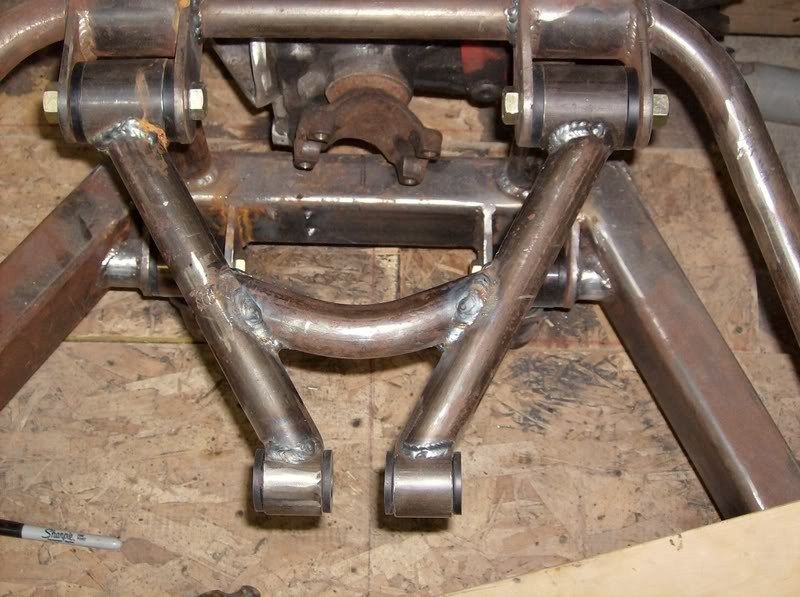

start on the lowers:

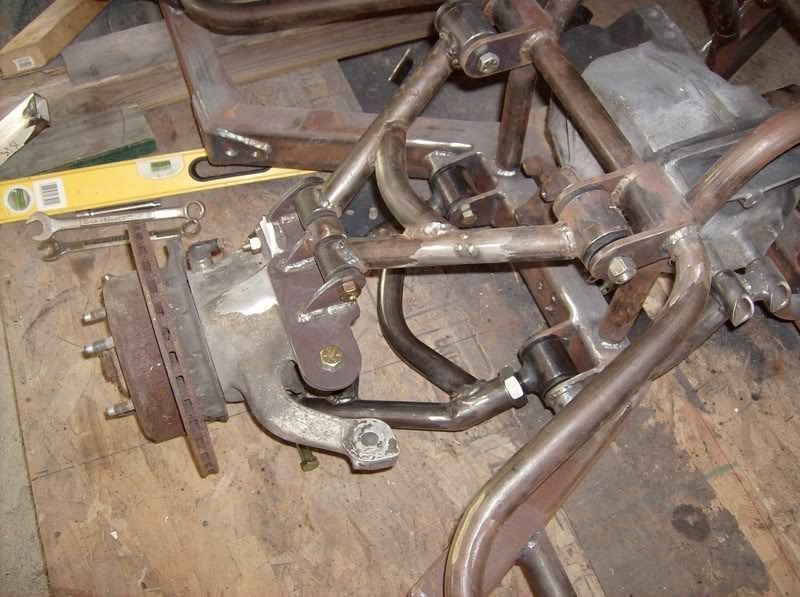

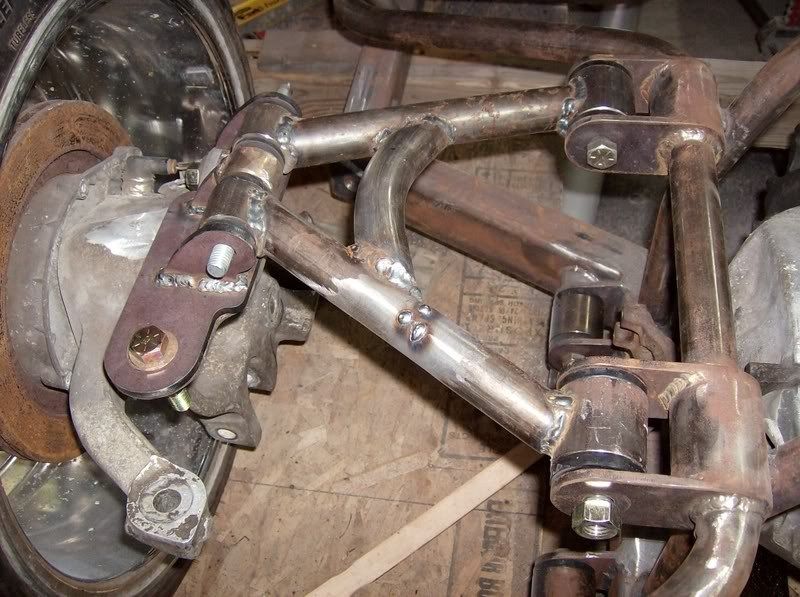

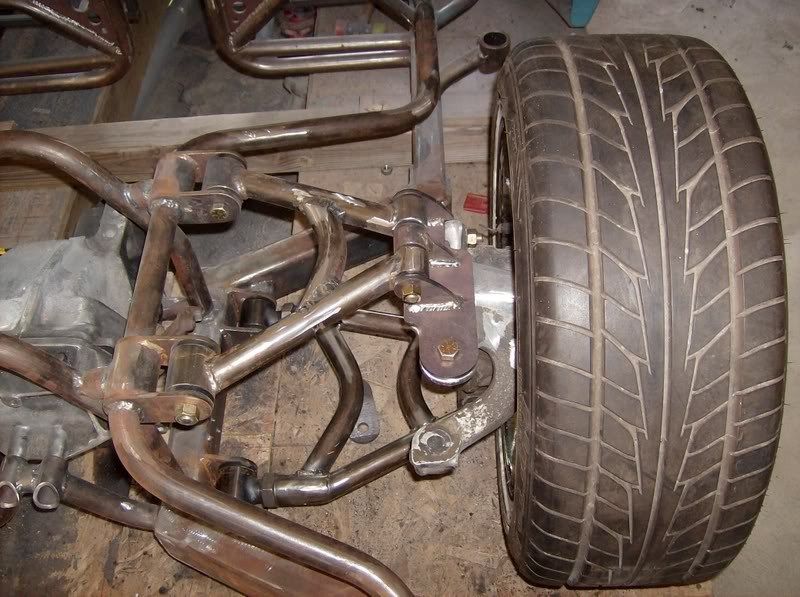

both arms in place:
brackets i made for the top of the corvette knuckles:
upper arms built
start on the lowers:
both arms in place:
still_2_hi
+1y
wow props to you brotha........ independant rears ftw i envy you
jdm customs
+1y
NICE, never thought of a wooden frame table yet. thanks man that'll save me some cash for that idea. I like all the work. super clean well planned. PROPS
PIMPTACO
+1y
Edited: 10/29/2008 12:03:09 AM by PIMPTACO
Did not expect to see something that frickin' nice built on a wooden frame table!!! Great work so far. Can't wait to see it a roller.
Did not expect to see something that frickin' nice built on a wooden frame table!!! Great work so far. Can't wait to see it a roller.
bdydrp18
+1y
HAHA YEAH THAT WOODEN TABLE WAS JUST A EASIER WAY TO GO FOR ME. PLUS IT HELP THE BACK A LOT.
THANKS FOR ALL THE PROPS GUYS!!
NEW PIC COMING SOON
THANKS FOR ALL THE PROPS GUYS!!
NEW PIC COMING SOON
DougyFrisch
+1y
Thats freakin SICK man... looks very well planned out. you got a buddy at a machine shop i'm guessing? lol
i'm also diggin how you already planned your exhaust route, most people don't think that far ahead, lol
i'm also diggin how you already planned your exhaust route, most people don't think that far ahead, lol
DeepSouthS10
+1y
wow man, you got some skills! very nice!
