Project "Back to Skool" my old high school mini rebuild

Mocked up the front suspension and welded the frame back down to set up the wheel base..
[IMG]http://i871.photobucket.com/albums/ab275/BAGGED95S10/D37D3DDB-44D3-43DD-960C-C9CB408AA47E-253-0000001DC603FADF_zpsbc2990a2.jpg[/IMG]
[IMG]http://i871.photobucket.com/albums/ab275/BAGGED95S10/BFFAE786-B58F-4616-B9EC-D2D8FD053A9D-253-0000001DBFB3AB11_zpsae769372.jpg[/IMG]

New rear Currie 11" disk kit w/ e-brake
[IMG]http://i871.photobucket.com/albums/ab275/BAGGED95S10/0FAA1FC3-F349-4A72-A813-25CF0A17188E-5758-0000062E37A1B49D_zps9448d50a.jpg[/IMG]

Got my axels and brakes put together. Found out the 3rd member I got for free is 28 spline and I had my axels made 31 spline so ill hafta change the carrier before it goes together Which is fine since its needs a locker or posi unit anyways. (Gotta have 2 tire fire!)

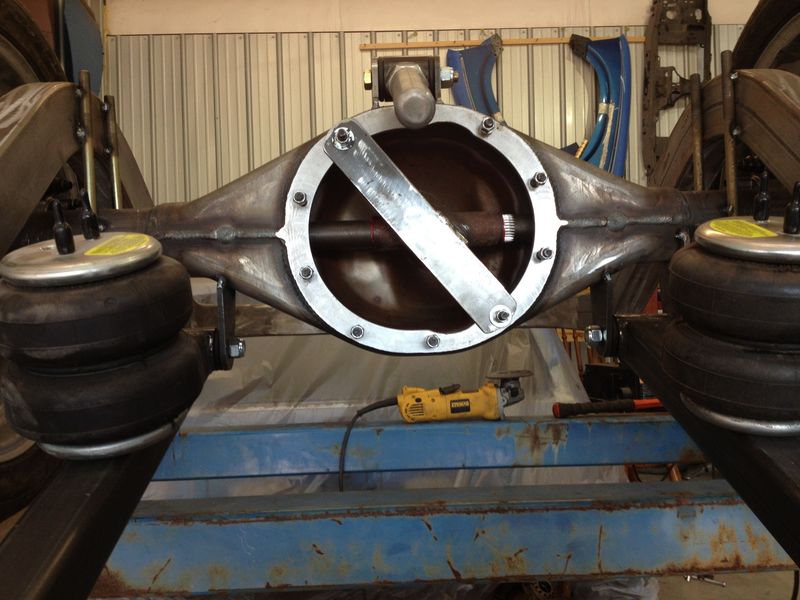

Made a quick axel support tube that bolts inside the housing so i can still mock it up.

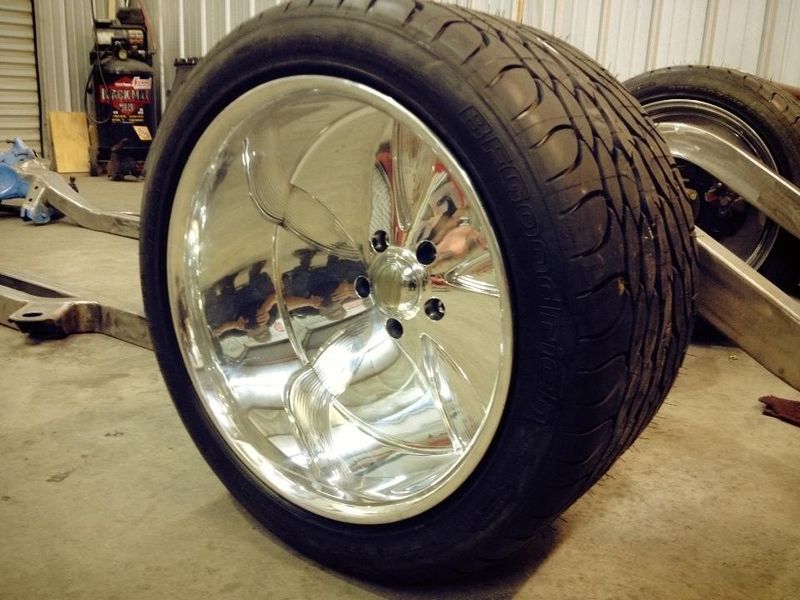

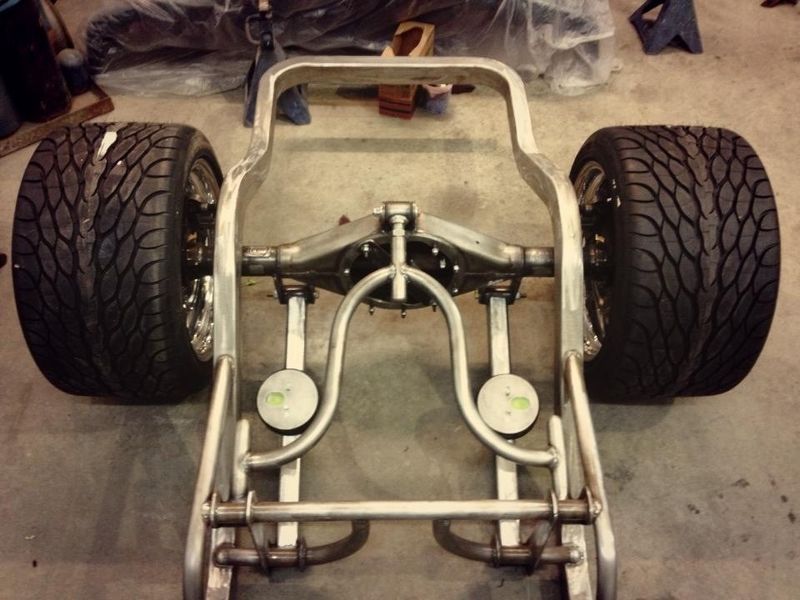

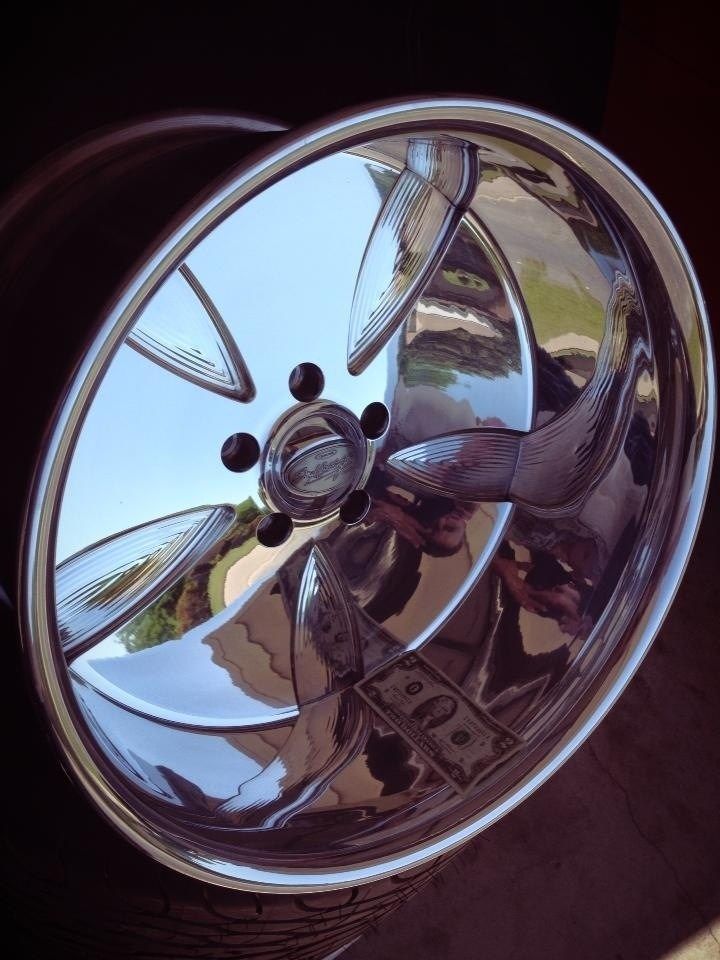

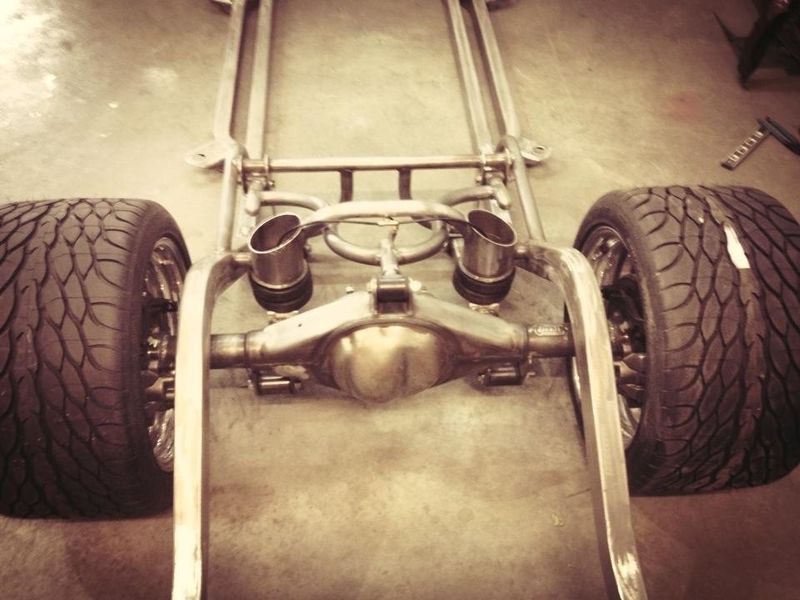

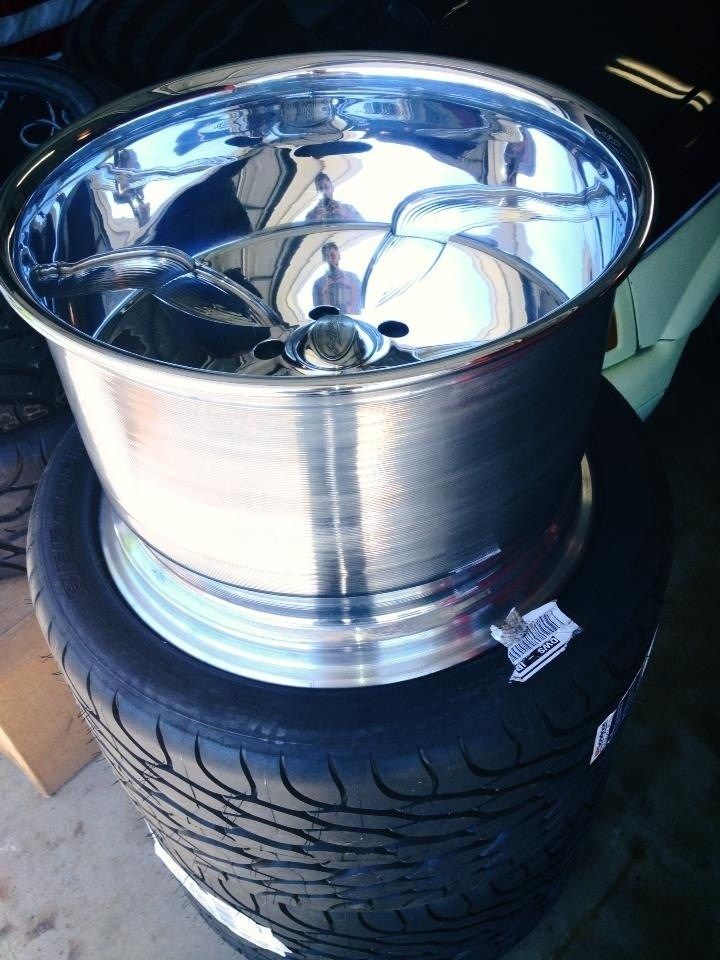

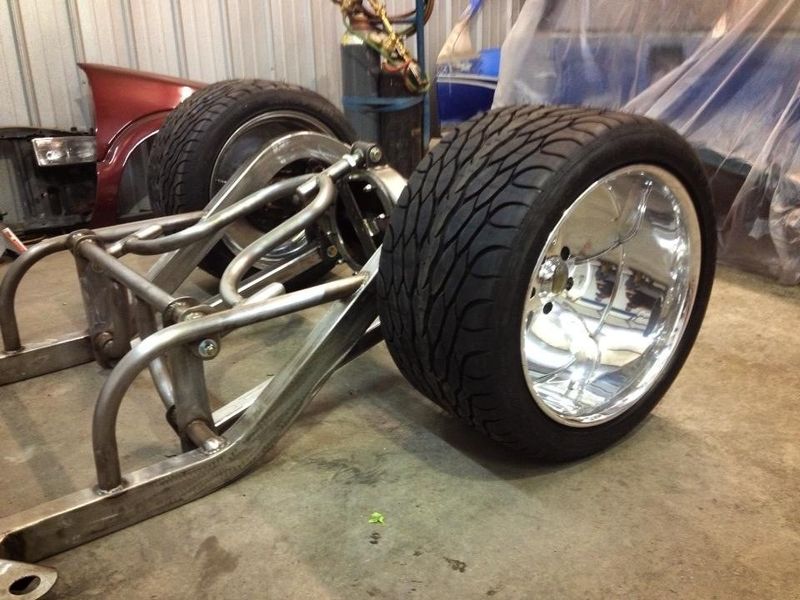

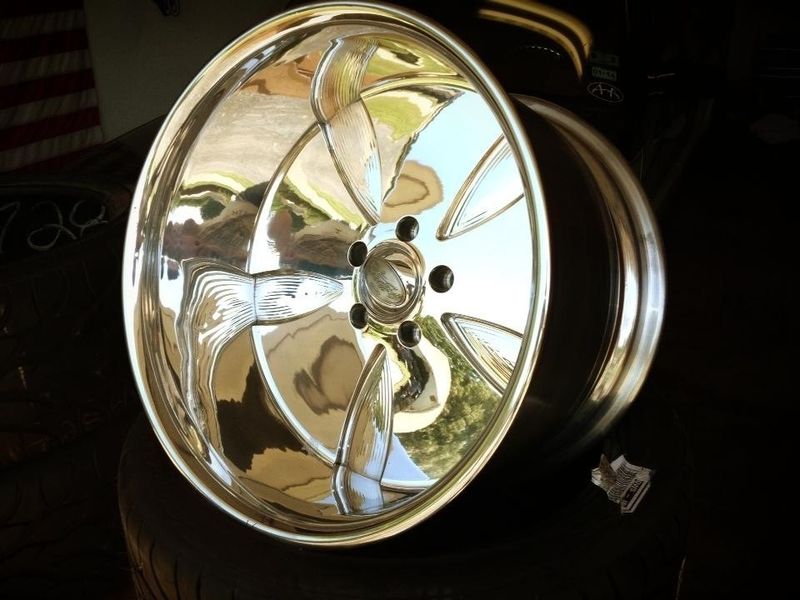

Put the front wheels on the rear and set up the wheel base and Its now ready for rear suspension and my 18x12's will be here n a week or so. Putting 335/30/18's out back. (13.5"x 26") meats!
[img]http://i871.photobucket.com/albums/ab275/BAGGED95S10/18149437-F79F-496A-8F71-E2BAD4F4083B-8884-000008147F41846D_zps1693e3bc.jpg[/img]
[img]http://i871.photobucket.com/albums/ab275/BAGGED95S10/FCDC51B0-224A-4B46-9527-E222561BC950-8884-00000814905EFEB9_zps1e3320d7.jpg[/img]
[img]http://i871.photobucket.com/albums/ab275/BAGGED95S10/6931EFC9-E580-4A3B-A920-A411A892E541-8884-0000081481976D47_zpsf67afa18.jpg[/img]

looks great!

Boom

Not that anyone looks at this forum anymore but i did a lil work today.

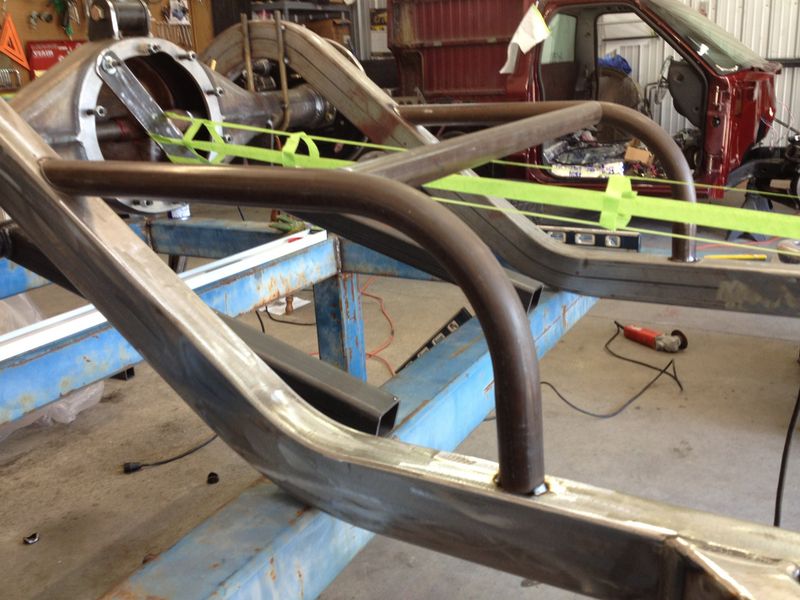

Sick work, love the tape drive shaft, lol

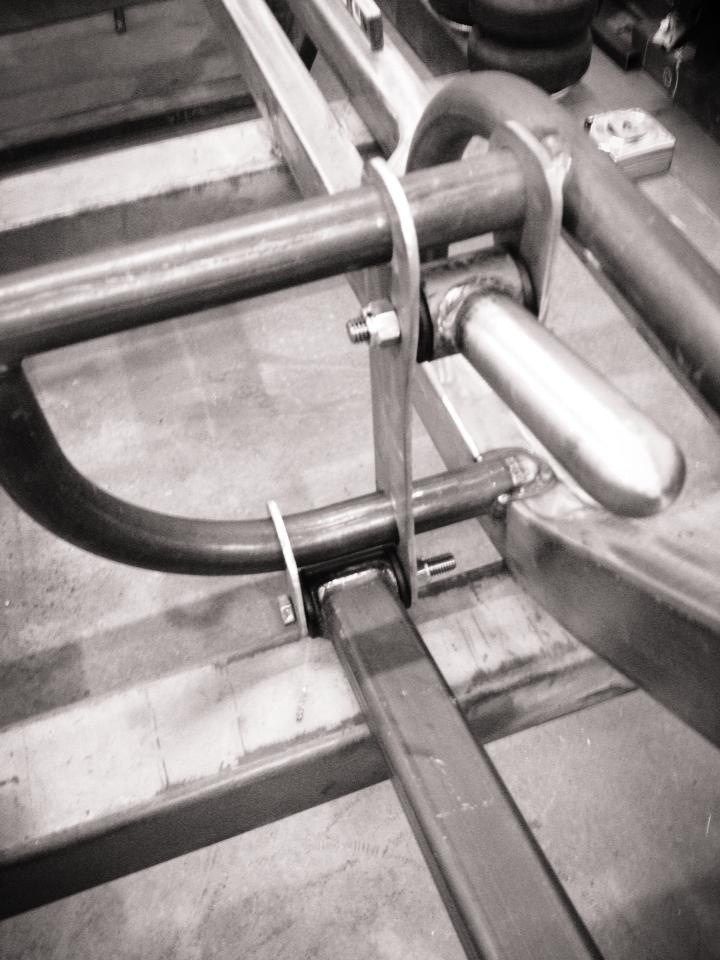

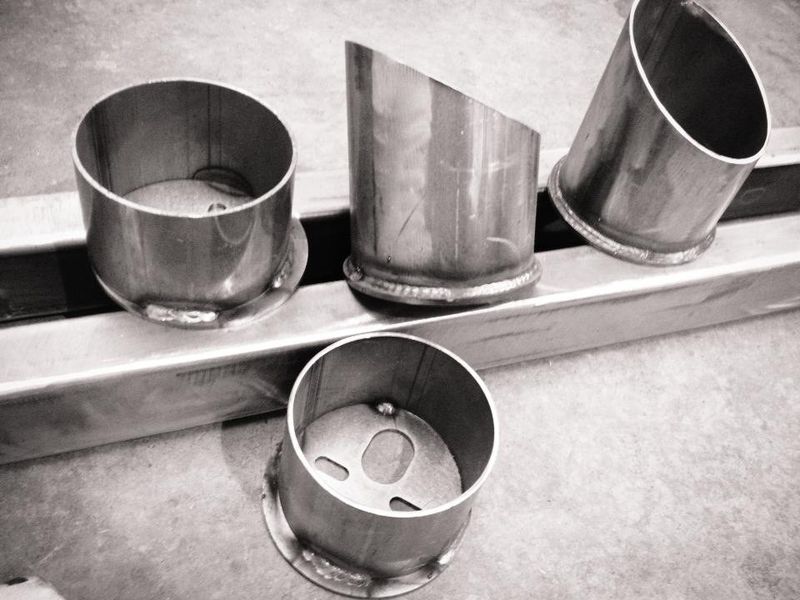

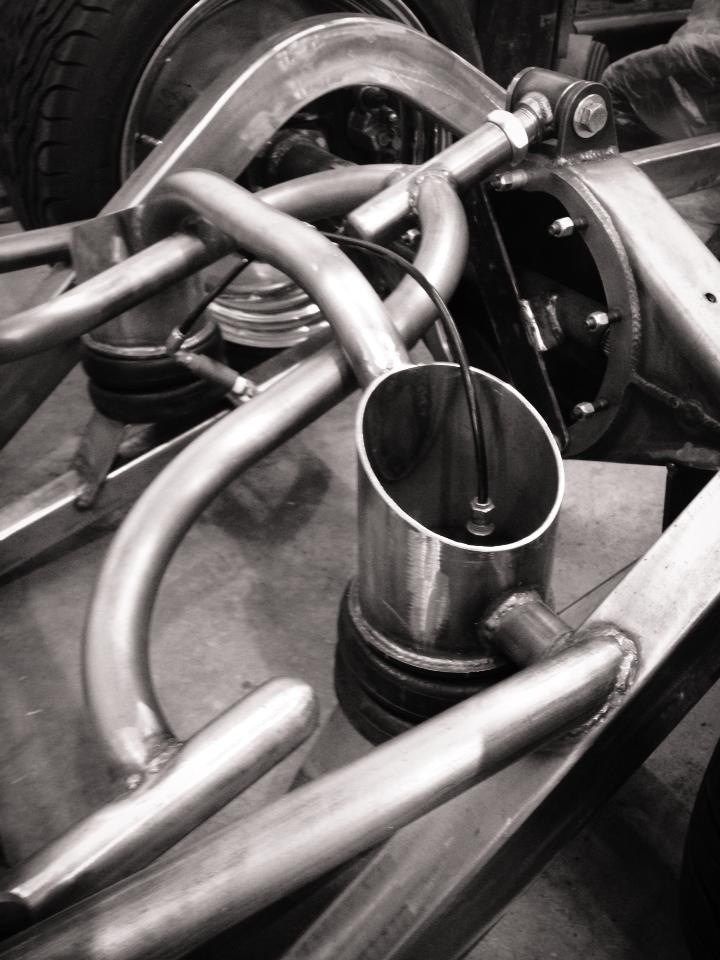

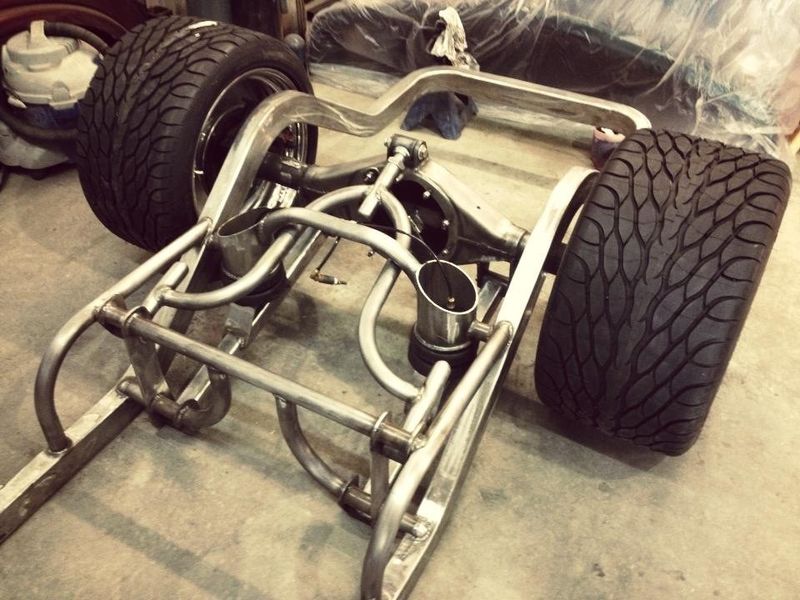

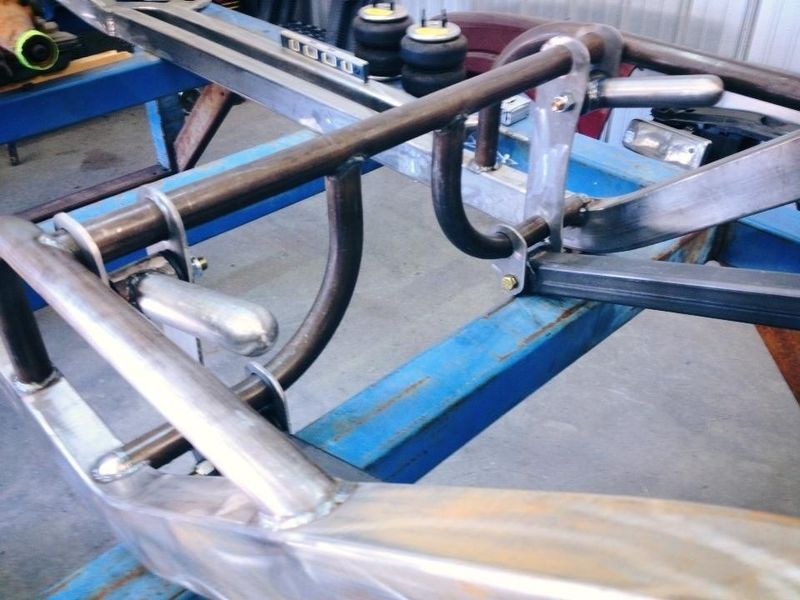

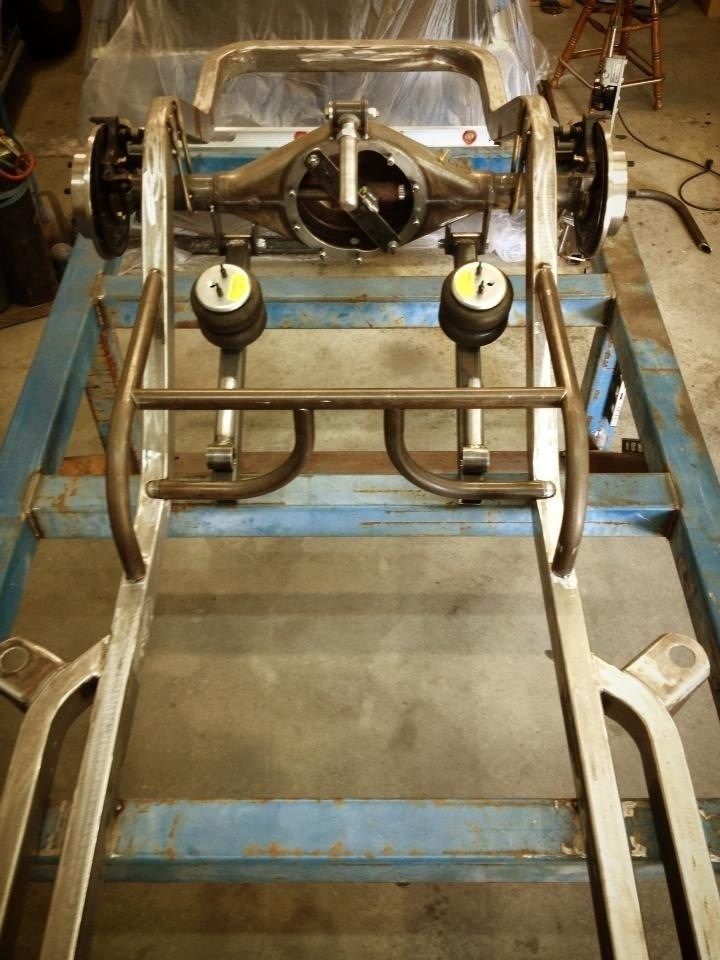

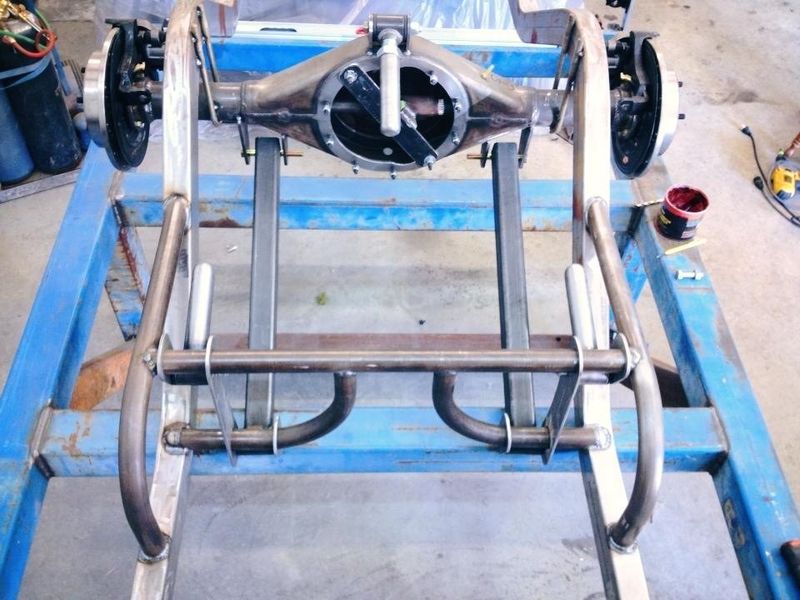

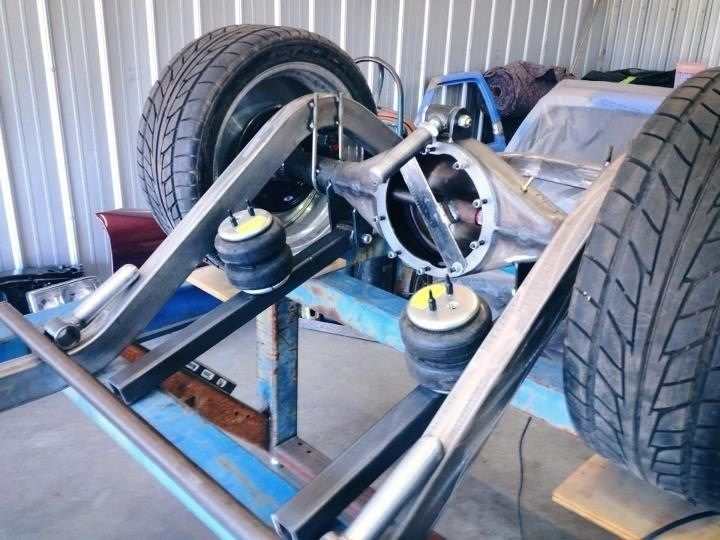

Thanks. Got some more progress today. Should wrap up the links tomorrow and then on to the bags and bag mounts. Ima do shocks and a splined sway bar later when I have all the parts. But this will get it to a rolling state for now to take to showfest.

There's still some of us checking in here!!

Pics

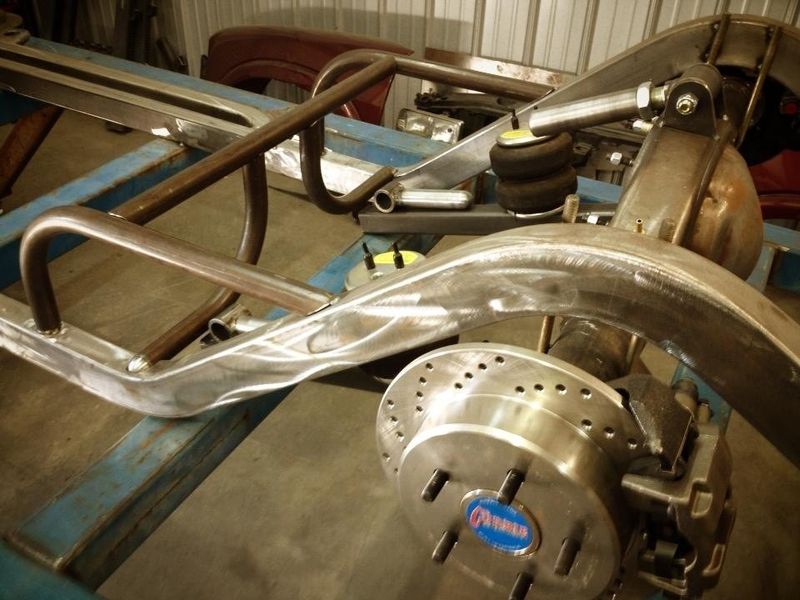

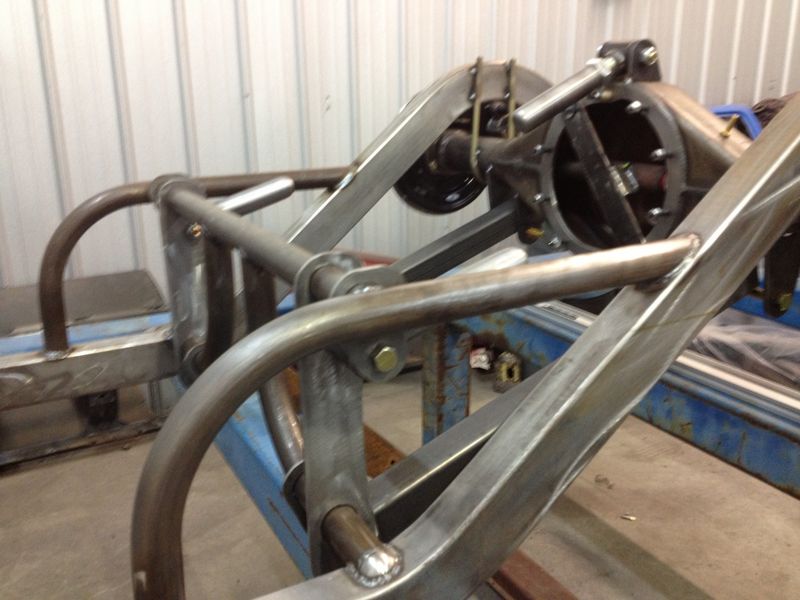

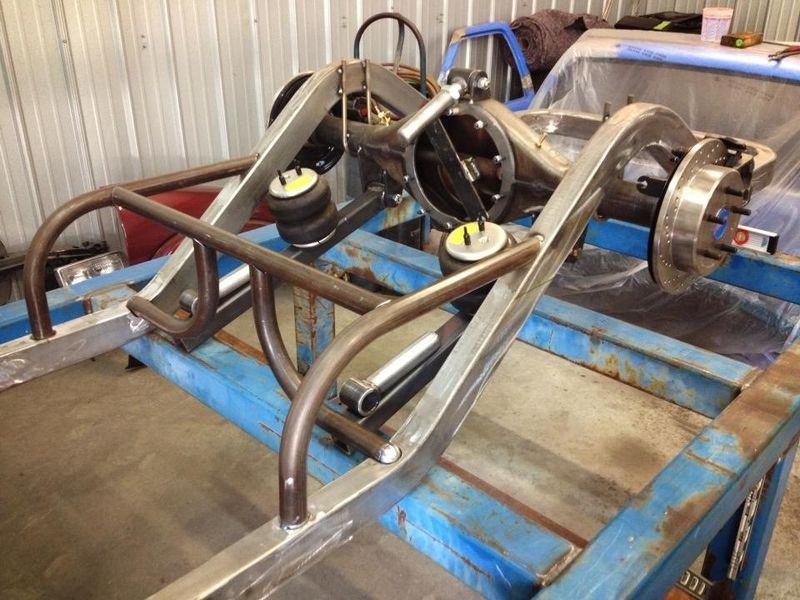

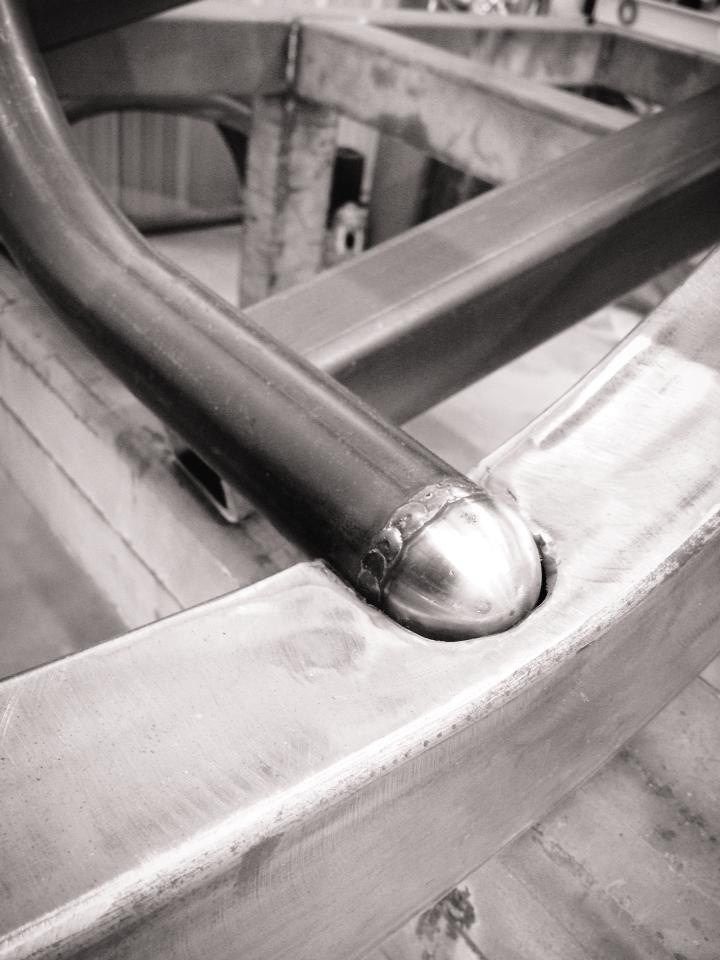

I like how you transitioned the round tube into the top of the frame rail. Where the lower links tie in. Nice!

Thanks. Mo pics
