4 Runner front end conversion

Last Updated: Feb 22, 2015
View Photos

This is a brief step by step build of a customers front end conversion that I did. Started this project about 10am this morning and finished at around five... Here she is... I did the conversion while Lost Cause did other misc body work on the truck..

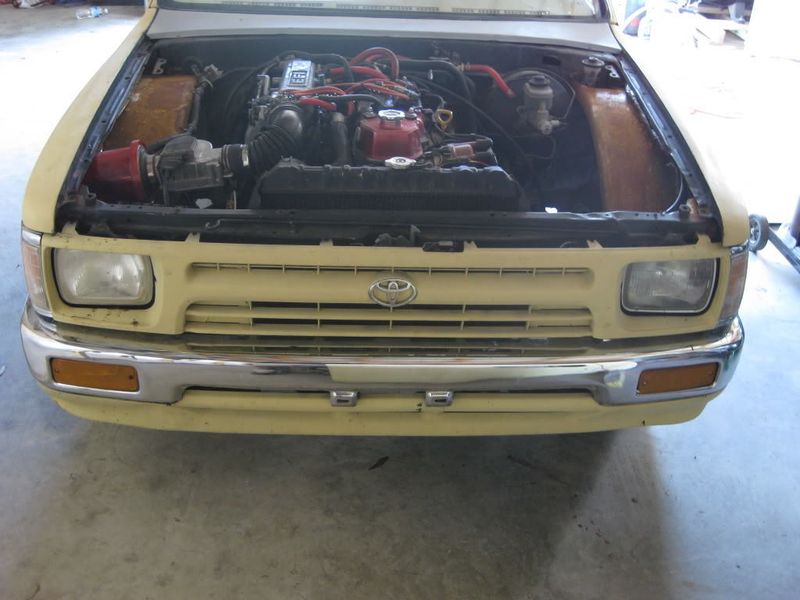

she came in like this

thread post photo

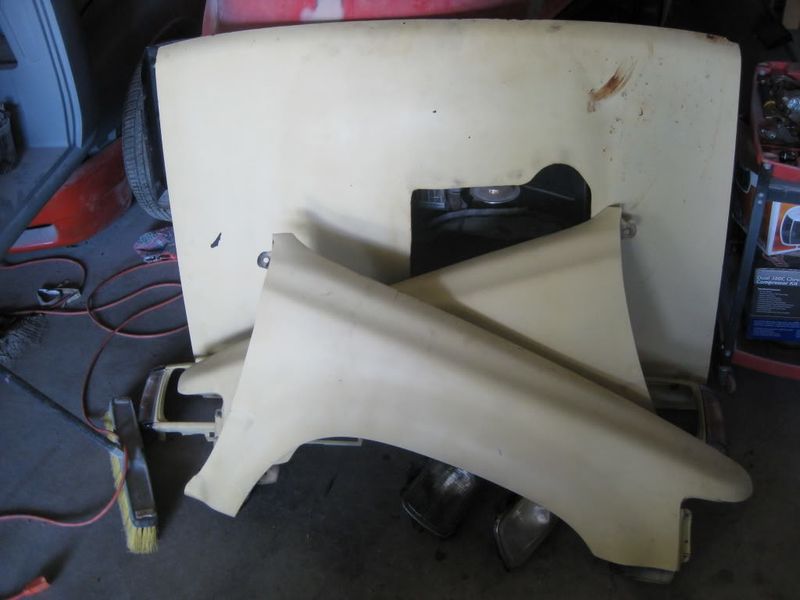

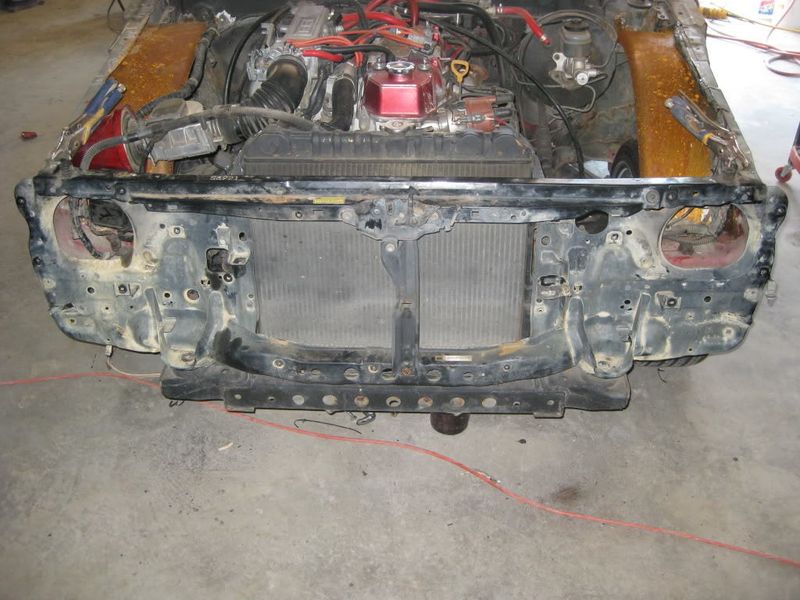

Parts pile

thread post photo

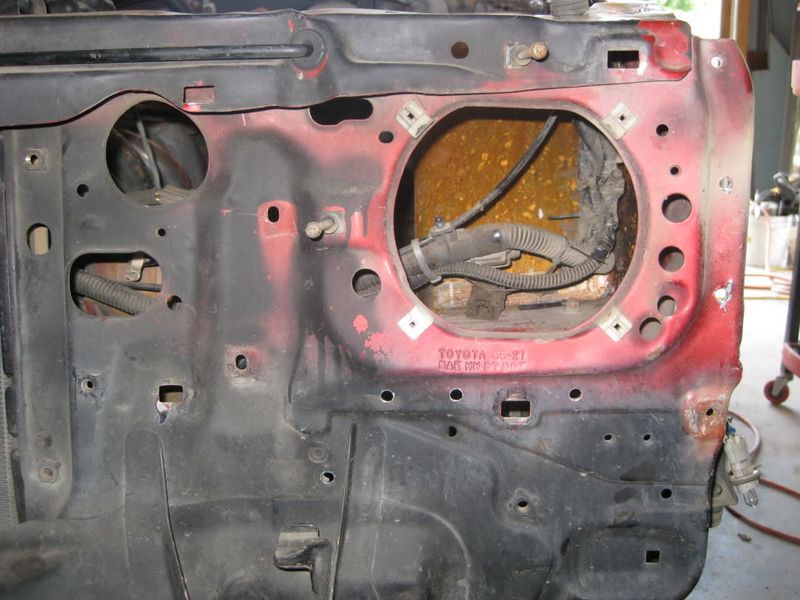

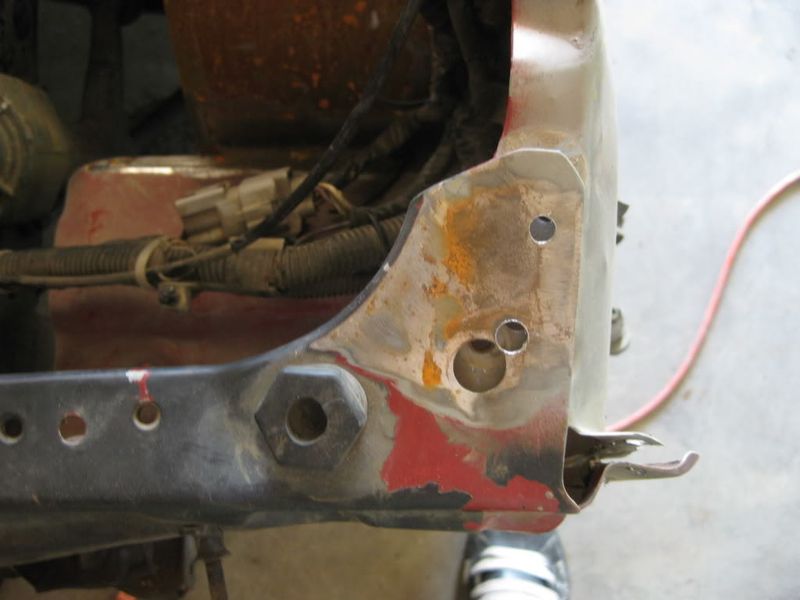

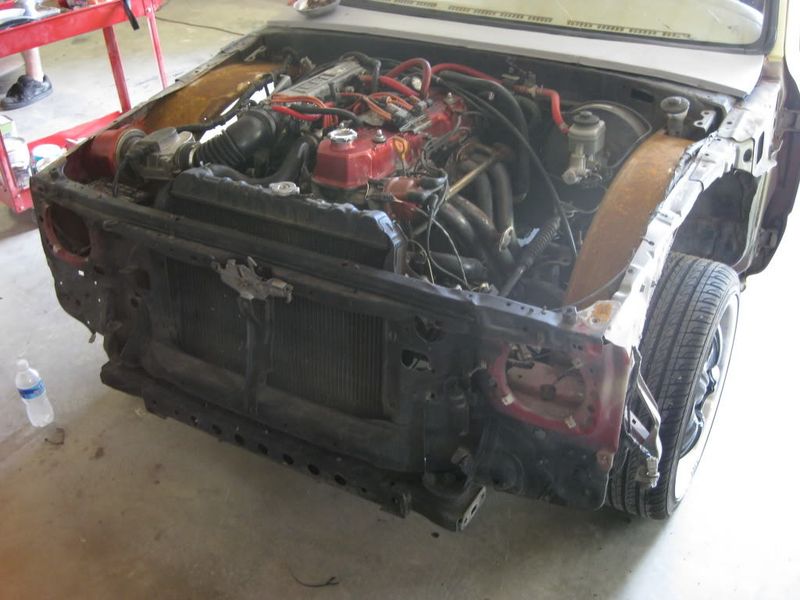

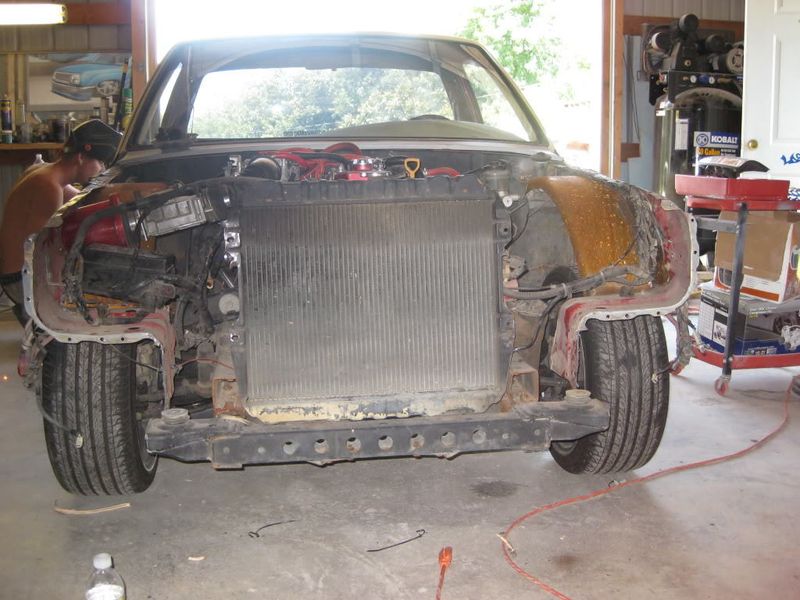

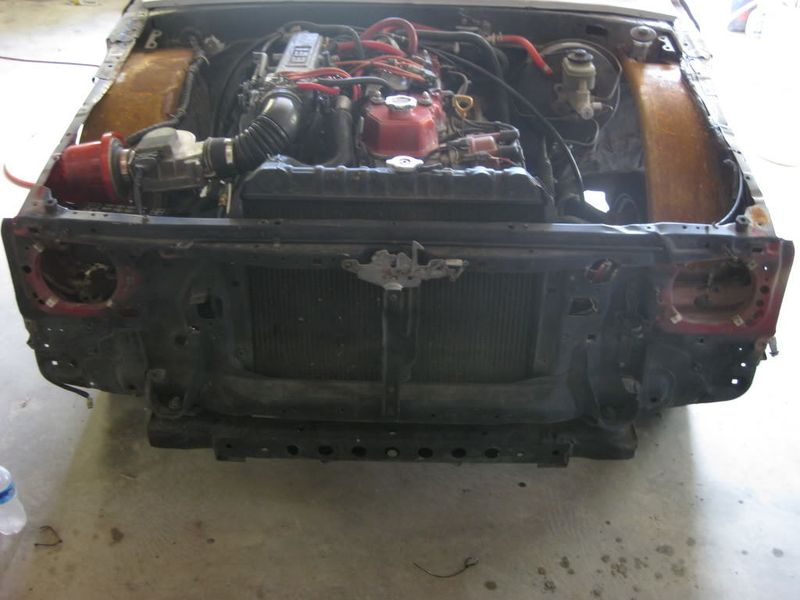

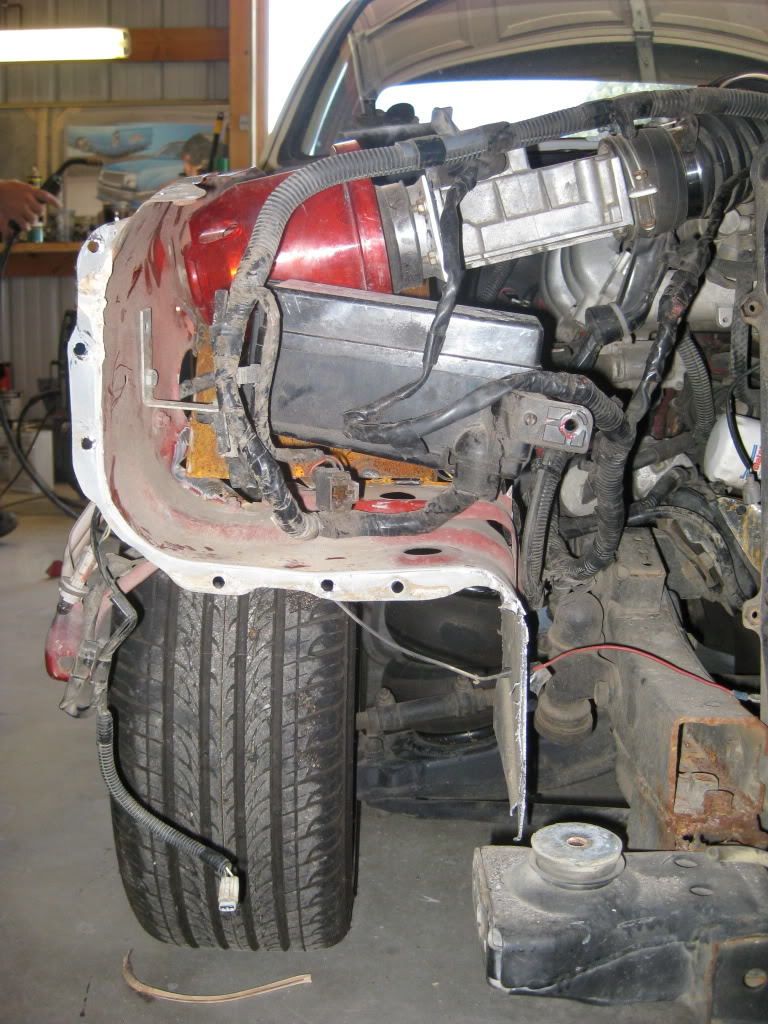

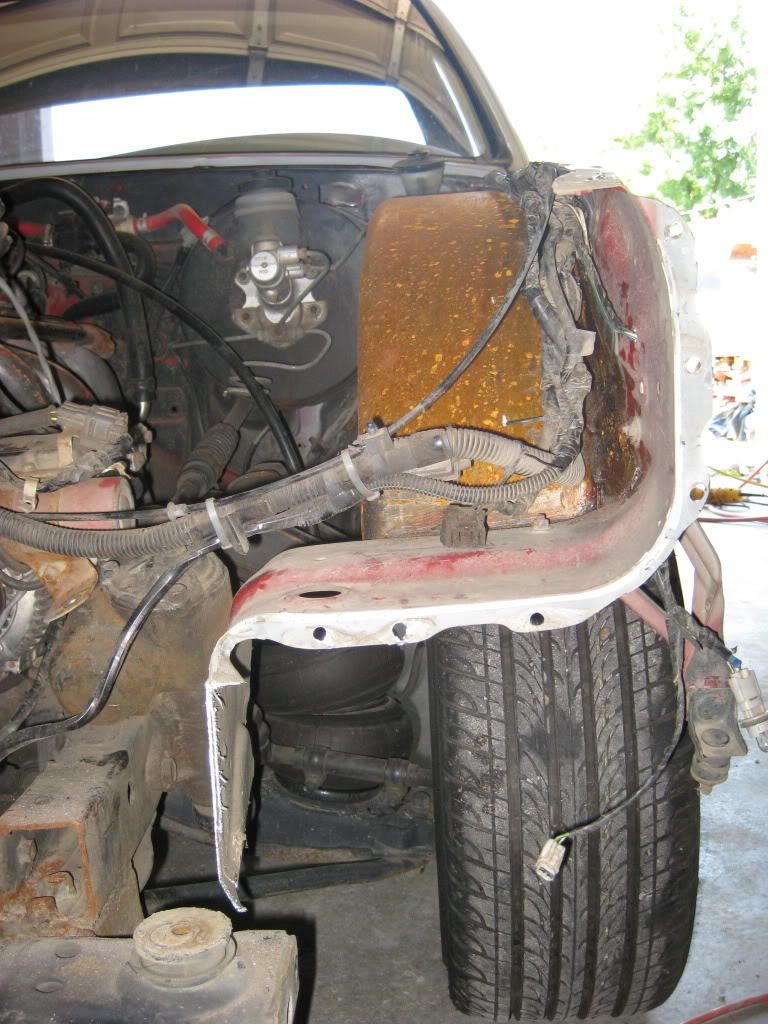

The proper way to do a swap is to drill out all the spot welds and remove it as clean as possible... That is how I did it

thread post photo

thread post photo

thread post photo

thread post photo

thread post photo

thread post photo

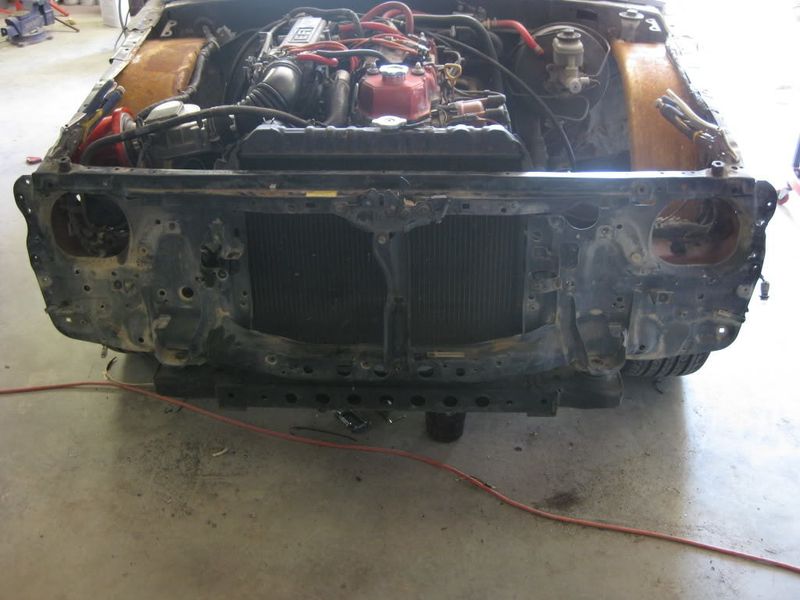

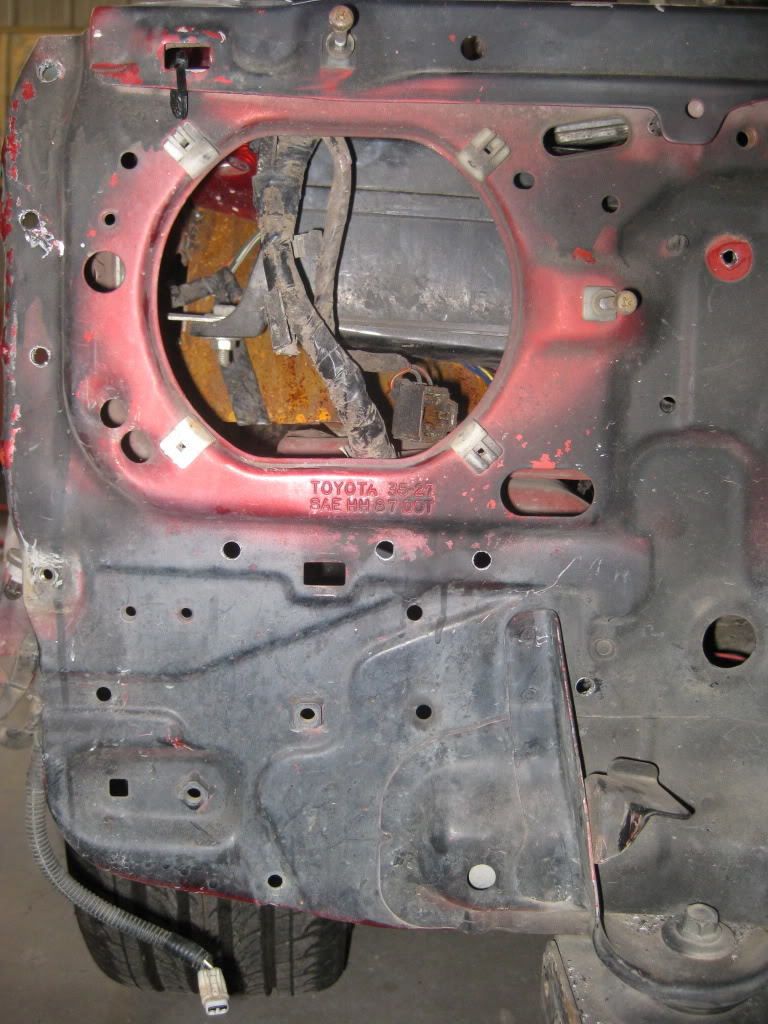

With the support cleanly removed its time to prep the new/used 4 runner front

thread post photo

thread post photo

thread post photo

thread post photo

thread post photo

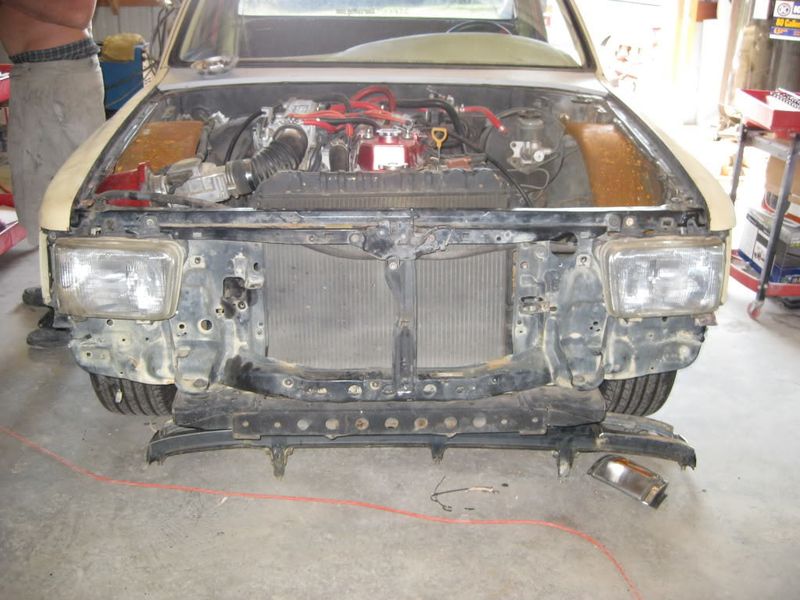

With all the old 4 runner metal removed from the core time to do some test fitting

thread post photo

thread post photo


Everything seated in place and temp screwed in to ensure proper alignment... no welding has been done at this point

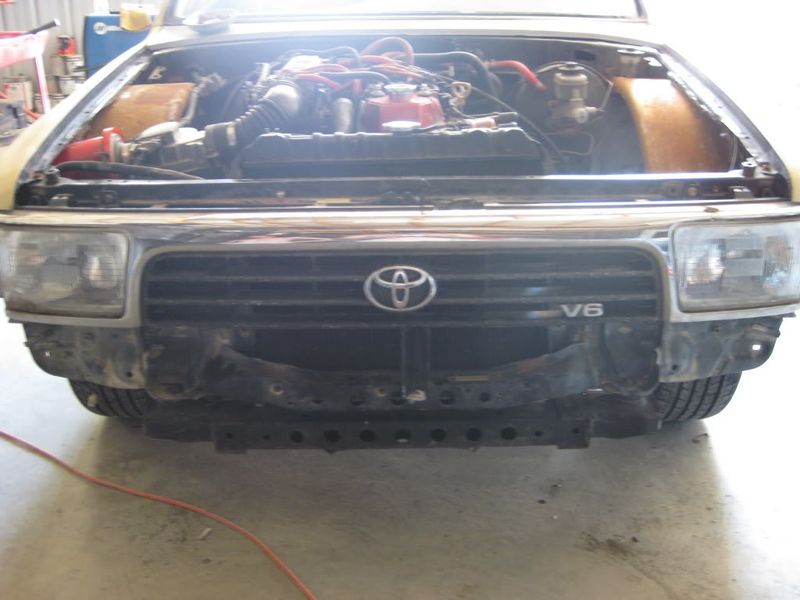

headlights first

thread post photo


grill and fenders

thread post photo

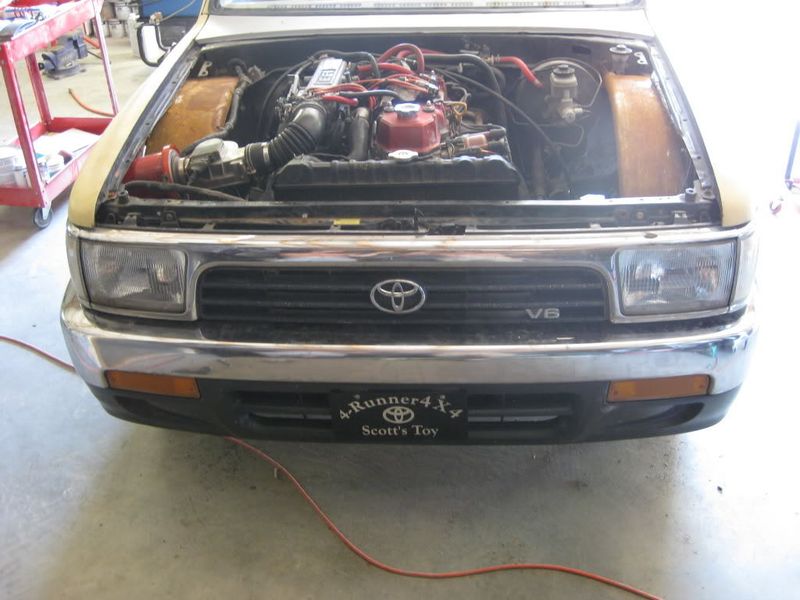

Bumper

thread post photo


Hood

thread post photo


Corners

thread post photo


At this point no welding has been done.. everything is set to make sure it sets perfect.. Final welding will be done this evening.. Some cutting has to be done to the hood to make it sit proper since this truck is bodied to the rocker.

Credits

Created By: slammedtoys

Page 1 of 2
the_general0626   +1y
great write up but IMO there isnt a need for the core support. i simply drilled new holes for the headlights n everythign sat flush once installed
smctoy   +1y
Great write up & pics...that will be a big help to a lot of members on here. Im hoping that Ill be able to get my 4-runner swap done soon, but one hurdle at a time...got to get the front bagged first lol! Thanks for taking the time & effort to share this.
slammedtoys   +1y
No problem.. Ill keep them coming we have a few other things that we are doing to this truck
slammedtoys   +1y
Around the gas door where the filler plate would be was rusting and cracking bad... So we took it down to raw metal to see what we would find.. And here is what we found...

thread post photo


Some gorilla lookin dude they call Lost Cause fell out of the truck with a cheee burga

thread post photo


Same issues with the passenger side door handle

thread post photo
northerntoy   +1y
what year is that from guys?
Post was last edited on Sep 22, 2009 09:09. This post has been edited 1 times.
baha   +1y
I can't believe I missed this excellent write up man!
smctoy   +1y


If your referring to the grill, headlights, bumper & valance then its the 92-95 model 4-runner.
northerntoy   +1y
thank's
layed521   +1y
I'm planning on this swap on my 84. I gotta replace a rusted to shit core support anyway so will that support fit in place as easy on an 84-88 bodystyle or what would be the best way to do that?
95yota   +1y
i am converting my 95 2wd front end into 4wd for the tucks
