Bucket seat release handle repair

Last Updated: Feb 24, 2015
View Photos

I had this happen on mine, and I fixed it Home Depot style.

thread post photo

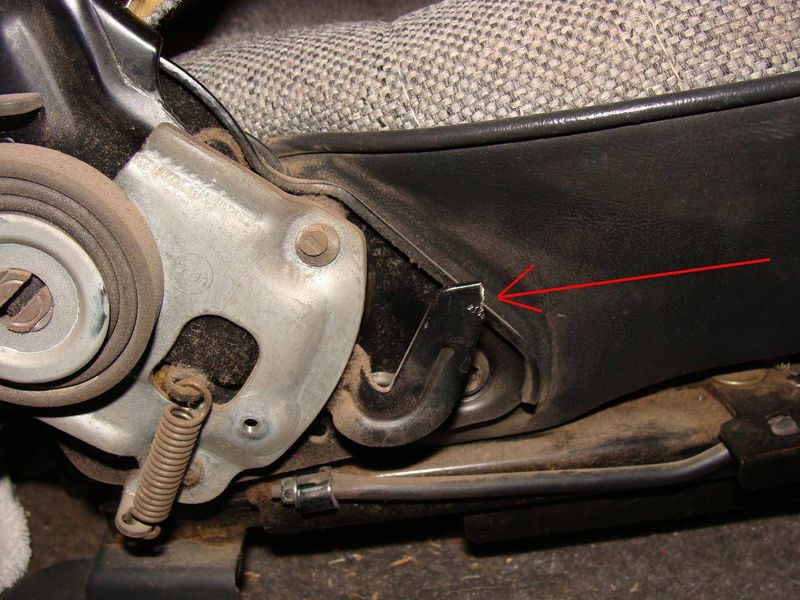

I used an L-shaped mending bracket from the hardware store, and drilled holes in the remaining almost-vertical stump and riveted the L-bracket onto it. The L shape gives me a horizontal piece that only needed a little grinding to re-fit the plastic handle on.

Here's what I did, posted this on mazdatrucking.com, only problem is that the photos were lost in the site crash. It looks pretty darn good, may have to take new photos to add here.
" target="_blank" target="_blank" target="_blank

OK, fixed it. I used a 2-inch flat corner brace from Home Depot.

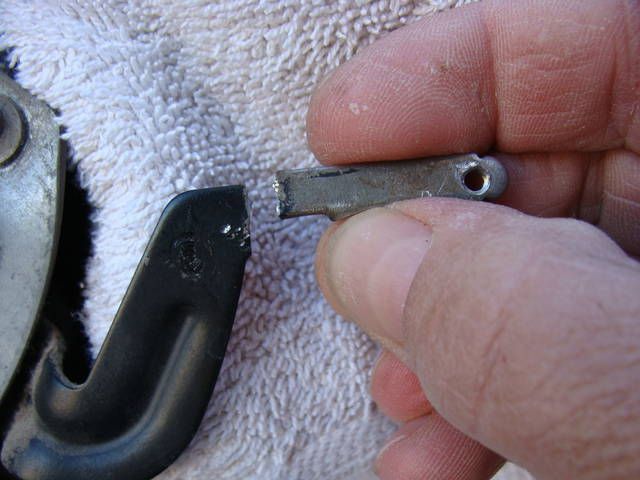

Here's the part that broke off; I did bend it a tad over the years as my kids kicked it in, so that likely accelerated its breakage.
thread post photo

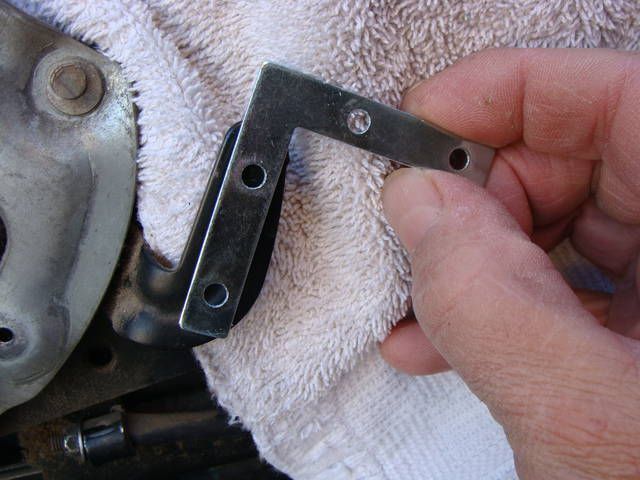

Here I'm holding the corner brace over the remaining seat lever part.
thread post photo

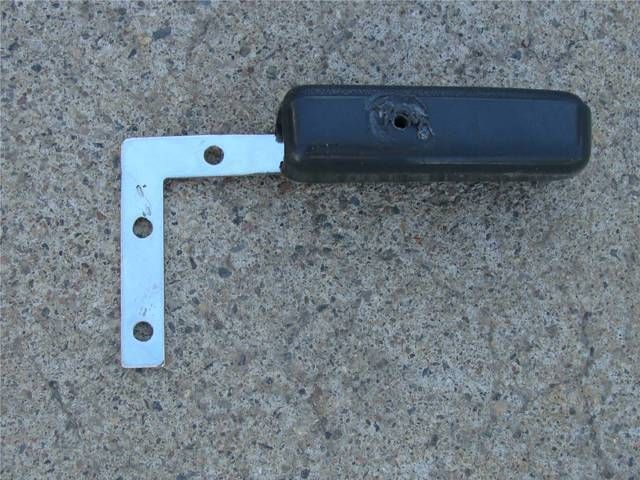

I ground down the one "arm" a little to fit into the gray plastic handle, and tapped it in.
thread post photo


I drilled two 1/8 inch holes in the remaining part of the lever, to align with the two holes in the corner brace (I slid a piece of wood in behind the broken lever to protect the seat from the drill bit). Then I sanded the corner brace a little and spray-painted it black.
thread post photo

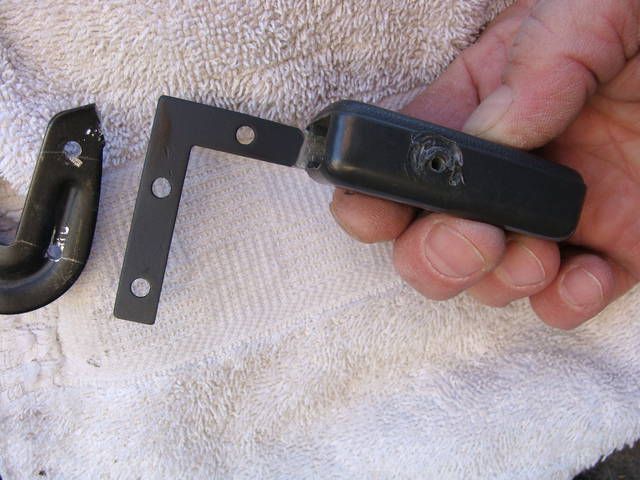

Holding up against the broken part
thread post photo

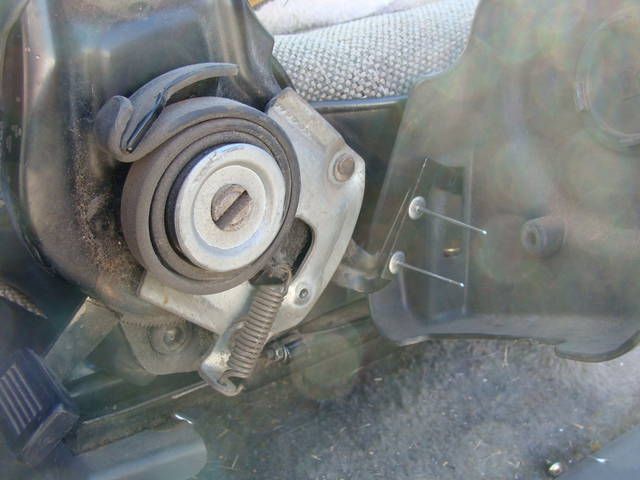

I slid the gray cover on before installing the rivets because I already had the gray plastic handle tapped on. Photo with the two 1/8 inch steel rivets in place but not squeezed tight yet.
thread post photo

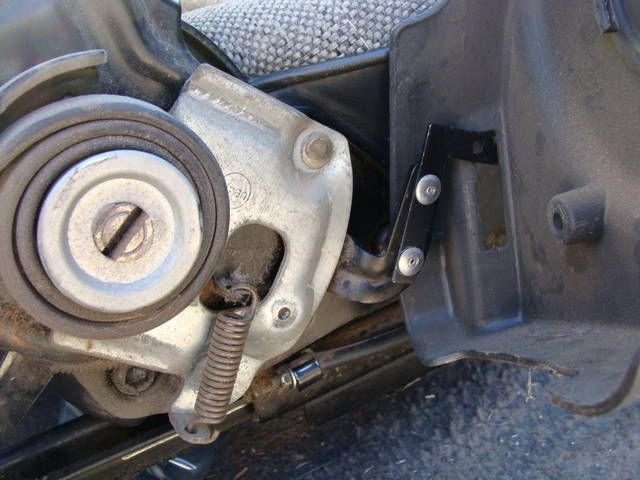

Photo after installing the rivets
thread post photo

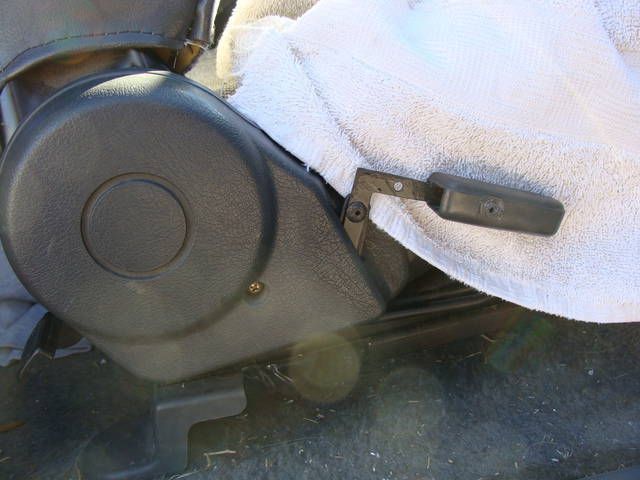

I painted the rivet heads, and here's the final result.
thread post photo

Credits

Created By: Cusser

Page 1 of 1
kovz   +1y
Great write-up. Thank you for sharing on this board. I didn't even think to do a search for this on the site or MT when I posted my wanted to buy ad. I didn't realize it was a common problem.

I plan on welding the bracket instead of riveting (just because I have a welder, but don't own a rivet gun).
Cusser   +1y
Me - I don't weld, and I had rivet guns, and they are inexpensive. I thought about taking it somewhere to be welded, figured they could protect the seat from damage with a sheet of something; but I would've had to find a place that could do that, didn't feel like running around town for that, plus I liked the challenge. I asked on Mazda trucking about this back then, and was told that this lever is not a simple bolt-on, that the seat would need to be dis-assembled, so a fix was worth looking into.

I use my rivet gun like once a month, but typically on non-automotive stuff, like when I braced a plastic stepstool with a metal mending bracket. Or when I had to dismantle/repair a garage door up north when my lawn tractor gear selector got out of adjustment and I had no neutral/braking, and I couldn't stop it in time and hit the flimsy garage door. That tractor repair turned out to be an easy adjustment, but I don't know how it slipped (curved slot/hold-down nut).
kovz   +1y
Not to get off topic too much, but a rivet gun is a worthy tool I'll need to invest in someday. My dad has a few that I borrow from time to time (but he lives 90 minutes away).
kovz   +1y
I bought the exact same brackets from Lowe's today. I welded mine on. Worked perfect. I used two of them sandwiched together to give it more strength.
