73 hilux project

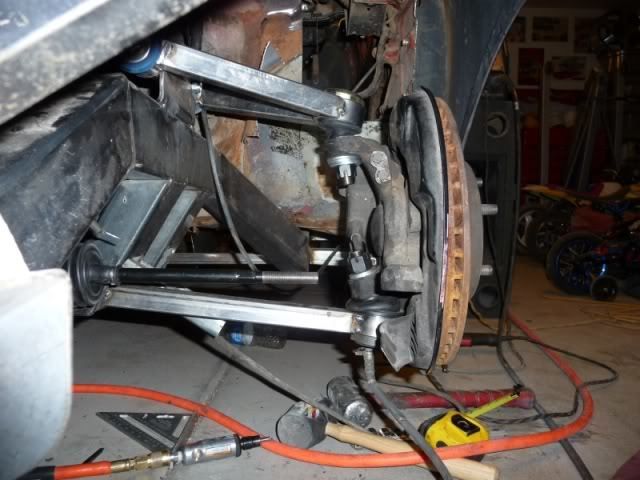

ok here are the reamed supra spindles fitted with the screw in balljoints

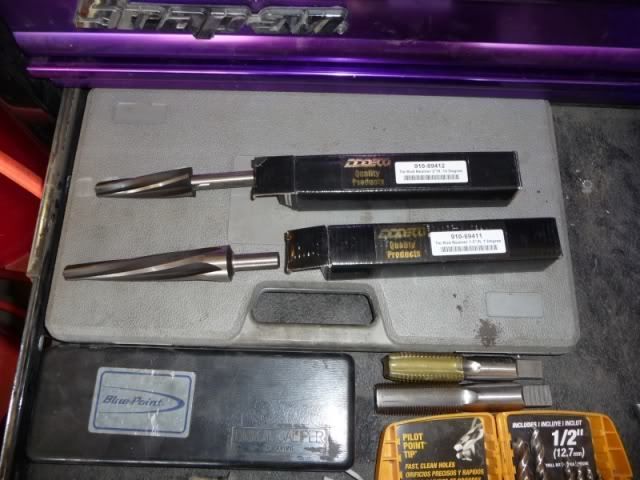

2 reamers..... $160

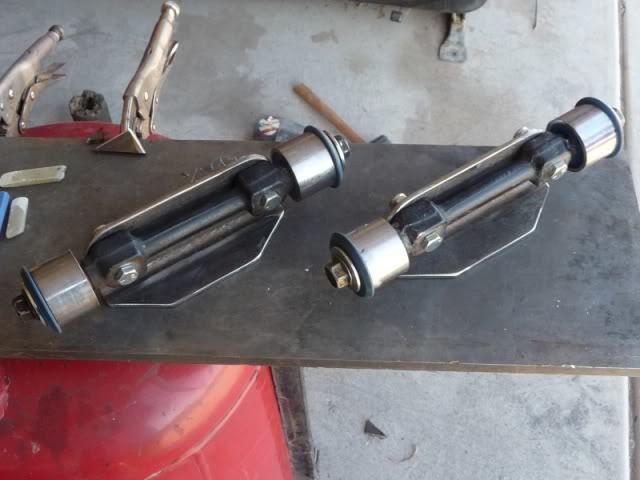

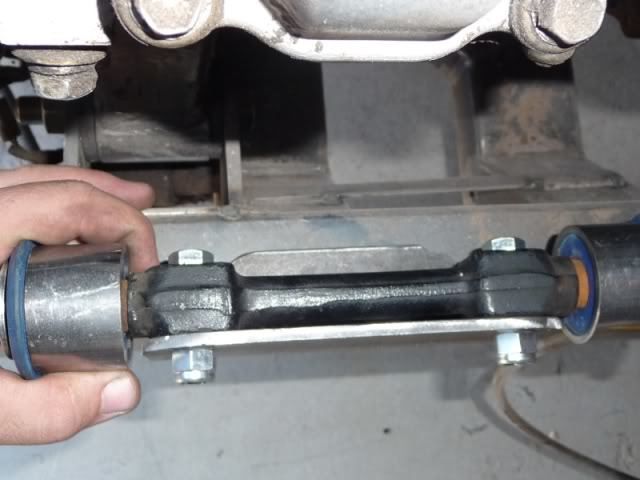

cut the tubing for the uppers and put them on the cross shafts

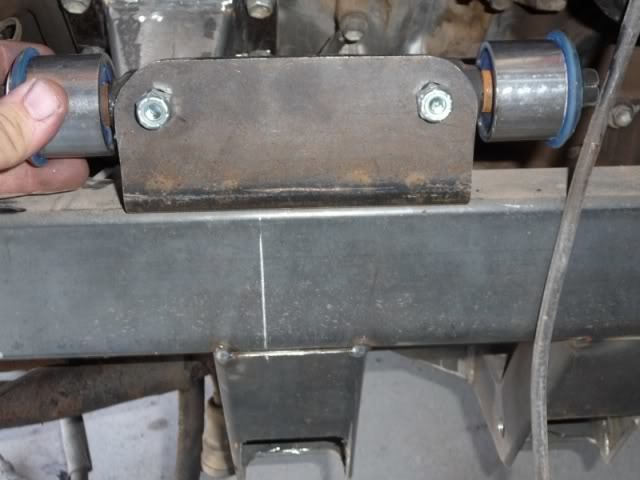

and fabbed the upper mount, bolts are temp till i get some 1/2"

Nice! I love this truck!

Pretty sick dude.

thanks guys!

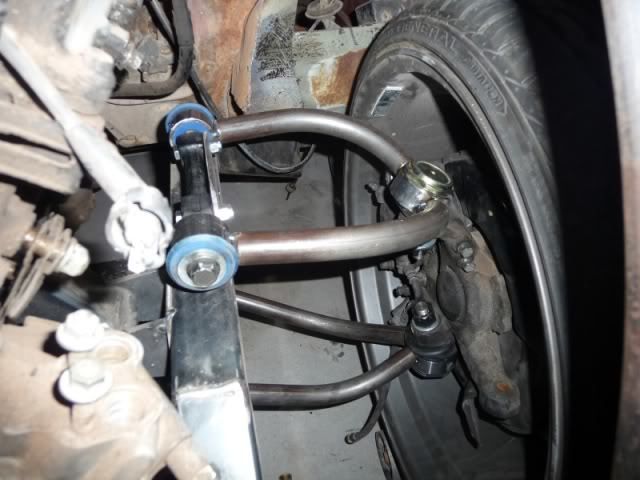

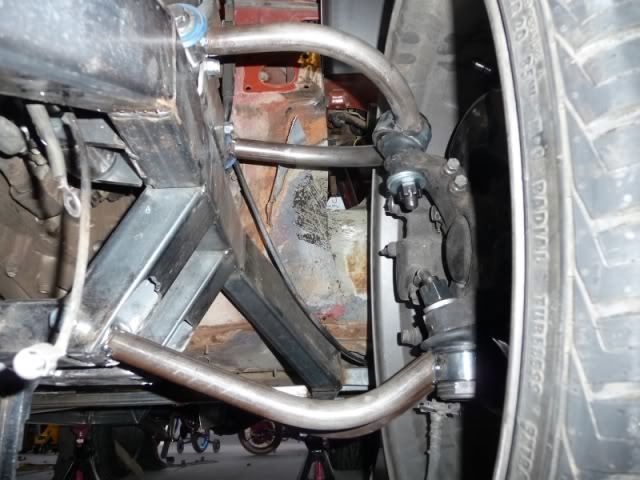

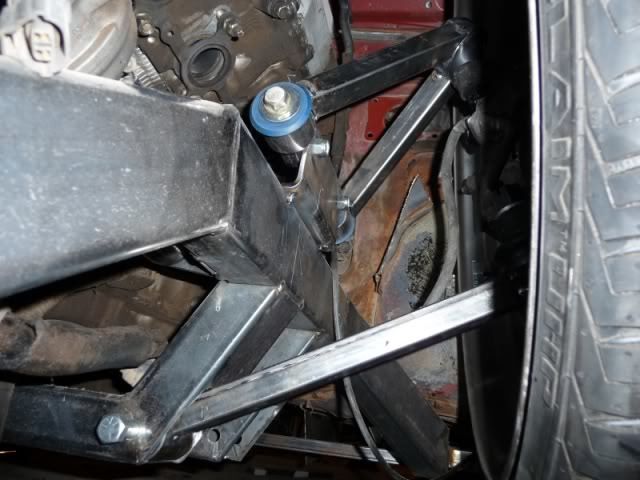

alright since i gotta wait a bit and build up the fundage for some D.O.M. tube, i figured i'd mock up the suspension with cheap tube to check the travel and clearance.

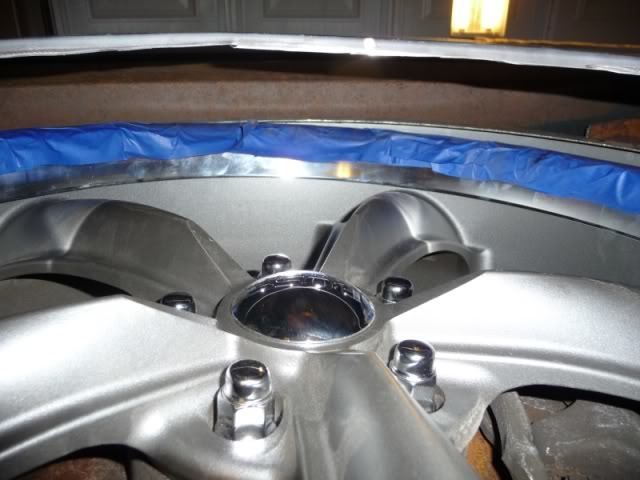

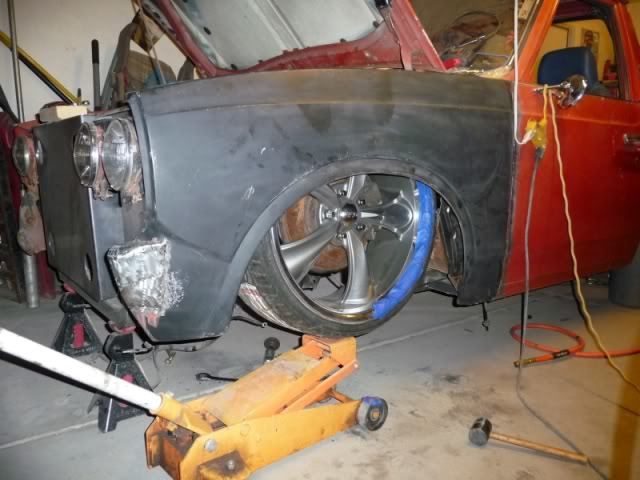

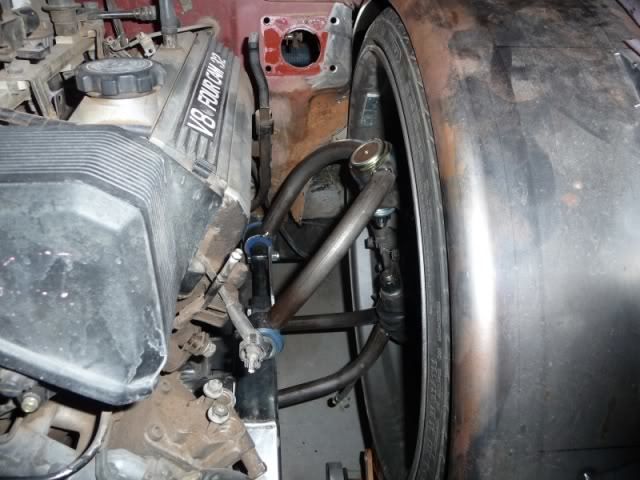

tire tucked inside

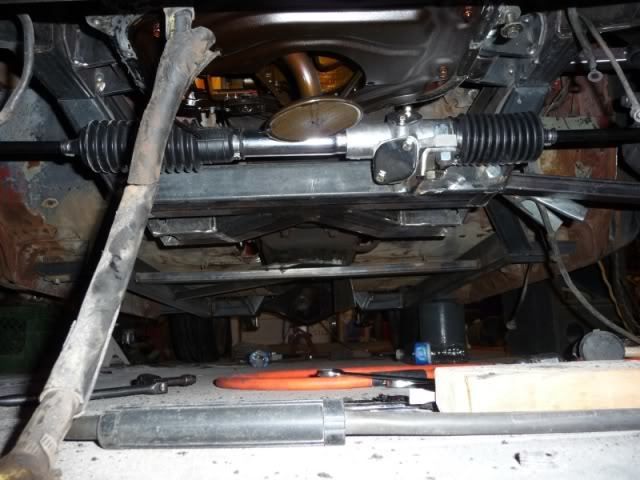

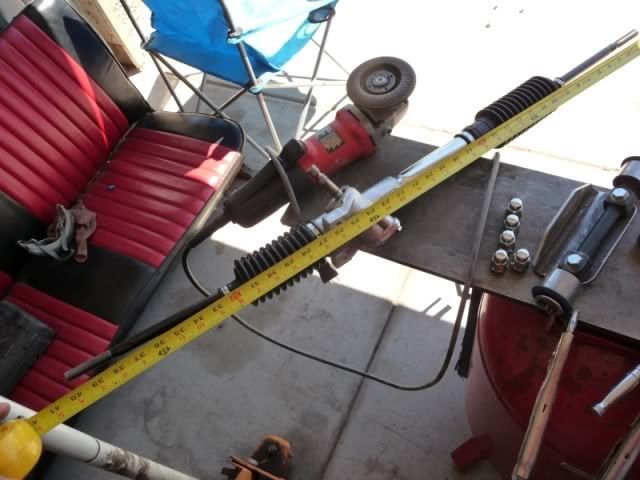

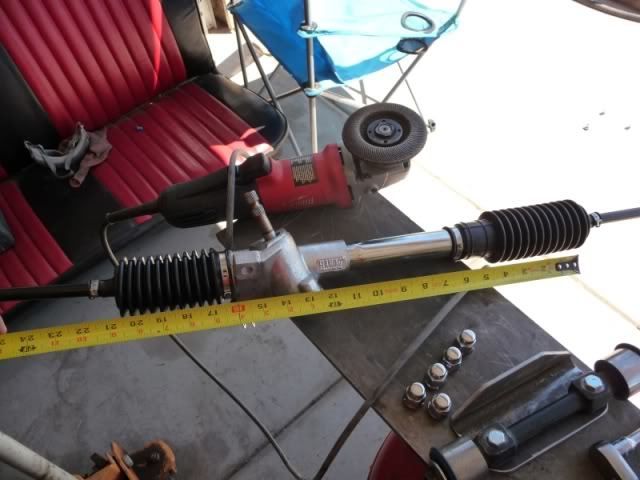

here is the flaming river, 71-72 pinto rack narrowed 5". **this is as close to perfect a rack for 84-95 toyota geometry!!**







fabbed up a bracket and bolted it in. since the 1uz pan is crazy wide it's a tight fit. also planning to notch the sump

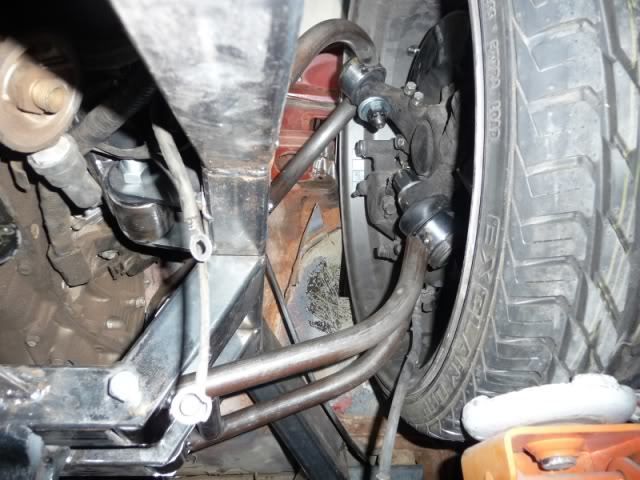

i also moved my upper mounts in 1/2", and narrowed my mock up lower 1/2". it makes for less camber, and cycles over 12"

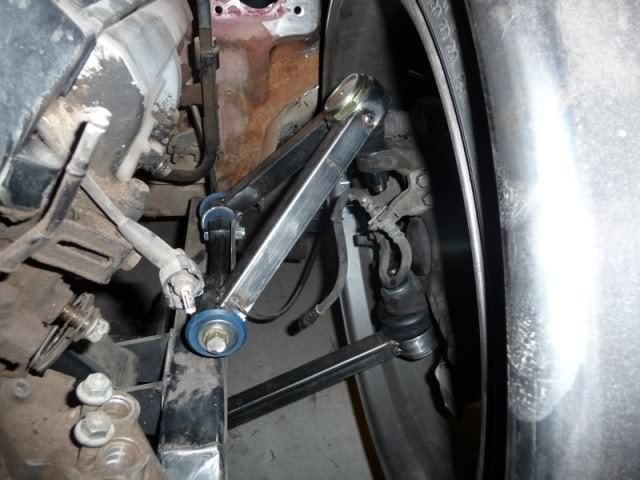

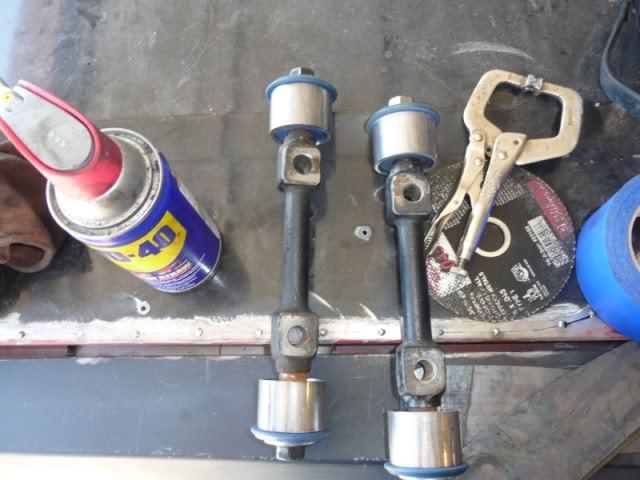

here are the finalized arms

looks great bro!!! looks like your gonna get a lot of lift+plenty of room for a re7

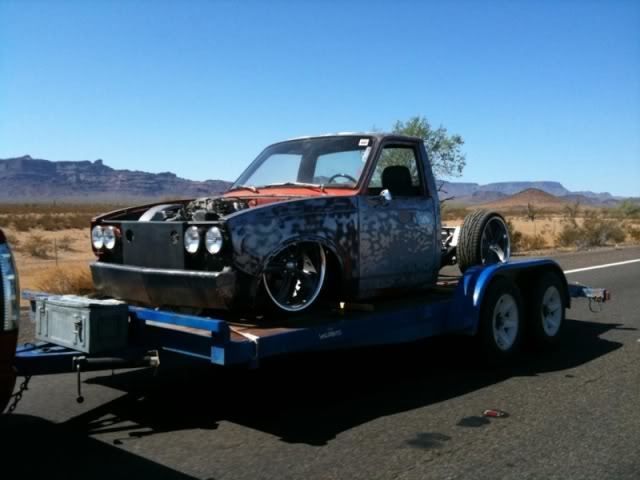

all ready for the drive to west coast nats!!

looks awesome & best of luck at the show

here's some more pics since i'm a slacker and don't get here to update lol

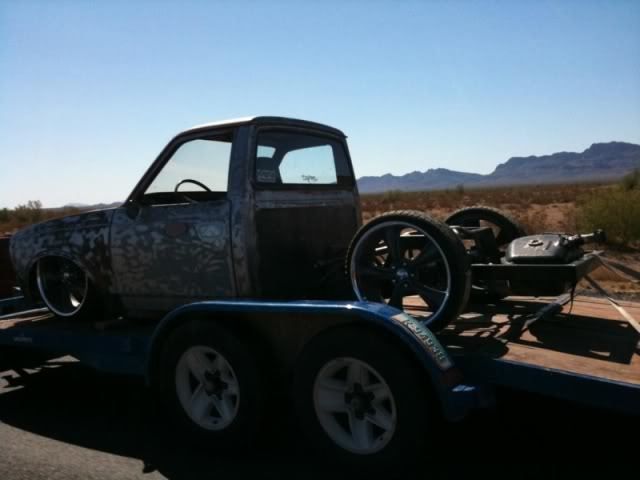

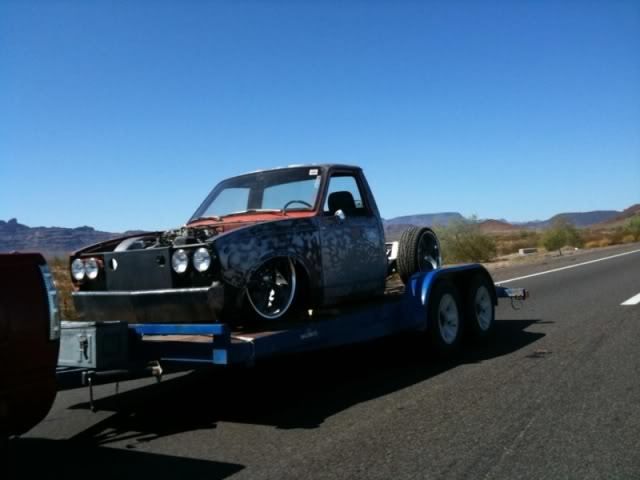

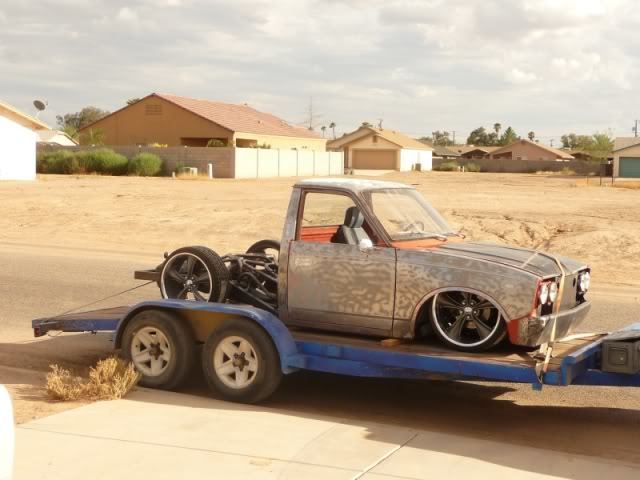

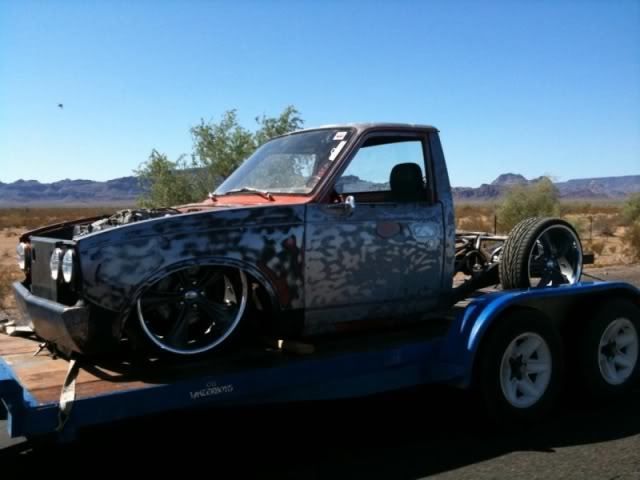

on the way back from wcn, takin by a friend.

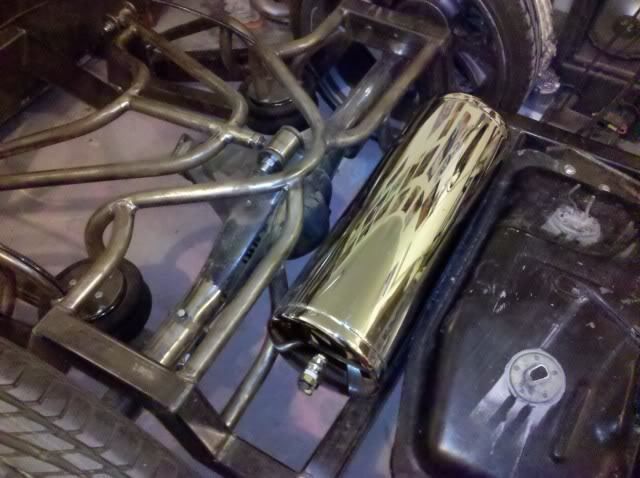

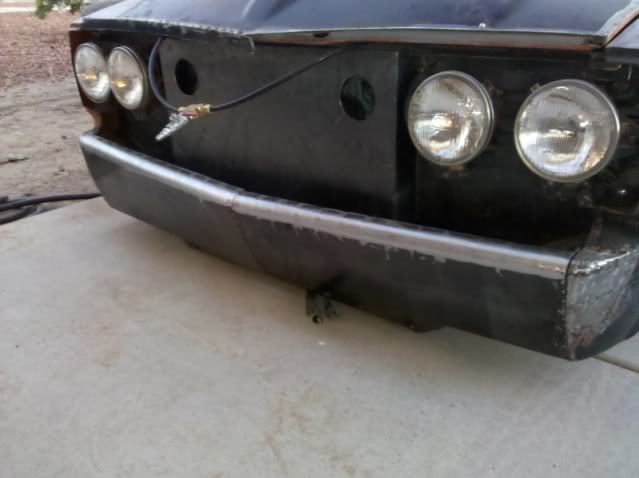

The only thing I did between west coast nats and severed in the southwest was mount the air tank

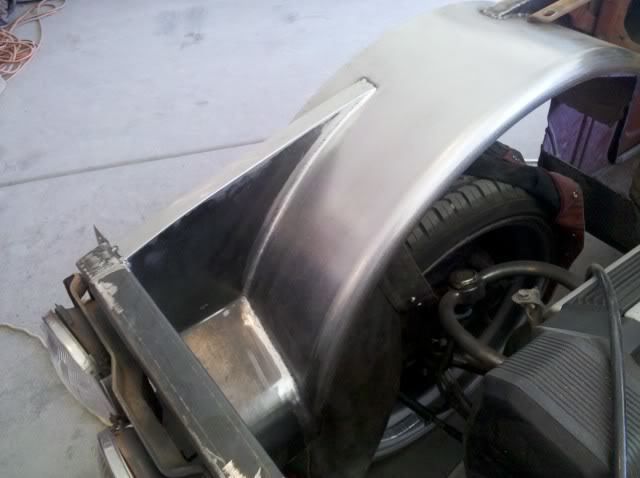

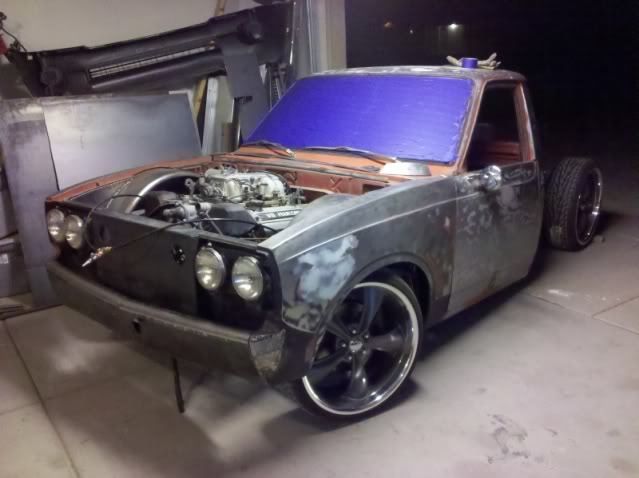

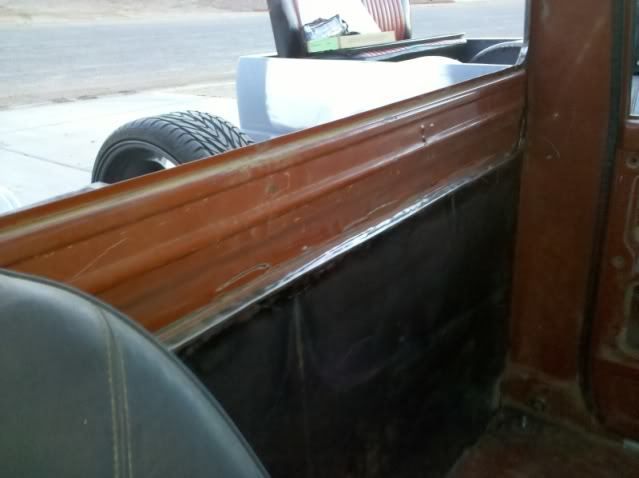

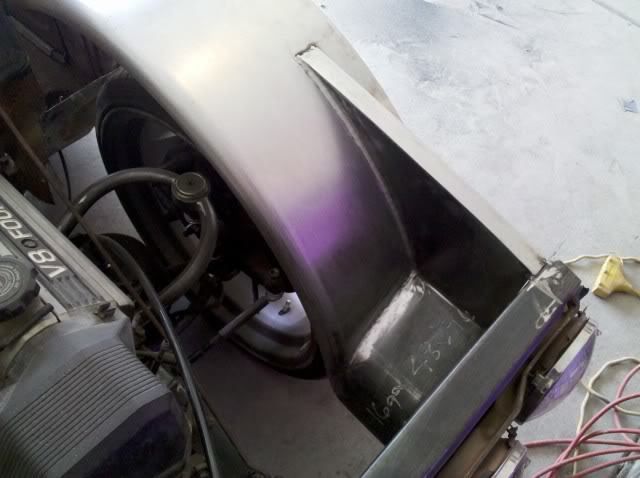

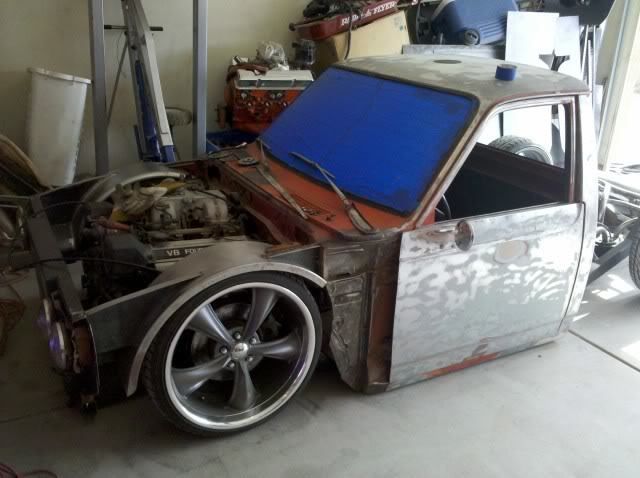

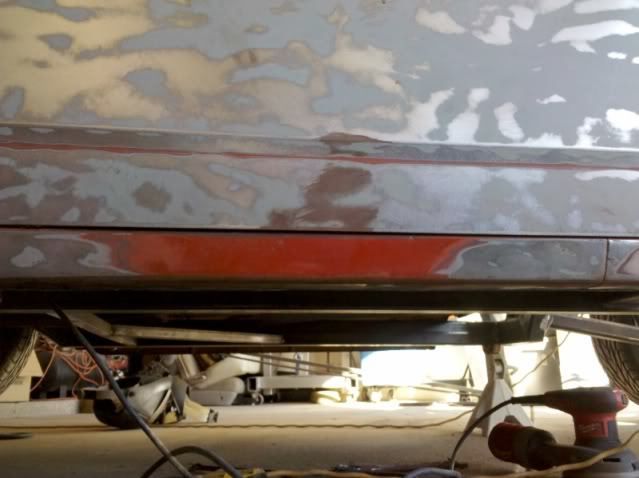

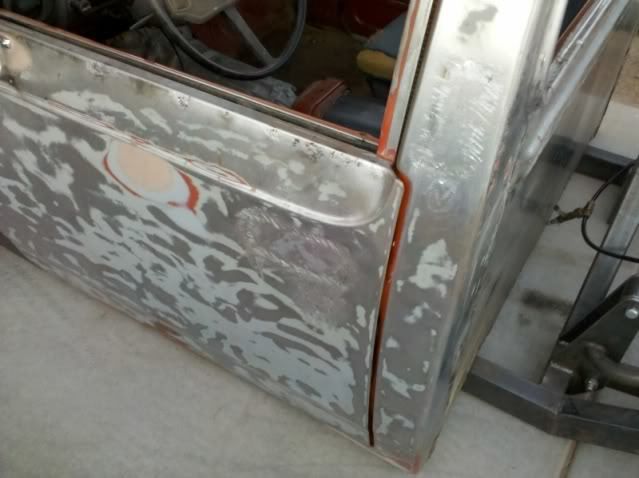

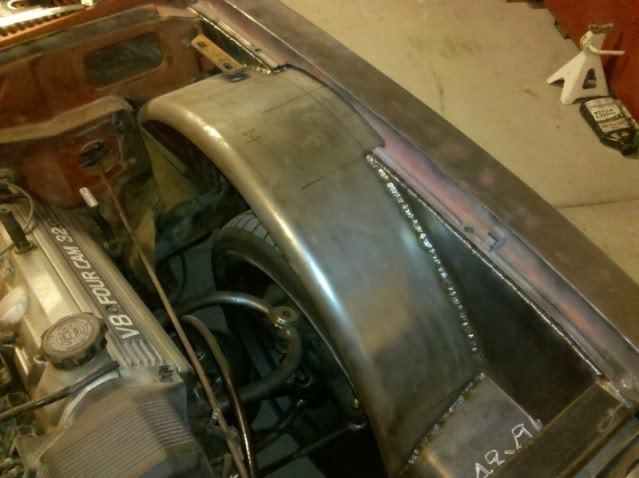

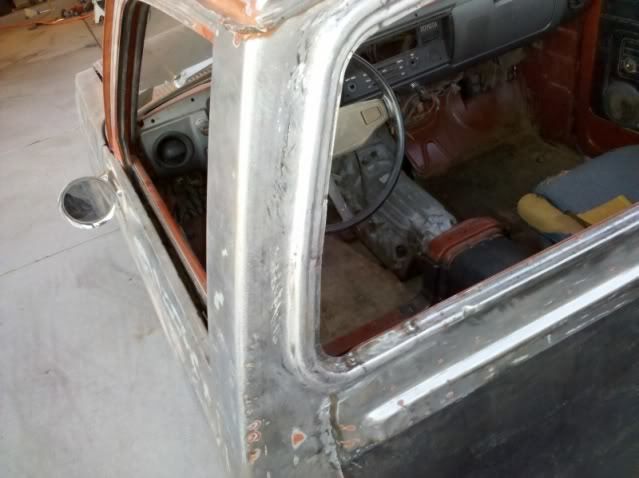

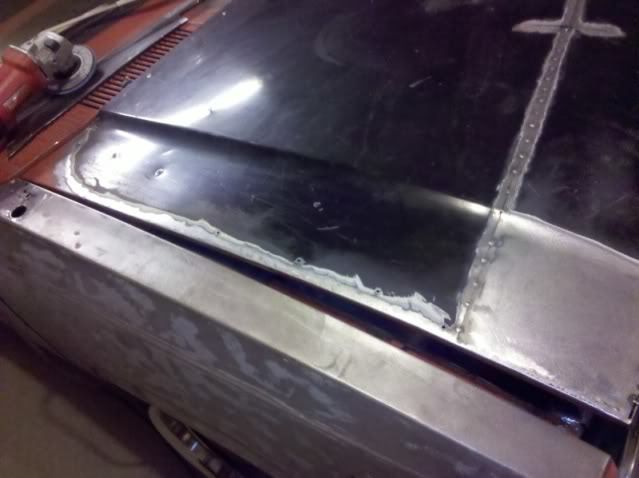

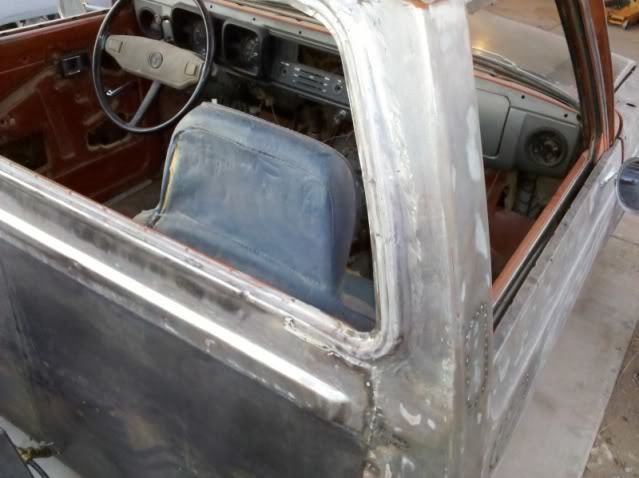

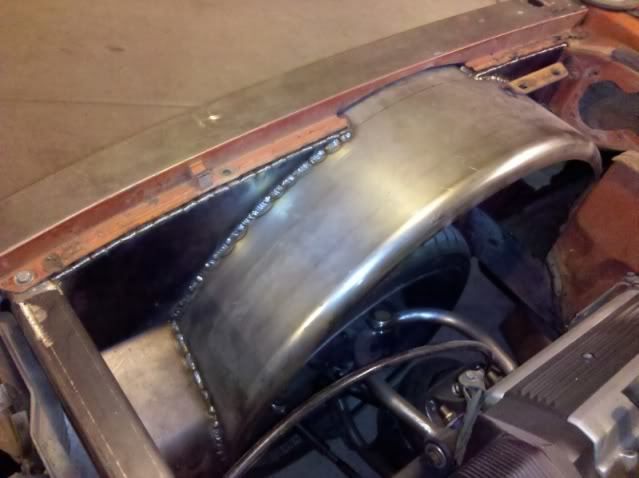

been busy welding up all the body mods.. takin forever
