Friendly Motivational Buildoff?

YEA LIKE 30 HOLES SO FAR AND CLEANING UP AFTER TORCHING EVERYTHING OFF OF THE FRAME THATS WHY I GOT TIRED OF GRINDING! LOL. ON THE LOWER BARS: THERE IS ACTUALLY LIKE 1/2 AN INCH BETWEEN THE BAR AND THE FRAME WHEN THE REAREND IS STUFFED IN THE NOTCH, AND IM OVER NOTCHED ABOUT 1 INCH WITH 18s. JUST A NOTE, I MADE ALL MY TABS ON THE FLAME CUTTER JUST FOR THIS SET UP, NOTHING YOU CAN BUY OFF THE SHELF,( I DO HAVE ALL OF THE TEMPLETS STILL IF YOUR INTRESTED) I ALSO HAD THE URITHANE BUSHINGS MADE, THERE NOT AS WIDE AS A OFF THE SHELF BUSHING ILL TRY TO GET A PIC AFTER THE MEETING TONIGHT.

UNTIL THEN..... SEE YA...

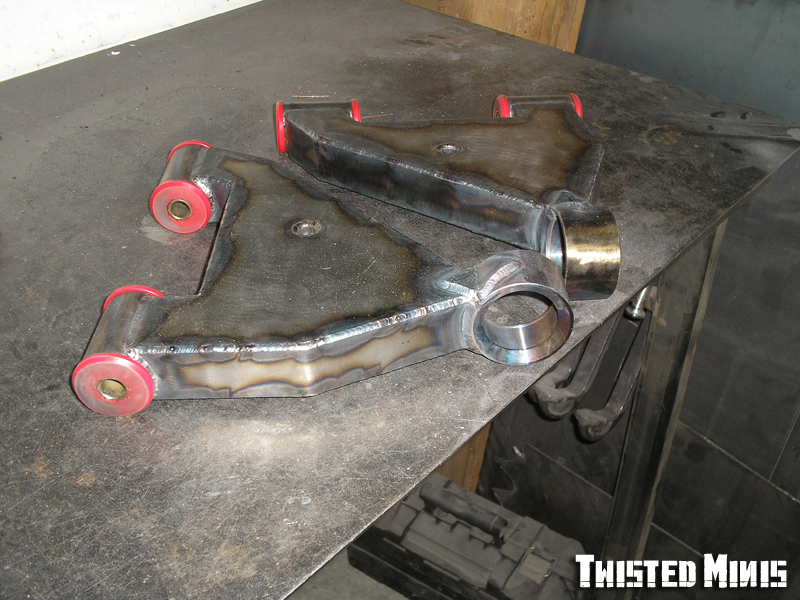

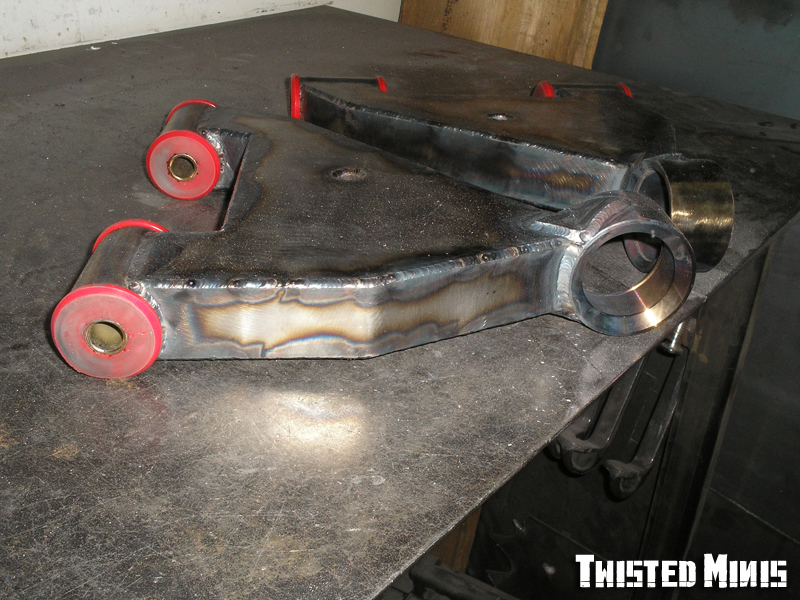

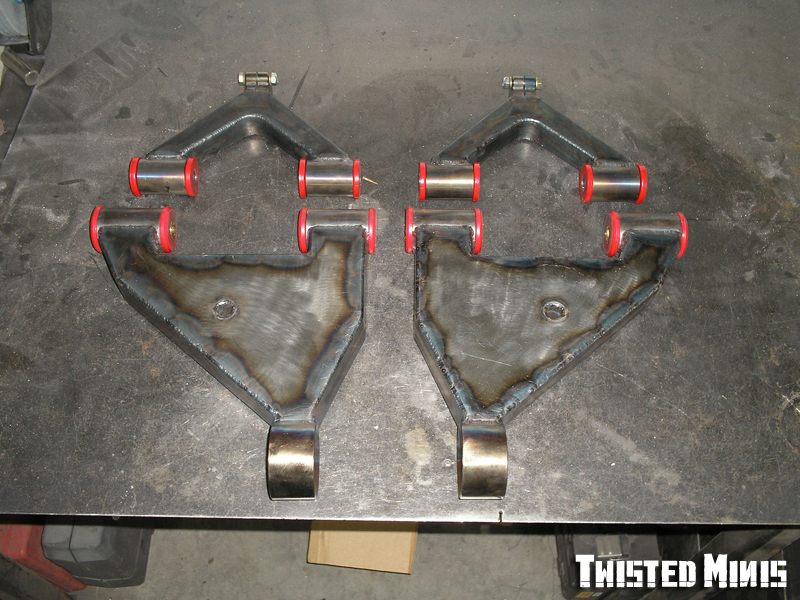

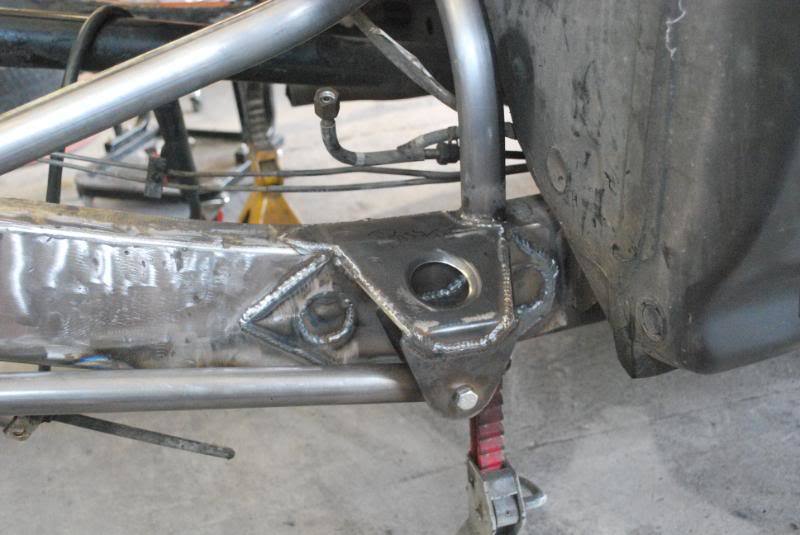

Control arms are finished at this point, until I add shocks mounts and some other things in the future.

What gauge material are you using?

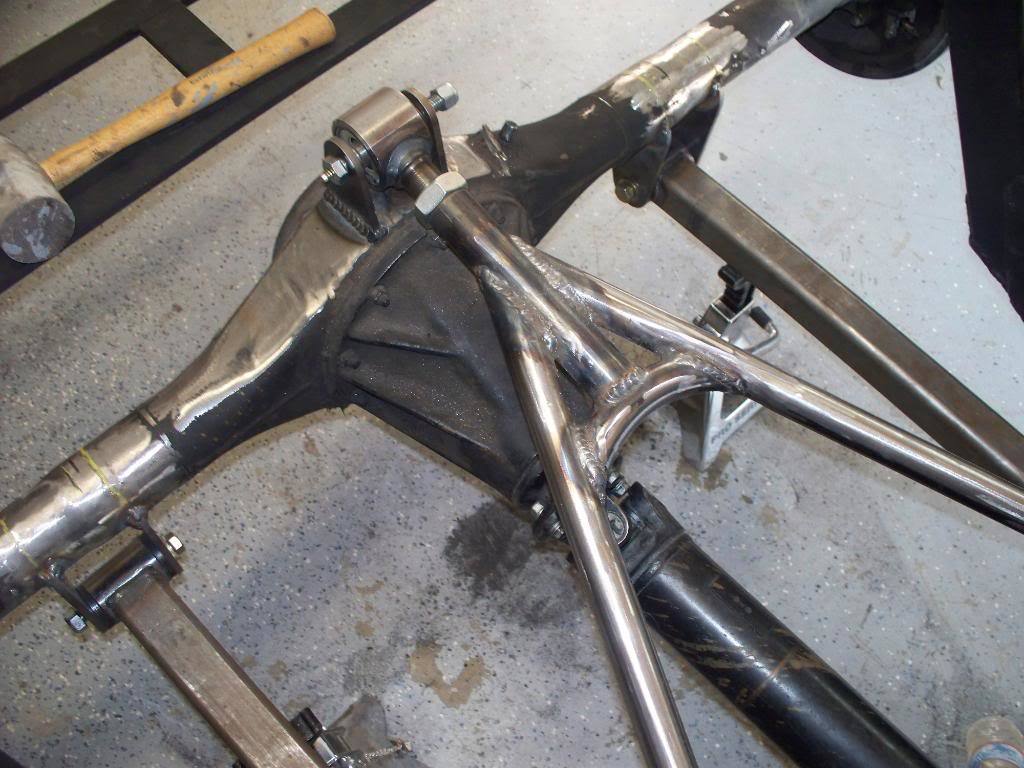

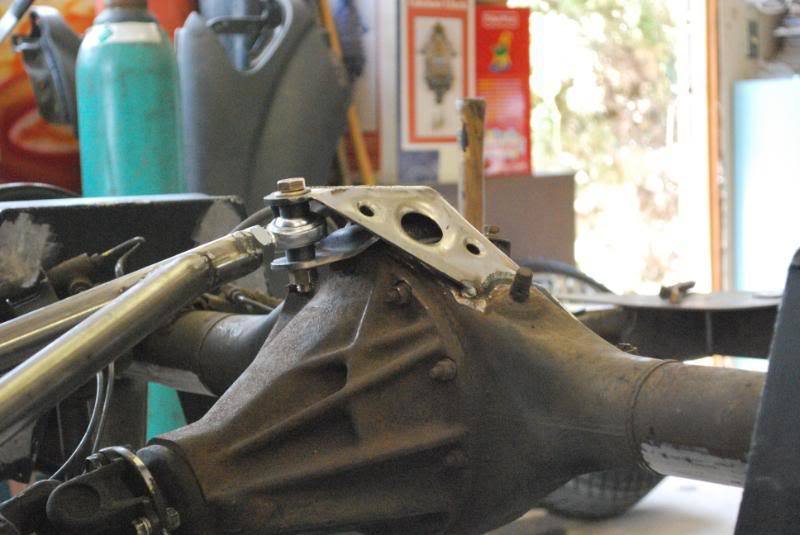

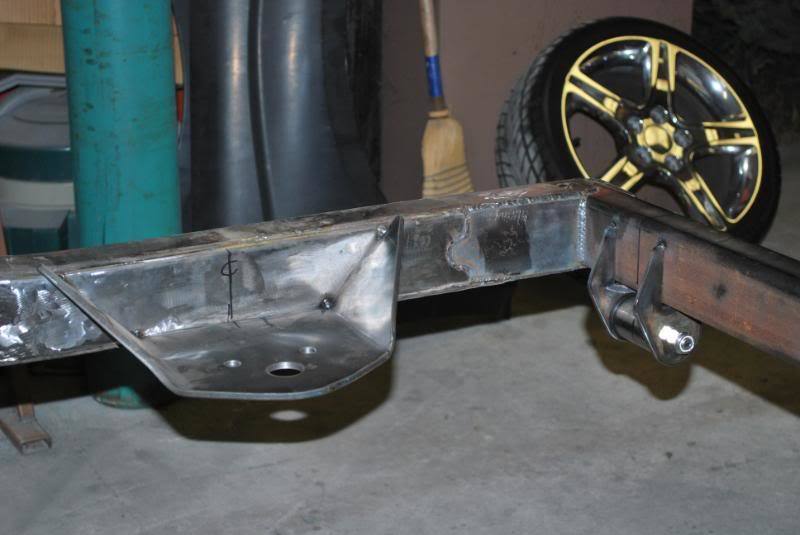

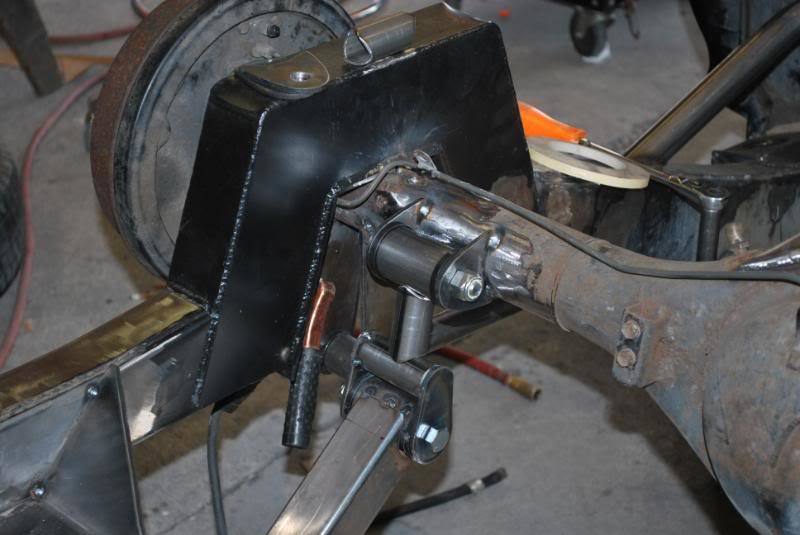

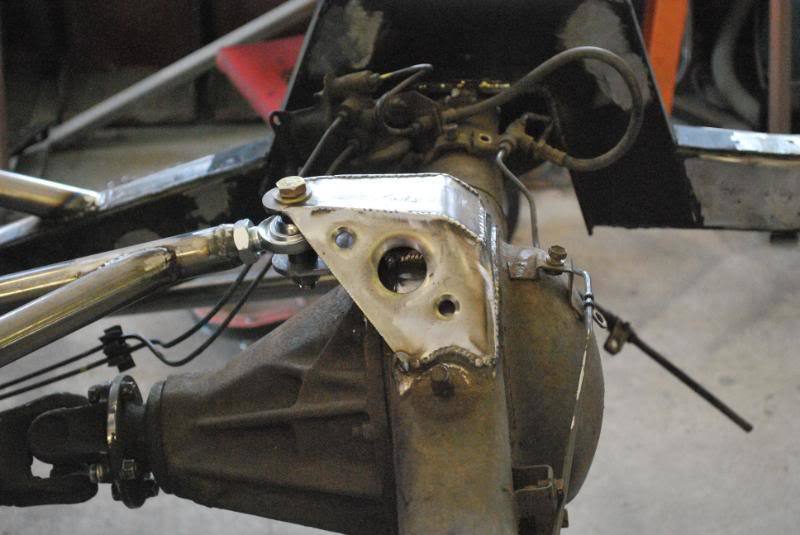

Got the link all done and lined up...next come the bag mounts..

It's all .125 sheet. The sides will be double plated with holes once I figure out where everything is going. And there is a piece of 3/4" .188 wall tube welded in the center where the air bag goes.

Im building an upper set for a guy putting a Yota clip under a Taurus wagon roadster. I cant wait to at least see what it looks like so far.... takes balls to build oddball ass stuff like that...

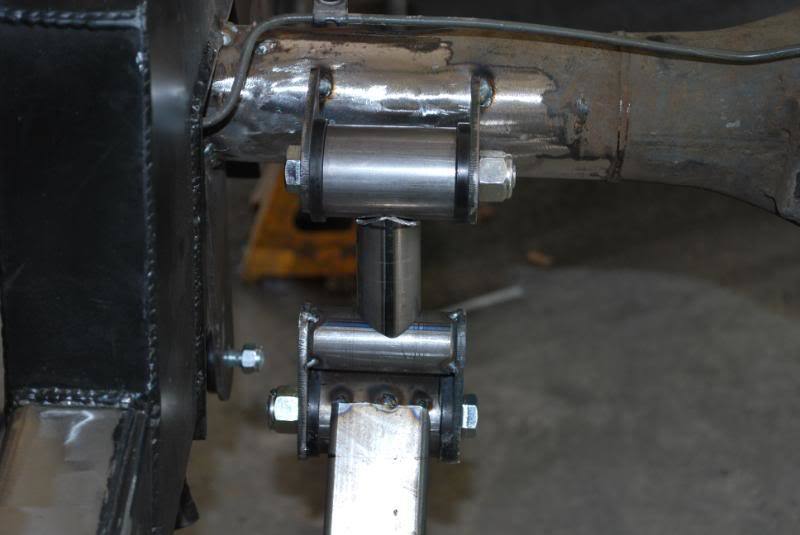

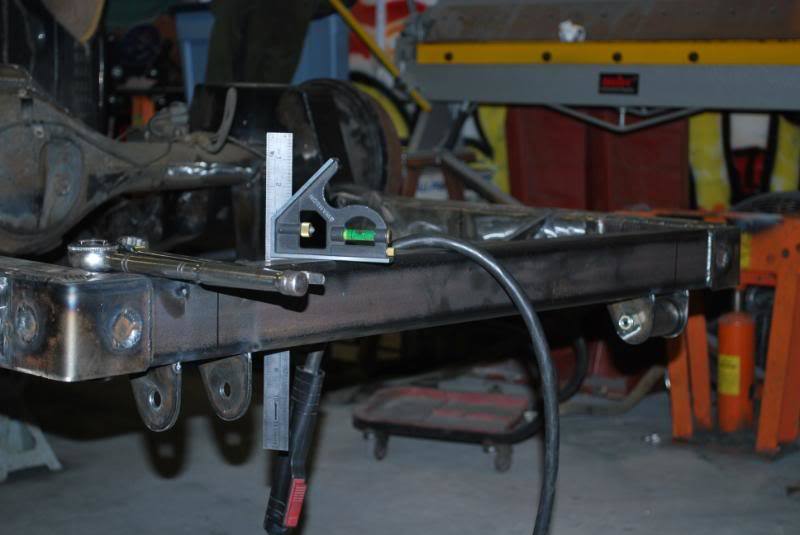

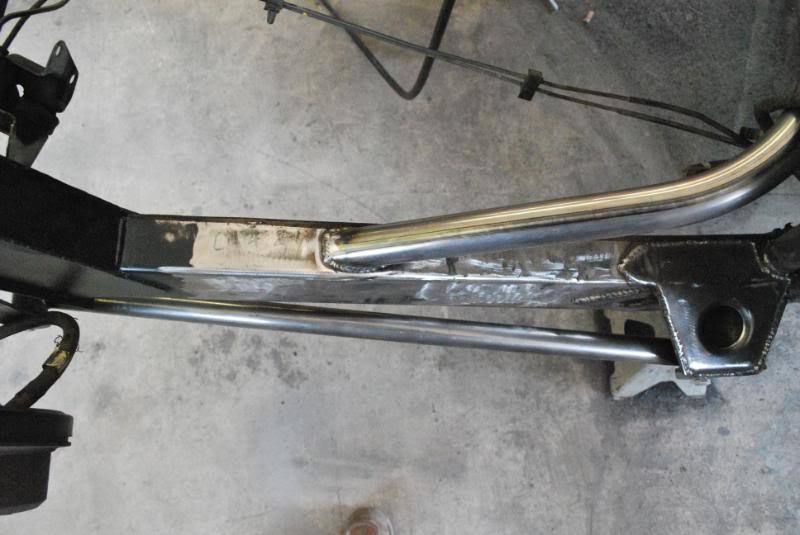

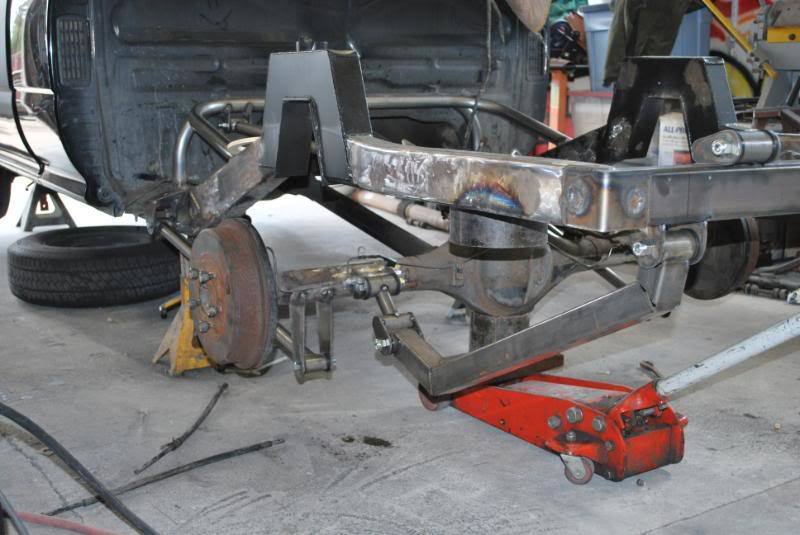

HEY BAHA, HERE ARE THE CLEARENCE PICS YOU ASKED FOR, ITS CLOSE BUT PLENTY OF ROOM LIKE I SAID ITS NOTCHED 1" MORE THAN IT NEED TO BE TO LAY ON A 18.

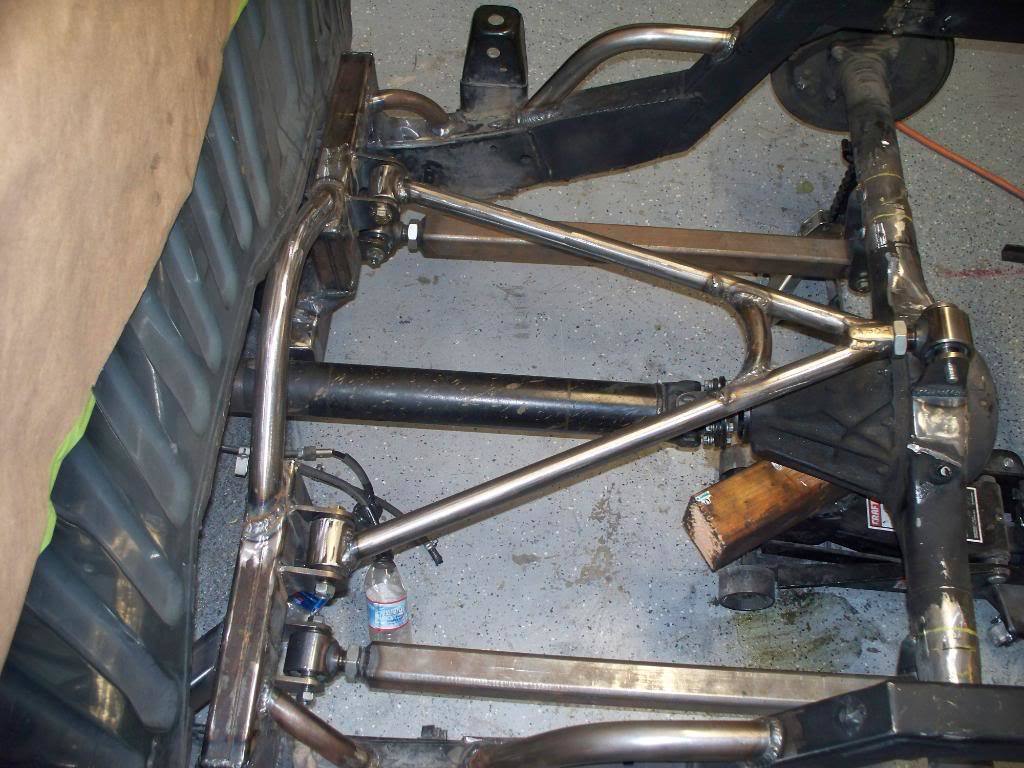

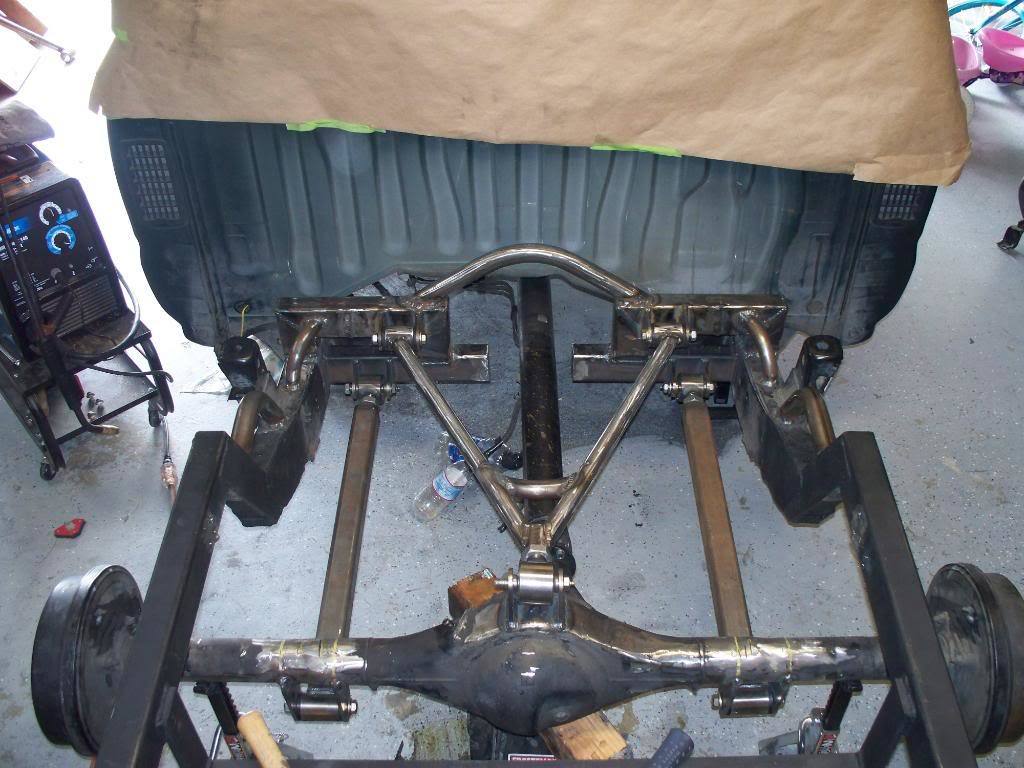

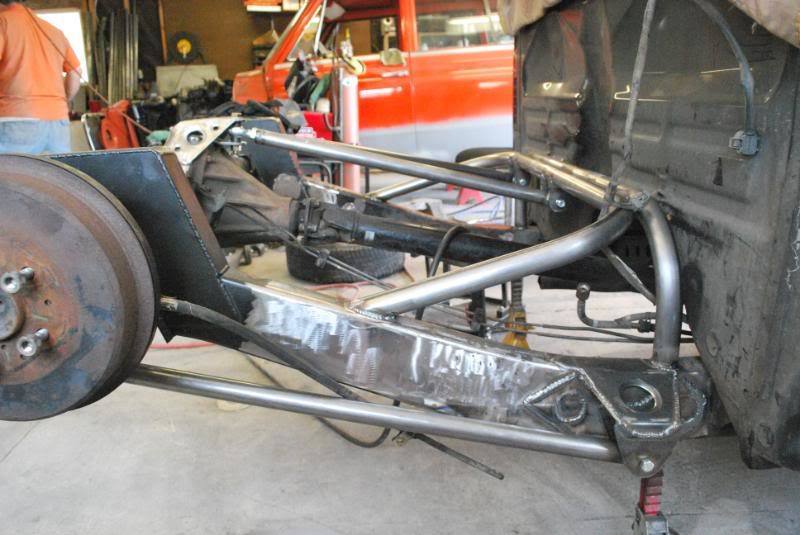

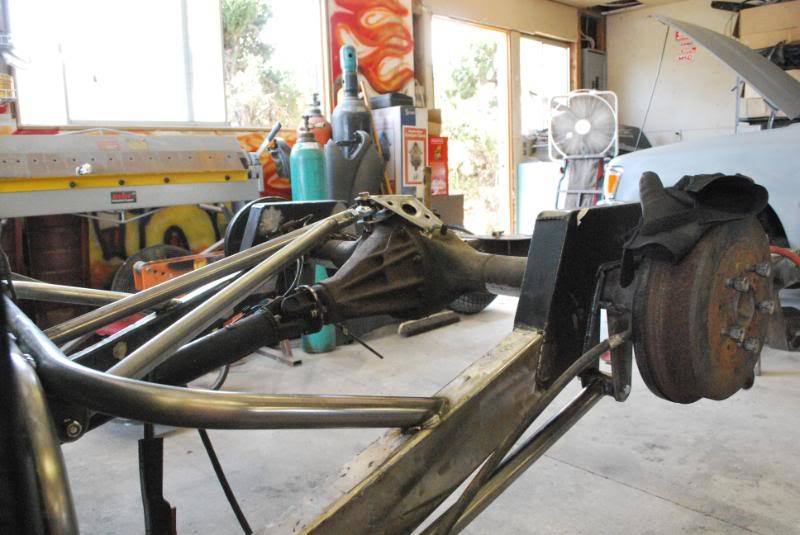

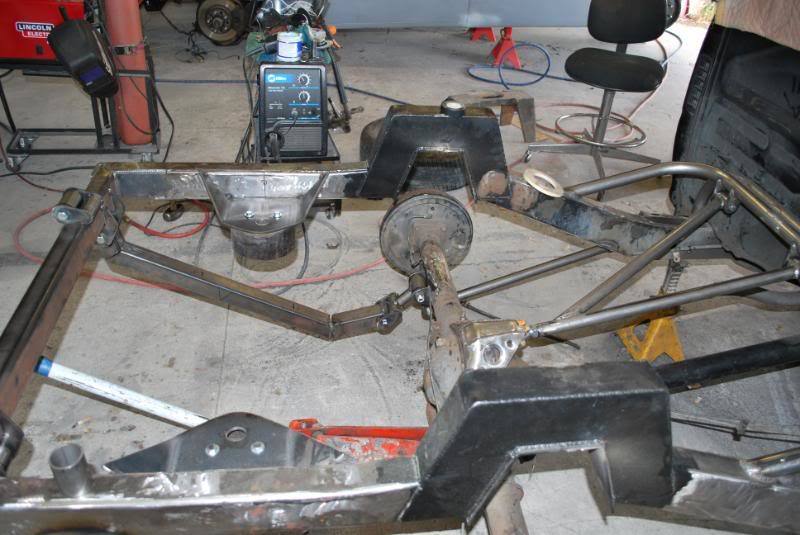

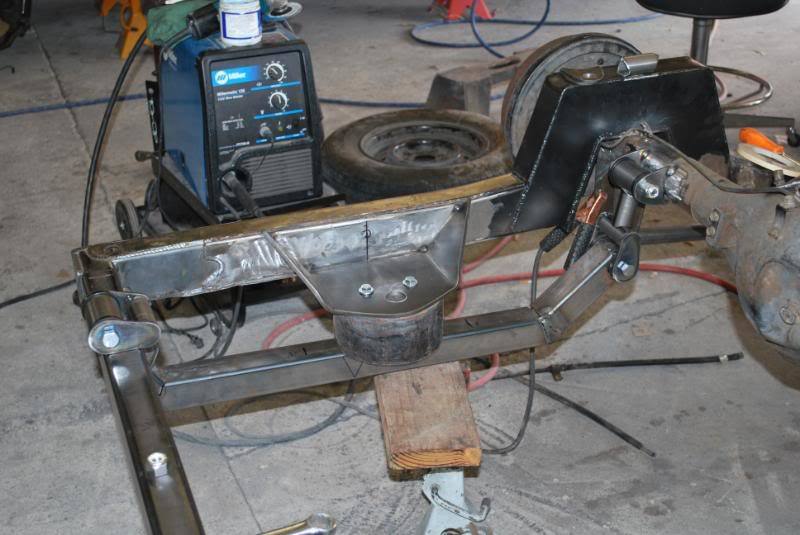

HERE ARE SOME UPDATE PICS, THE REAR LIFT BARS ARE JUST MOCK UPS TO FIGURE OUT MOUNTING AND PIVOT POINTS. AND IM ACTUALLY GONNA CHANGE IT AROUND PUT HERE IS THE PICS ANYWAY, ILL POST MORE WHEN I CHANGE IT AROUND....















UNTILL NEXT TIME.... SEE YA....

Nice dimple dies.

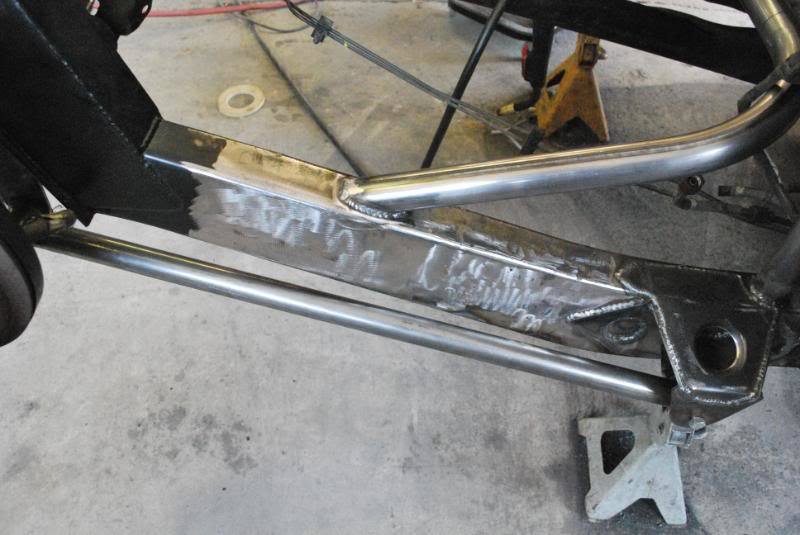

Having your lower bars angle out to the frame like that will cause some more rear steer than having them straight.

Damn, you weren't lying about catching up...great work. What kind of Miller is that in the background?? Anyway, here's my progress...

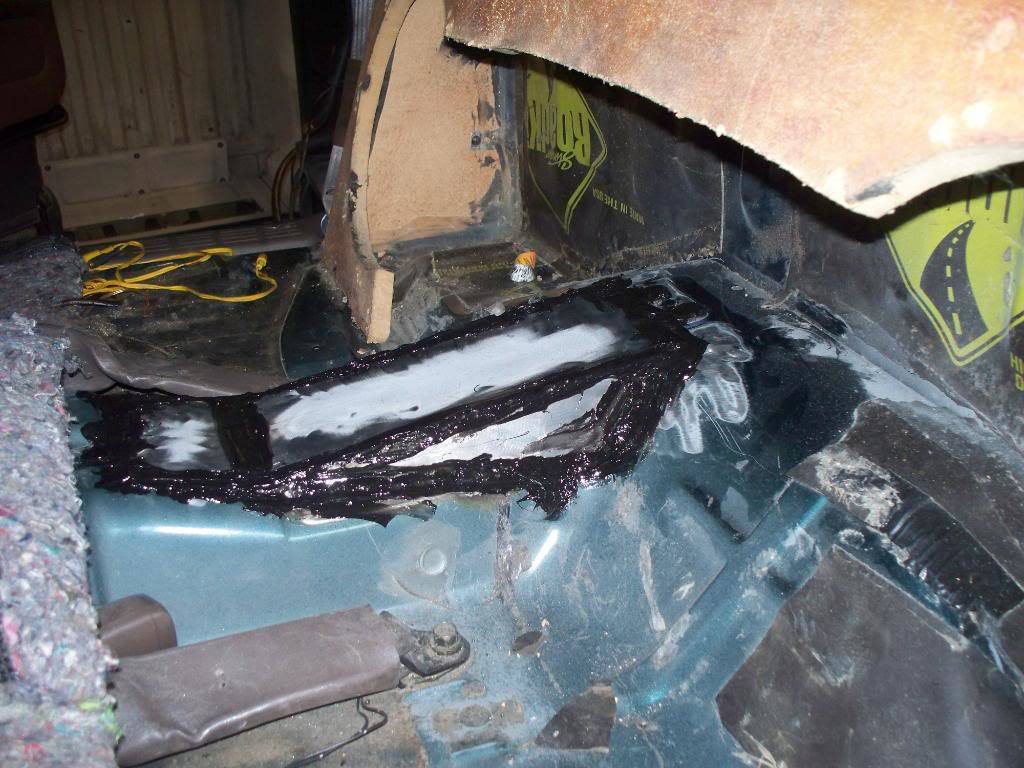

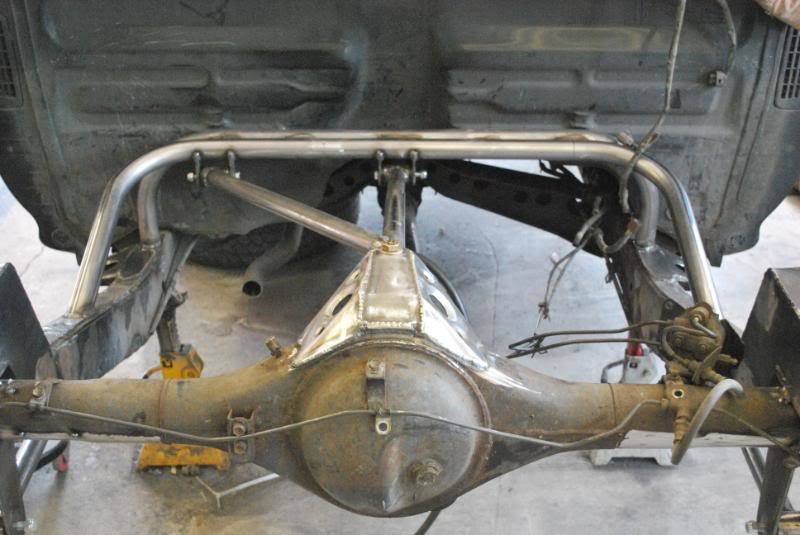

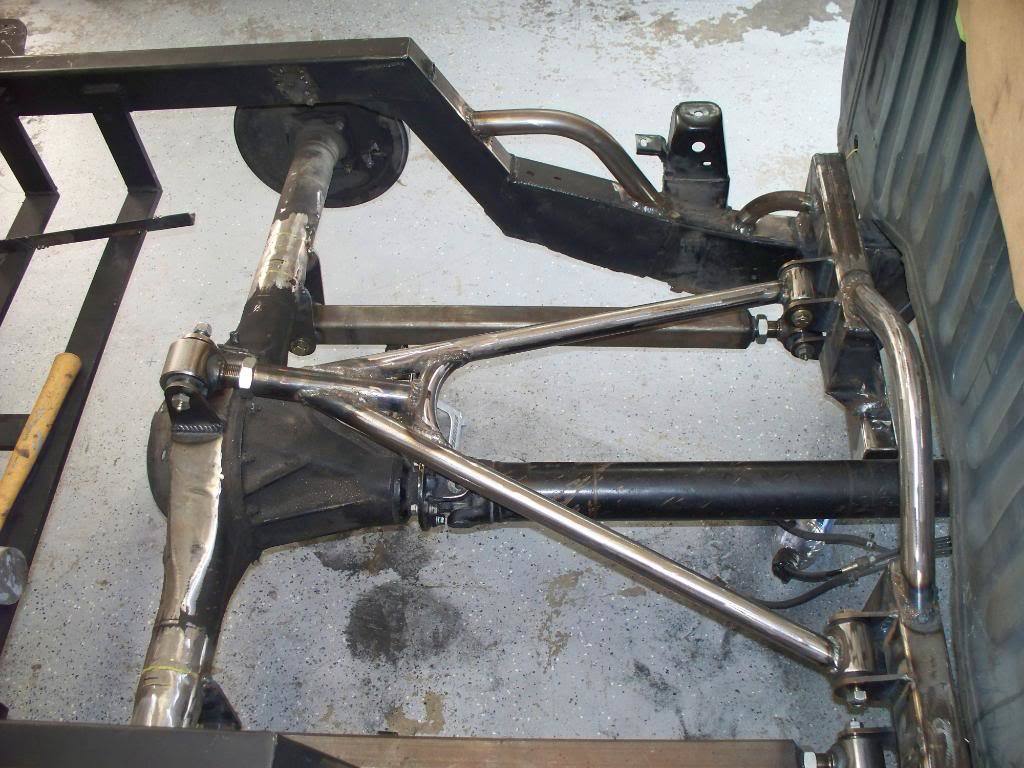

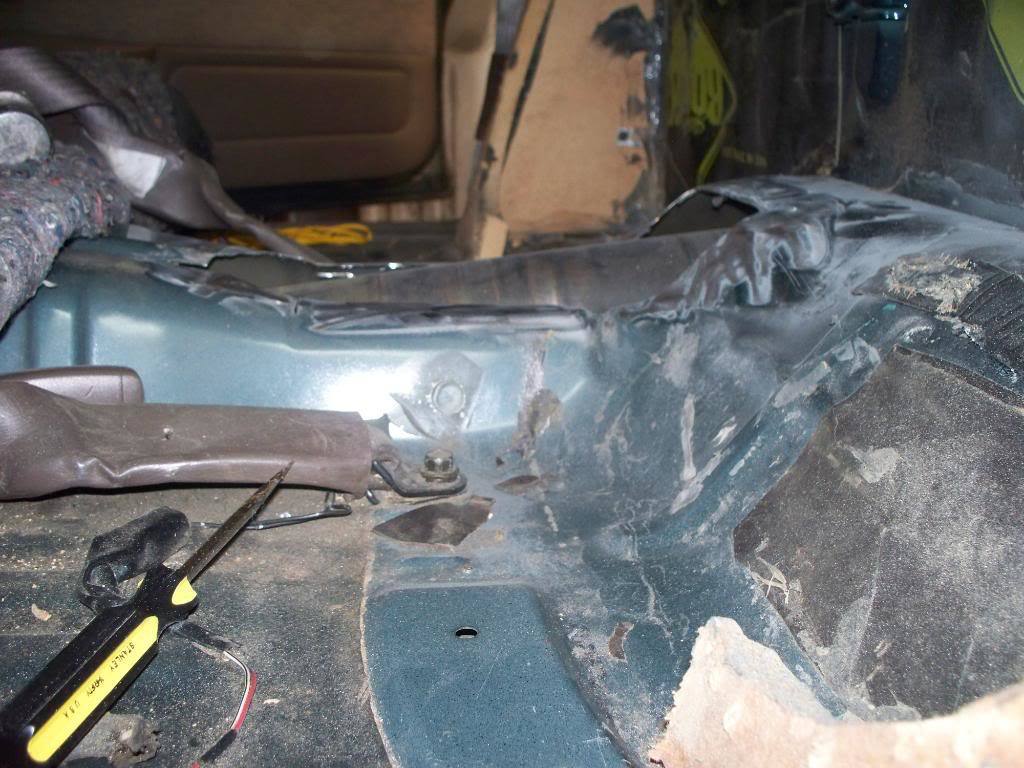

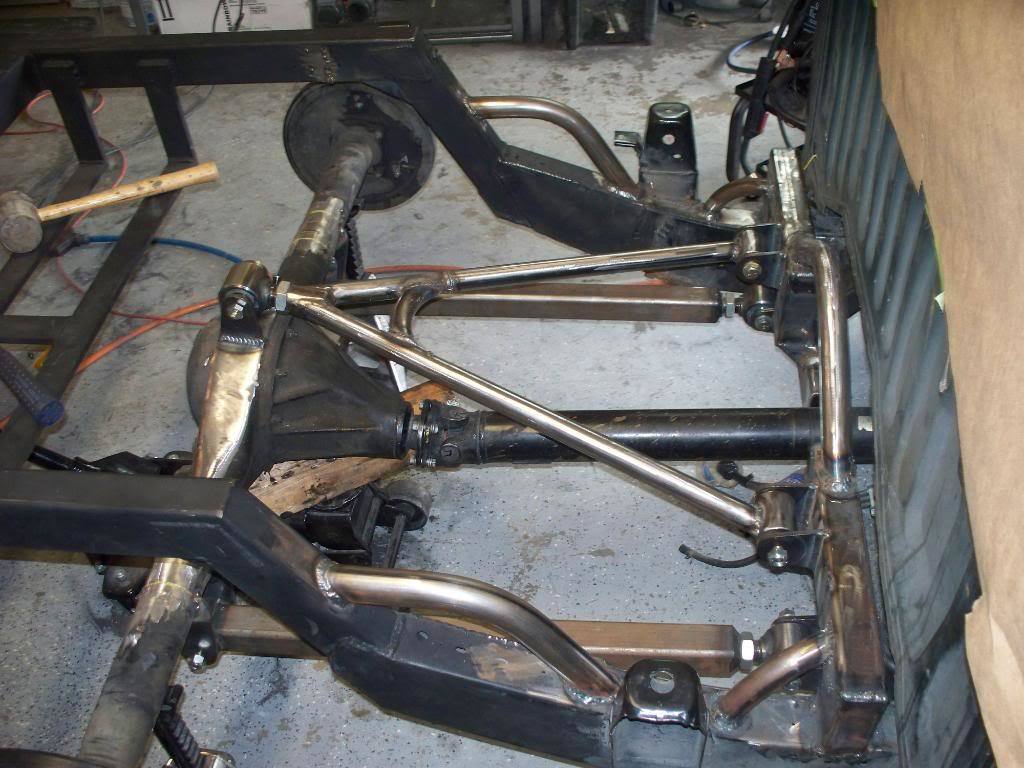

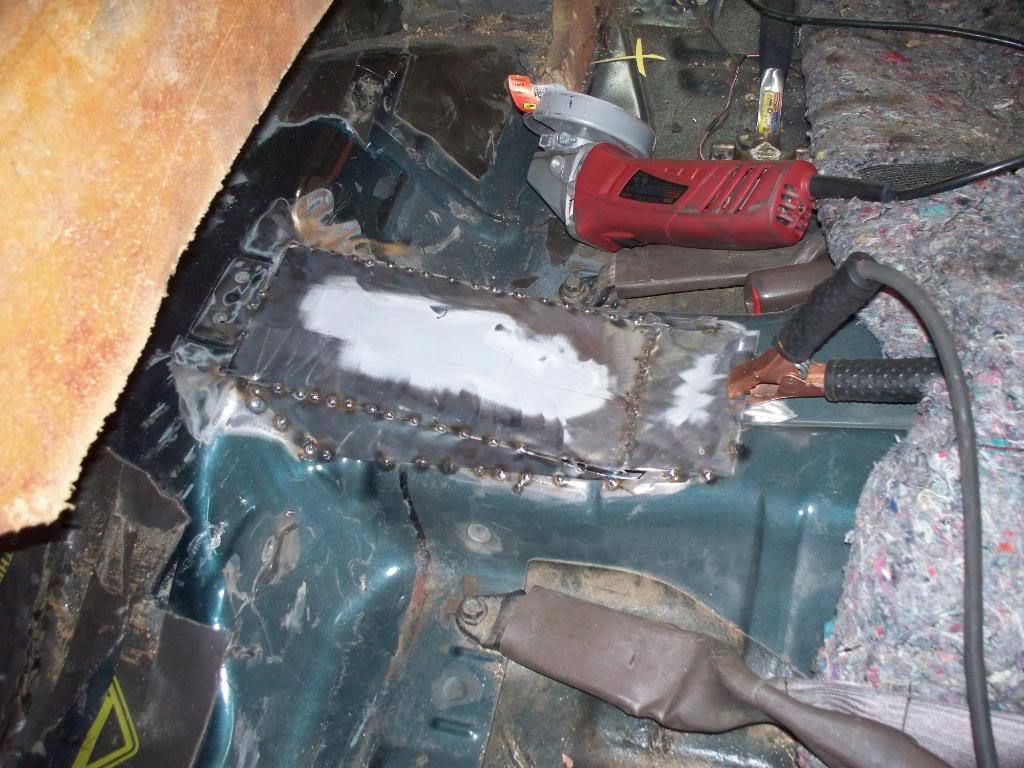

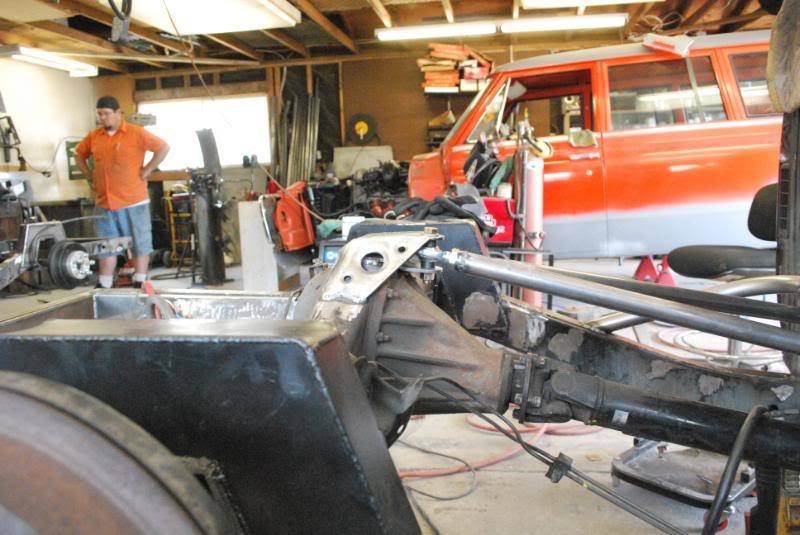

I had to redo the upper wishbone cuz of pinion angle issues, basically I f'd up!! Got it straight now, got the tunnel built, now on to the bags....
