HELP INFO NEEDED CRANK SNOUT broke

2173 views
13 replies
6 following
K
HELP INFO NEEDED CRANK SNOUT broke
89mazdalade avatar
89mazdalade
+1y

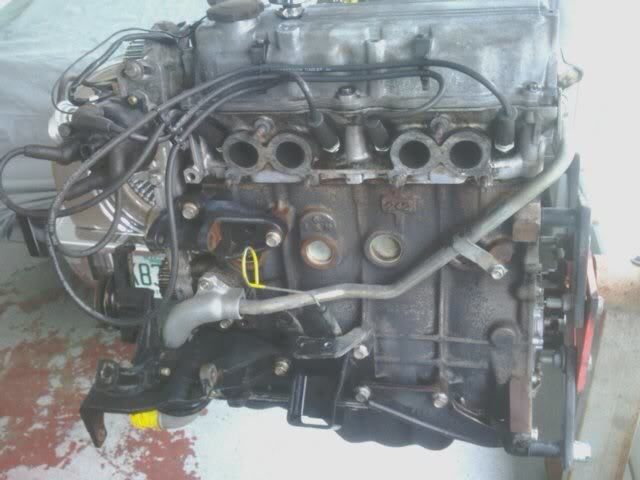

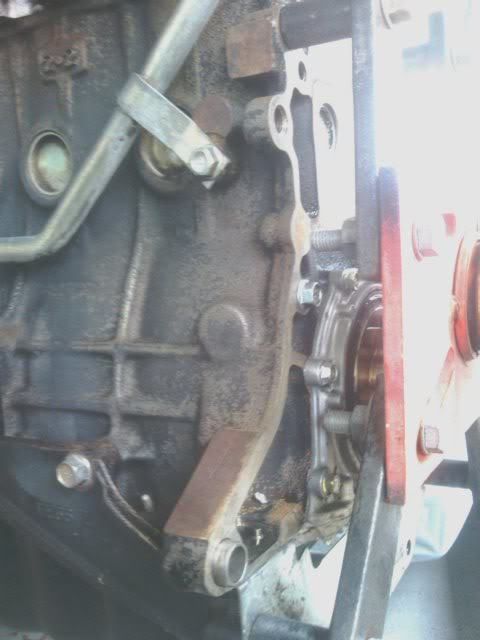

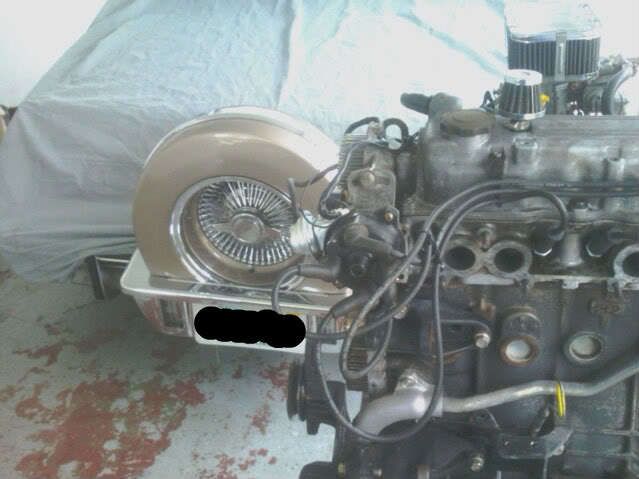

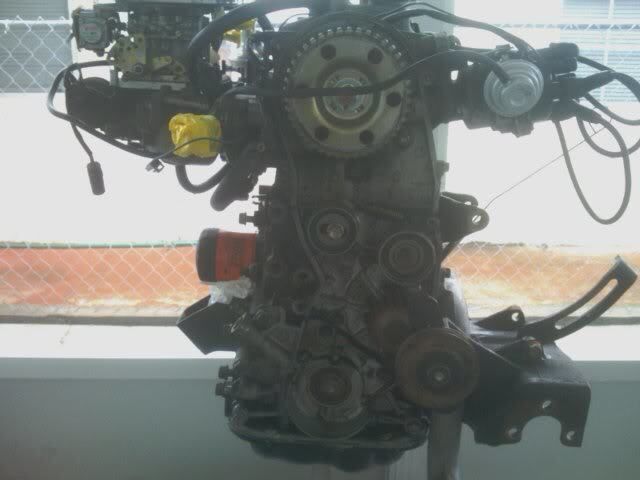

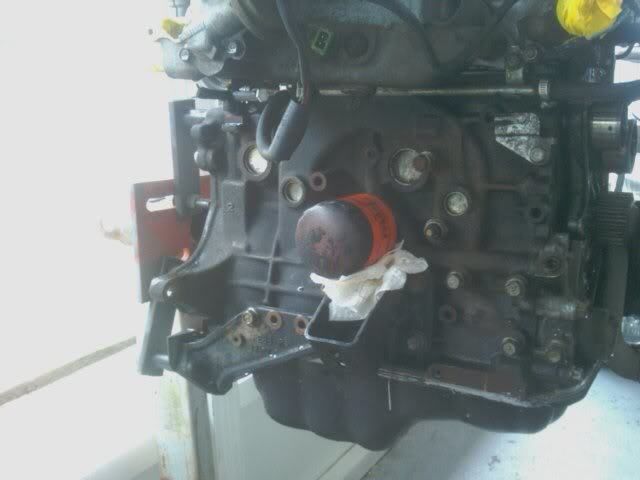

thread post photo


thread post photo


thread post photo


thread post photo


thread post photo

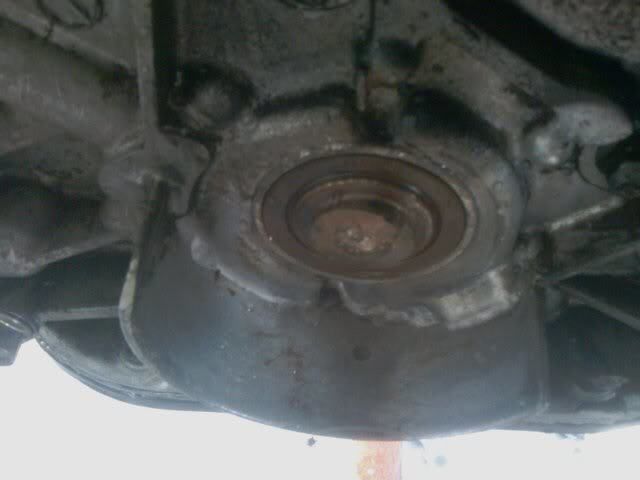

and the problem where the crank broke
thread post photo
89mazdalade avatar
89mazdalade
+1y
anyone??? still have some questions that need some answers if anyone can help it would be greatly appreciated

1.is the lower timing gear the same for the 2.0 and 2.2L???

2. the guy at the junkyard gave me the harmonic balancer belt pulley with all the stuff i got and its different than mine so im guessing its off the 2.0 motor which mine is a 2.2L which is no big deal mine is still good off my 2.2L just wanna get some correct information

3. also anyone ever buy a crank from ROCKAUTO.COM?? just tryin to get the best warranty for the buck

thanks again everyone <img src="{SMILIES_PATH}/icon_cool.gif" alt="8)" title="Cool" /><!-- s8) -->
immortal1 (linn) avatar
immortal1 (linn)
+1y
1. Would think the lower gear is the same. If any smaller or larger than the cam would be out of time. I say this as I DO know you can swap the entire head from a 2.0 to a 2.2 without switching the cam gear.

2. The harmonic balancer is probably different from a 2.0 to a 2.2 as I believe MazdaTweeker pointed out. As for the pulley itself, it can be different depending on what accessories the motor came with (i.e. power steering / air conditioning or not).

3. No help for ya on this one.
89mazdalade avatar
89mazdalade
+1y
thanks really appreciate it also found this site out anyone order from them? there alil high but if its better quality parts then its worth it
