My SFBD B2200 Project (with pics)
twistedsmily avatar
twistedsmily
+1y
procrastanation
laydoutb26 avatar
laydoutb26
+1y
damn that p word you just said...
showdownmerch avatar
showdownmerch
+1y

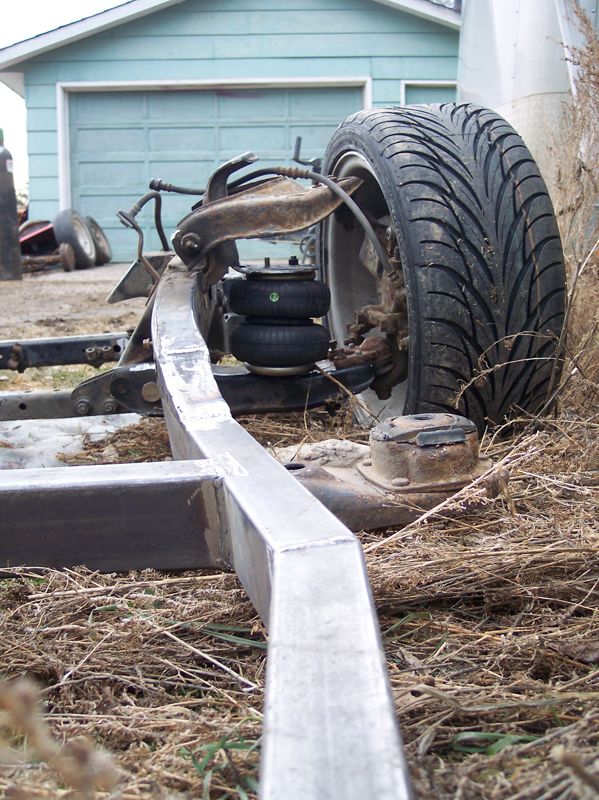

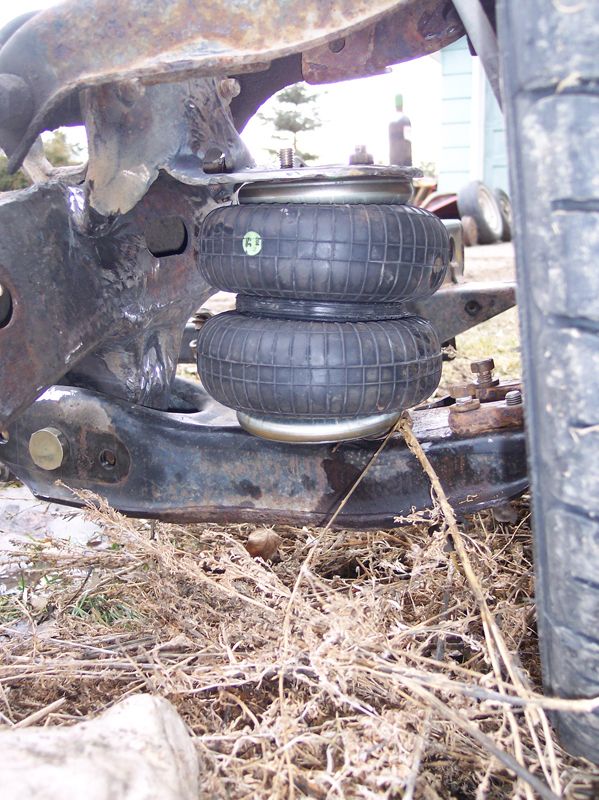

front bags are done I'm doing the ol P on snapping shots.

Still waiting on 4 link
showdownmerch avatar
showdownmerch
+1y

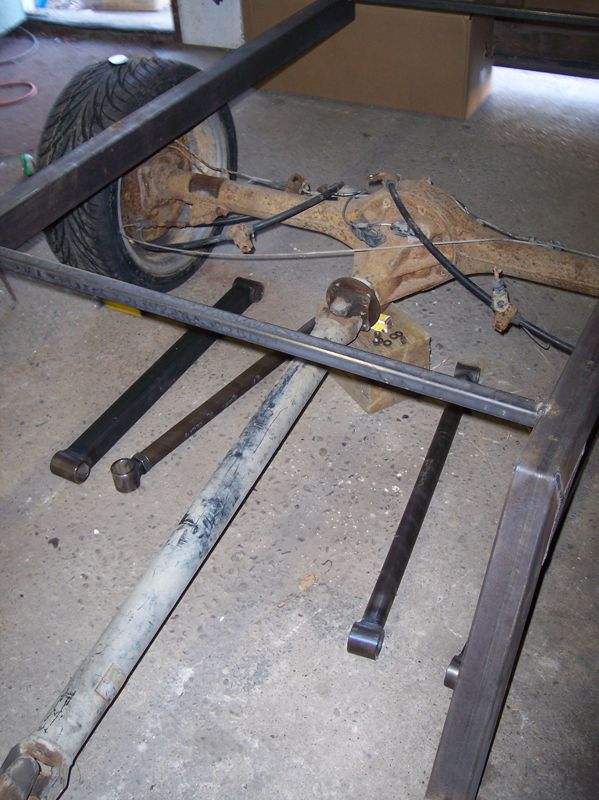

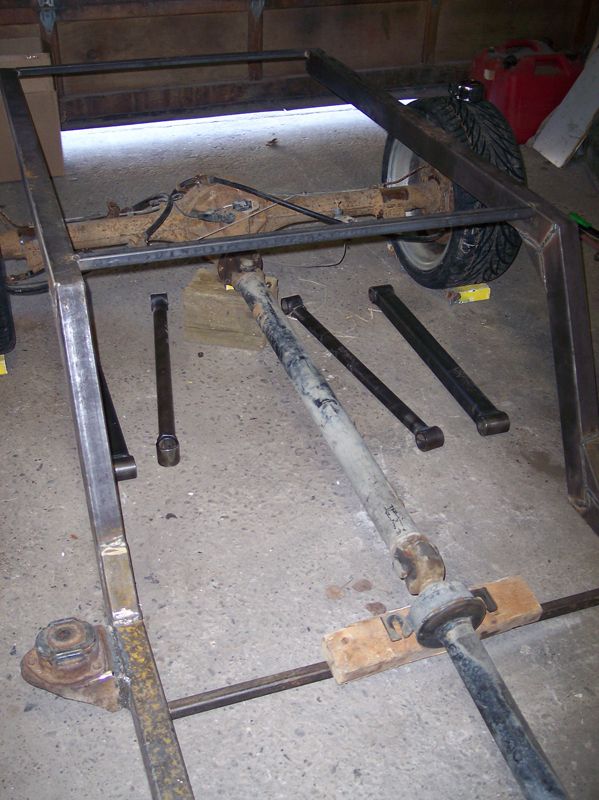

Finally got the 4 link in. We are using 2x3 7/16 for the frame and 2x2 for most members.
thread post photo

thread post photo

thread post photo

thread post photo

Tyrell checking out the rear end
thread post photo

thread post photo

thread post photo

thread post photo

thread post photo

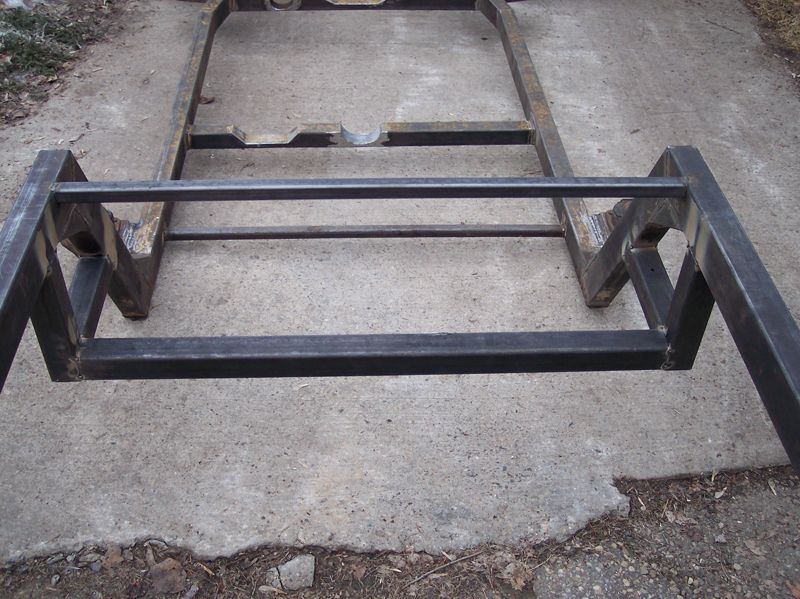

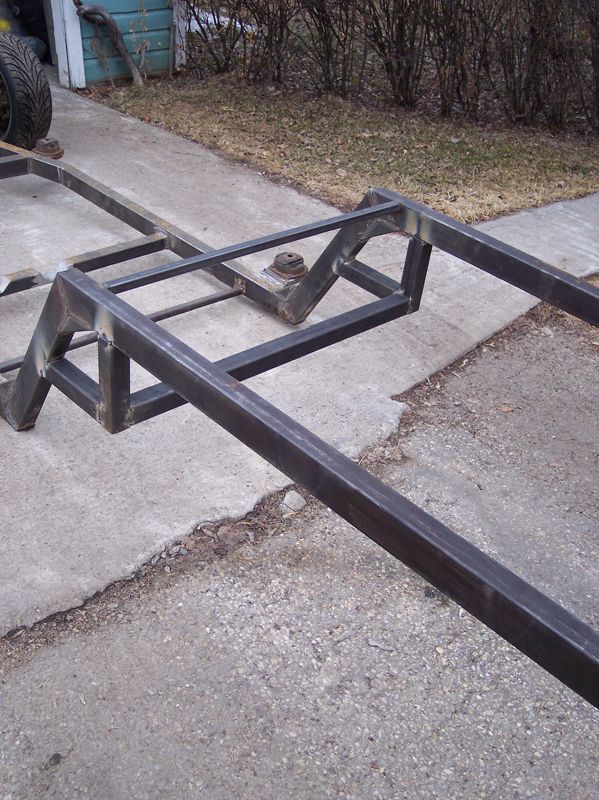

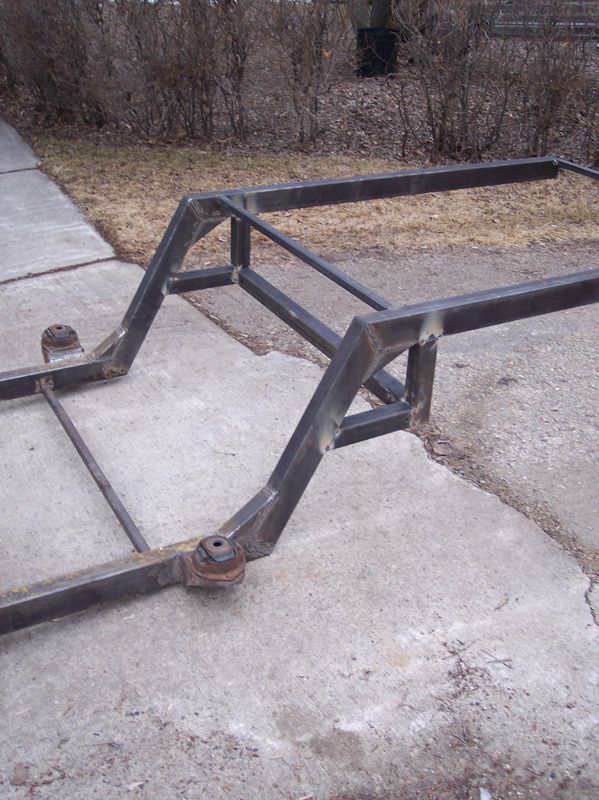

Theres no turning back now this thing is lengthened 18 inches and the box is half inch closer to cab.

We are loading the 4 link tonight.
showdownmerch avatar
showdownmerch
+1y

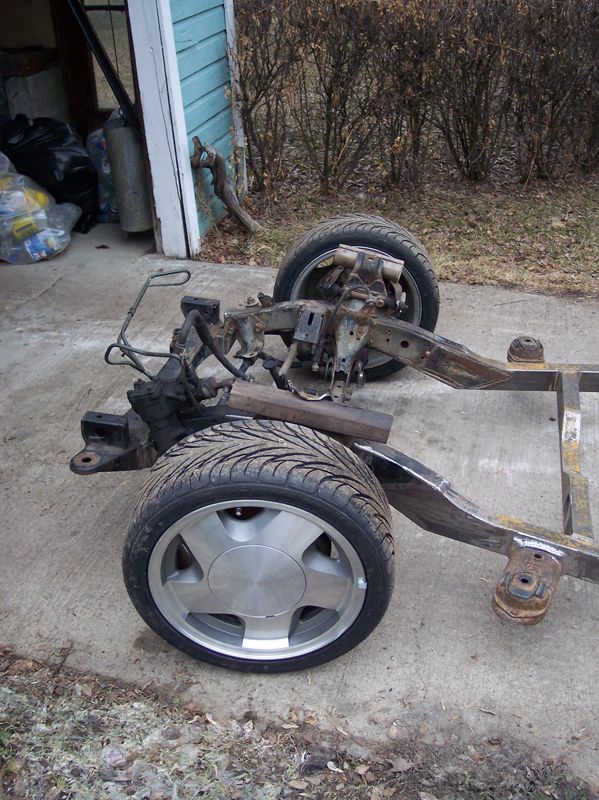

Still need to tighten up the front end bags but it was a start to get it mobile.....my dads 41 chevy pickup makes it's way into the shop everyday before 4pm.
v8mazda4ever avatar
v8mazda4ever
+1y
just asking agian, what size box steel are you using for the frame?
joshbrennan avatar
joshbrennan
+1y
when you say you are using 2x3, 7/16" for the frame, you actually mean 3/16" right?
showdownmerch avatar
showdownmerch
+1y
Sorry man It's 1/8
retro83 avatar
retro83
+1y
how are you lining up were your body mounts need to be? Im doing a SFBD this summer and the body mounts in my only fear!?

Project looks good though and thanks for all the updates!
showdownmerch avatar
showdownmerch
+1y
Cab mounts were done with a Jig that was layed down before. Then you know exactly where the mounts need to be you can also adjust the height of them no problem.

The frame diagrams on this website were helpful to. saves time not drawing your own.
