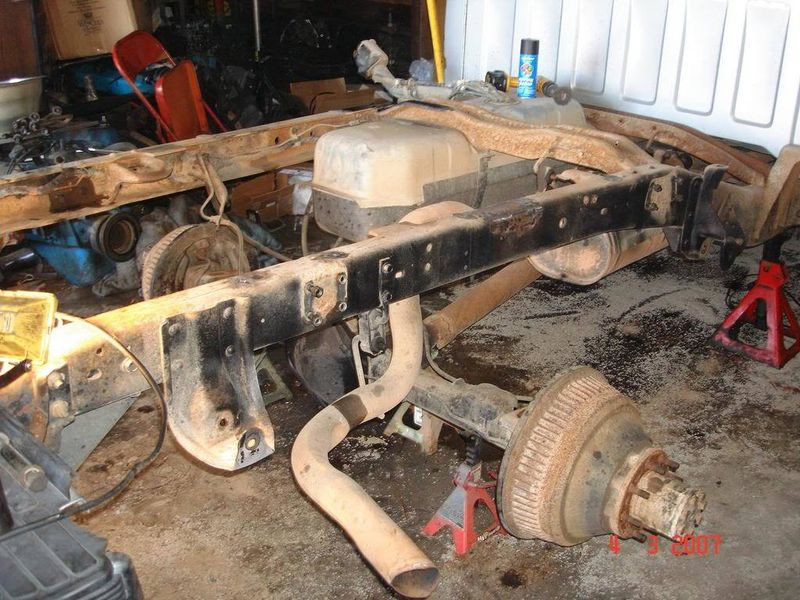

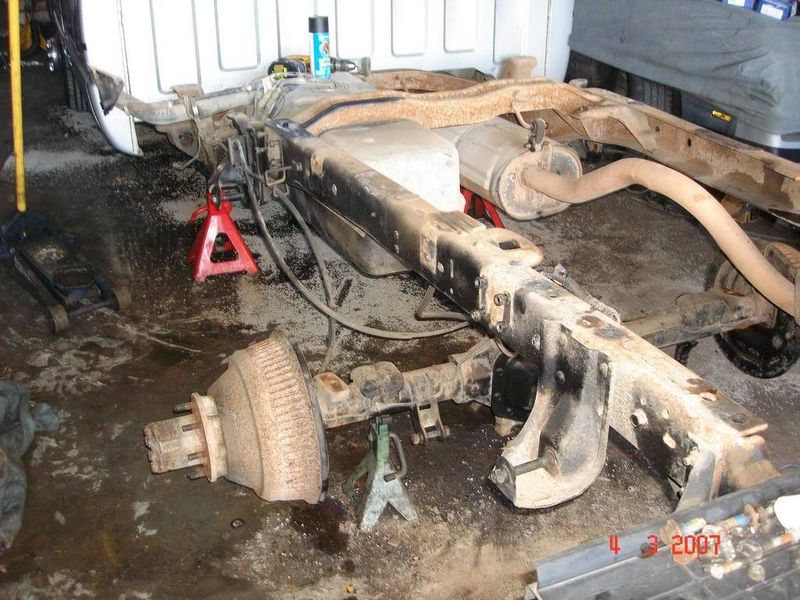

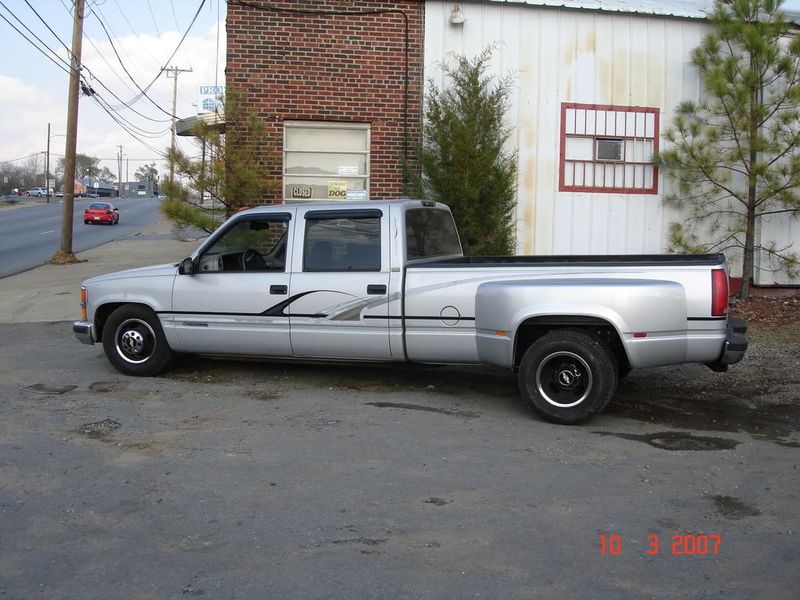

6day build

details of parts used?

maibe if you use dellalum bushings it will work better .

its all ART with the belltech notch I went with the 3/8" and asco valves on 2 5gal 7port tanks 1/2" line to them to fill them I went with the EDC (york 209)
@145psi and all the lil parts that make it all come together.

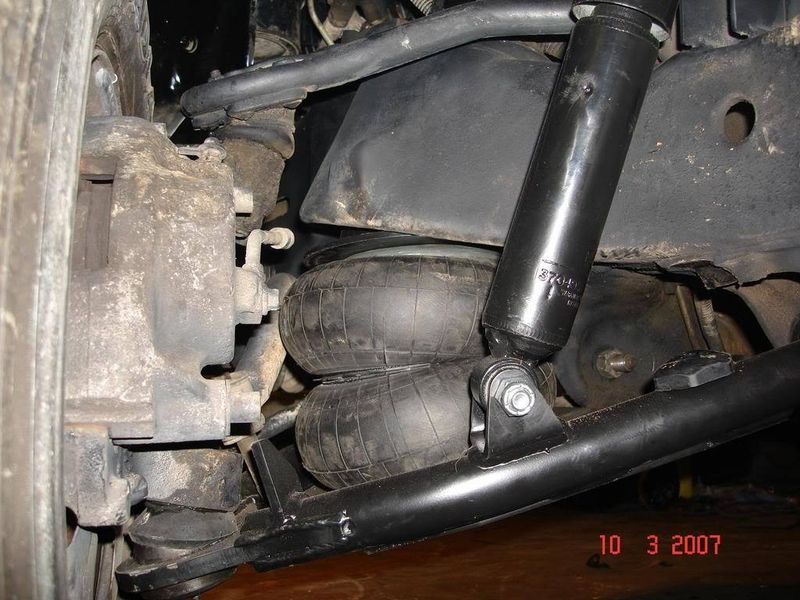

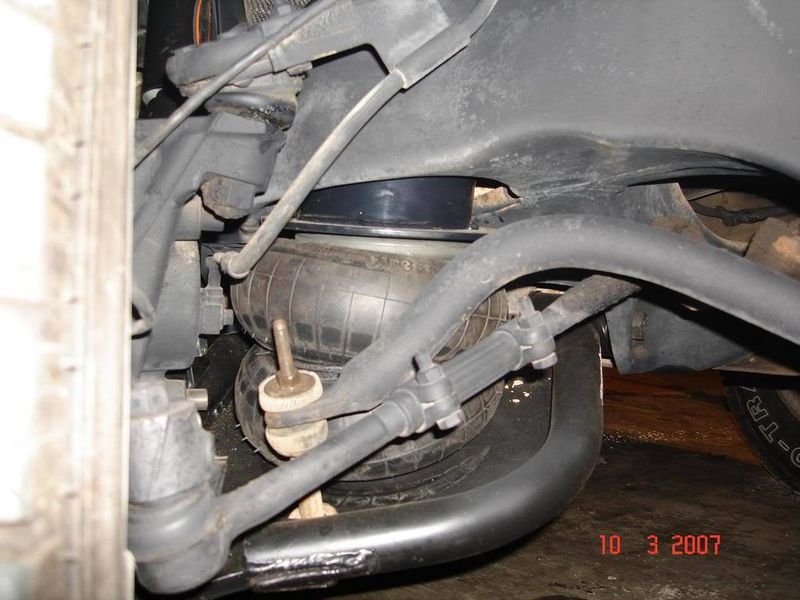

drag I didnt see anything it just stops about a 1/4 the way and will not pop till you drive it and turn then it will pop and fill the rest of the way up.
so is the bag twisted alil?

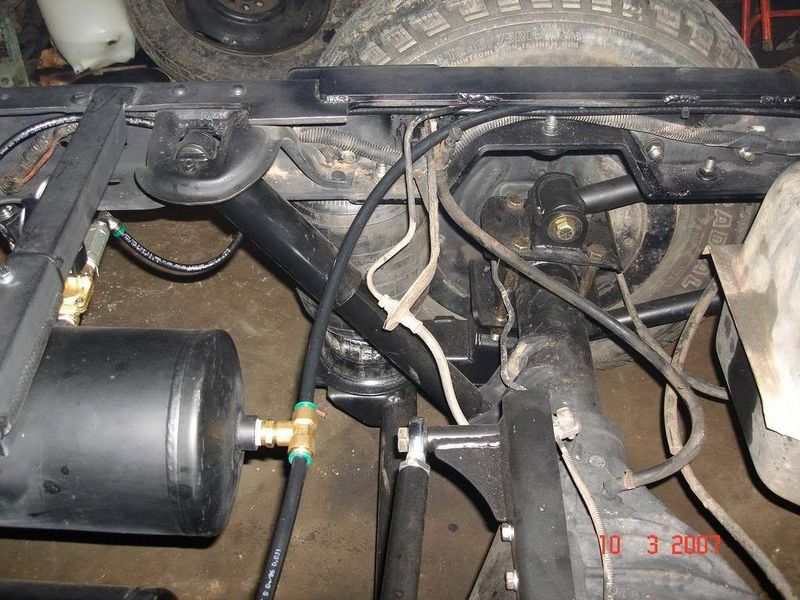

the setup

street beat custom
front bag kit w/control arm - cool ride (arf 5012-lca) $899.00
rear bag kit full kit - Air bar (airbar11006) $1599.00

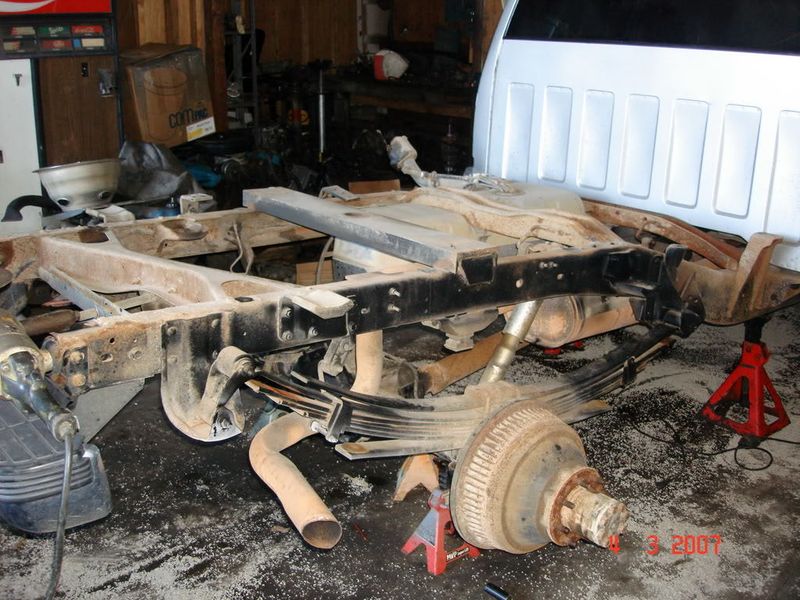

belltech C-notch 88-00 C3500 (bel6911) $199.00
3/8" airline 50' $31.00
engine driven compressor york 209 w/big block kit $785.00
comes with pressure switch line 1/2" and fittings to hookup compressor

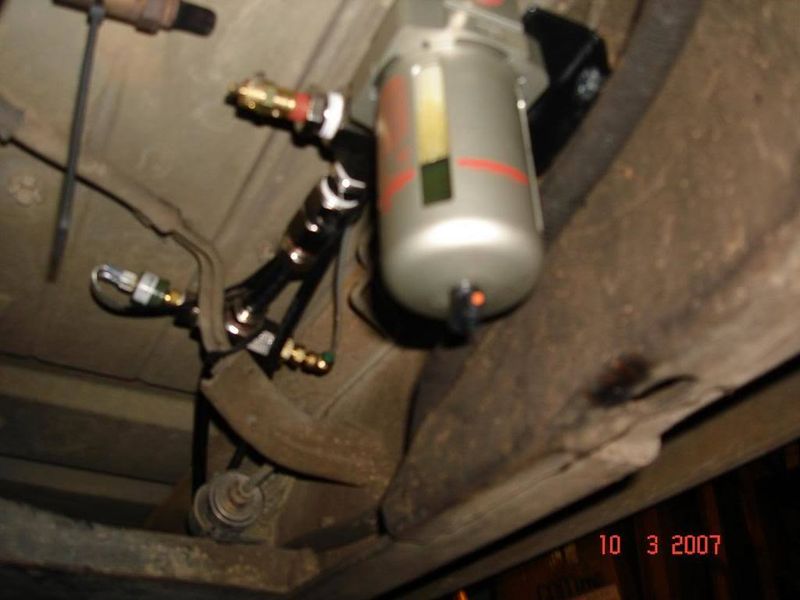

check valve, water trap

ebay
8x 3/8" asco valves $22.00

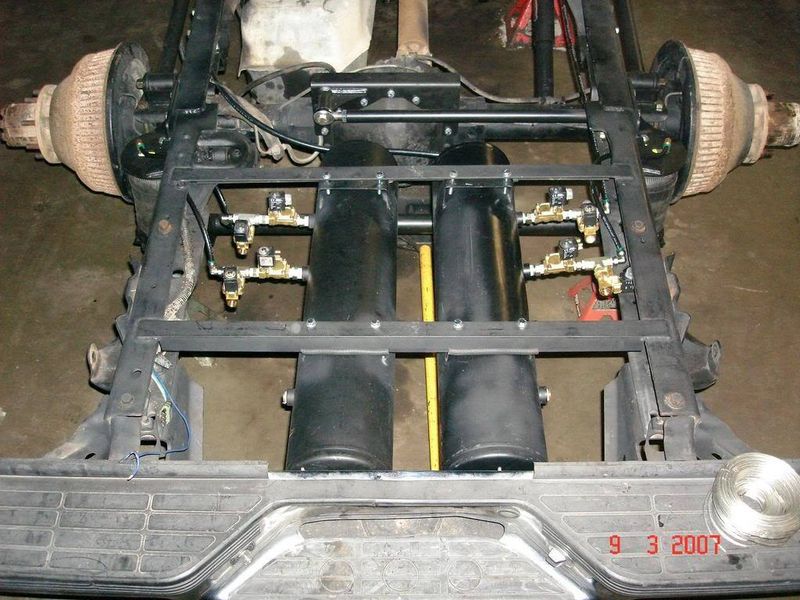

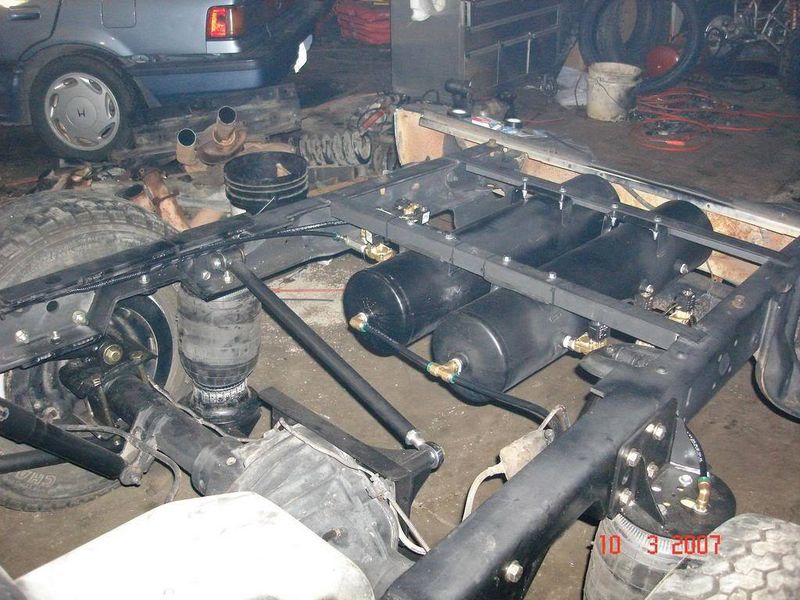

2x 7port 5gal tank (had to do a some cuttin & weldin 2 fit how it is) $110.00
air pressure gauge $40.00

local
12volt relays 4x $25.00
100' wire 16ga about $30.00
2 switches
air line fittings push in lock based on your setup about $150.00

looks like you spent your money well

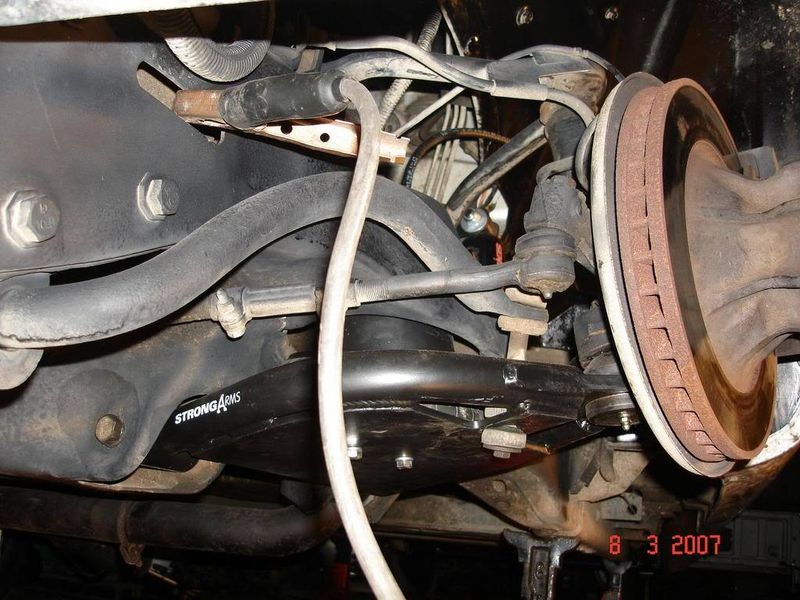

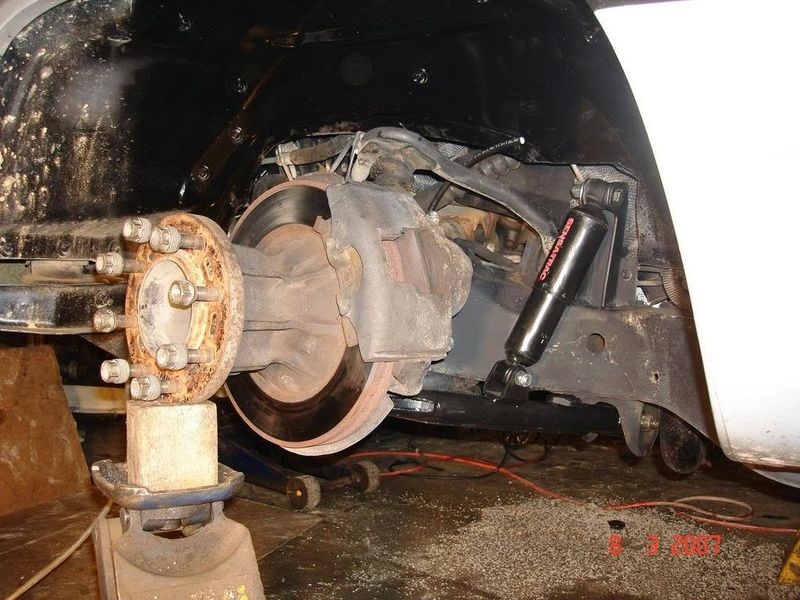

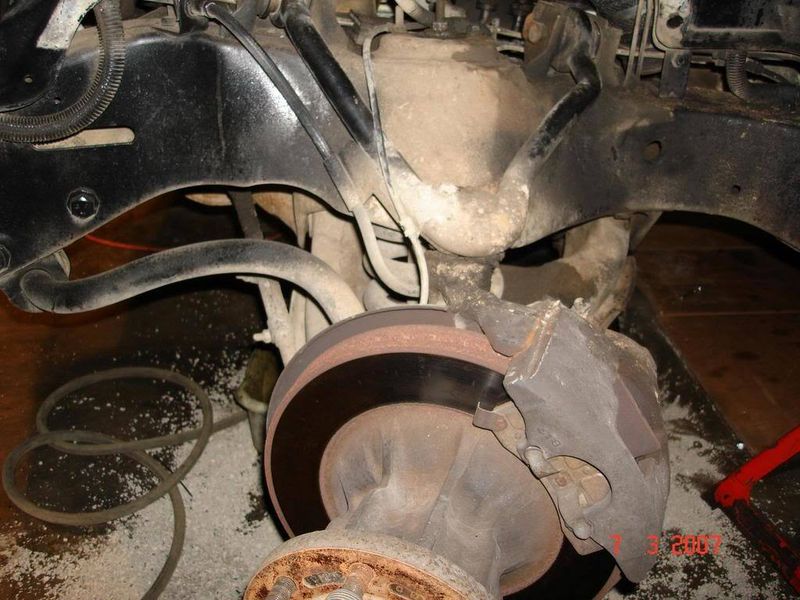

i was wondering , how are the diskbrakes mounted on the front , it seems there one piece with the hubs themselves

watahyahknow I'm not sure of your question?

im talking bout the front hubs the part the wheels mount on ,
i have the frontsuspention of a single wheel C30 and the truckwheeltype is different
on mine the brakedisk slips over the hub.and the wheel mounts over that again , the hub youre having seems to be one piece with the diskbrake .
could you get a picture from the side and back for me ?


i was planning on having hubs made for my suspention because the truckwheel hubs are hard to find here and i need adapterplates too , the idea was to make the hubs so the big rig truckwheels would mount straight on , it might not be needed cause i found another place that have the original hubs .
going on a roaadtrip next saturday to take a look
