square body ranger bodied on 22s

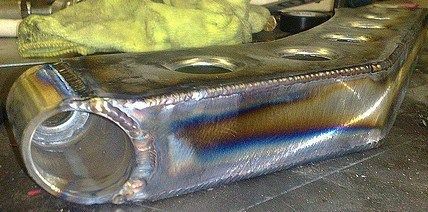

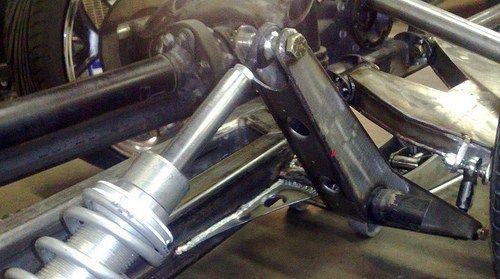

well here is my progress for tonight this is the support for the outside of the pivot mount. will weld it on tommorrow or the next day. also this is it lifted and locked out in the rear with the cylinder stroke not maxed out because i dont have the spring compressed all the way due to no pressure from the cylinder yet.

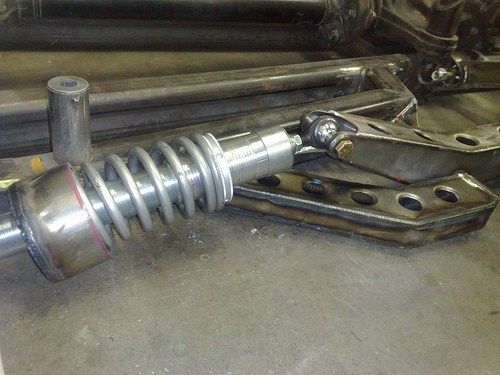

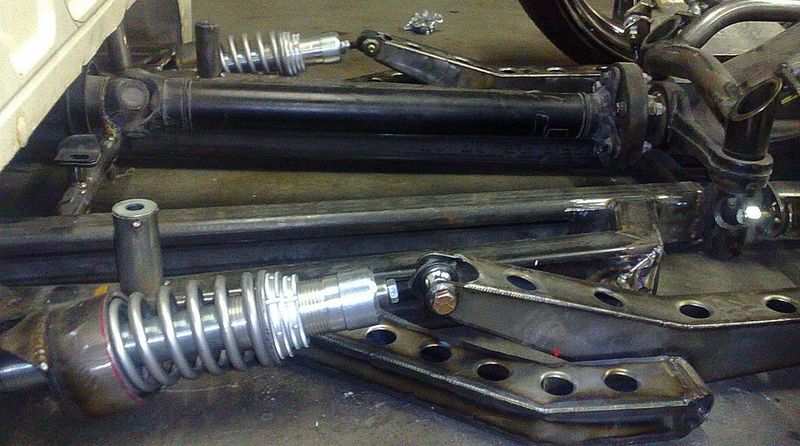

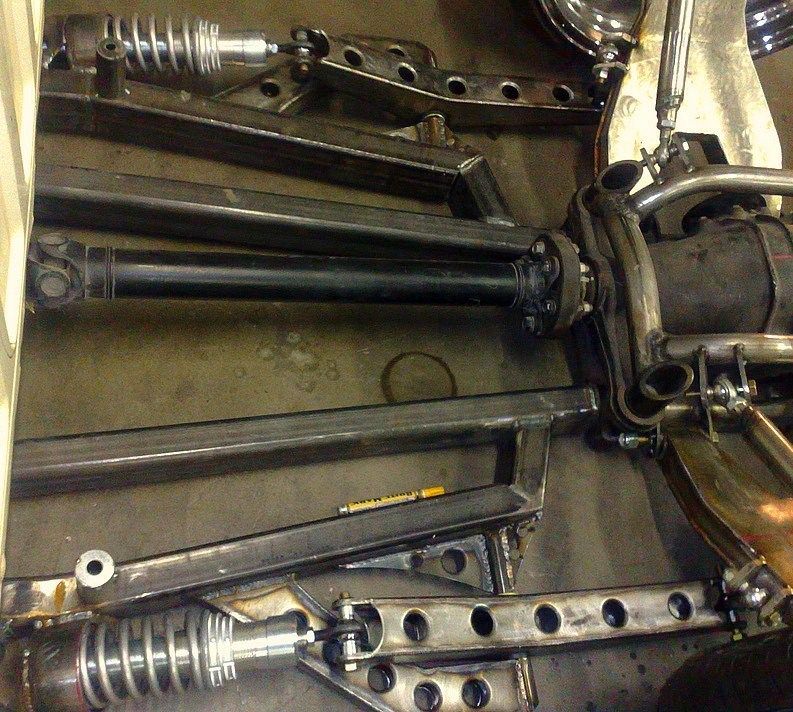

this is where i am now i have the outer bracing done on the cylinder mounts today i got new hydroholic cylinders and 2 or their 3 dump manifolds. having some hdpe sleeves machined to thread on the cylinders so they slide smooth in the plastic inner donut sleeves i am having made.

looking good

man thats hot bro!

that's coming together pretty awesome!

thanks alot guys finally got bith cylinders mounted and adjusted. now on to the hardline of the dumps and such never have done it before so here we go. anyone got any suggestions or want to come help me for fun please haha.

sweet truck man... ive seen a few pictures of it before but didnt know about this thread. nice fab work

very sick setup on this.  cant wait to see it actually work.    you gotta get a video up when you get it moving.

this is one bad a$$ ranger. wish mine was laid out on some 22s. nice work!!

Looks great man. Very nice work.
