Single Cab dually in the werkz

love this project

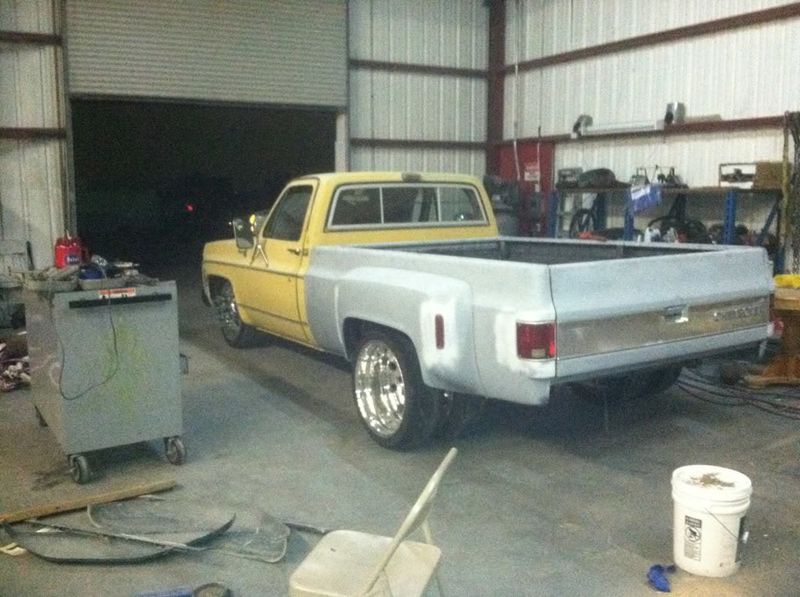

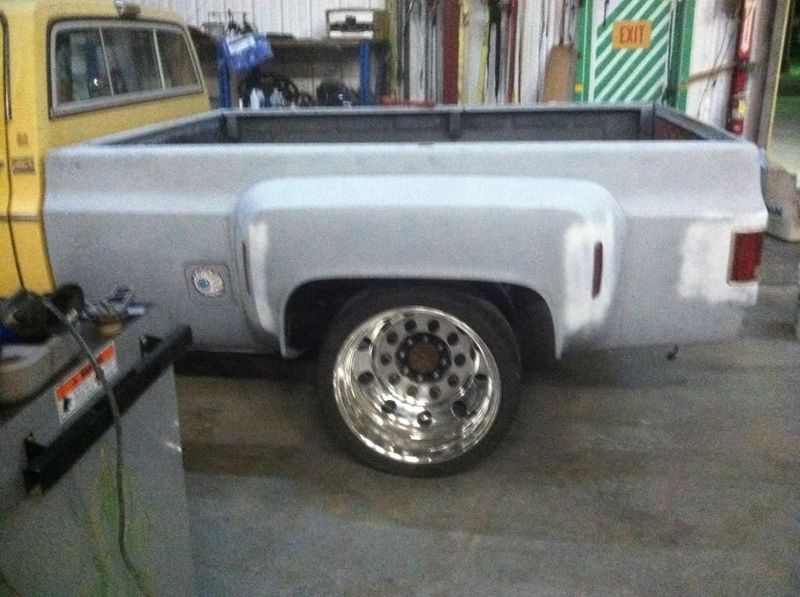

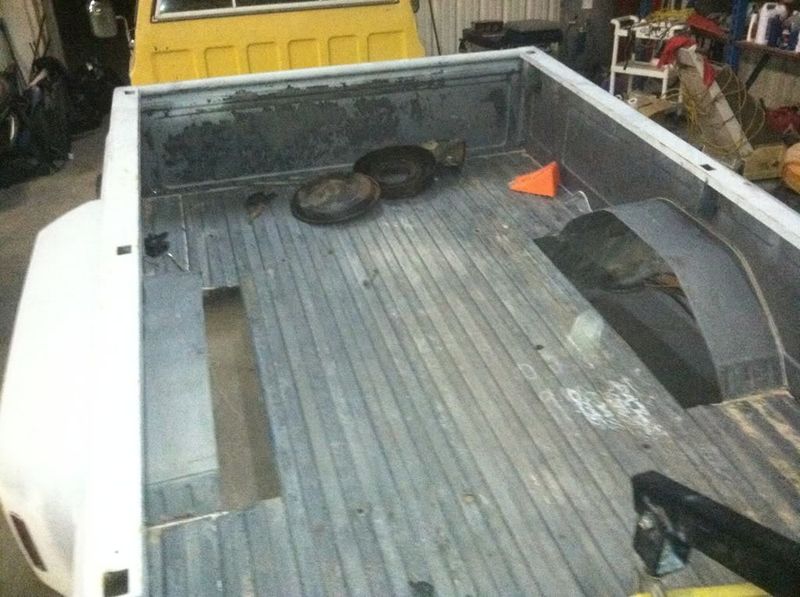

Bed install was smooth as all hell, had to cut the inner wheel houses to fit all 4 dueces in back, gonna tub with factory wells soon.

LLLLLLLike a gggggllovvvve.

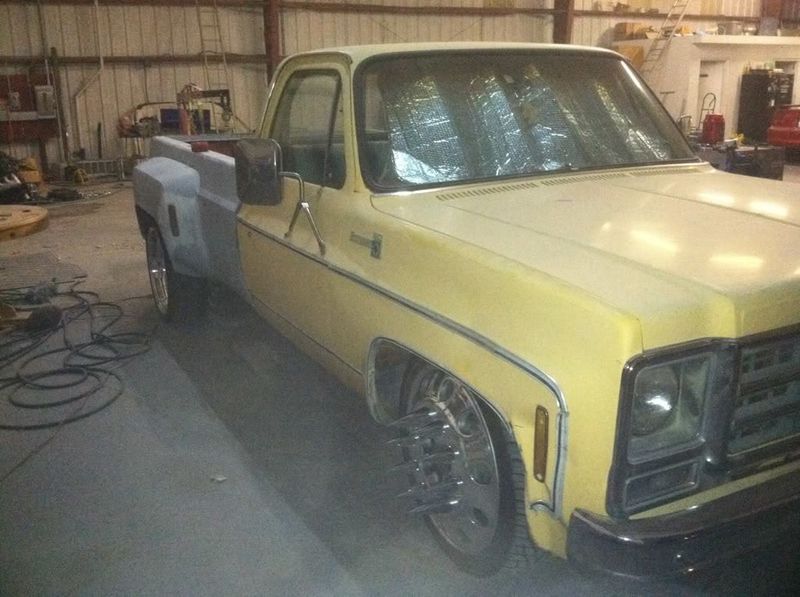

Rear has to come down another 2" or so, but the rake does not look that bad.

sweet man....its not often it goes that easy haha. looks killer

ok i gotta ask cause i know its gonna get asked anyway.....you kept the SRW rear axle right? and did the inner 22 rub on the leaf spring or the clear?

No the initial clearence was about a 1/32" away from the load spring, I took the load spring out and rebuilt the leaf packs. After doing so I had about an 1/16", that I felt was still too close and the wheels would rub on the leafs when the frame would twist and flex. I bought some 1/4" spacers/shims from the off road shop and spaced them out another 1/4". This gave me plenty of room now and have had no issues since. The only shitter to the SRW axle is that the studs are a little short for this. Thread locker will insure no issues, thinking of saftey wiring them when torqued. BTW SRW 3/4 ton specific has the same dimensions (length) as the 1 ton SRW axle , however the axle tube diameter is far smaller. 1 ton DRW brakes work on this just fine with a little mod. After doing this with the leafs, I realized I has left with a heavy half ton dually. Gonna fab up some brackets and lift arms and some sort of Cantilever lift setup, try to match the load carrying ability of the newer 1ton's. The parts truck has the rear sway bar on it so I will putting this on it as well.

that sounds like a sweet setup. so your keeping it static or you wanna bag it ?

Static with a little support

o..ok thats sweet man

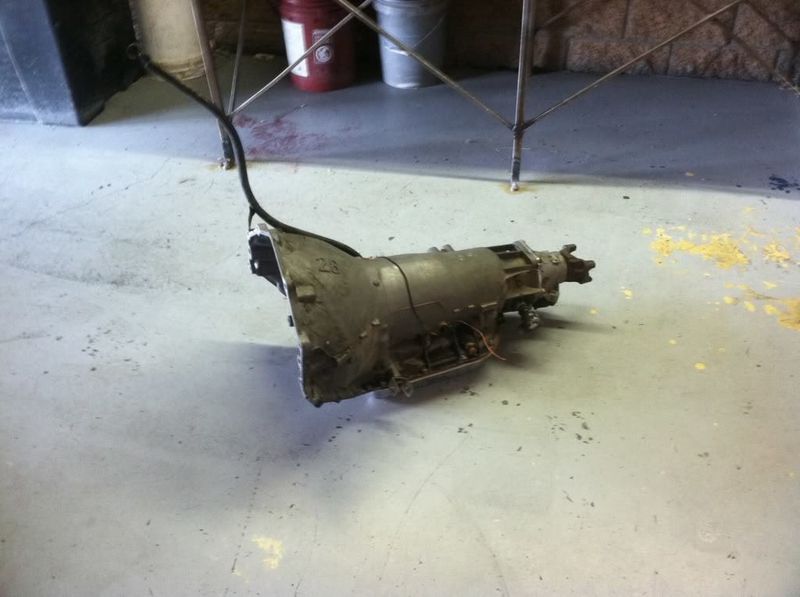

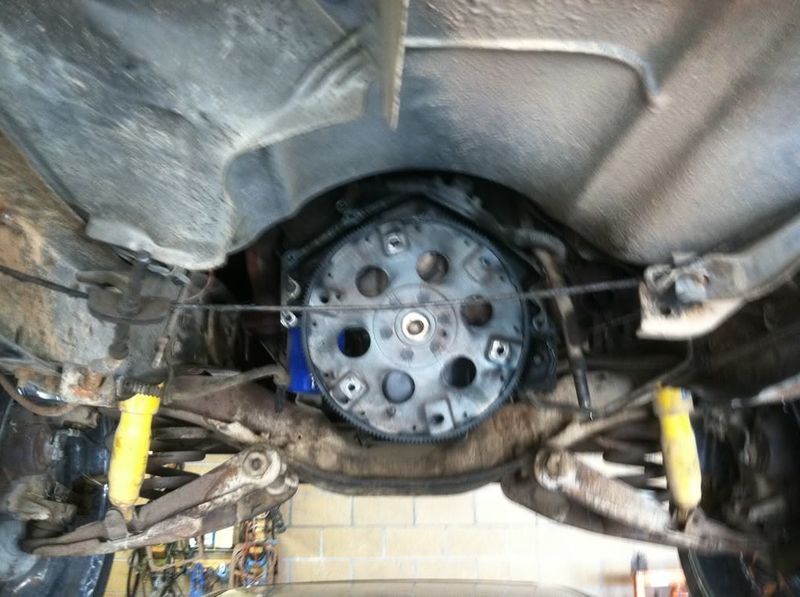

Trans turned out to be TH375, anyone ever had one of these? Anybody need a TH400?

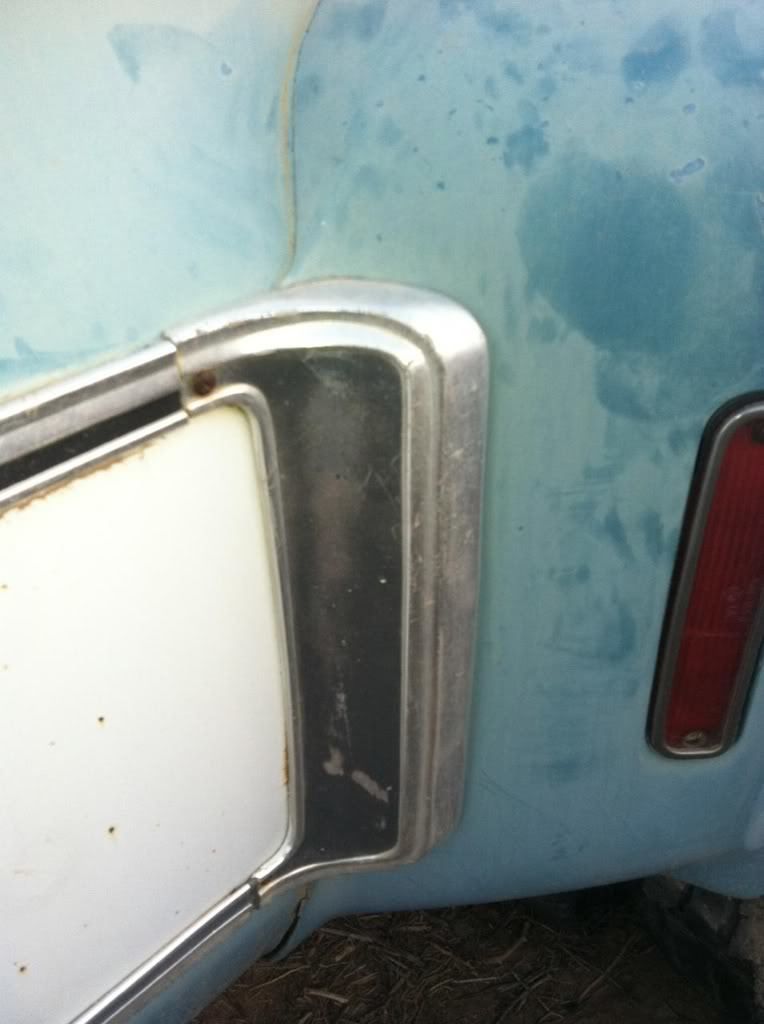

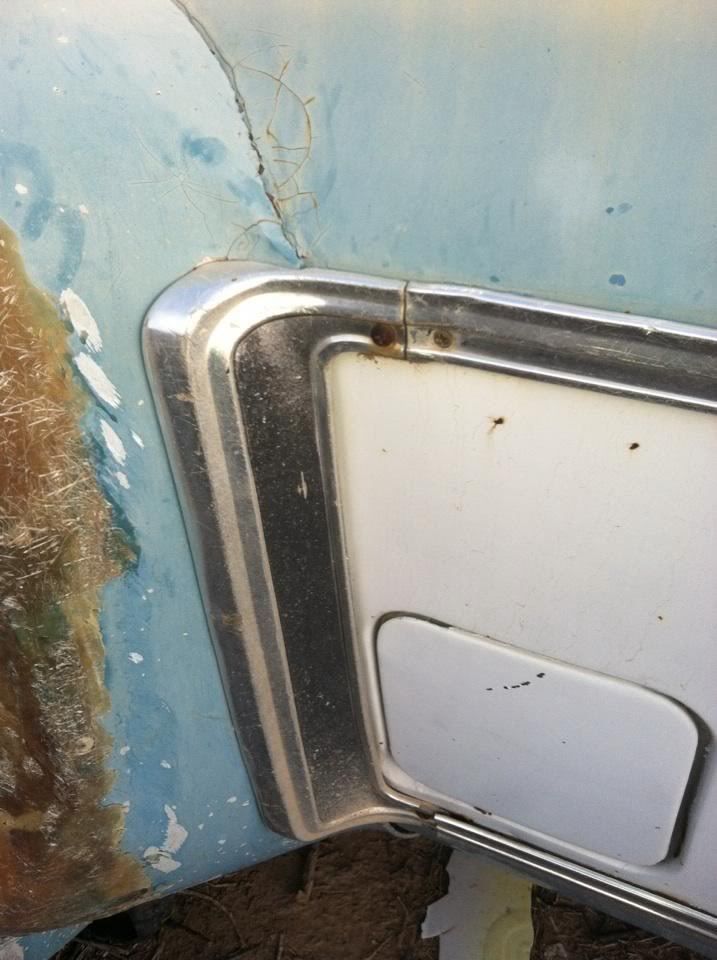

73-80 Deluxe un-obtanium, obtained!


I think I have devolped a fetish for these, WTF. Any of you have these hit me up.
