BD with close to stock bedfloor, backhalf, Need some ideas and pics.

Im looking for pics of backhalfs some people have done trying to get the frame low as possible to try to keep a pretty close to stock depth bed, and This only applys to BD trucks..And I know you will still have to cut out for the axle so before you mention that I already no there is no way around that I know this has been done and is difficult..Just want to see some pics more the better!

Edited: 1/13/2007 5:14:47 PM by TwistedMinis

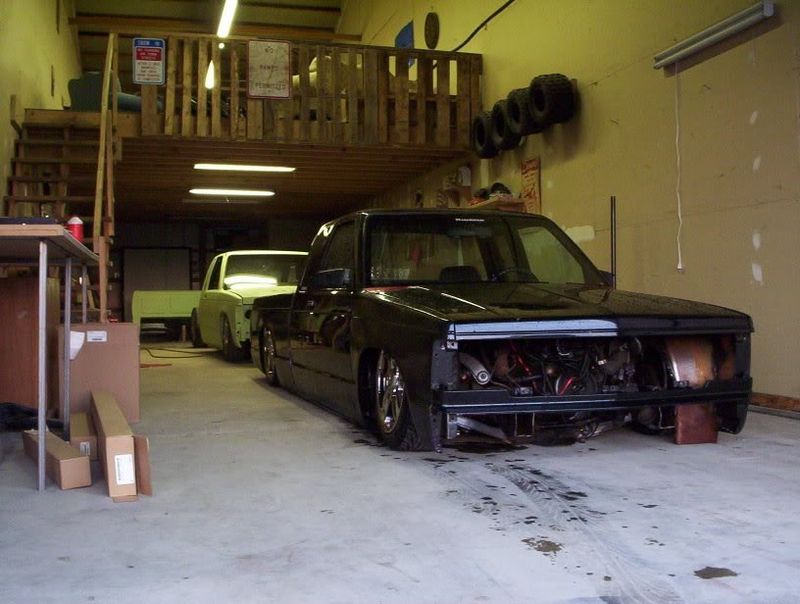

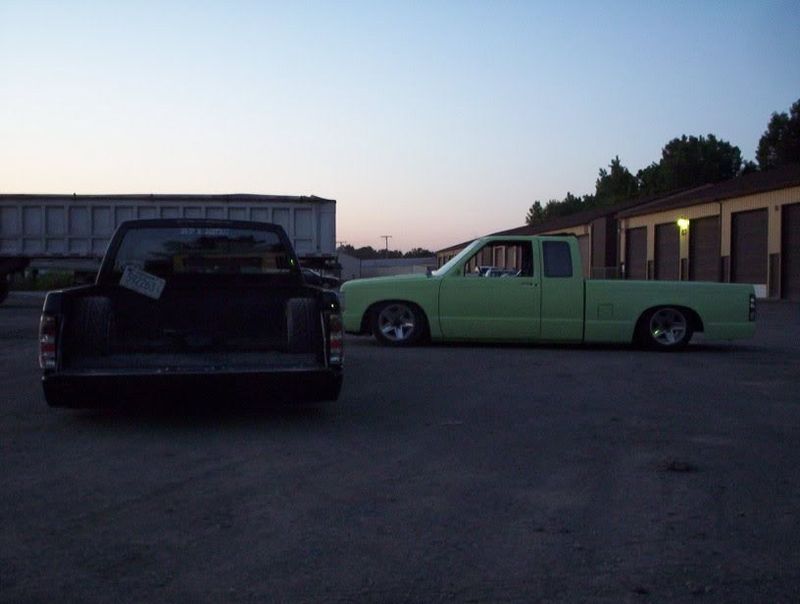

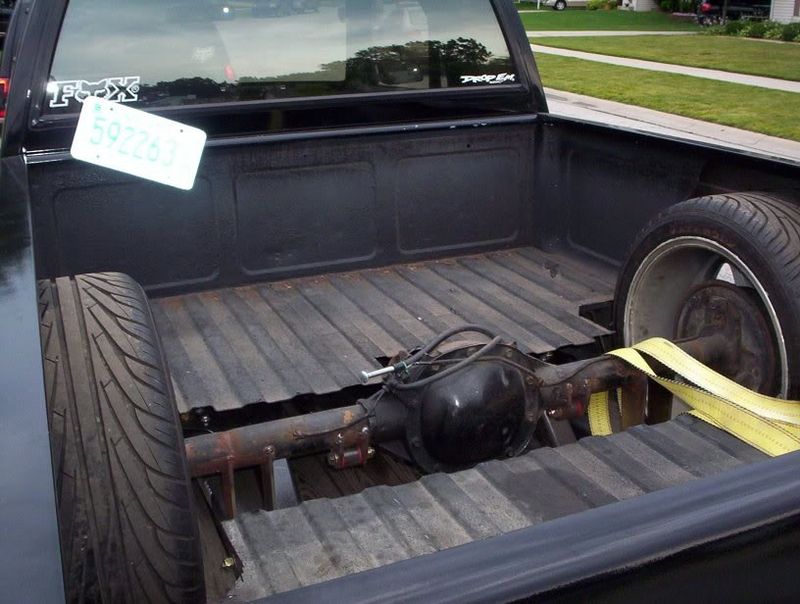

Interesting idea. Kept the floor stock all except for the axle cut out. And it is bodydropped.

Interesting idea. Kept the floor stock all except for the axle cut out. And it is bodydropped.


^^ thats what im going to try to do but with a nissan. Thanks for the pics Seth..anyone else got any pics of diff trucks?

Thats bad

Edited: 1/13/2007 5:33:30 PM by Cosa Nostra

how does that setup work?does anybody else have some pics of setups..that shit is badass

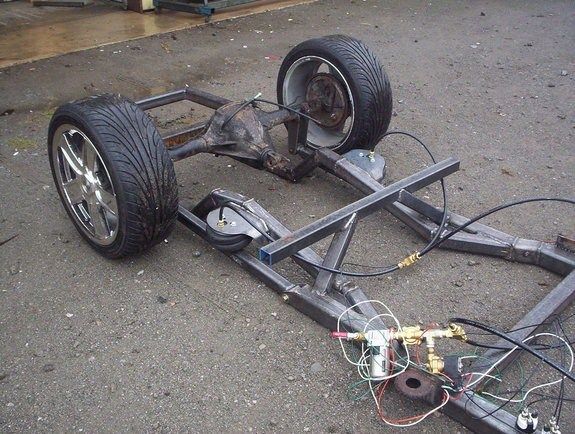

It works just like any other setup, only the axle is above the frame.

Insane designs has done a lot of body drops with the stock height bed floor, you can check his website or my profile to see mine. He did a ranger years ago like that and it sold me on his work. Final faze here in sanger used to do all his like that too, the easiest way is to cut the front bed mounts down and make a step notch that hangs lower in the back and drop the whole rear section down however much you need, real similar to the old early 90's bodydrops where all the mounts were moved, not the floor. A short 4 link has to be used though, or you lose alot of bedfloor to allow room for it to travel.

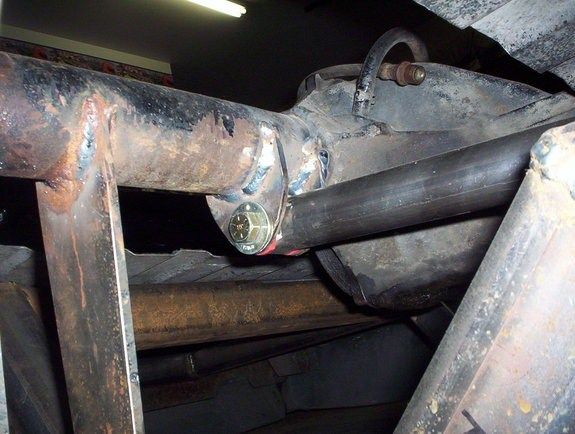

One thing I dont get about the s10 posted...The uppers could easily be on top of the axle and still not be any higher then the pumpkin. Those lower tabs are so long. Should probably at least be plated together on the backsides.

4WD stuff is set up like that all the time Joel. Obviously braced more, but it works.
