Front Setup on Mazda!!!
mazberrydelight avatar
mazberrydelight
+1y
very clean shock set up
PazzFlaMazda avatar
PazzFlaMazda
+1y
Edited: 12/6/2005 10:25:28 AM by PazzFlaMazda

If anyone has any more pics it would be greatly apreashaed we are geting ready to cut everything up under my frontend for blooddrag so i can drive up for the show
brandon005 avatar
brandon005
+1y

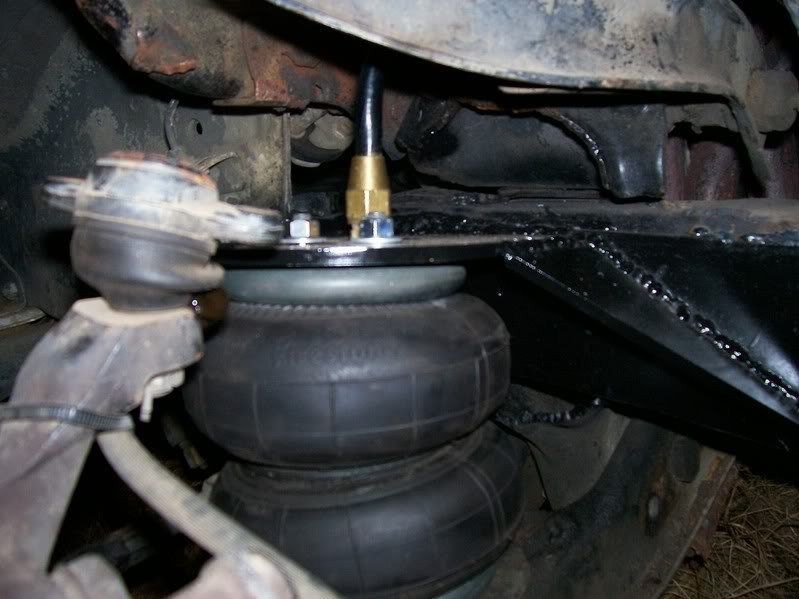

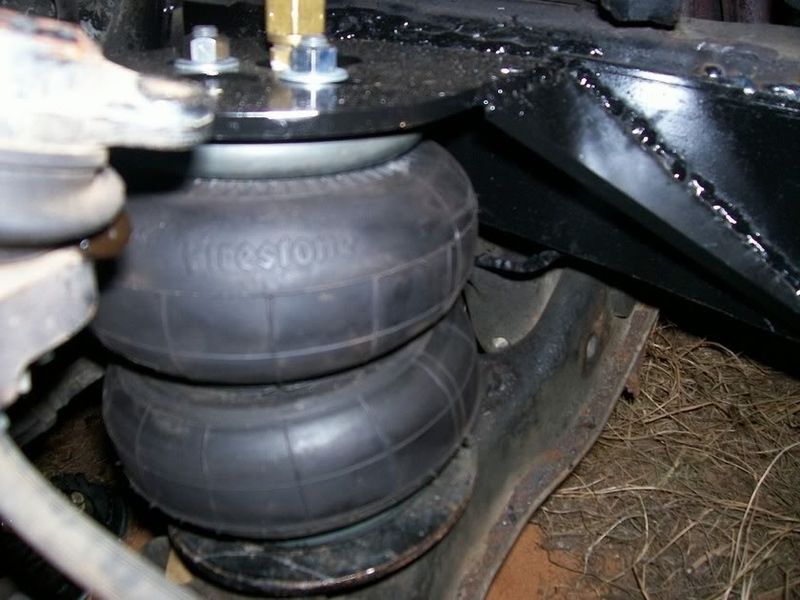

heres some pics of mine it was dark when I took them I'm having to redo my brackets my first ones ripped my frame rail everyone please plate in your frame or it will come back to bite you
post photo post photo post photo
TuKnRaiL avatar
TuKnRaiL
+1y
Brandon what did u do to ur lower arms? Did you trim the back of the arm where it mounts?
brandon005 avatar
brandon005
+1y
yes i did have to trim it some for it to fully lay out but I haven't had any problems with it weakening it or anything
TuKnRaiL avatar
TuKnRaiL
+1y
Sup guys I know ur getting tired of hearing from me BUT I've been cutting on this lower control arm for a while now trying to make room for it to clear and im not sure exactly how much I need to cut. So if anyone can show me a pic that would be really HELPFUL!!!
dragmatic avatar
dragmatic
+1y
I have to agree those shock mounts do look nice and it's so unusual to see normal sized upper mounts. Most of em are big enough to bag a Sherman tank these days.
PazzFlaMazda avatar
PazzFlaMazda
+1y
how much cutting is involved? any one have pics off the truck??
slamdamazda avatar
slamdamazda
+1y
did you get my email.....also i got some dimentions for the upper on my profile.
PazzFlaMazda avatar
PazzFlaMazda
+1y
no e-mail but i did see your profile ... you have any pics in progress?

oh ya and what yall think bout running 3~way valves on the front ??
