Mazda Rear Setups!!

Originally posted by krazeryn



Originally posted by dragginmazda86

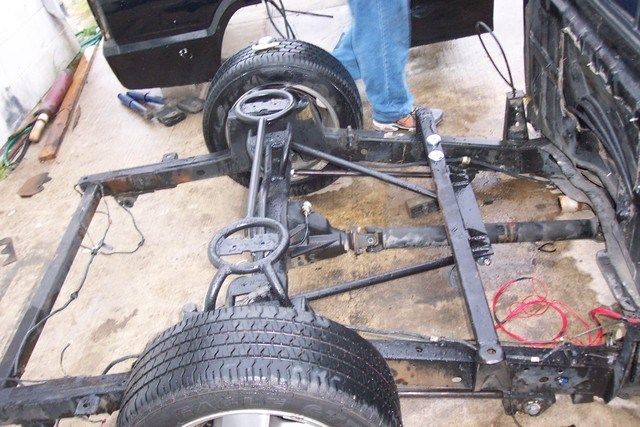

here's a couple more.

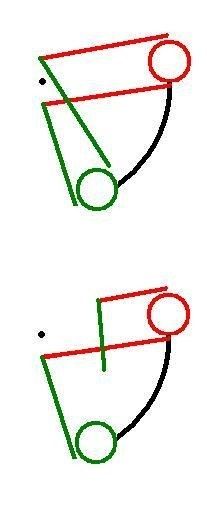

This is not right...The upper bars and lower bars should be the same length, always at the same angle, and pivot from the same point.



With bag over axle i doubt it is going to be a very huge difference in pinion angle change. I have definetley seen far worse setups then that get posted without critisism.

WOW wasn't expecting that! Thank's iLLblazer. Any way's it is a ART 4 link and through 10 inches of travel I get about 1 degree of pinion change.I get no side to side movment at all.But everyone has their own opinion of what is rignt.

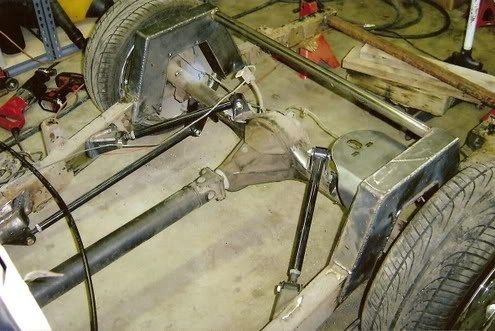

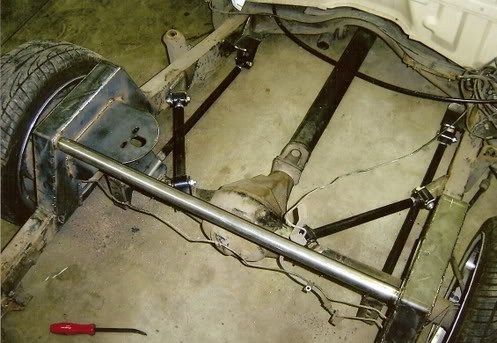

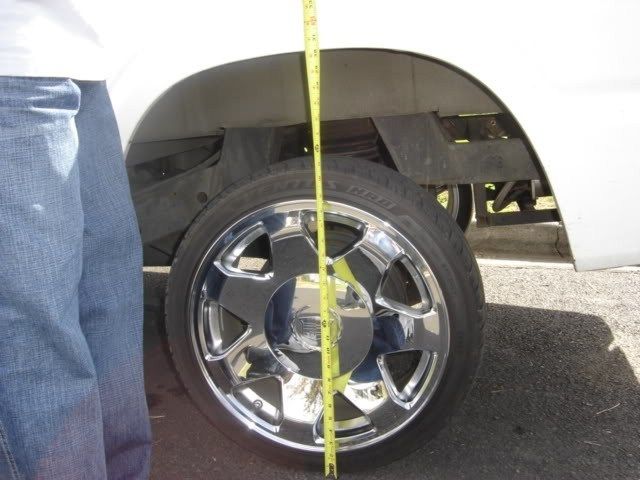

here's few pic's of lift.

Originally posted by dragginmazda86



WOW wasn't expecting that! Thank's iLLblazer. Any way's it is a ART 4 link and through 10 inches of travel I get about 1 degree of pinion change.I get no side to side movment at all.But everyone has their own opinion of what is rignt.

Don

I just did a blazer for a customer, and the uppers is about 2 inches shorter and it tilts more than I would like. I was stuck with limited room, but i'd say it changes a good 5 dagrees if not more.. havn't measured it yet. I suggest allways same length also..

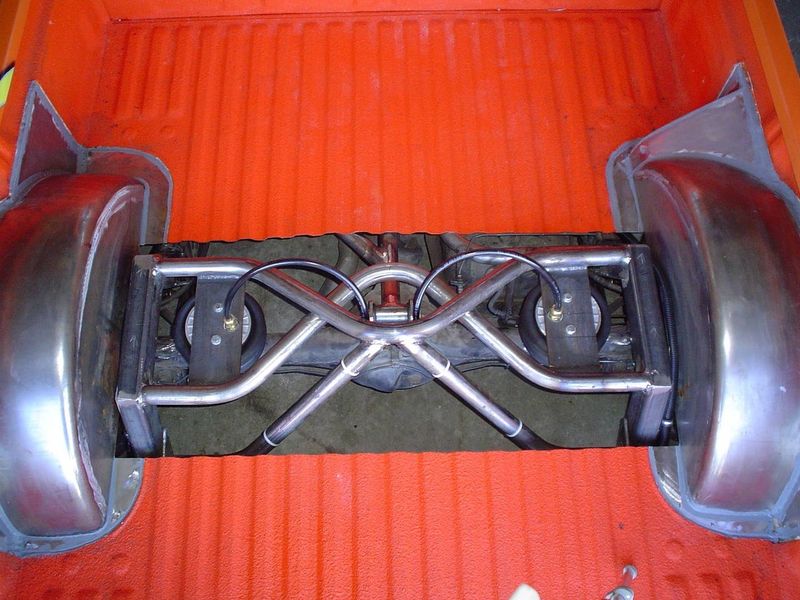

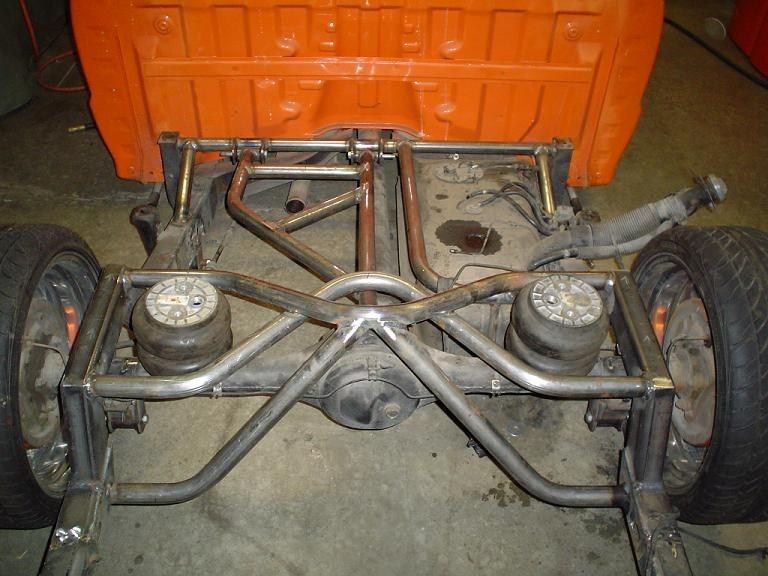

Here are some i've done

Edited: 11/28/2005 9:11:07 PM by sadisticiron

Wow bobby that looks clean as fuck! I love the wishbone, SWEET!

Originally posted by sadisticiron



Edited: 11/28/2005 9:11:07 PM by sadisticiron



Do you get any side to side movement with this setup? I'm going to guess since you built it, that it works great. But I figured I'd ask, since I want to do something along those lines on my Toyota, to keep the tank in its stock area.

Edited: 11/28/2005 9:56:04 PM by KAOSS

in the works at the time:
