Mrs. Self Built, '89 2200, sfbd

Ya I totally messed up when I tried to do it that way lol.. yours looks way better then my feeble attempt!!!!! Lol. Shit I got to het to work!!!!

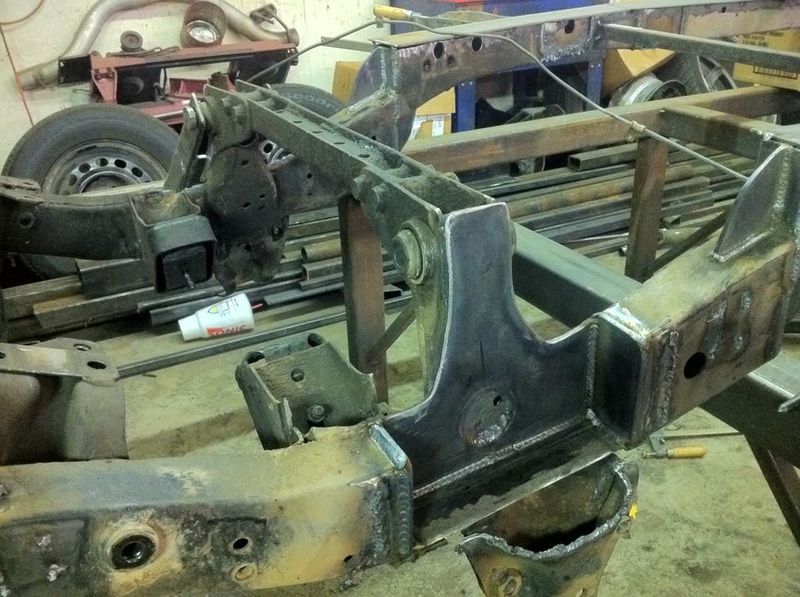

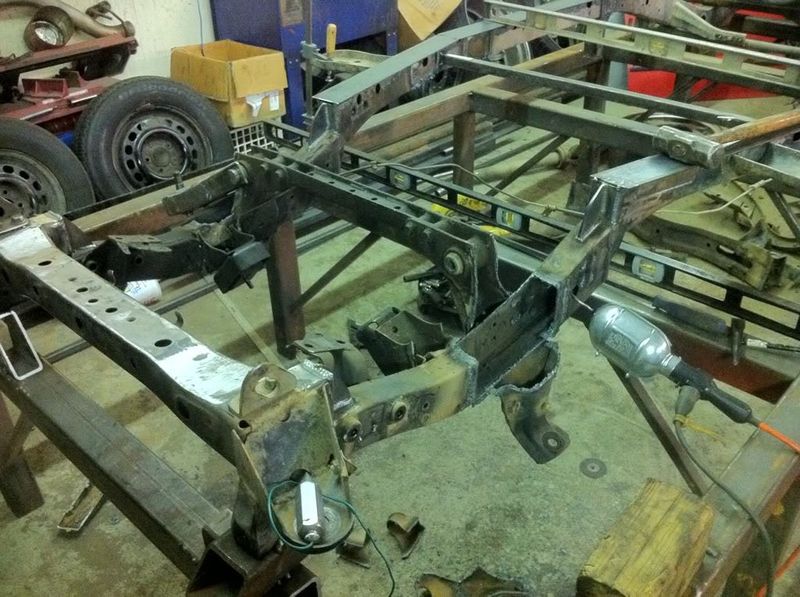

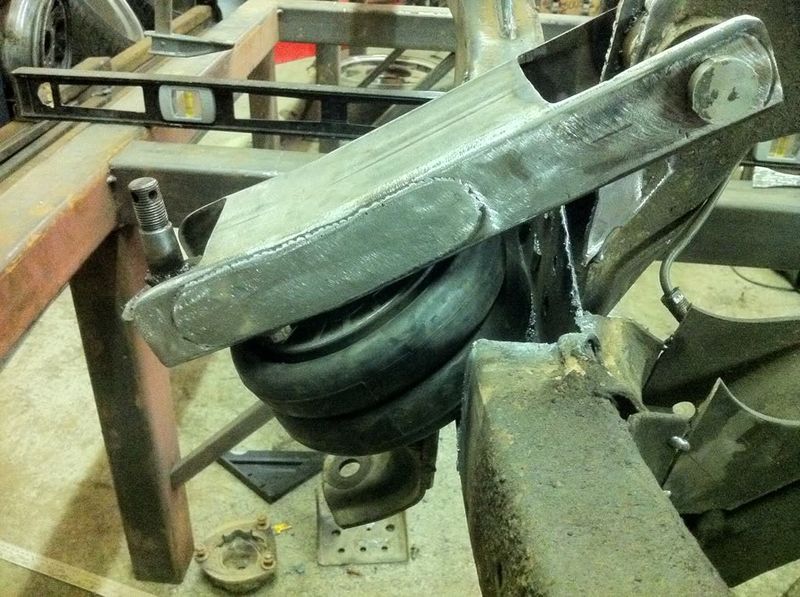

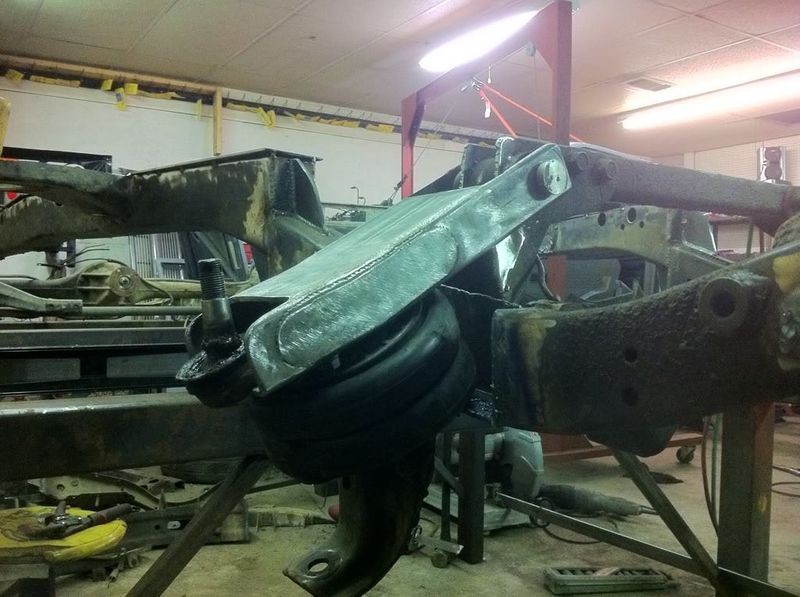

A wee little bit of progress for tonight. Grinder burnt the switch, but I got the frame pockets cut and played with the bag and the lower arm placement. Which, I have to somehow add 7/8" to the lower. It ended up 1&5/8" shorter than stock.

Looking good!!!

Your not lookin too bad yourself there with all your badassness! Thanks for the compliments!

Are these arms gonna be enough or are you gonna triangulate them?

how much did you cut off the bottom of the frame?
NICE WORK BTW!!!

people pie cut there upper control arm , maybe try that with the lower might get more lift too

Hey what bumper do you have?

Mikey.... Yes, I have a flat plate gusset that has a heim joint attached that will triangulate the lower.

CHEVYLUV... we cut 2" off

MazdaDropped... No no need to pie cut the upper bud, getting a flt plat upper with an S10 balljoint, also, the upper is getting raised a hair or two...

LAW#3... Its a screwed up factory bumper that got some black shake shake from the previous owner.

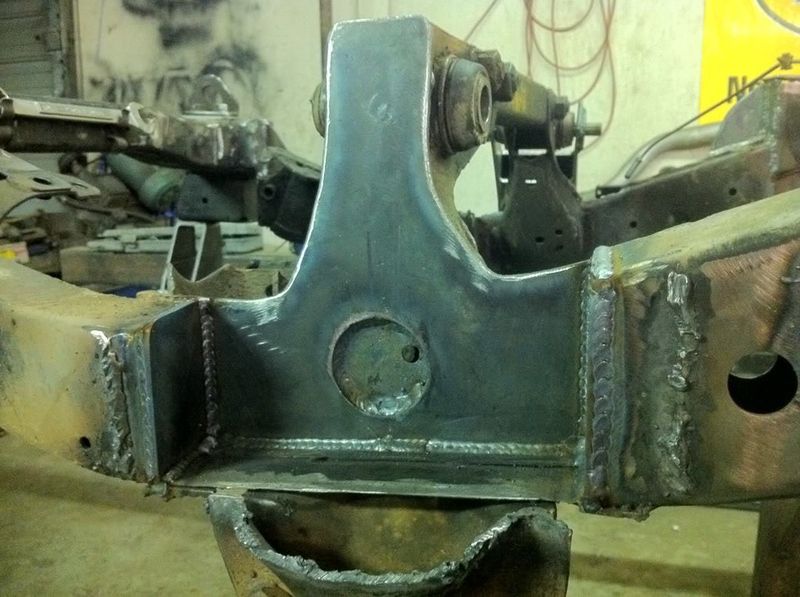

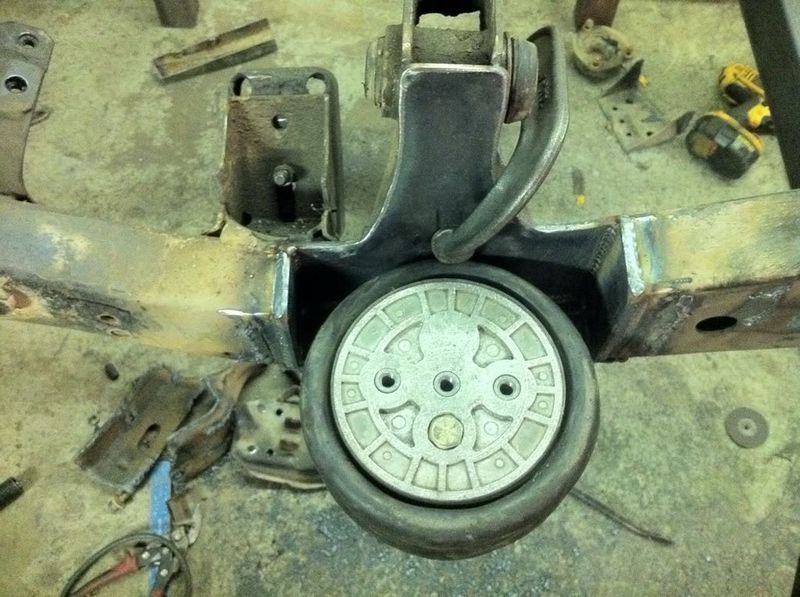

Stayed later tonight because I got in late from work today. Got the axle ready to narrow on the silver ford, and got the passenger side frame pocket finished. 1/2" of clearance on each side.
