oil sending unit????

5062 views
15 replies
4 following
K
oil sending unit????
toddluck avatar
toddluck
+1y

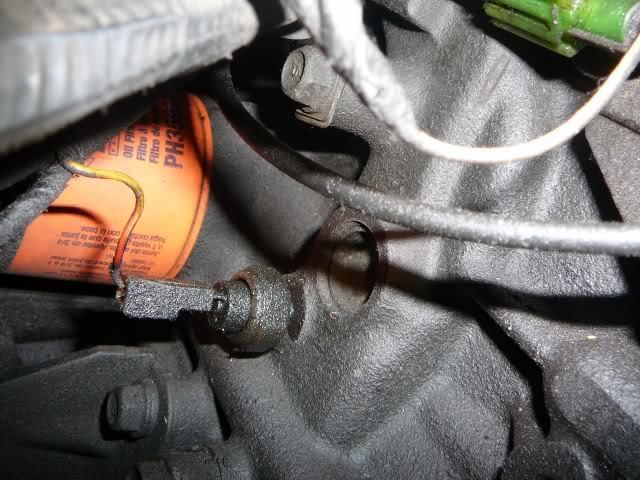

ok its yellow with a red stripe..uploading pic
toddluck avatar
toddluck
+1y
thread post photo
90-b22dawg [andrew] avatar
90-b22dawg [andrew]
+1y
ah ok got ya.... thats the extra wire i had i thought was for the electric choke.....
toddluck avatar
toddluck
+1y
glad i could help man
mazdatweaker avatar
mazdatweaker
+1y
Glad you got this sorted out . .

For future reference. . .

Had you kind of swung the loose wire around (from your deleted pic), you would have seen an arc that would have only intersected points within the arc.

I think you would have found that the pressure sensor was one of those points.

Additionally, if you have dropped the choke heater wire down to the wire you were asking about, you would have found that the two plugs would not connect to each other.
90-b22dawg [andrew] avatar
90-b22dawg [andrew]
+1y

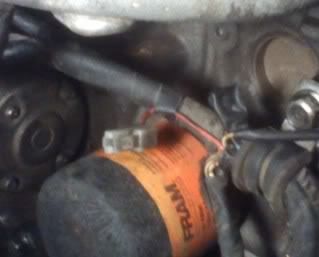

thanks for the info but for some reason the wire isn't long enough with the way that harness ended up being if you notice in the picture i had to swing the clamp down instead of the original up position... i think this is due to my ground wire location now.... i put it on one of the starter bolts on the back side of the bell housing... which made my harness a little to short.
thread post photo
