B2200 Rebuilt top to bottom and going low!

ive never seen a plug-n-play bag set-up before..... if you wanna clean that pass fender well up to where it looks like that all the time.. you could buy a weber... all of that wiring except the wiper motor can be gotten rid of and you can get rid of all those vac lines

haha not so much a "plug-n-play" set up, but more that I have all the body work done the frame cleaned up and everything ready so when I get the bag system its more of just and install, and I don't have to worry about the body aspect of it.... I just want to be ready thats all

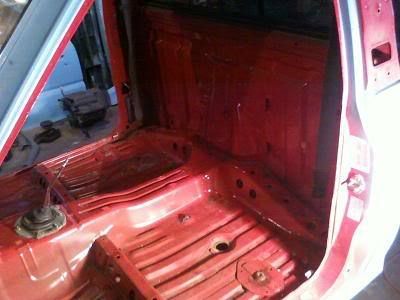

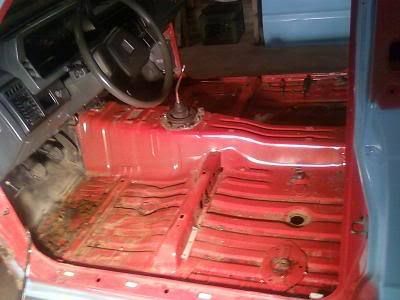

OK not much of and update today. but I did strip most of the interior out, so here's a couple pics. there was a little bit of floor rust but not as bad as I had expected. I should have the dash out along with the rest of the interior by tomorrow night. I'm hoping if all goes well I'll have the body off the frame by mid week along with having the templates welded on for the rear of the frame.

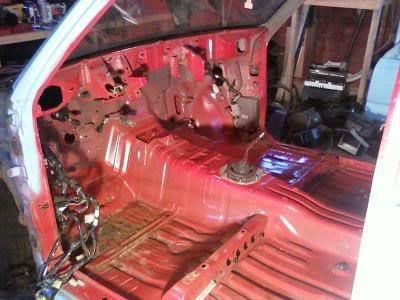

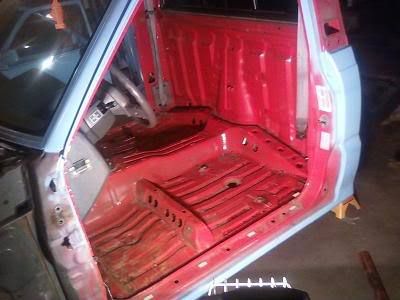

Finished gutting out the interior of the truck today. few more things to disassemble this week and ill be able to lift the body off the frame. So here's what it looks like today.

quick question for anyone that might know... Ive been looking but with no luck to find a 5-speed with raised wheel tubs... trying to figure out how that will work...it seems like the clutch master cylinder will be right in the way... anyone have any pics?? or a link with pics?? thanks

Don't have a pic or link at the moment but I do know there have been several solutions posted to that very problem. So far the simplest seems to be flipping the clutch master cylinder from facing the front bumper to facing the rear bumper. The top of the clutch pedal needs to be modified a little and you also have to make a mount for the clutch master cylinder but there seems to be enough room behind the dash to accommodate this mod. As for adding fluid to the clutch master cylinder after the fact i am not sure what is being done.

thanks... that makes scene.. Ill take a look at the pedal and see what I cant come up with... if you do happen to come across a pic send it this way...

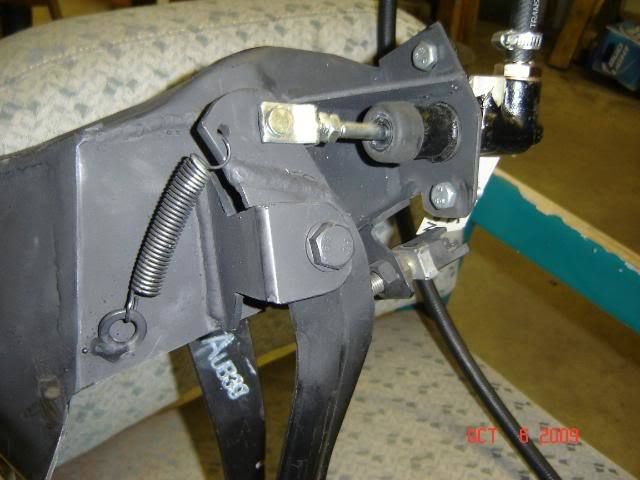

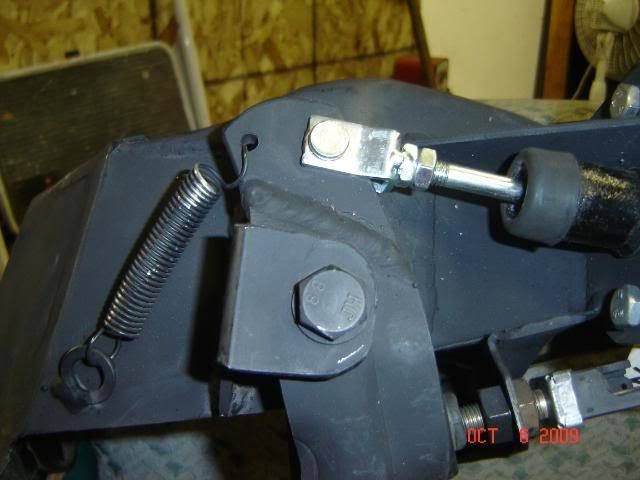

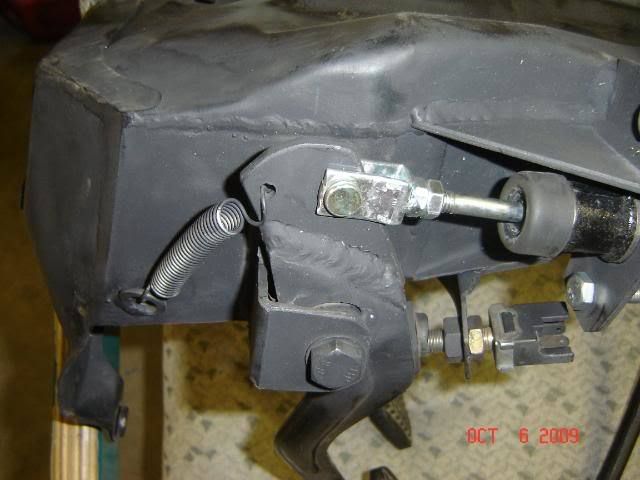

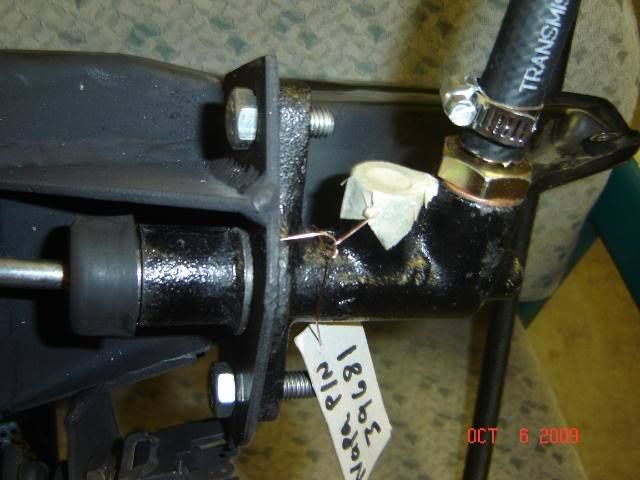

Here you go. My set up on Stretch.

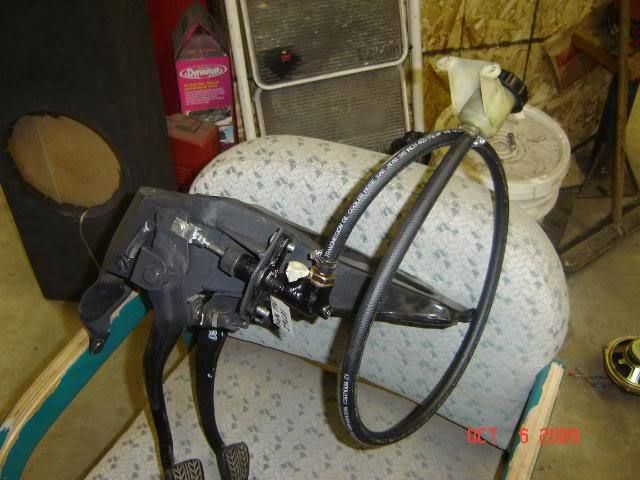

And then you run a line out to a resevoir and mount that anywhere you want!

SWEET SET UP

Very sweet setup... that's kinda what I was picturing in my head when Immortal1 mentioned flipping it, but seeing it make way more sense.
