The back half is 4x2x 1/4 mild steel. We've had it up to 125 psi. I've built airtanks similar to this that I put over 300psi without any problem.
cidawg(taylor) avatar
cidawg(taylor)
+1y

Thanks.
elbine69 avatar
elbine69
+1y
Looks really really awesome man. Great work
speedster93b avatar
speedster93b
+1y


whoa! i was kind of expecting 3/16" thick. i bet that's one heavy mutha!
87mazdaslammed1 avatar
87mazdaslammed1
+1y
looks sweet man i want it
cidawg(taylor) avatar
cidawg(taylor)
+1y


My bad. Its been a while since I've talked about the tank. It is 4x4x3/16. The center section of the frame is 3x2x1/4. It's a little heavy but 2 people can lift it w/o problem. The air tanks I built for 300psi were 1/4 wall like the ones in my own truck.
Thanks for keeping me on track with my facts.lol
cidawg(taylor) avatar
cidawg(taylor)
+1y

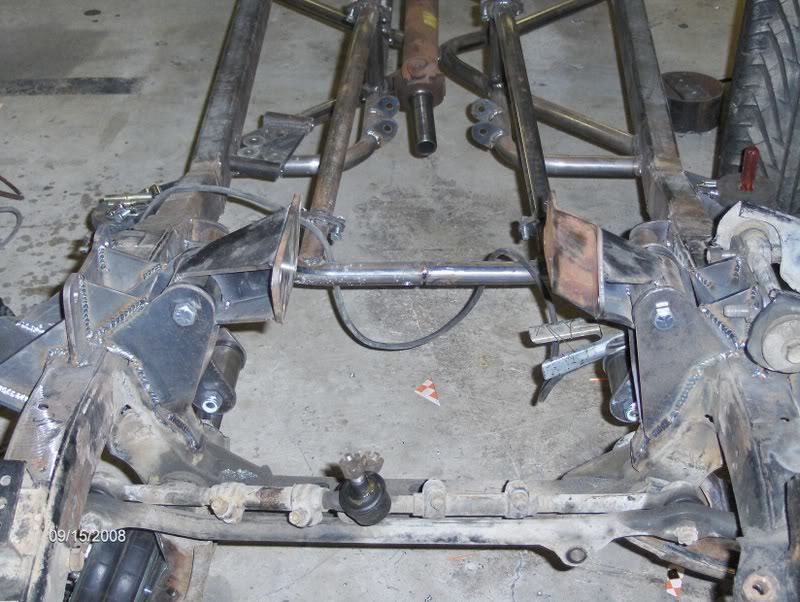

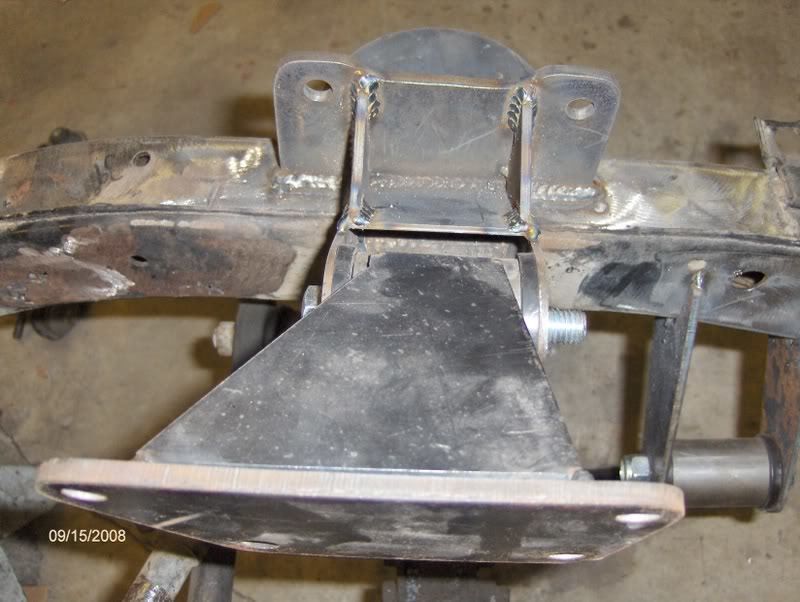

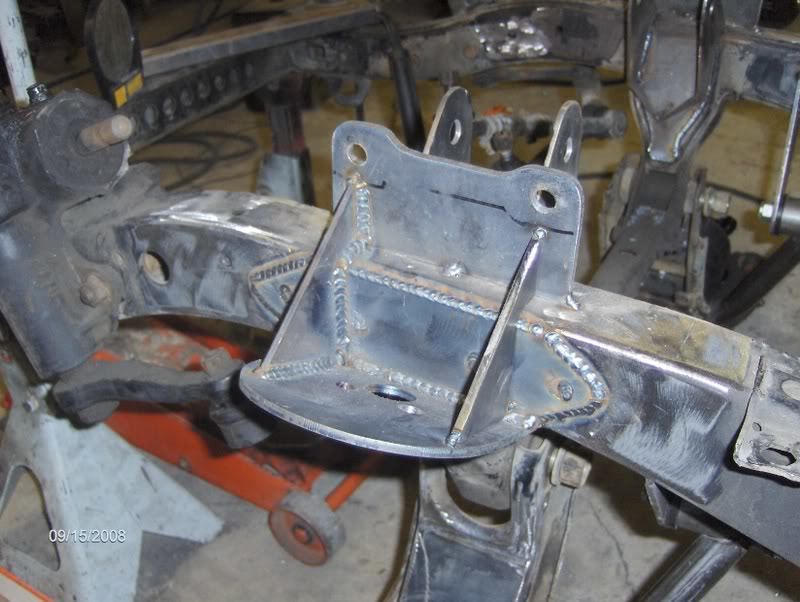

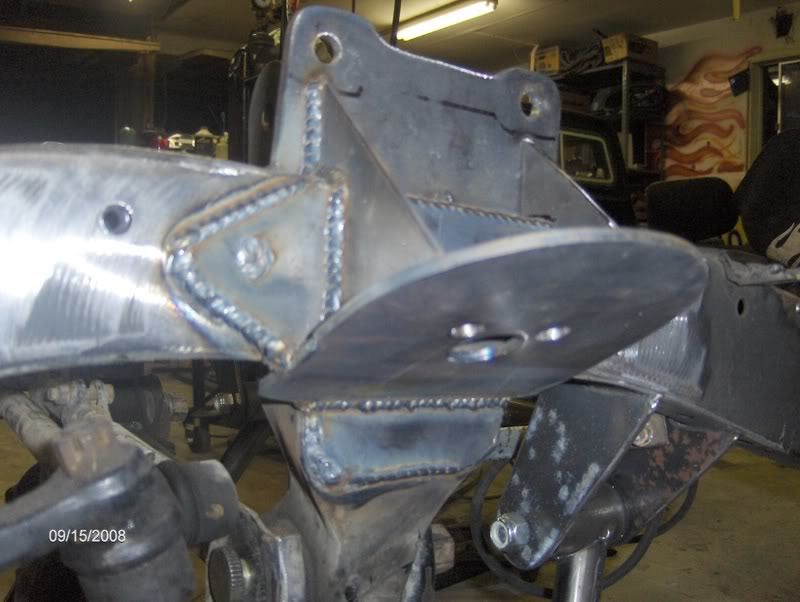

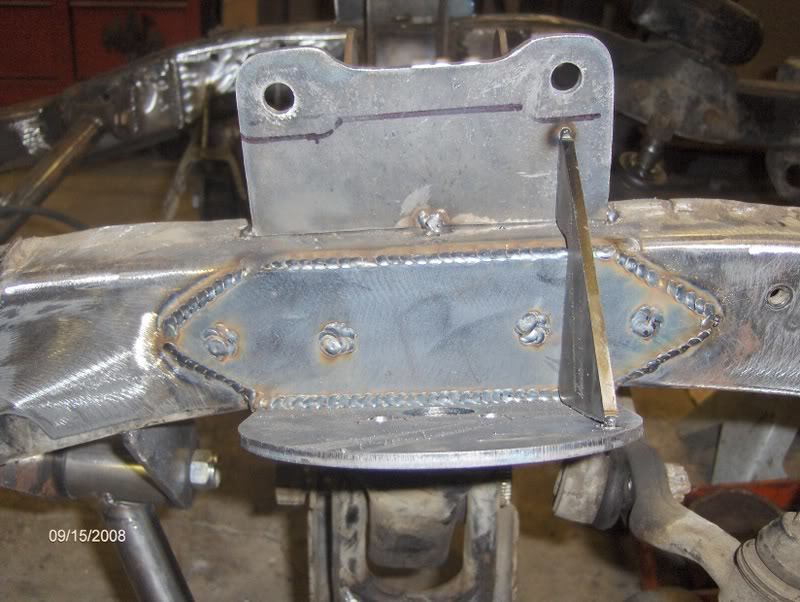

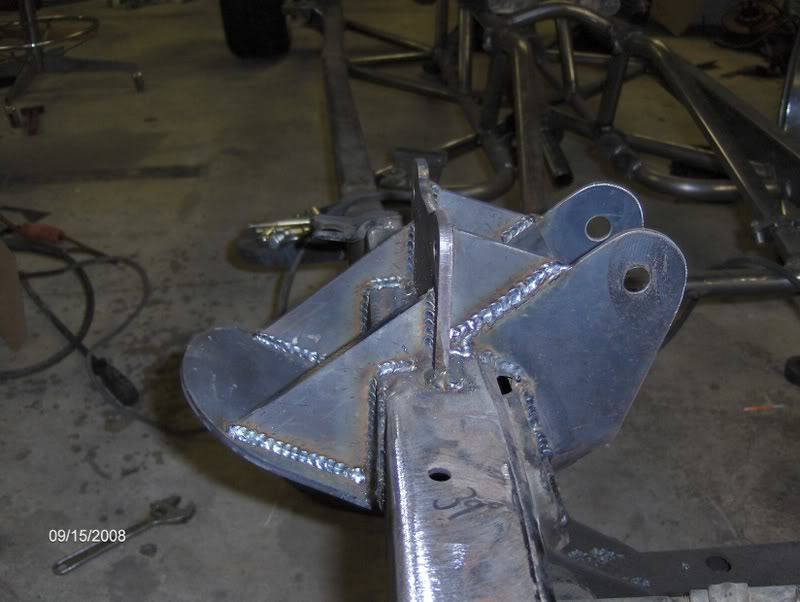

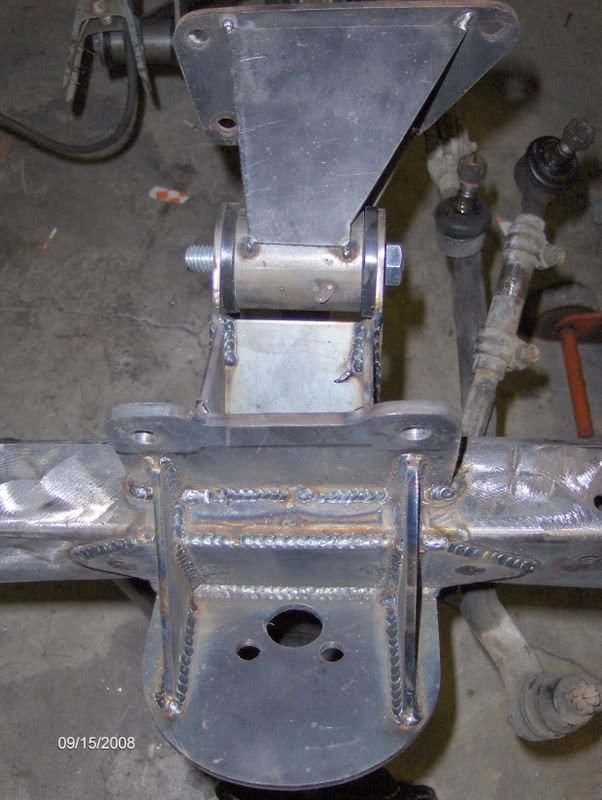

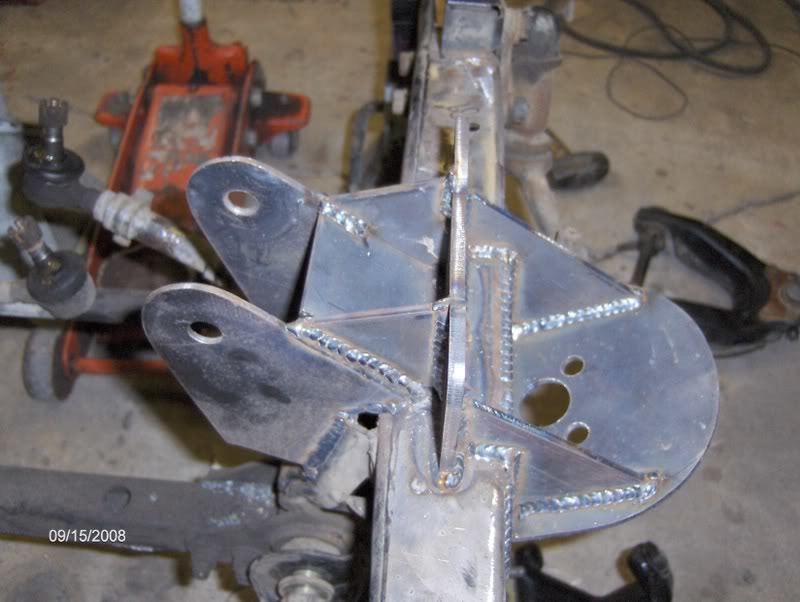

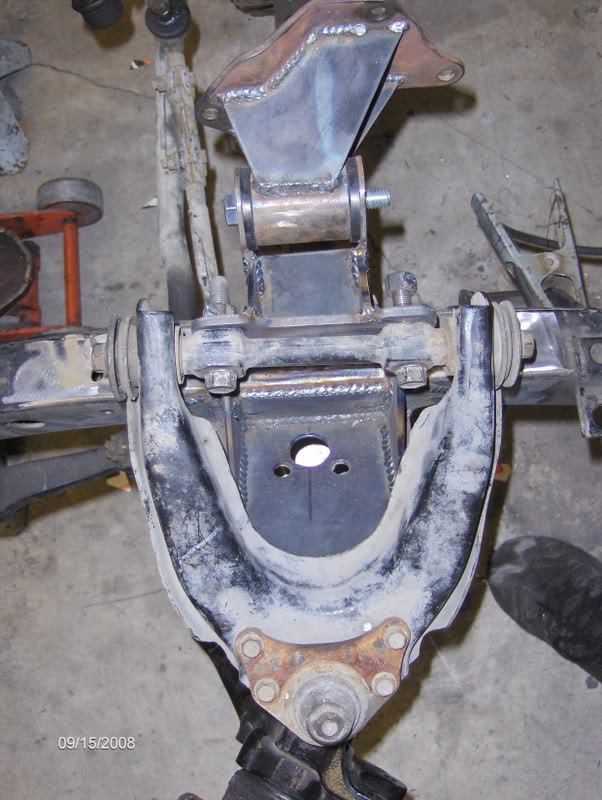

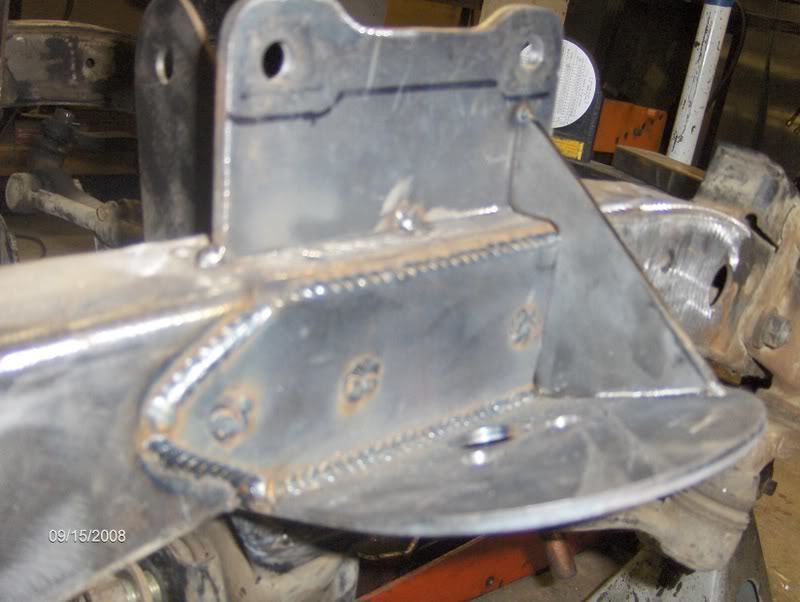

Got some updates.....Got all the gussets on the A arm mounts and bag mounts.....
thread post photo

thread post photo

thread post photo

thread post photo

thread post photo

thread post photo

thread post photo

thread post photo

thread post photo

thread post photo

Should be done with all the major fab work now. We should have it all ready to show the frame at Blood Drag West Coast on Oct 12.
sosatheshark avatar
sosatheshark
+1y
beautiful work ,nice welding
sonikk71 avatar
sonikk71
+1y
Wow! Very nice work! Your welds are beautiful!!!
down2earth avatar
down2earth
+1y
awesome work. huge ranger fan. own two rangers now had two others in the past. once again awesome work cant wait to see a body on it.
