backhalf [5/18/08]

55497 views
255 replies
53 following
R
backhalf [5/18/08]
R
robbie
+1y

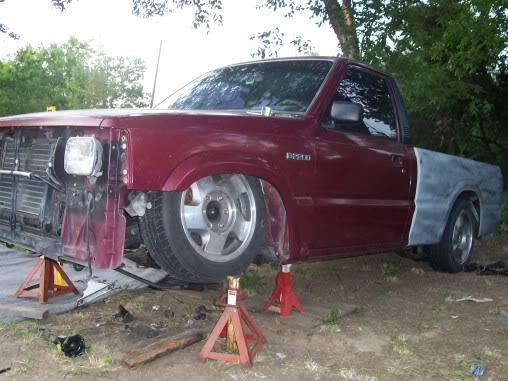

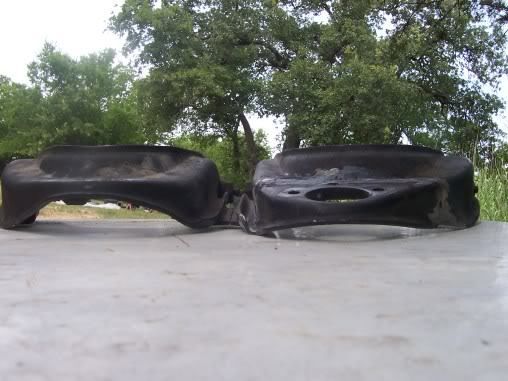

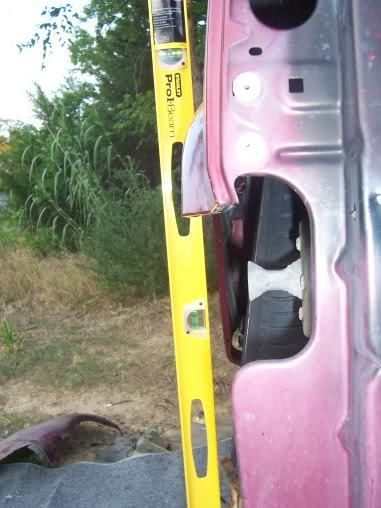

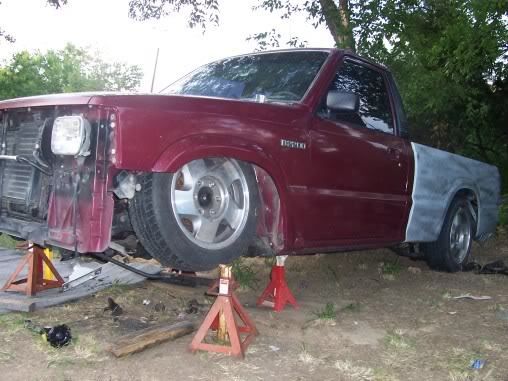

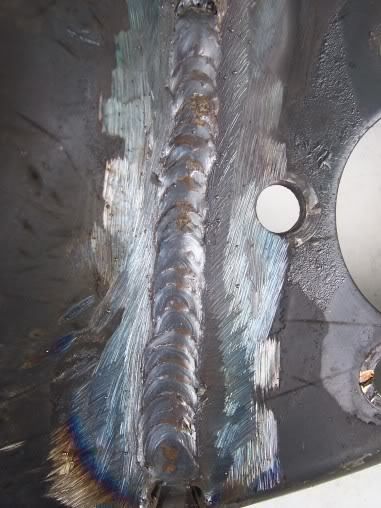

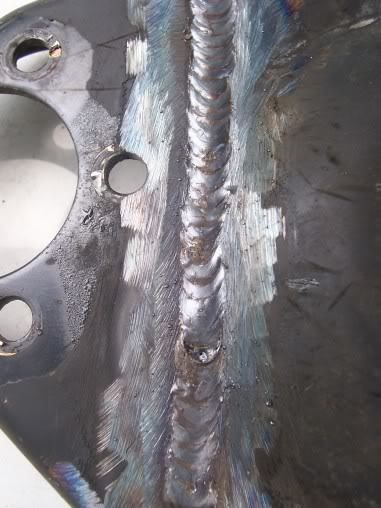

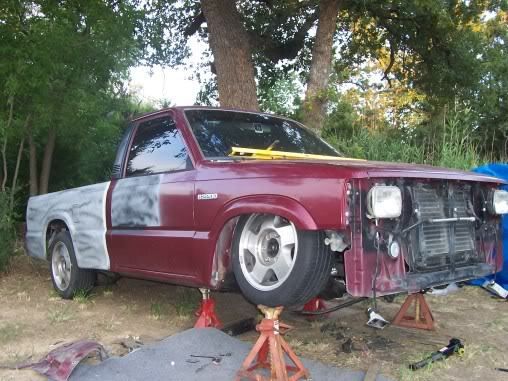

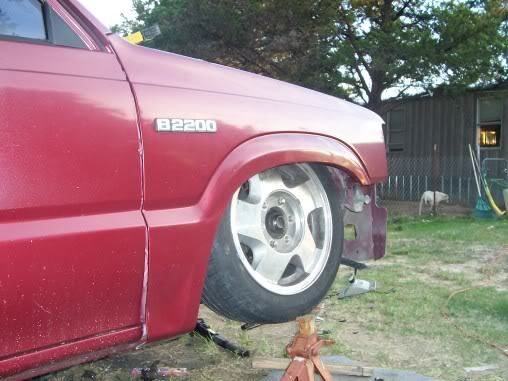

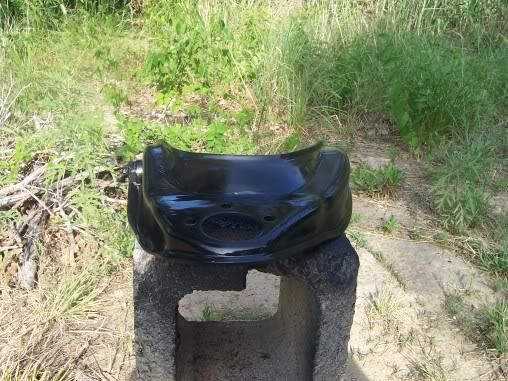

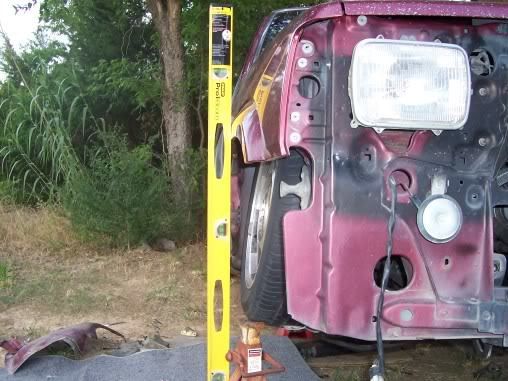

more pics from today.

thread post photo

thread post photo

thread post photo

thread post photo

thread post photo

thread post photo

thread post photo

thread post photo
M
madmazda
+1y
You got a point there....lol
M
madmazda
+1y

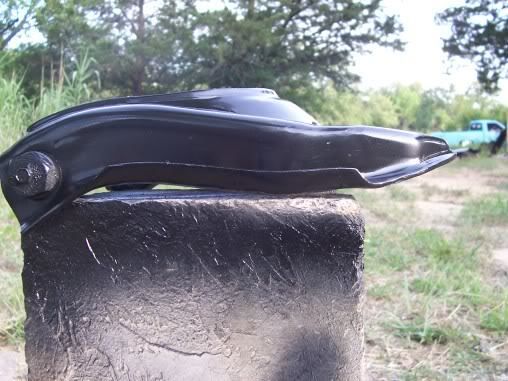

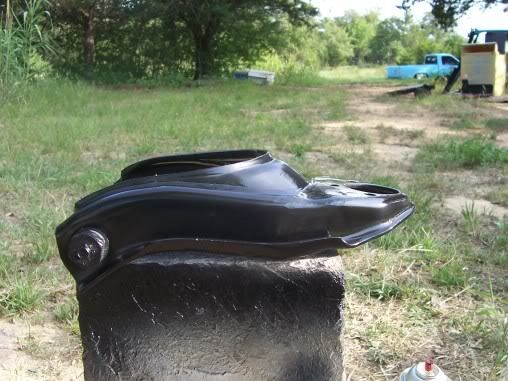

^^^^^^ How hard was it to Re-angled your upper balljoint, and explain the process please....i believe thats what you did in the pictures above, (June 22 update ones)
R
robbie
+1y

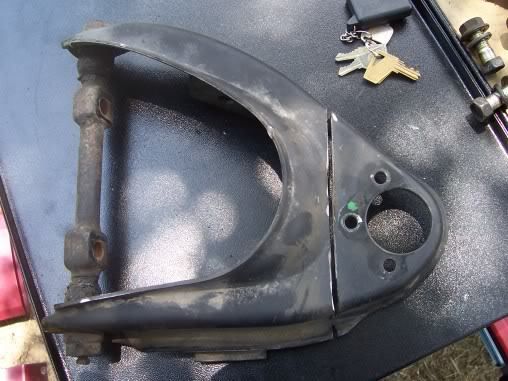

I cut the control arm like this.
thread post photo

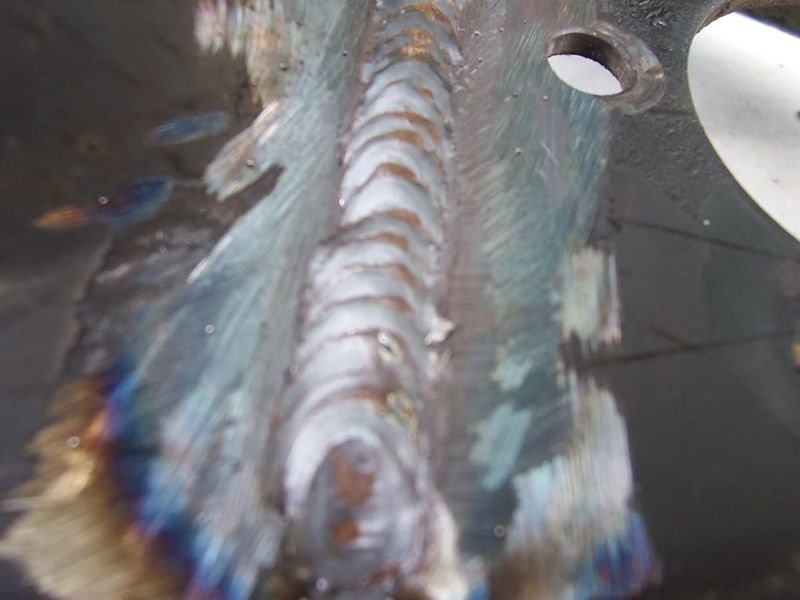

then bolted the control arm back on and attached the balljoint and spindle, then put the wheel on and jacked it up until it was where it needed to be then put a few tacks to hold it in place then let it back down to make sure it would still lift up enough then welded it up. Its welded and plated on the backside and welded on the top and ground down.
slammed83mazda's avatar
slammed83mazda
+1y
why did you shorten your control arms for?
R
robbie
+1y
I didn't shorten them. I changed the angle of the upper balljoint because they were binding up before I laid out.
slammed83mazda's avatar
slammed83mazda
+1y
ahhhhhhhhhhhhhhhh
B
bagdb2200
+1y

which causes the awesome negative camber when laid out...mine does the same thing
M
madmazda
+1y


Ah, alright, Thanks Robbie.
R
robbie
+1y
All I like now is actually welding in the upper bag bracket and plumbing and wire it up.

thread post photo

thread post photo

thread post photo

thread post photo

thread post photo

thread post photo
