how to wire pancake switch

1twztdwagon

+1y

i have 3 6 prong momentaries (1) is front up down (1) is rear up down an the 3rd i would like to wire to be pancake how do i wire it up?

Heavy_Chevy

+1y

run off your other switches and hook all 4 fills together and all 4 dumps together...its better to just hit both switches at the same time though because pancake usually doesn't come up perfectly even.

94NissanLaysDoor

+1y

Who needs more than just front and back?Just my opinion...I don't like all these switches...I like just two...

tuckinnoma

+1y

i have the mic skull.... butt i really like the rocker style. i think more than 3 is to many. if your not a hopper why have a 10? but hey.... ITS ALL GOOD

laynwindows

+1y

i hear that, my shit's 2 linked and all i want is front and back, but im pre wiring it for a 3'rd switch for a trailor that i might build in the future

chris03hd

+1y

---------------------------------------------Originally posted by Heavy_Chevyrun off your other switches and hook all 4 fills together and all 4 dumps together...its better to just hit both switches at the same time though because pancake usually doesn't come up perfectly even.--------------------------------------------- That wont work.  Yes the one switch will dump or fill all four corners like you want, but when you go to dump or fill individually with either of the other two switches, it will work the same as your new pancake.  Im in the same boat right now, as i have (1) switch for fill/dump front (4 valves), (1) switch for fill/dump rear (2 valves).. I tried the above, and when I tried to go front dump by itself, it dumped the whole truck... its because the wires need some kind of diode, as to not pass the current when your NOT pushing the pancake switch.

airrideluvtruck

+1y

Edited: 5/3/2009 11:24:58 PM by AirRideLuvtruck

Your going to need some diode's. You can get them at radio shack.

lobdyblazr

+1y

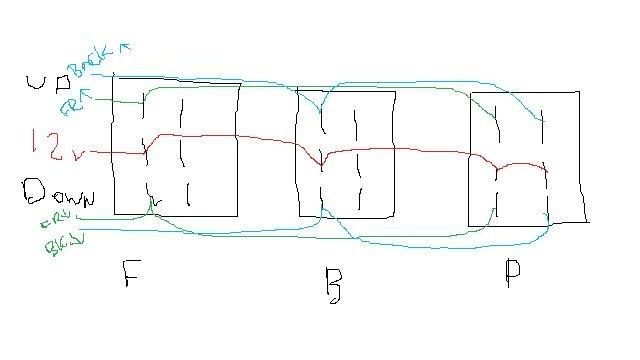

If you have 6 prong switches. that is exactly how you do it. Hot wire to the to center prongs, both up valves to the 2 lower prongs (seperately), both down vavles to the 2 top prongs (seperately) for pancake.

beloved

+1y

you dont need and diodes or any thing speacial i hope this helps
