hydro setups on mazdas

Lets see some hydraulic setups on the mazda b seris trucks

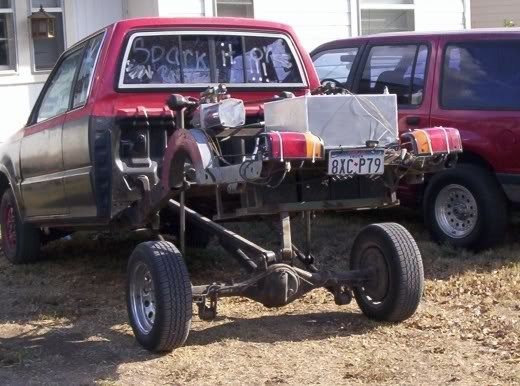

lol this must be exactly what you are looking for lol

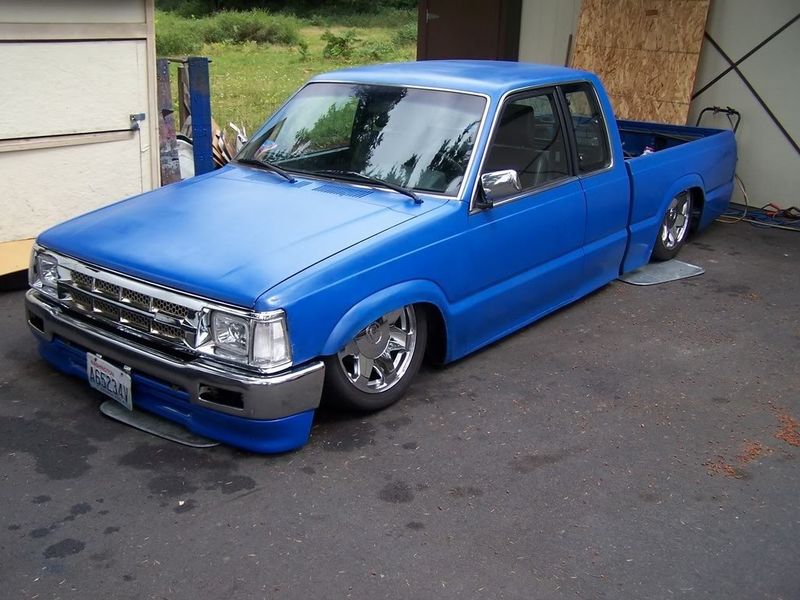

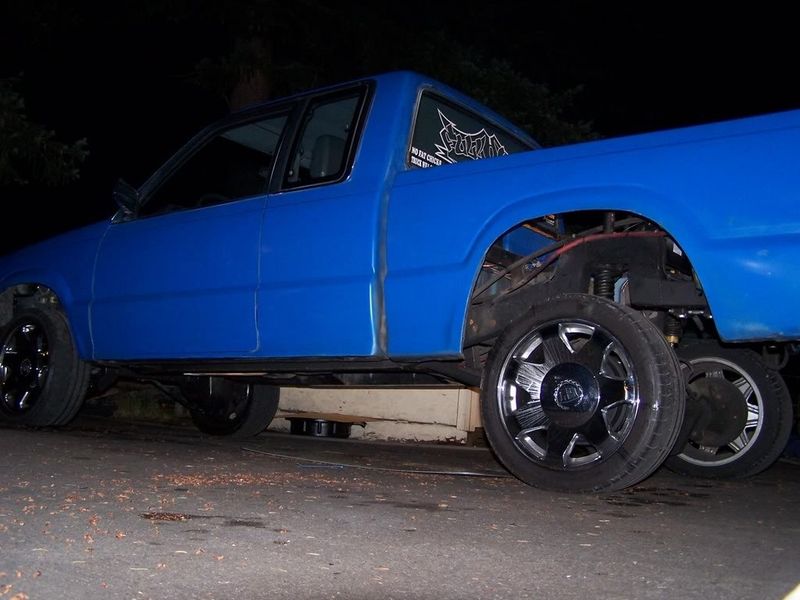

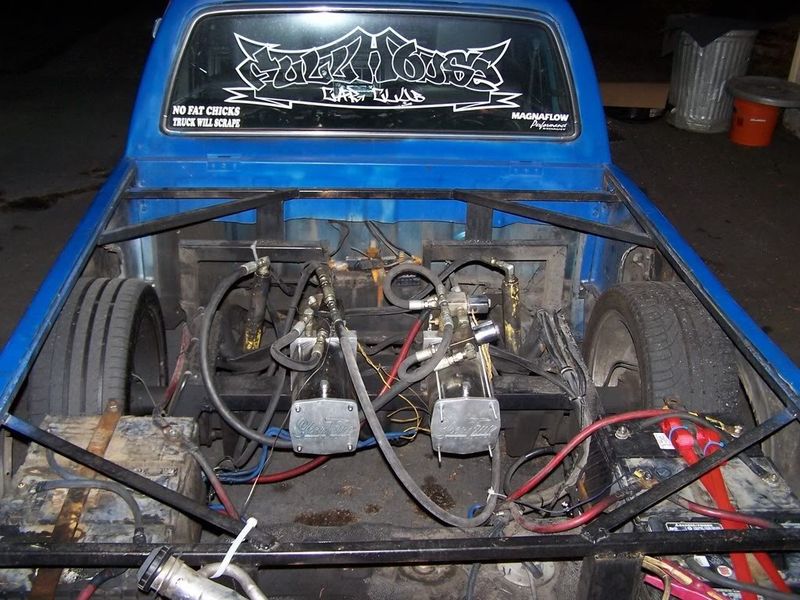

8" cylanders in front 18" cylanders in rear bead is haggard but i got a new one for raised bed floor soon to be mounted, 2 pump, 8 battery...cracks a mean 3 wheel wish i had a pic i will try to get one soon...its a pretty nice set up had it for like 4 years live in washington

http://i164.photobucket.com/albums/u31/steve-tracy/carshowapril20th027.jpg
http://i164.photobucket.com/albums/u31/steve-tracy/100_0704.jpg
http://i164.photobucket.com/albums/u31/steve-tracy/l_6a768e3e935aa9e8d07673af8194d59e.jpg
http://i164.photobucket.com/albums/u31/steve-tracy/000_0041.jpg
http://i164.photobucket.com/albums/u31/steve-tracy/carshowapril20th017.jpg

someone should open those pics

Edited: 4/23/2008 12:07:28 AM by mazda2low

Cant see much but ill get some better pics and post them

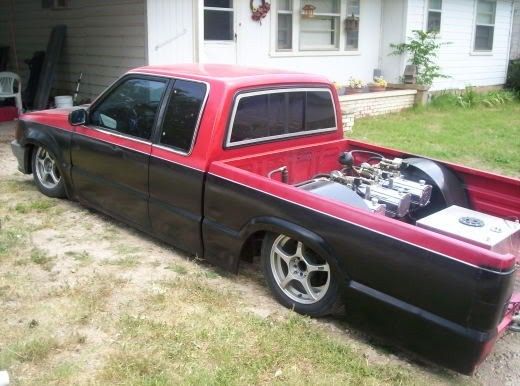

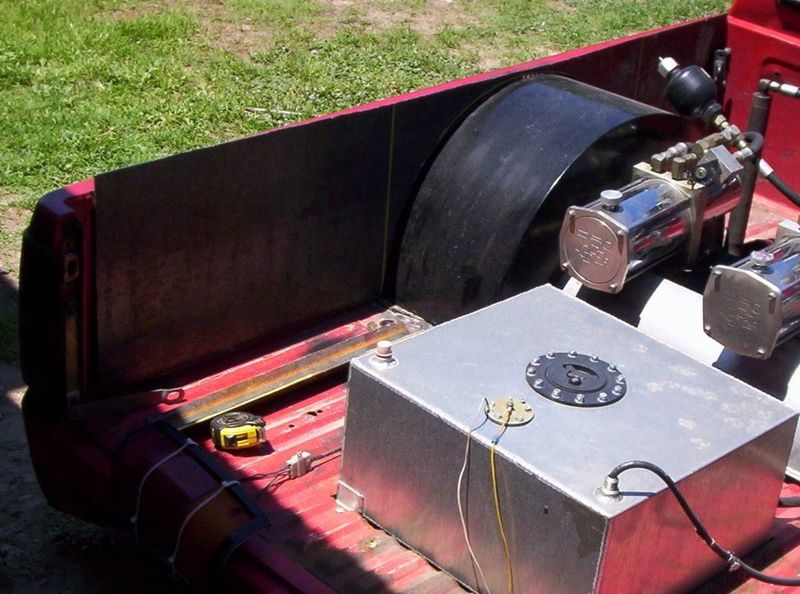

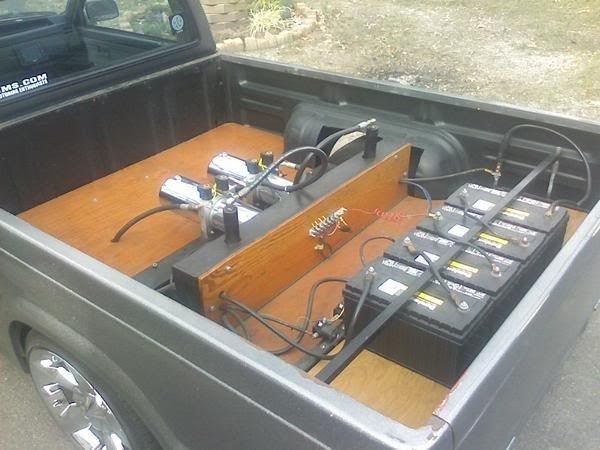

I will post some of mine later today . Stainless Hardline,pumps mounted in bed but dumps,fittings,accums all underneath bed . Pretty reliable setup with no chance of leaking oil in the bed

here is my truck. i dont have any set up pics, but this is what it does.

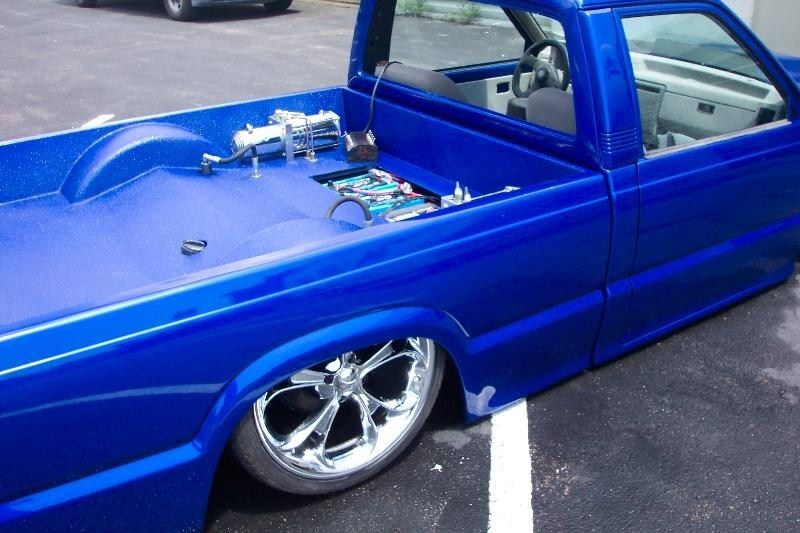

Not much of setup most is hidden

dang thats clean
