Project?......Got the small block in :) 8-4-07

4979 views
267 replies
99 following
K
Project?......Got the small block in :) 8-4-07
draggincaddy avatar
draggincaddy
+1y
yeah i heard bout that...my 1st and last year.

well piss. i really wanted to see it.
jeebus @ mmw avatar
jeebus @ mmw
+1y
Originally posted by fiveinchbodydrop



yeah i heard bout that...my 1st and last year.

well piss. i really wanted to see it.

it will be at the kentucky HAVOC show, and ITB....probably the RA show also.....

draggincaddy avatar
draggincaddy
+1y
i'll see it at havoc and ra then
loudciv avatar
loudciv
+1y
Edited: 4/3/2007 6:21:46 AM by loudciv

its basically acting like a 2 link / ladder bar?
rrusd avatar
rrusd
+1y
WOW! You got some serious skillz my bruddah!!! Great work. It is nice to see something done so well.
jeebus @ mmw avatar
jeebus @ mmw
+1y
Originally posted by loudciv



Edited: 4/3/2007 6:21:46 AM by loudciv

its basically acting like a 2 link / ladder bar?

what is?

that is one of the most random comments ive seen on this forum in a while? explain! lol

thanks everyone else.

loudciv avatar
loudciv
+1y

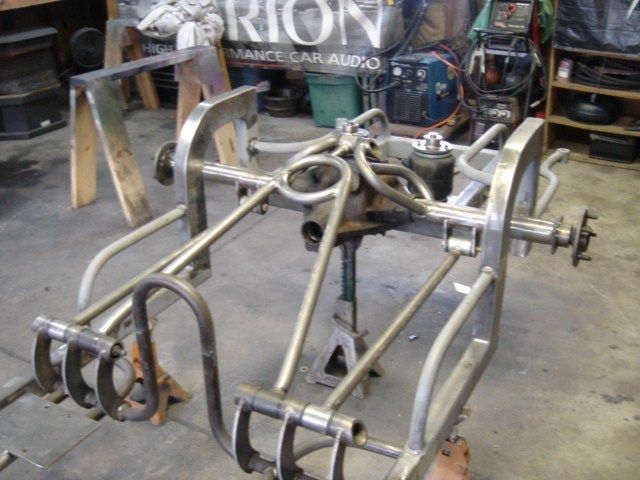

from this picture the upper wishbone & the lower link bars are mounted in line w/ each other (front pivots). as the rear moves up and down it would only pivot at that point. the rear would not articulate the pinion angle as it moves? maybe i'm missing something...
post photo
jeebus @ mmw avatar
jeebus @ mmw
+1y
Originally posted by loudciv





from this picture the upper wishbone & the lower link bars are mounted in line w/ each other (front pivots). as the rear moves up and down it would only pivot at that point. the rear would not articulate the pinion angle as it moves? maybe i'm missing something...



no your not missing anythning......this was all covered earlier in the thread.. I believe earlier in thread there are pictures of the pinion angle change.....with an angle finder on the output...its 3deg from full lift to full drop.



your origional post was in reference to nothing, so i had no, nor did anyone else, of what you were refering to or talking about.....it was just kind of a random comment.

post photo
loudciv avatar
loudciv
+1y
Edited: 4/5/2007 10:52:28 AM by loudciv

Originally posted by Chopped Mazda



Originally posted by loudciv





from this picture the upper wishbone & the lower link bars are mounted in line w/ each other (front pivots). as the rear moves up and down it would only pivot at that point. the rear would not articulate the pinion angle as it moves? maybe i'm missing something...



no your not missing anythning......this was all covered earlier in the thread.. I believe earlier in thread there are pictures of the pinion angle change.....with an angle finder on the output...its 3deg from full lift to full drop.



your origional post was in reference to nothing, so i had no, nor did anyone else, of what you were refering to or talking about.....it was just kind of a random comment.





i dont see any pics of the angle finder, but i did miss your post about the 2 link, my bad. the fab work looks good, it just surprised me you chose a 2 link. good luck on the project.

any thoughts on exhaust routing?

post photo
jeebus @ mmw avatar
jeebus @ mmw
+1y
Originally posted by loudciv



Edited: 4/5/2007 10:52:28 AM by loudciv

Originally posted by Chopped Mazda



Originally posted by loudciv





from this picture the upper wishbone & the lower link bars are mounted in line w/ each other (front pivots). as the rear moves up and down it would only pivot at that point. the rear would not articulate the pinion angle as it moves? maybe i'm missing something...



no your not missing anythning......this was all covered earlier in the thread.. I believe earlier in thread there are pictures of the pinion angle change.....with an angle finder on the output...its 3deg from full lift to full drop.



your origional post was in reference to nothing, so i had no, nor did anyone else, of what you were refering to or talking about.....it was just kind of a random comment.





i dont see any pics of the angle finder, but i did miss your post about the 2 link, my bad. the fab work looks good, it just surprised me you chose a 2 link. good luck on the project.

any thoughts on exhaust routing?





yea, i just realised that half the pics i posted are all deleted on the front page, idk why that is, ill have to check my image host....weird..

exhaust is just s simple setup that will dump under the cab area, two very small mufflers, nothing special. Its not a speed machine or race car, just something to waste my time building.
post photo
