I don't think I've ever done a project thread on SSM. But anyways here is some progress on a truck I started last weekend. Its a 98 s10 getting set up for 18s. Nothing too crazy compared to alot of the full builds out there but this is just a bag job.


The Victim


Laser cut parts


Bench building the crossmember

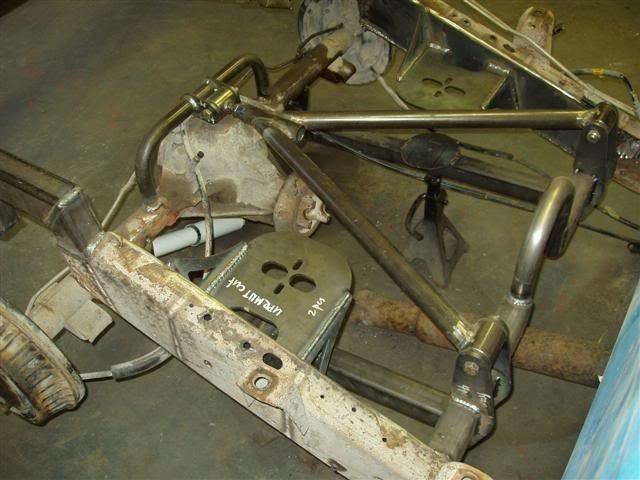

Getting the wishbone and notch ready to go


Mocked up on the floor


Installed and Wishbone built
mindlissmetalfab avatar
mindlissmetalfab
+1y

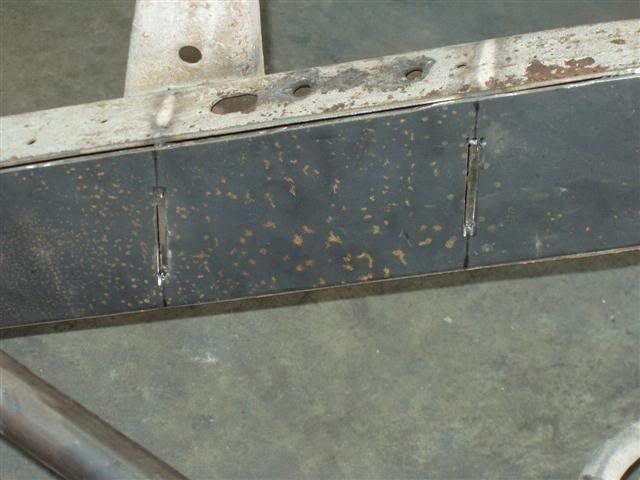

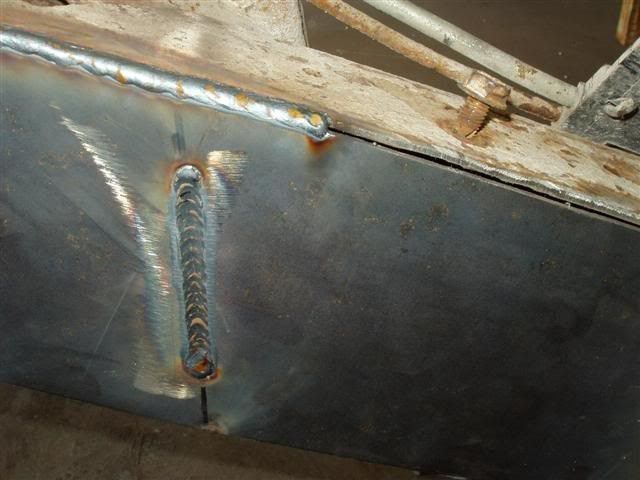

Plating the frame (stiffening ribs welded inside)

Boxed Up

Bag Mounts in place
post photo post photo post photo post photo
mindlissmetalfab avatar
mindlissmetalfab
+1y

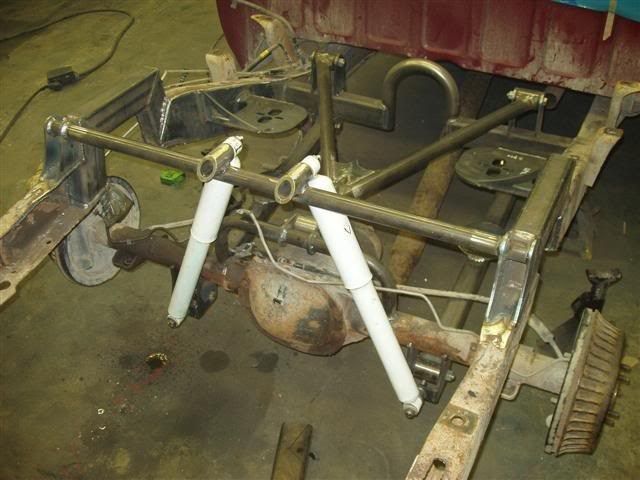

Mounting the shocks

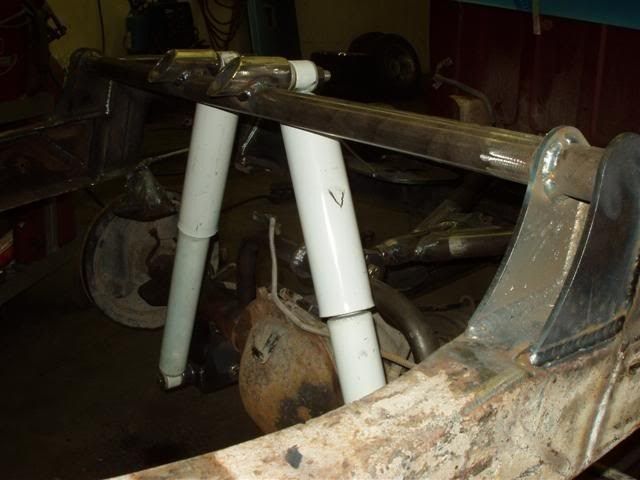

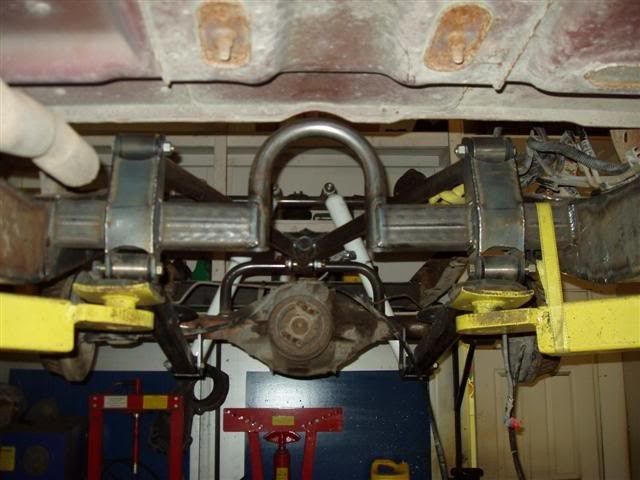

A little bit of work from under the cab

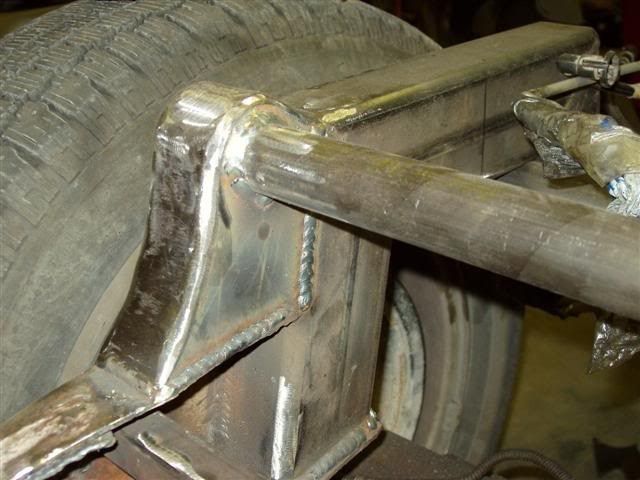

Capped off the shock crossmember mounts

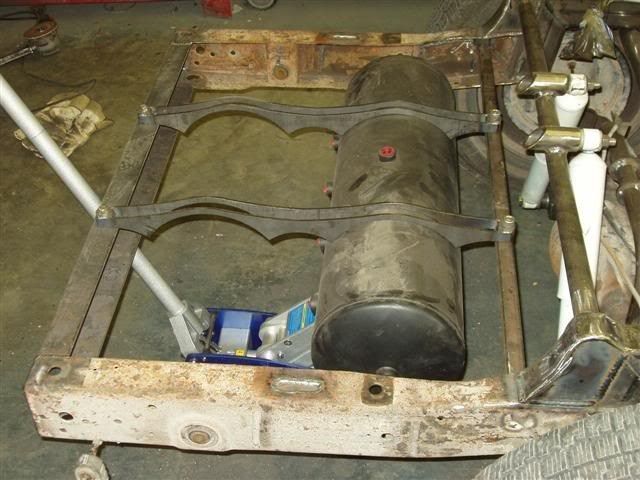

Air tank mounts in place. (waiting for 1 more tank before I weld them up) Mounts still bolt to the frame to service the tanks if needed.









post photo post photo post photo post photo post photo
mindlissmetalfab avatar
mindlissmetalfab
+1y
All thats really left to do is pull the dif out and finish the welding on the tabs. I also have some gussets to add to the 'hoop' over the cast section. The front is done. Only shitty thing is the customer is taking it home to plumb and wire it over winter so I wont have any finished pics till spring haha.
