mtrain's 1990 Mazda B Series Truck B2200 1 view(s) today

General

mtrain
  • 1990 Mazda B Series Truck B2200
  • Color: Back in black
  • Mileage: 0

Highlights

Engine

Ford/Dart 363 forged Weisco pistons, forged rods, crank, Canton road race pan, AFR 180 heads, Comp cams rocker, Comp cam hyd roller 114 LCA, CSU blow through carb 750 cfm, CSU hat, remote turbo setup, MSD billet dizzy, and 6AL, two T4 55mm turbo's, custom

Exterior

Custom hood with welded in hood scoop from SVO Mustang, full 02 Ranger Edge front end with custom air splitter. Fender flares, shaved tail lights, tailgate, ghost lights in rear.................For which I hope don't attract unwanted attention from the LE

Interior

Custom upholstered seats, door panels, dash, new carpet, full autometer gauges, boost, wideband, oil, temp, volts, factory tach retained with Dacoda Digital controller, brake controller in dash, boost control in dash.

Audio

Stock for now.

Suspension

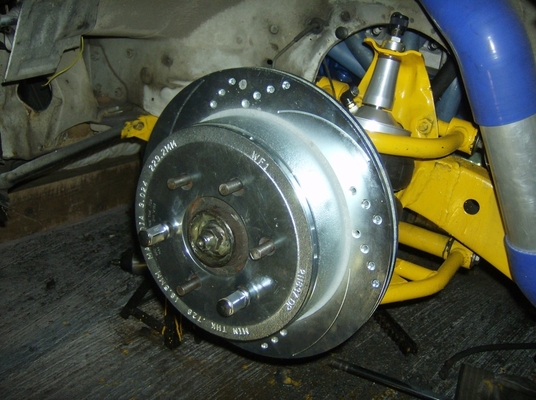

Owner fabbed 4 link with watts link, Curry 9" rear with Wilwood 12" disc brakes, Ridtec Shockwave adjustable air shocks all 4 corners, custom driveshaft, owner fabbed 14" front disc brakes, rack/pinion steering.

Wheels

Nissan Titan 18" with custom paint job. 18x8 front, 18x9.5 rear. Z rated tires.

Other

Aluminum radiator, duel fans on intercooler made to turn on under 2 psi boost, or AC, 16 gal fuel cell, Weldon electric oil pump from turbo's to oil pan, Aeromotive A1000 fuel pump and filter, braided SS hoses though out, custom crankcase ventilation for

Future Plans

Water injection, and better stereo setup, maybe air shock controller. Side lower valance.


Page 1 of 2
mtrain   +1y
Added my 1990 Mazda B Series Truck!
mtrain   +1y
mtrain   +1y
Each turbo is capible of supporting 450hp, so with both a full spool, the engine should put out 900 hp. However, at this point with the current tires all it will do is spin. I will address that issue later.
mtrain   +1y
Comments welcome.
mtrain   +1y
thread post photo
mtrain   +1y
thread post photo
mtrain   +1y
thread post photo
mtrain   +1y
thread post photo
mtrain   +1y
thread post photo
mtrain   +1y
thread post photo
