130amp ford alternator swap

so i ended up getting an alt. from a 95 ford windstar minivan. stock at 130amp i read a thing in another thread and off to the pickapart i was



so i grabbed the new alt, and a pigtail for the plug. the mounting points do look totally different between the ford and mazda alts if you look at them in the same aspect. now imagine flipping the ford alt upside down hmmmm, drill out the threads on the bottom, run the bottom bolt through there. then run a long bolt through the top section with a nut on one side for the tensioner arm.

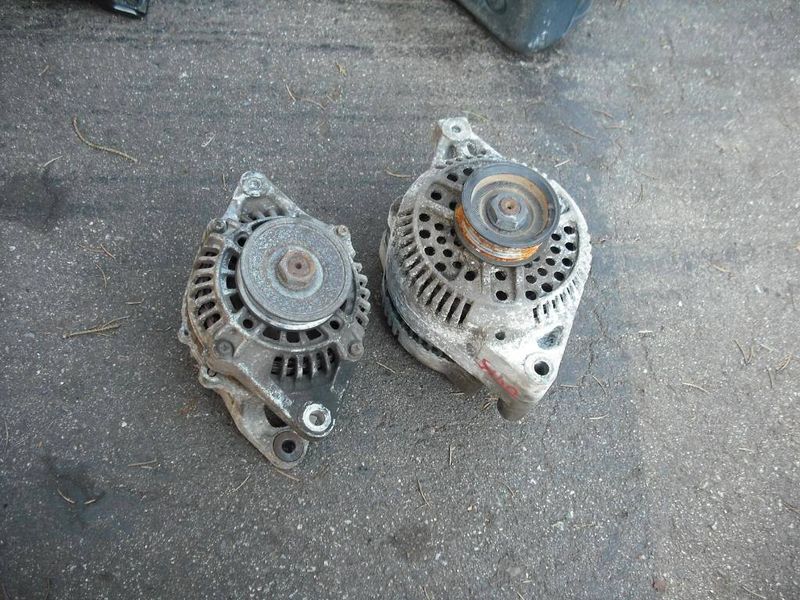

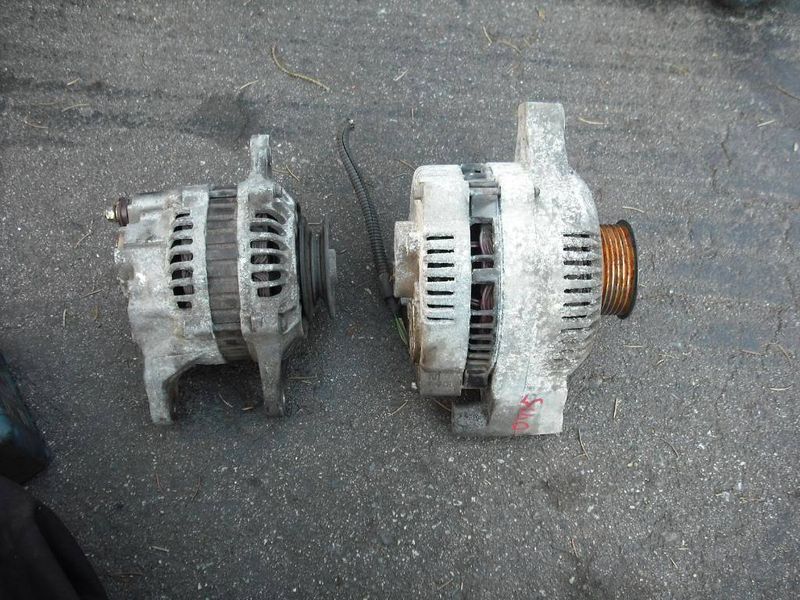

mazda 55amp left, ford 130amp right

notice the thick bottom on the ford one

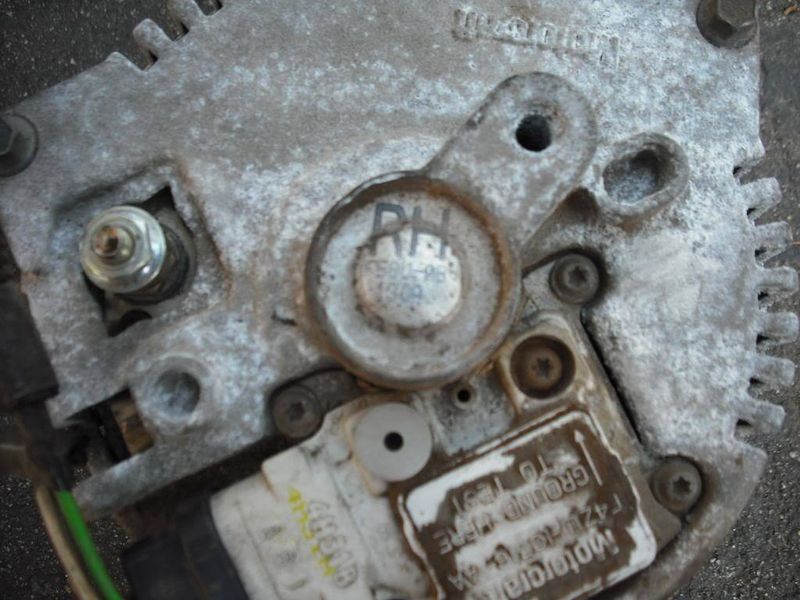

can just barely see the 130A in the middle

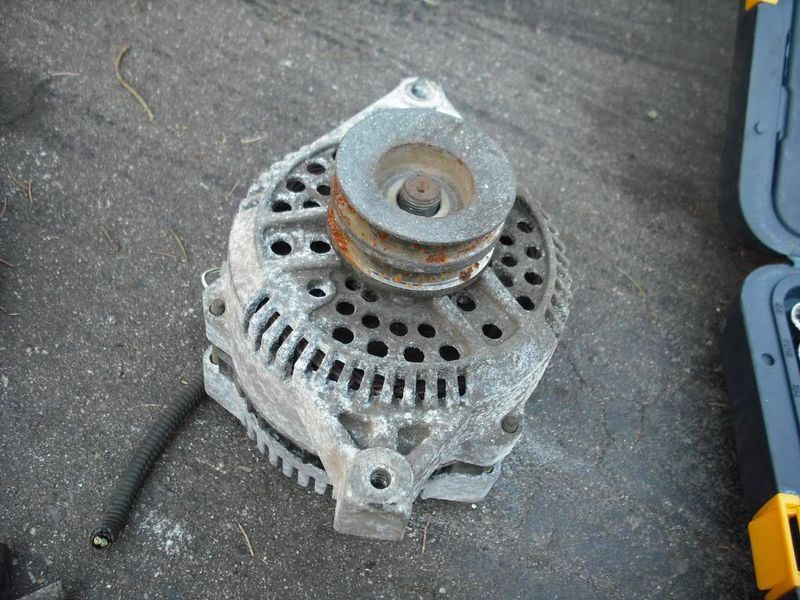

v belt pulley i grabbed from an old ford truck alt will i was at pickapart

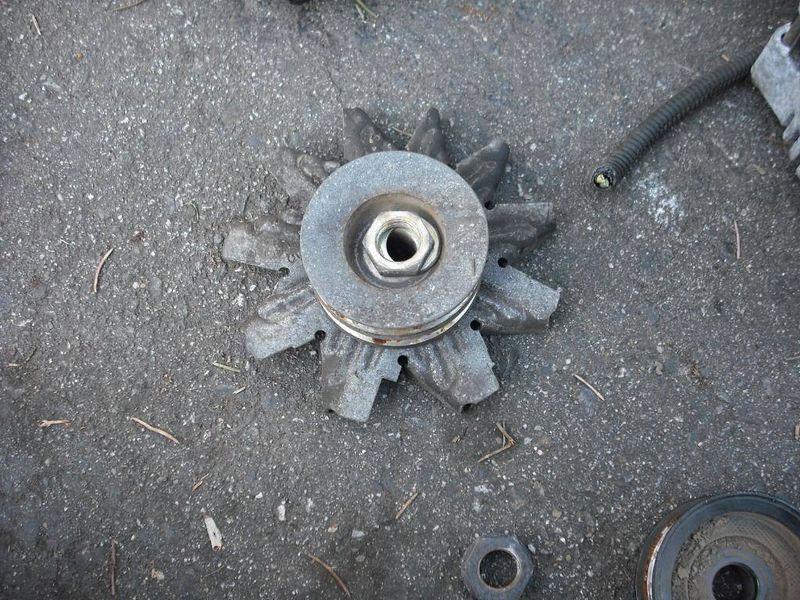

new pulley (only need a single, but this was all i could find, supposedly the mazda one works on these)

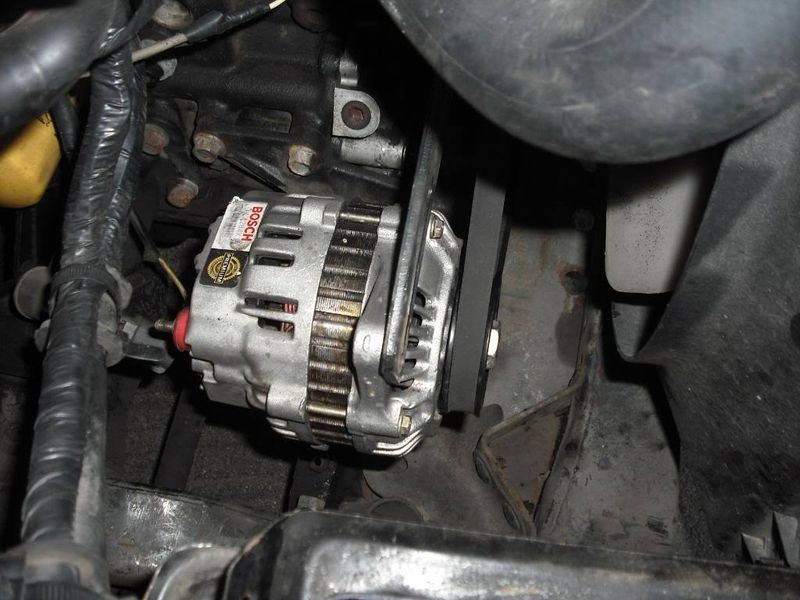

stock

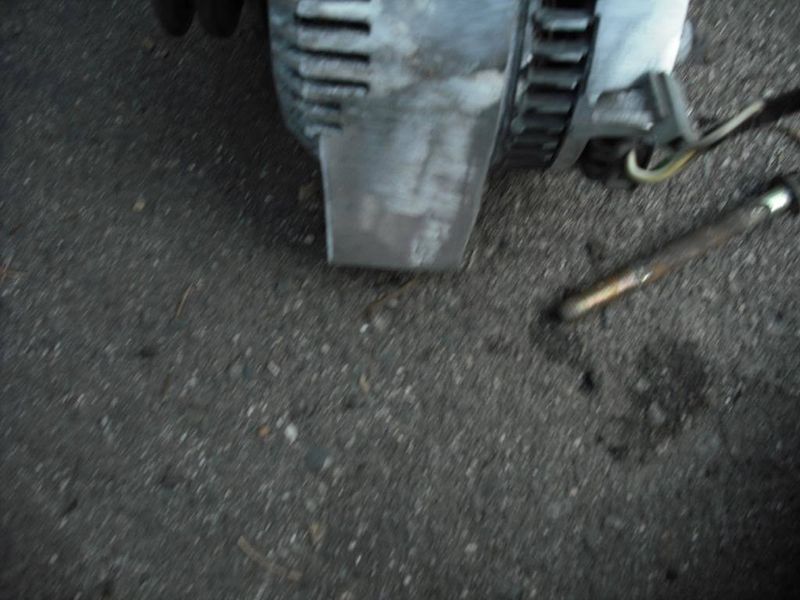

ground off about 3/8" of material so the belt would line up with the inner pulley

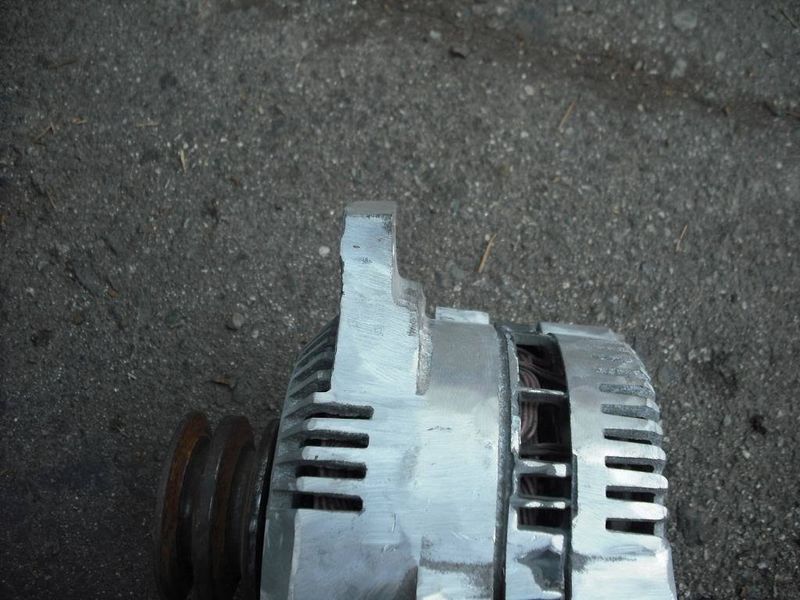

i had to grind off about a 1/4" from the pulley side of the mount for the top

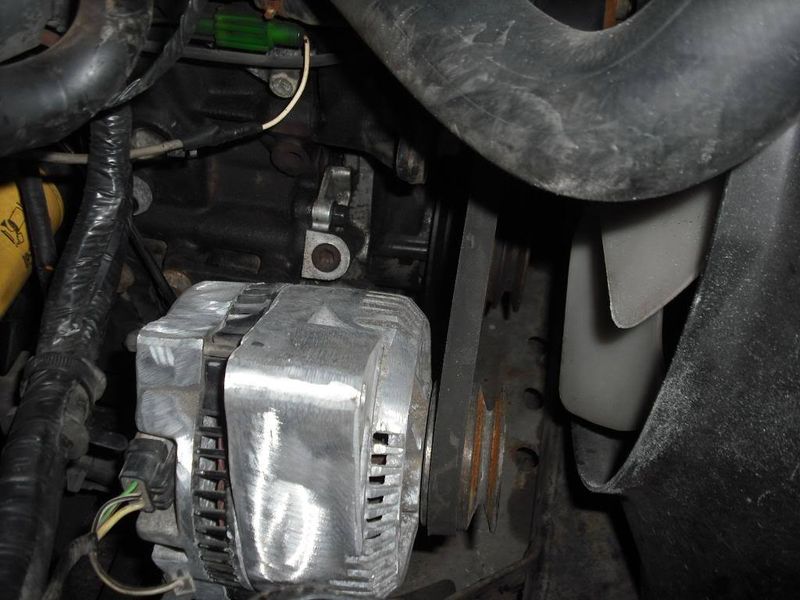

test fit

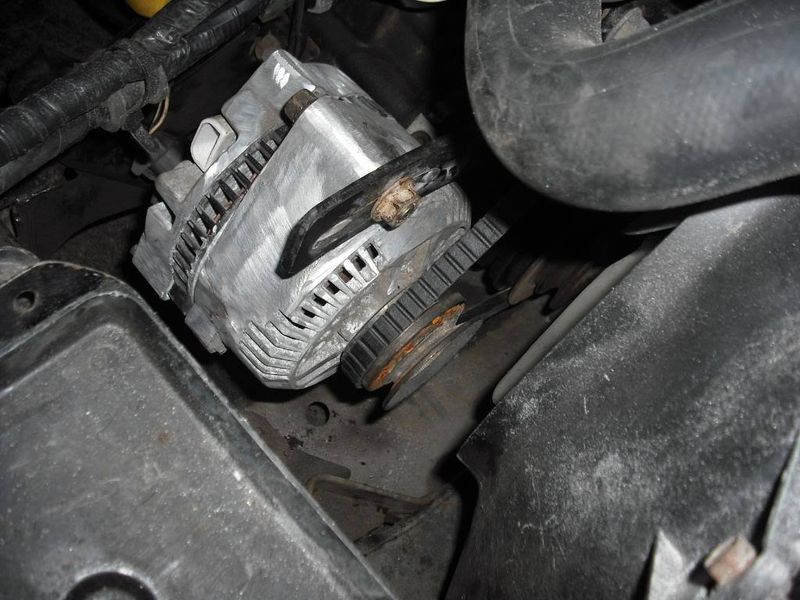

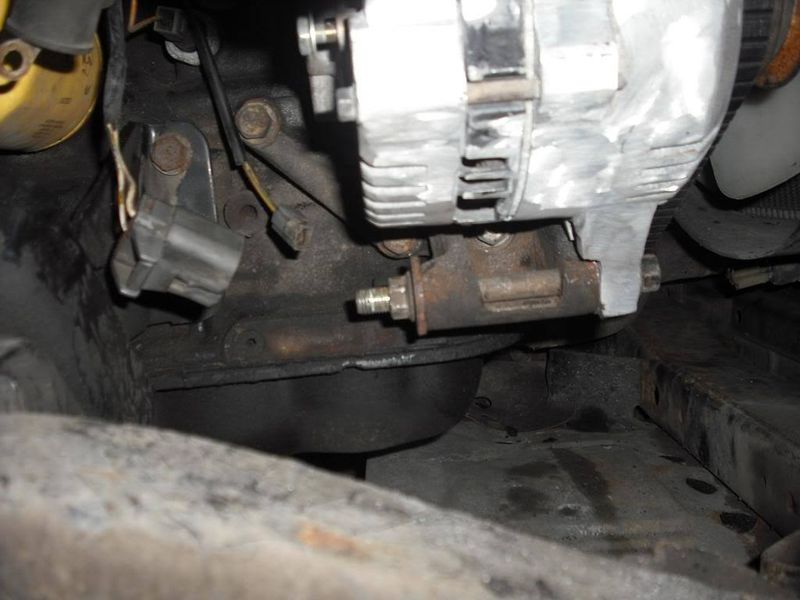

bottom mounting

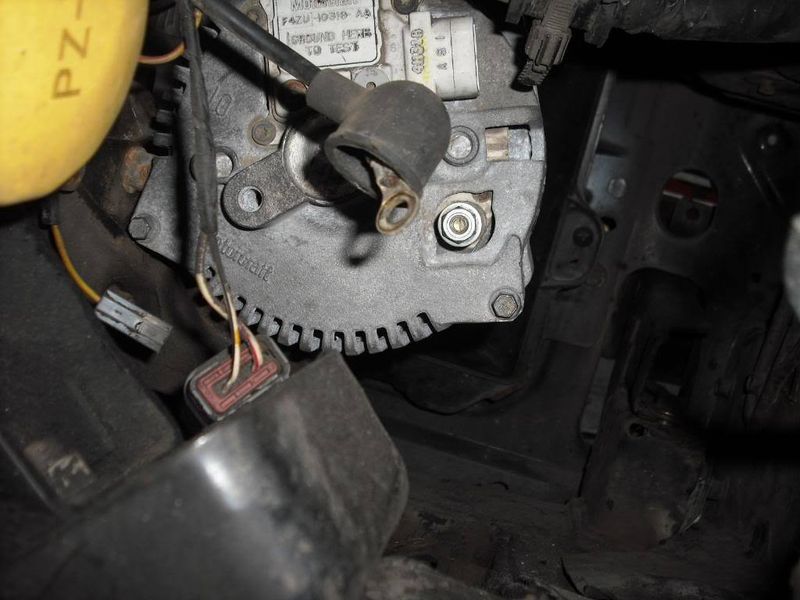

backside

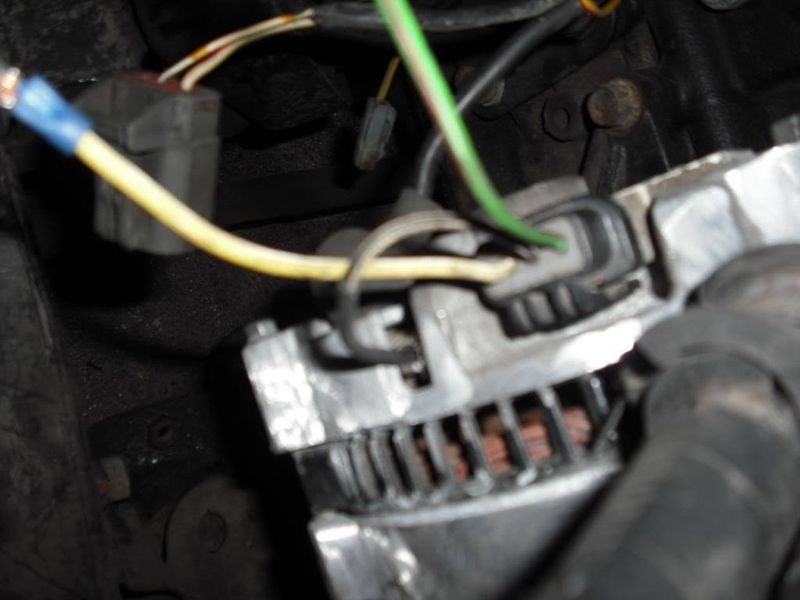

make sure you connect the middle wire from the plug over to the field. screwed this up the first time following the other directions, didn't work. works good now

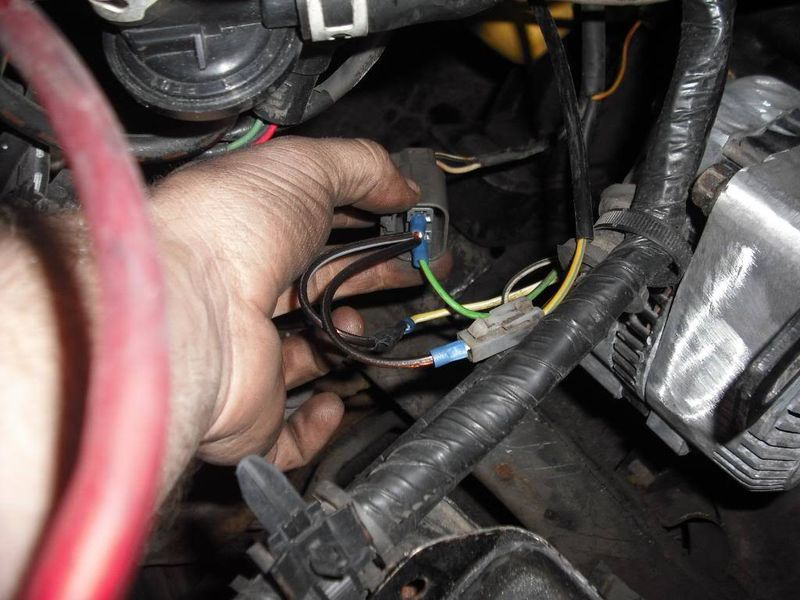

i made a little splice wire to run the choke for now on 12v+, not the proper way to do it, but it'll do for now

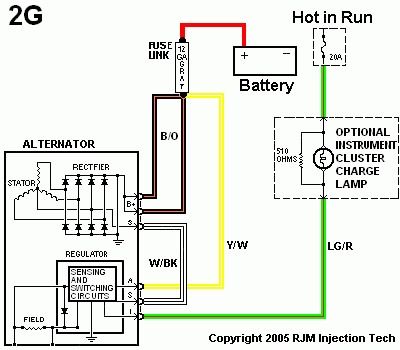

heres a wiring diagram for this style of alt

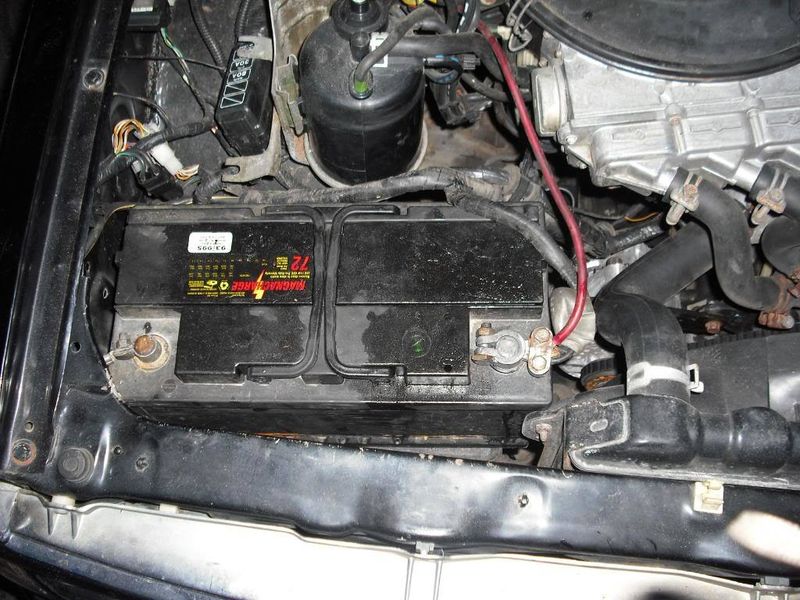

im also running this big mother of a battery so i'll never have a shortage of power. plus im running 2 gigantic compressors for my air system and now the lights don't even dim when they come on



[url=:iq9s8mpj]

enjoy
